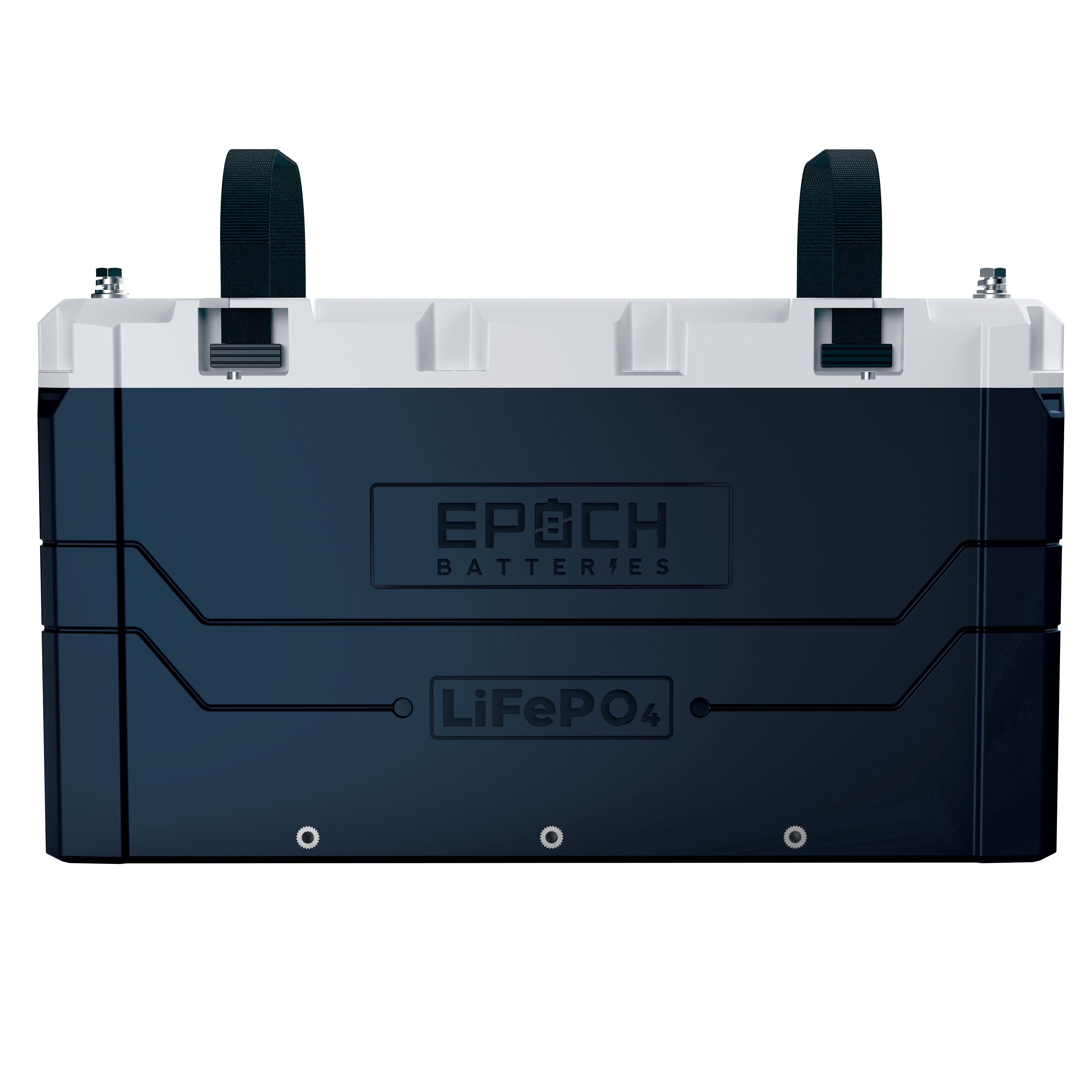

24V 230Ah (5.89kWh) V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
The 24V 230Ah (5.89kWh) V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery helps complete a more capable solar and off-grid power and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Victron System Component
- Best-use applications: solar and off-grid power and backup energy storage
- Notable features: Bluetooth monitoring support, built-in heating for cold-weather charging support, Victron-compatible system communication, and solar and off-grid system integration
- SKU: C24230A
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| 24V 230Ah (5.89kWh) V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery | |
| Model SKU | C24230A |
|---|---|
| MODEL | |
| 24V 230Ah Elite This model | 230Ah |
| Product Type | Battery |
| ELECTRICAL | |
| Series | Epoch V2 Elite Series |
| Battery type | Heated Bluetooth LiFePO4 battery with Victron communications |
| Chemistry | LiFePO4 / lithium iron phosphate |
| Cell type | Prismatic LiFePO4 |
| Cell configuration | 8S1P |
| Nominal voltage | 25.6V |
| Nominal capacity | 230Ah |
| Stored energy | 5,888Wh / 5.89kWh |
| Operating voltage range | 20.0V – 29.2V |
| Maximum charge voltage | 29.2V |
| Minimum voltage | 20.0V |
| Self-discharge | <3% per month |
| Max continuous discharge | 110A |
| Max discharge current | 500A for 30 seconds |
| Max continuous charge current | 230A |
| Max charge current | 400A for 5 seconds |
| Nominal continuous output power | Approx. 2,816W at 25.6V nominal voltage |
| Series connections | Maximum 2 batteries in series, up to 48V nominal |
| Parallel connections | Maximum 16 batteries in parallel, plug-and-play |
| Maximum 24V parallel bank | Up to 3,680Ah / approx. 94.2kWh with 16 matched batteries |
| Case flame rating | UL94-V0 |
| Internal fuse | Internal fuse with current and temperature protections |
| Absorption voltage | 28.4V |
| Float voltage | 27.0V |
| Re-bulk voltage | 26.6V |
| BMS high-voltage cutoff | 29.2V |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Bluetooth | Yes — iOS and Android app monitoring |
| Victron communications | Yes — CANBus / BMS-CAN communication with compatible Victron GX devices |
| Victron daisy-chain support | Up to 16 batteries in parallel on one compatible Victron-integrated system |
| Terminal torque | 8–12 Nm |
| PHYSICAL | |
| Battery group size | Group 8D footprint |
| Length | 20.86 in / 529.8 mm |
| Rounded product dimensions | Approx. 20.9 in L × 8.7 in W × 12.1 in H |
| Weight | 97 lbs / approx. 44 kg |
| Case material | ABS and PC blend |
| Enclosure protection | IP67 waterproof and dustproof |
| Terminal size | M8 |
| OPERATING LIMITS | |
| Cycle life | 3,500+ cycles |
| Charge temperature range | -30°C to 55°C / -22°F to 131°F, with self-heating |
| Cell charge temperature range | 0°C to 55°C / 32°F to 131°F |
| Discharge temperature range | -20°C to 55°C / -4°F to 131°F |
| Recommended storage temperature | 0°C to 35°C / 32°F to 95°F |
| Temperature compensation | Disabled / 0mV per °C |
| BMS protections | Overcharge, over-discharge, over-current, short-circuit, high-temperature, and low-temperature charge protection |
| Certifications / compliance | UL 1642 cells, UL 9540A cells, UL 1973 pack, UL 60691 fuse, IEC 62619:2022, CE, RoHS |
