Solar Panels in Series vs. Parallel: Which Wiring Setup Is Right for You?
A practical, plain-English guide to array voltage, current, MPPT compatibility, wire sizing, shading, overcurrent protection, and the limits that matter before you connect a single cable.
Choosing between series and parallel wiring is not a matter of one method being universally “better.” The right configuration is the one that places the array inside the safe operating window of the charge controller or power station while keeping cable losses, shading, expansion, and installation complexity under control.
At the most basic level, the difference is simple: series wiring adds voltage, while parallel wiring adds current. The consequences of that choice reach much further, affecting conductor size, connector count, voltage drop, cold-weather limits, startup behavior, and the way the array responds when one panel receives less sunlight than the others.
Series raises voltage. Parallel raises current. The total rated wattage remains approximately the same when identical panels operate under the same conditions.
Real-world output will still vary with sunlight, temperature, shading, orientation, wiring losses, and controller behavior.

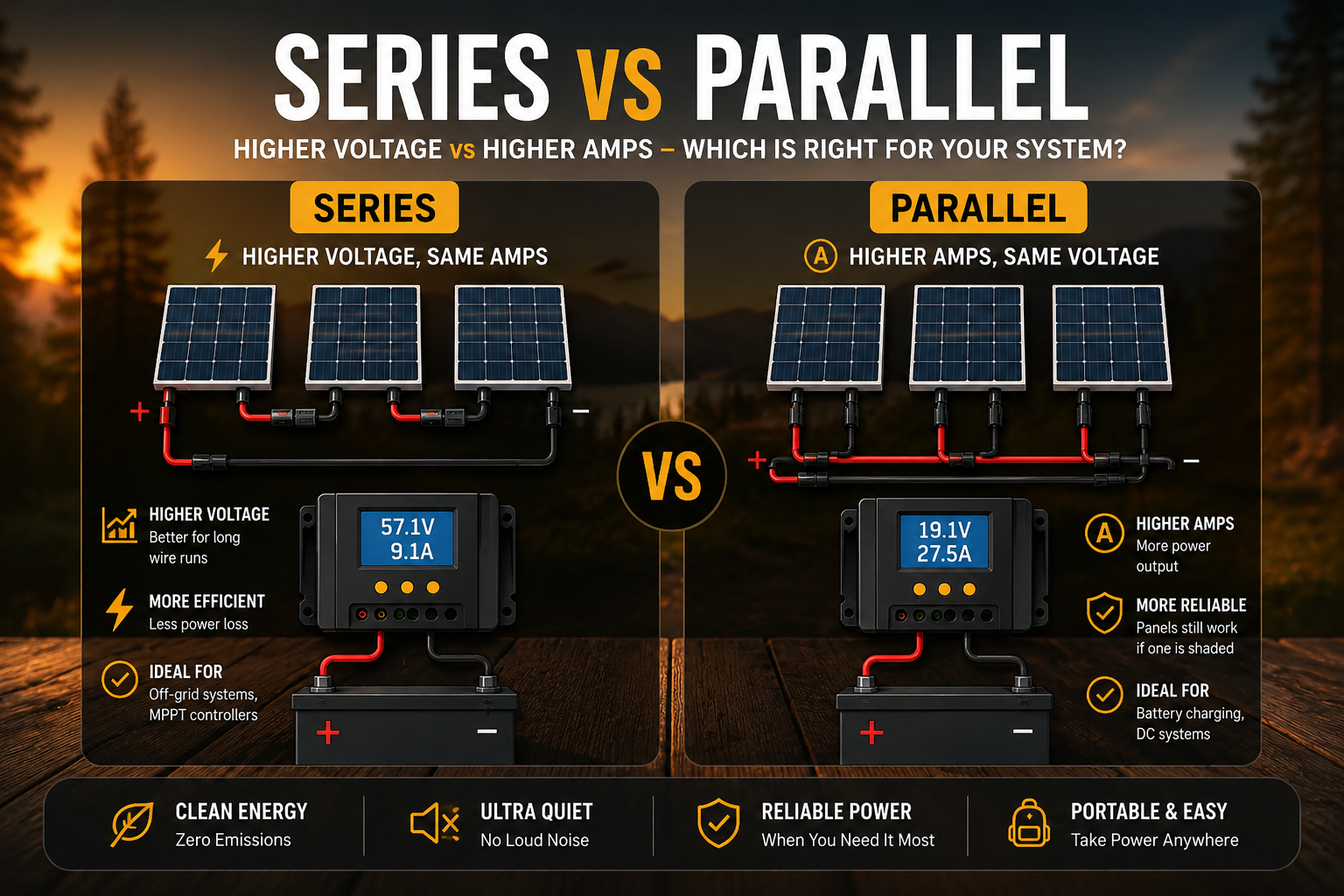

Series and Parallel at a Glance
Series Wiring
The positive lead of one panel connects to the negative lead of the next, creating one continuous string.
- Panel operating voltages add together.
- String current remains equal to the current of one panel.
- Higher voltage and lower current generally suit longer cable runs.
- The full string must remain below the controller’s maximum PV voltage.
Parallel Wiring
All positive leads are combined together, and all negative leads are combined separately.
- Panel currents add together.
- Array voltage remains equal to one panel’s voltage.
- Higher current usually requires larger conductors and higher-rated hardware.
- Each parallel branch can be less affected by reduced output from another branch.
Use the Right Numbers for the Right Job
Solar-panel specifications include several voltage and current values. Two describe normal operation, while two describe the outer limits used for equipment sizing and protection.
| Specification | What It Represents | How It Is Used |
|---|---|---|
| Vmp | Voltage at the panel’s maximum-power operating point. | Used to estimate normal array operating voltage. |
| Imp | Current at the panel’s maximum-power operating point. | Used to estimate normal array operating current. |
| Voc | Open-circuit voltage when the panel is not supplying a load. | Used to verify that series voltage remains below the controller’s absolute maximum, including cold-weather increase. |
| Isc | Short-circuit current under specified test conditions. | Used for controller input limits, conductor sizing, and overcurrent-protection calculations. |
Use Vmp and Imp to understand expected operating behavior. Use Voc and Isc—with the manufacturer’s required safety factors and temperature corrections—to confirm that the design is safe.
What Changes When Panels Are Connected?
Consider four identical panels, each rated at 200W with a 20V maximum-power voltage and 10A maximum-power current.
Voltage adds: 20V + 20V + 20V + 20V. Current remains 10A.
Current adds: 10A + 10A + 10A + 10A. Voltage remains 20V.
Both arrays have the same theoretical 800W rating. What changes is the voltage-to-current ratio, and that ratio determines whether the array fits the equipment and how demanding the wiring will be.
Solar Panels Wired in Series
In a series string, electricity follows one continuous path through every panel. The string voltage is the sum of the individual panel voltages, while the same current flows through the entire string.
Why series wiring is often attractive
- Lower array current: For the same total power, lower current reduces resistive loss and can make long cable runs easier to design.
- Higher PV voltage: The array may more easily exceed the MPPT controller’s startup and operating-voltage requirements.
- Simpler field wiring: A single string usually requires fewer branch connectors and fewer parallel conductors.
- Useful for higher-voltage MPPT inputs: Many modern controllers and portable power stations are designed to accept a defined PV voltage window.
Where series wiring can create problems
- Cold-weather overvoltage: Panel Voc rises as cell temperature falls. A string that appears safe at room temperature can exceed the controller’s limit on a cold, clear morning.
- Current mismatch: The string is constrained by its lowest-current panel or lowest-performing section.
- Uneven shading: Shade on one panel can pull down the string’s output, although bypass diodes and MPPT behavior influence how severe the loss becomes.
- Higher DC voltage: Increasing string voltage also increases shock and arc risk and demands appropriate disconnects, connectors, workmanship, and code compliance.
The most important series calculation is not total Vmp—it is the array’s temperature-corrected total Voc at the coldest expected conditions.
Solar Panels Wired in Parallel
In a parallel array, each panel or string feeds a common positive bus and a common negative bus. Voltage stays close to the voltage of one branch, while the branch currents combine.
Why parallel wiring can be the better choice
- Lower array voltage: Parallel wiring can keep the system inside a lower-voltage input range when a longer series string would exceed the controller’s limit.
- Better branch independence: Reduced output from one branch generally has less direct effect on the current available from the other branches.
- Useful in uneven conditions: Parallel branches may perform better when panels regularly receive different levels of shade, provided the electrical characteristics and controller design are appropriate.
- Expansion flexibility: Additional matching branches may be added when the controller, conductors, connectors, combiner, and protection devices are sized for the resulting current.
Where parallel wiring becomes more demanding
- Higher current: More current means greater voltage-drop pressure and often requires thicker wire.
- More hardware: Larger arrays may need branch connectors, a combiner box, disconnects, and individual string protection.
- Controller-current limits: The total array Isc must remain within the controller’s published input restrictions.
- Voltage mismatch: Panels or strings connected in parallel should have closely matched operating voltages.
Does Series Really Perform Better in Cloudy Weather?
Series wiring is sometimes described as automatically “better in clouds,” but that statement is too broad. Irradiance primarily changes the current a panel can produce, while panel voltage often remains comparatively stable until light becomes very weak, the panel becomes very hot, or heavy shade interferes with the string.
The practical advantage of a higher-voltage series string is that it can provide more voltage headroom above the MPPT controller’s startup and operating threshold. That may allow the controller to begin or continue charging under conditions where a low-voltage array falls below its required input window. It does not mean that series wiring creates additional sunlight or guarantees more energy in every cloudy or shaded installation.
What Happens When One Panel Is Shaded?
Shading is more complicated than the common claim that “one shaded panel shuts down the entire series array.” Modern panels typically contain bypass diodes that allow current to route around shaded cell groups. Those diodes can preserve part of the string’s output, but they also change the string’s power-voltage curve and reduce available power.
In Series
A heavily shaded panel or cell group can restrict string current until a bypass diode conducts. The string may continue operating, but at a reduced voltage and power level.
In Parallel
A shaded branch can contribute less current while other branches continue operating. Actual performance still depends on panel matching, branch voltage, bypass diodes, and the controller’s MPPT algorithm.
Where panels face different directions or experience predictable, uneven shade, separate MPPT inputs are often cleaner than forcing every panel into one combined array.
Wire Sizing, Voltage Drop, and Connectors
For a given power level, increasing voltage allows current to fall. Because conductor loss rises with the square of current, the higher-current parallel arrangement can require significantly larger cable to achieve the same voltage-drop target over the same distance.
| Design Factor | Series | Parallel |
|---|---|---|
| Array voltage | Higher; panel voltages add. | Lower; voltage remains close to one branch. |
| Array current | Lower; current remains equal to one string. | Higher; branch currents add. |
| Long cable runs | Often easier because current is lower. | May require substantially larger conductors. |
| Connectors | Usually fewer branch connectors. | Usually more branch or combiner hardware. |
| Primary limit | Maximum PV voltage, especially cold-corrected Voc. | Maximum PV current, connector rating, and conductor capacity. |
Wire size must be calculated from the actual circuit current, conductor length, allowable voltage drop, insulation temperature rating, installation method, and applicable electrical code. Do not choose cable solely from panel wattage.
Fuses, Breakers, Disconnects, and Parallel Strings
A single series string generally does not create the same backfeed concern as several strings connected in parallel. In a multi-string parallel array, healthy strings can feed current into a faulted string. Whether each branch requires a fuse or breaker depends on the number of strings, the panel’s maximum series-fuse rating, the available fault current, the controller design, and the applicable electrical code.
Use DC-rated devices with voltage and interrupt ratings suitable for the array. Follow the solar-panel, controller, combiner, connector, and power-station manufacturer instructions exactly.
PV modules can produce voltage whenever they are illuminated. Do not mate or separate PV connectors under load, and never assume that switching off the inverter or battery has de-energized the panel wiring.
How to Check a Charge Controller or Power Station
Find the PV input voltage window
Identify the minimum operating or startup voltage and the absolute maximum open-circuit voltage.
Calculate normal operating voltage
Add panel Vmp values for panels in series. Parallel branches do not add voltage.
Calculate cold-weather maximum voltage
Add panel Voc values in each string and apply the manufacturer’s temperature correction for the coldest expected condition.
Calculate available array current
Add branch Imp for expected operating current and branch Isc for controller, conductor, and protection checks.
Check total input power
Confirm the array wattage and any allowed oversizing against the manufacturer’s published PV input specifications.
Verify connectors and polarity
Use compatible connectors, correct polarity, properly rated cable, and manufacturer-approved adapters.
Four 200W Panels on an MPPT Input
200W • Vmp 20V • Imp 10A • Voc 24V • Isc 10.6A
Four in series: approximately 80V Vmp, 10A Imp, 96V Voc, and 10.6A Isc before temperature correction.
Four in parallel: approximately 20V Vmp, 40A Imp, 24V Voc, and 42.4A Isc before any required design factors.
The series arrangement would be unsuitable for a controller whose cold-condition maximum is below the corrected string Voc. The parallel arrangement would be unsuitable for a controller, connector, or conductor system that cannot accept the resulting current.
Can Different Solar Panels Be Mixed?
Mixing panels is possible, but mismatched electrical characteristics can leave available power unused.
Mixed in Series
The string current is constrained by the lowest-current panel. Panels with similar Imp ratings are generally the better match.
Mixed in Parallel
Branches are forced to operate at a shared voltage. Panels or strings with closely matched Vmp values are generally the better match.
When arrays differ substantially in panel type, orientation, tilt, or shading, placing them on separate MPPT inputs is usually more effective than combining them on one tracker.
Which Wiring Method Should You Choose?
Series is often the better fit when:
- The controller accepts the full cold-corrected string Voc.
- The array must cover a longer cable distance.
- The panels receive similar sunlight and share a similar orientation.
- You want lower array current and simpler field wiring.
- The controller requires more PV voltage than one panel can provide.
Parallel is often the better fit when:
- A series string would exceed the controller’s voltage limit.
- Panels regularly experience different shading conditions.
- The installation must remain at a lower array voltage.
- The controller and cabling can safely handle the combined current.
- Branch-level independence is more valuable than minimizing cable size.
Many larger systems use a series-parallel configuration: panels are connected into series strings to reach an efficient operating voltage, and multiple matched strings are then connected in parallel to increase total array power without exceeding the controller’s voltage limit.
Series vs. Parallel FAQ
Do panels charge a battery faster in series or parallel?
Neither wiring method is inherently faster when the total panel wattage is the same and both configurations operate efficiently within the controller’s limits. Charging performance depends on available solar power, controller behavior, cable loss, shading, temperature, and battery state of charge.
Does series wiring produce more watts?
No. Series wiring changes the balance of voltage and current; it does not increase the nameplate wattage of the panels. It may reduce wiring losses or better match an MPPT input, which can improve delivered energy in a properly designed system.
Does parallel wiring always solve shading problems?
No. Parallel wiring can reduce the effect one shaded branch has on the others, but panel design, bypass diodes, orientation, branch voltage, and MPPT behavior still matter.
Can I exceed a controller’s solar wattage rating if voltage and current are safe?
Only when the manufacturer explicitly allows PV oversizing and the design remains within every published voltage, current, connector, and environmental limit. Never assume that unused excess power makes an oversized array automatically safe.
Are portable power stations wired the same way as standard charge controllers?
The electrical principles are the same, but portable power stations may have strict voltage, current, wattage, connector, and adapter limits. Always use the specifications for the exact model and input port.
Final Thoughts
The best solar-array configuration is not chosen by habit. It is chosen by calculating the array’s operating voltage, cold-weather open-circuit voltage, operating current, short-circuit current, cable requirements, and controller limits—then considering how the panels will actually be mounted, shaded, and expanded.
Series wiring is often cleaner and more efficient for longer cable runs. Parallel wiring can be more forgiving when branches operate under uneven conditions. A series-parallel design can provide the right balance for larger arrays. The correct answer is the configuration that remains safely inside every equipment limit while delivering reliable energy in the real installation.
This guide is intended for general educational purposes. Solar-array voltage and current can create shock, arc, and fire hazards. Follow all manufacturer instructions and applicable electrical codes, and use a qualified solar installer or electrician when required.
