PECRON WB12200 Lithium 12V 200Ah Deep Cycle LiFePO4 Battery - WB12200

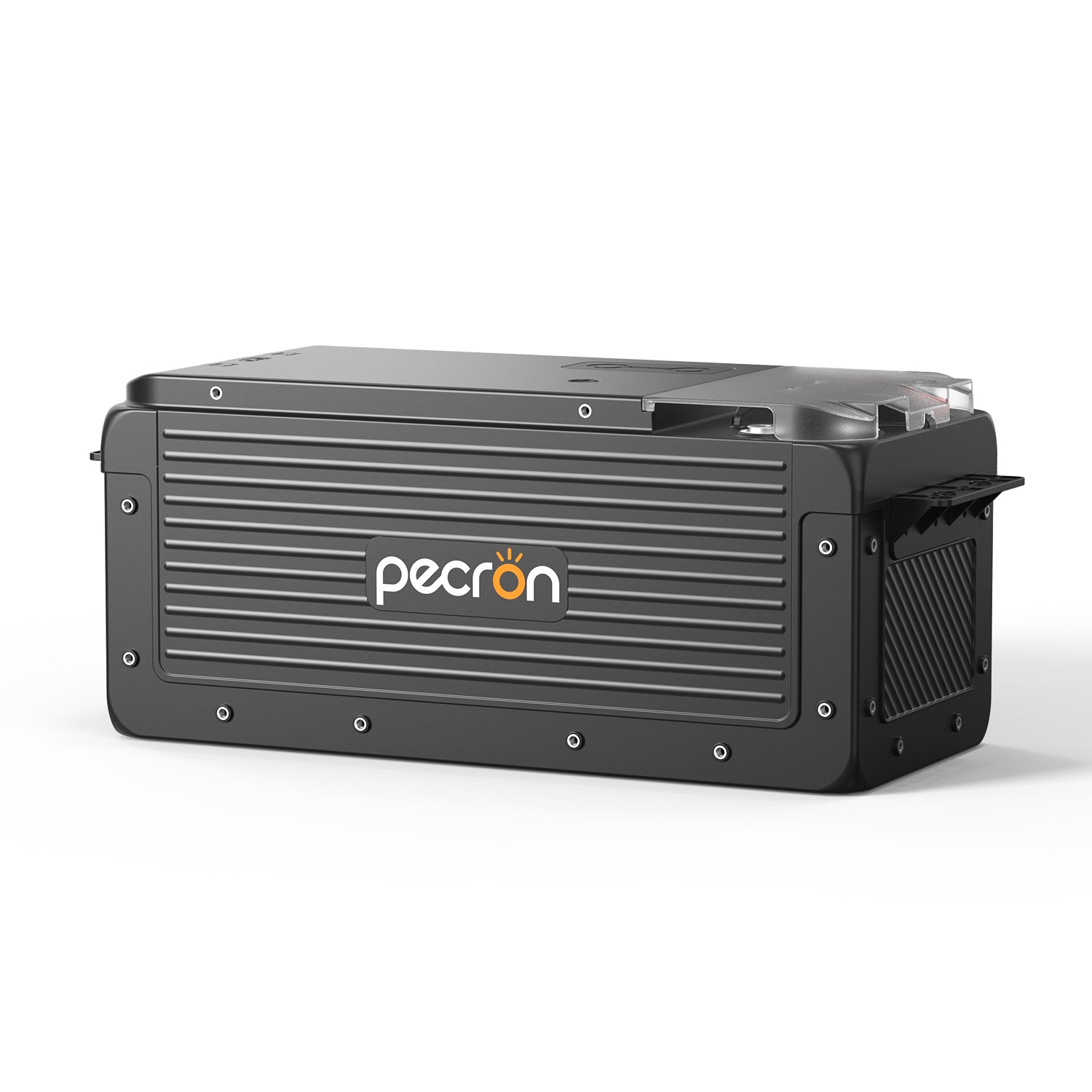

PECRON WB12200 Lithium 12V 200Ah Deep Cycle LiFePO4 Battery
Smart deep-cycle LiFePO4 energy storage for compatible RV, marine, cabin and home backup systems.
Smart LiFePO4 Capacity for RV and Backup Power
The 12V 200Ah battery provides 2560Wh of stored energy with compatible expansion potential, smart monitoring and safety-focused battery management.

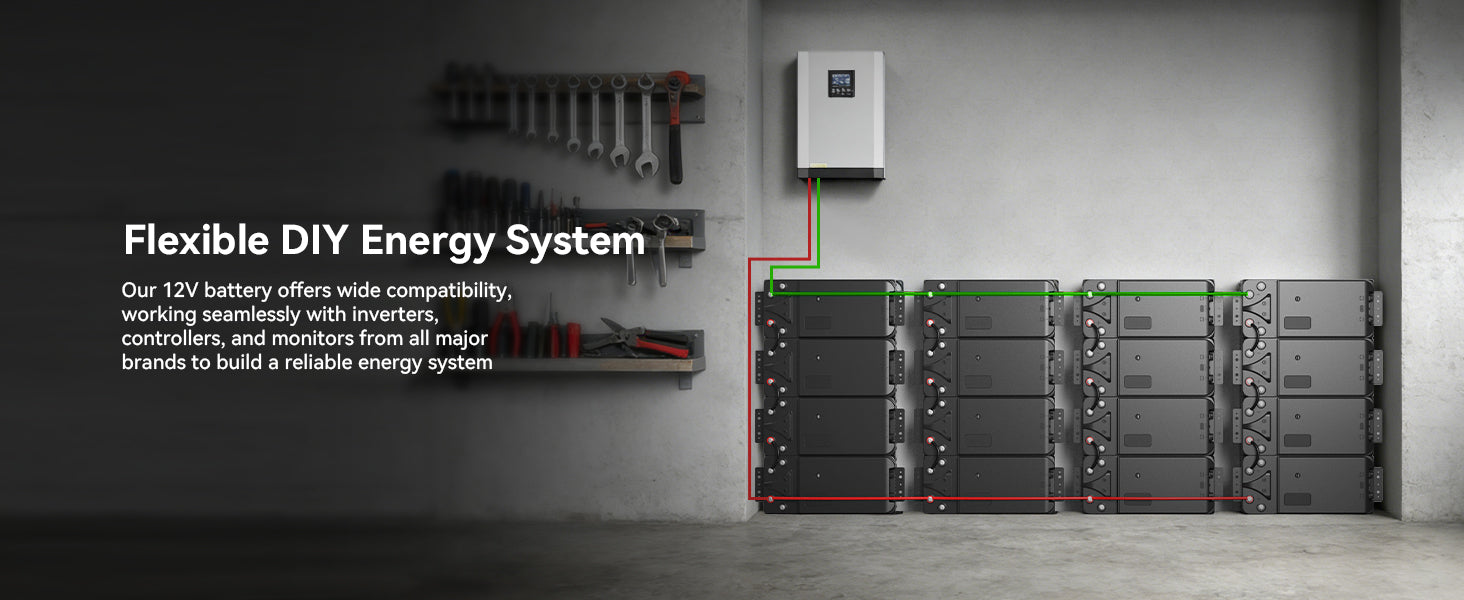

Flexible DIY Energy System
Use the 12V battery with compatible inverters, charge controllers and monitoring equipment in off-grid or backup energy applications.
High-Power Connection Design
Binding posts and integrated protection features help support secure compatible energy-system connections.
Power for Home, RV and Marine Settings
Support compatible cabins, campers, boats and renewable-energy systems with deep-cycle stored power.
Dual-Mode Battery Heating
Heating support is designed to help maintain suitable operating conditions in colder environments.
Smart App Monitoring
Review supported battery information and operating controls through connected app functionality.
Battery Management Protection
Integrated battery management safeguards are designed to protect compatible stored-energy use.
| Specifications | |
| Model SKU | WB12200 |
|---|---|
| Weight | Around 22 kg / 48.5 lb |
| Dimensions | L536 × W210 × H212 mm / L21.1 × W8.3 × H8.3 in |
| Charge Temperature | -20°C to 45°C / -4°F to 113°F |
| Discharge Temperature | 0°C to 45°C / 32°F to 113°F |
| Storage Ambient Temperature | 0°C to 45°C / 32°F to 113°F |
| Warranty | 3+2 Years |
| Capacity | 2560Wh / 12.8V 200Ah |
| Cell Chemistry | LiFePO4 |
| Intelligent Management | Automatic battery heating |
| Cycle Life | 3500 cycles to 80%+ capacity |
| Maximum Operating Altitude | 3000 m |
| Waterproof Rating | IP54 |
| DC Output - Binding Posts | 2 pcs, 10–14.4V DC, 200A Max |
| DC Output - XT90 | 1 pc, 50A Max |
| DC Input - Binding Posts | 2 pcs, 14.2V DC, 100A Max |
| DC Input - XT90 | 1 pc, 50A Max |
