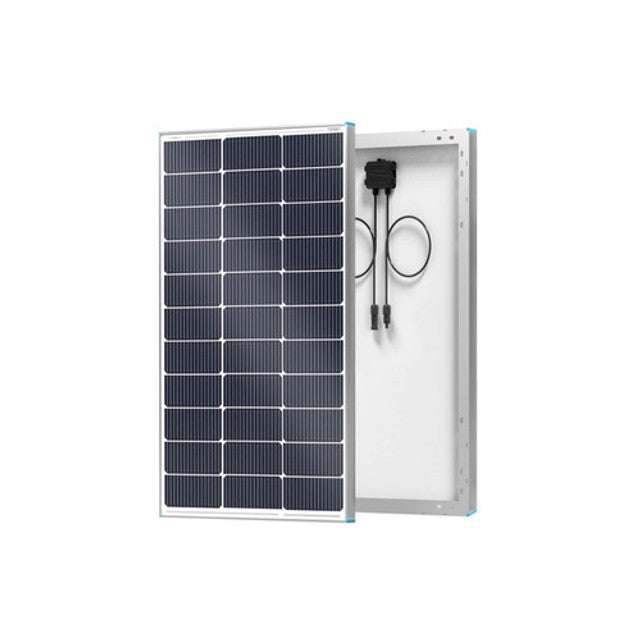

Renogy 100W 12V 16BB N-Type Monocrystalline Solar Panel - 1 Panel
The Smart Start to Your Solar Journey
Renogy N-Type rigid panels balance strong output with efficient system cost in a compact design suited to vehicle-mounted and off-grid solar installations.
Made to Fit Your Van Life
Panel sizes are designed for common vehicle roof layouts, supporting space-efficient installation across Class B vans, SUVs and minivans.
Advanced N-Type Performance with Less Loss
N-Type cell technology delivers higher conversion efficiency, stronger heat tolerance and stable long-term output compared with traditional PERC cell technology.
Premium Materials for Long-Term Reliability
Protective solar-panel layers, tempered low-iron glass, an aluminum frame and weather-resistant electrical components support reliable use through years of travel and outdoor exposure.
Wind and Snow Resistance
Built to handle demanding outdoor conditions, the panel is rated for 2,400 Pa wind loads and 5,400 Pa snow loads.
Waterproof Protection for Outdoor Use
An IP65-rated junction box and IP67 connectors help protect the panel from dust, rain and moisture during all-weather use.
Strong Enough for Rough Roads
A durable aluminum alloy frame supports long-term use through bumps, vibrations and changing travel conditions.
Faster Installation with Reinforced Corners
Reinforced frame corners strengthen high-stress points, supporting a more secure setup and helping reduce impact damage during transport and installation.
Versatile Solar Power for Home and Travel
Use the N-Type panel series across mobile and fixed applications shown in the source description, including RV, marine and home solar installations.
| RSP100DC 100W Monocrystalline Solar Panel | |
| Model SKU | RSP100DC-G1-US |
|---|---|
| Electrical Data | |
| Maximum Power at STC | 100W |
| Optimum Operating Voltage (Vmp) | 19.97V |
| Optimum Operating Current (Imp) | 5.01A |
| Open-Circuit Voltage (Voc) | 22.79V |
| Short-Circuit Current (Isc) | 5.31A |
| Module Efficiency | 20.0% |
| Maximum System Voltage | 600VDC (UL) |
| Maximum Series Fuse Rating | 15A |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline (7.2 x 2.9 in) |
| Number of Cells | 33 (3 x 11) |
| Dimensions | 865 x 578 x 30mm / 34.1 x 22.8 x 1.2 in |
| Weight | 5.9kg / 13.0 lbs |
| Front Glass | Tempered Glass 0.13 in / 3.2mm |
| Frame | Anodized Aluminium Alloy |
| Connectors | Solar Connectors |
| Fire Performance | Type 1 |
| Thermal Characteristics | |
| Operating Temperature Range | -40°C to 85°C / -40°F to 185°F |
| Nominal Operating Cell Temperature (NOCT) | 47 ± 2°C |
| Temperature Coefficient of Pmax | -0.32% / °C |
| Temperature Coefficient of Voc | -0.26% / °C |
| Temperature Coefficient of Isc | 0.046% / °C |
| Solar Connectors | |
| Rated Current | 22A |
| Maximum Voltage | 1,000V DC |
| Maximum AWG Size Range | 10 AWG |
| Temperature Range | -40°C to 90°C / -40°F to 194°F |
| IP Rating | IP67 |
| Junction Box | |
| IP Rating | IP65 |
| Diode Type | 15SQ045 |
| Number of Diodes | 2 |
| Output Cables | 14 AWG, 600mm / 23.6 in |
| Certifications | |
| CE, EN IEC61730, EN IEC61215, ISO 9001 | Yes |
