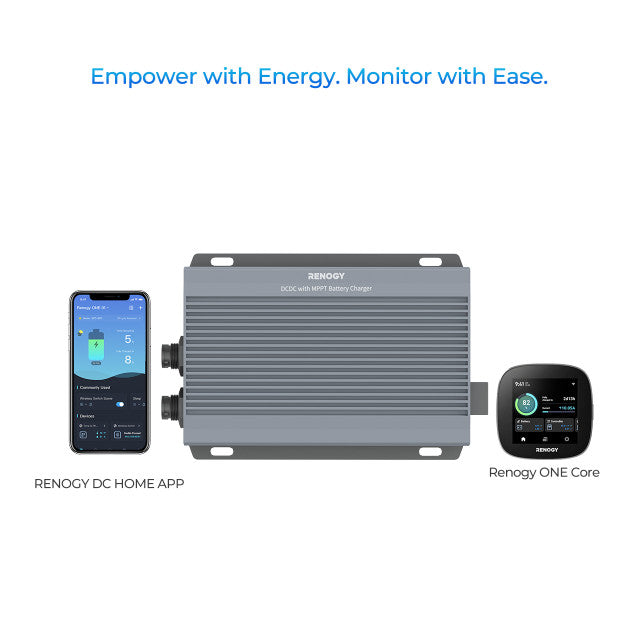

Renogy 12/24V IP67 50A DC to DC Battery Charger w/ MPPT & ONE Core
12V/24V IP67 50A DC to DC Battery Charger with MPPT
Built for vehicle based power systems, this dual input charger combines alternator and solar charging with IP67 protection and smart system monitoring through the included Renogy ONE Core option.
Intelligent Dual Charging for Life on the Move
Charge a compatible house battery from both your vehicle alternator and solar panels, helping maintain dependable power while travelling, camping or operating off grid.
Flexible 12V and 24V System Compatibility
Designed for compatible 12V and 24V charging systems, this charger supports installation across RVs, trucks, vans and marine power setups.
Compact Design for Easier Installation
The compact charger body is designed to fit more easily into limited installation spaces while supporting a clean vehicle power system layout.
High Output Charging Performance
Delivering up to 50A charging current and the charging performance shown in Renogy's live product media, this charger is designed to restore compatible battery power efficiently while you travel.
Integrated Protection for Confident Charging
Built in safeguards help protect against over voltage, over current, reverse current, overheating and reverse connection conditions in compatible installations.
Built for Demanding Outdoor Conditions
Designed for mobile power environments, the charger is presented with resistance to impact, temperature extremes and water exposure for dependable operation on the road or water.
MPPT Solar Charging for Greater Energy Capture
Integrated MPPT charging is designed to track available solar power efficiently and direct usable energy toward a compatible house battery while travelling.
| Specifications | |
| Model SKU | KIT-RBC2125DS-W02W-US |
|---|---|
| System Voltage | 12V/24V to 12V/24V DC |
| Nominal Output Power | 720W |
| Battery Voltage Range | 9V to 32V DC |
| Maximum Charging Current | 50A @ 12V; 25A @ 24V |
| Battery Type | SLD, AGM, GEL, FLD, LI, USER |
| Auxiliary Battery Charging Mode | MPPT |
| Nominal Charging Efficiency | 12V Batteries: ≥94%; 24V Batteries: ≥92% |
| Max. Solar Input Voltage | 50V |
| Max. Alternator Input Voltage | 32V |
| Operating Temperature Range | -31°F to 176°F / -35°C to 80°C |
| Storage Temperature | -40°F to 176°F / -40°C to 80°C |
| No Load Current | <100mA |
| Humidity | 0% to 95% RH, No Condensation |
| Dimensions | 7.01 x 4.78 x 1.47 in / 178.2 x 121.5 x 37.5mm |
| Weight | 4.10 lbs / 1.86kg |
| Certifications | |
| CE, RoHS, FCC Part 15 Class B | Yes |
