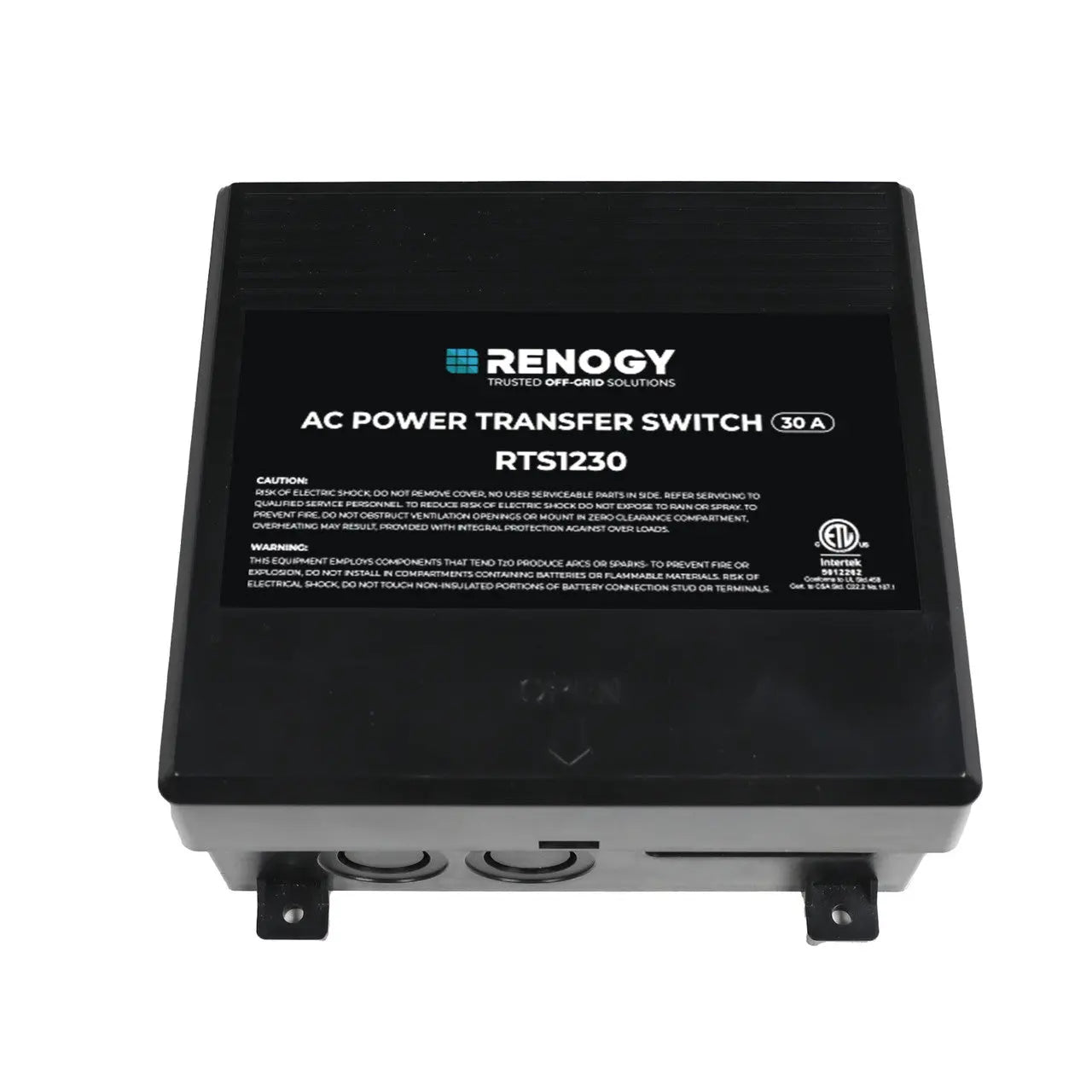

Renogy 120V 30 Amp Automatic Transfer Switch
$102.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
120V 30 Amp Automatic Transfer Switch
Automatically switch between compatible power sources with a Renogy transfer switch designed for suitable RV and off-grid power setups. Its heat-resistant construction, installation-friendly design and built-in time delay support dependable automatic power transitions.
Package Includes
1x Renogy 120V 30 Amp Automatic Transfer Switch
Includes the selected item based on the current package option.
| 120V 30 Amp Automatic Transfer Switch | |
| Model SKU | RTS1230-G1-US |
|---|---|
| Electrical Parameters | |
| Rated Current | 30A |
| Rated Voltage | 120VAC, 60Hz |
| Switch Type | Relay, 20-30 sec Delay |
| RMS Symmetrical Amps | 3000A |
| Mechanical Specifications | |
| Shell Material | ABS |
| Mounting Aperture | 4 x M5 |
| Knockout Holes | 10 |
| Knockout Size | 0.91 in |
| Dimensions | 8 x 8 x 3 in |
| Weight | 2.36 lb |
| Certifications | |
| Meets Standards | ETL |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
