Renogy

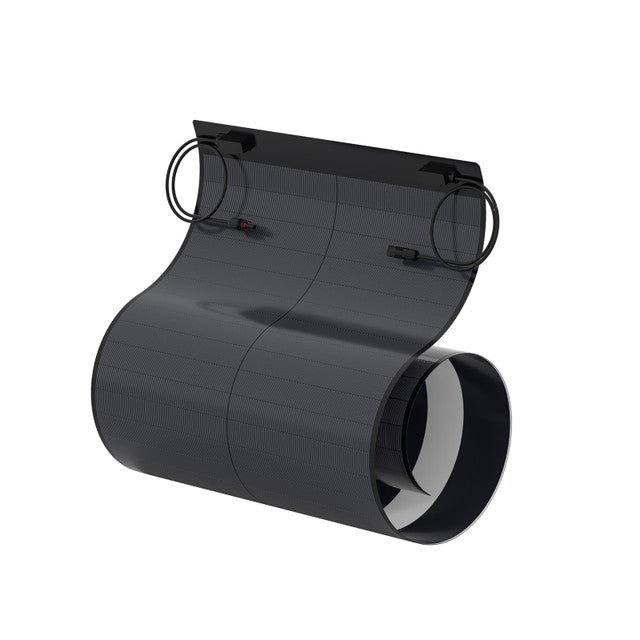

Renogy 150W 12V CIGS Flexible Solar Panel
$594.69
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
Renogy Ultra-Flex 150 Watt CIGS Solar Panel is the most shockproof and pressure-resistant ultra-flex solar panel. Utilizing cutting-edge CIGS technology, it delivers unmatched durability & exceptional anti-shading ability.
It is built to withstand harsh weather, corrosion, and even microcracks from footsteps or other impacts.
This CIGS 150W solar panel excels in anti-shading performance, delivering peak output in various lighting conditions, and seamlessly integrates with diverse roof shapes due to its 360-degree bending capability and multi-module series connection.
The adhesive mounting simplifies installation without screws, reducing wear and tear. Renogy CIGS 150W flexible panels will be your most economical long-term investment yet.
Package Includes
1x Renogy 150W 12V CIGS Flexible Solar Panel
Includes the selected item based on the current package option.
| Specifications | |
| Model SKU | RSP150MCB-BB-T-G1-US |
|---|---|
| Module Performance | |
| Max Power at STC | 150W |
| Module Efficiency | 14% |
| Open Circuit Voltage | 23.75V |
| Short Circuit Current | 9.34A |
| Optimum Operating Voltage | 18.66V |
| Optimum Operating Current | 8.04A |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Cell Type | Monocrystalline |
| Environmental Data | |
| Operating Temperature | -40°F~185°F / -40℃~85℃ |
| Junction Box | IP68 |
| MC4 Solar Connectors | IP68 |
| Mechanical Specifications | |
| Dimensions | 65.3 x 25.4 x 0.06 in / 1658 x 646 x 1.5 mm |
| Weight | 6.61 lbs / 3.0kg |
| Warranty | |
| Material and Workmanship Warranty | 5 Years |
| Performance Warranty | 5-Year 90% Output Warranty; 25-Year 80% Output Warranty |
| Certifications | |
| CE | YES |
| Manufactured in a Certified ISO 9001 Facility | YES |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
