Renogy 16BB N-Type 200W 24V Solar Panel - 1 Panel

Brand Renogy In Stock

$179.99 In Stock

No sales tax collected at checkout where applicable.

Bundle Option Choose your bundle

Quantity

5% off Save an extra 5% today! Copy this code and apply it at checkout when eligible. Code: GET5

Estimated delivery Calculating current delivery window…

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty

Key features

Maximum Power at STC 200W
Optimum Operating Voltage (Vmp) 31.03V
Optimum Operating Current (Imp) 6.45A

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

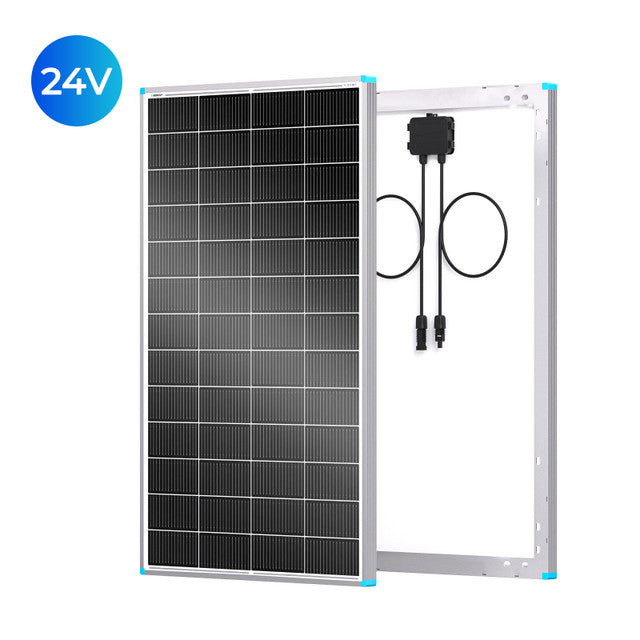

Renogy 16BB N-Type 200W Solar Panel

The Renogy 16BB N-Type 200W 24V Solar Panel is a rigid monocrystalline panel for building off-grid solar and backup-power systems. It delivers 200W maximum power at STC and uses N-Type cells with a 16-busbar design. Choose the 1-panel, 2-panel, or 4-panel configuration to match your array requirements.

Electrical Ratings for System Planning

The panel's electrical ratings support system planning and controller selection: 31.03V optimum operating voltage, 6.45A optimum operating current, 37.44V open-circuit voltage, and 6.85A short-circuit current. The module efficiency is 20.7%, with a 600VDC maximum system voltage and 15A maximum series fuse rating.

N-Type and 16BB Cell Design

The half-cut cell design is presented as reducing power loss and improving shade tolerance, while the 16-busbar layout is presented as supporting durability and a longer lifespan. These design features make the panel a practical option for fixed solar installations where array construction and long-term panel construction matter.

Dimensions, Construction, and Connections

For installation planning, the panel measures 49.7 × 30.1 × 1.2 inches and weighs 23.4 pounds. It uses an anodized aluminium alloy frame, tempered 3.2mm front glass, solar connectors, and 14 AWG output cables measuring 700mm. The connectors are IP67 rated, while the junction box is IP65 rated; the listed operating temperature range is -40°F to 185°F.

Package Includes

1x Renogy 16BB N-Type 200W 24V Solar Panel - 1 Panel

Includes the selected item based on the current package option.

RSP200DC 200W Monocrystalline Solar Panel
Model SKU	RSP200DC-G1-US
Electrical Data
Maximum Power at STC	200W
Optimum Operating Voltage (Vmp)	31.03V
Optimum Operating Current (Imp)	6.45A
Open-Circuit Voltage (Voc)	37.44V
Short-Circuit Current (Isc)	6.85A
Module Efficiency	20.7%
Maximum System Voltage	600VDC
Maximum Series Fuse Rating	15A
Mechanical Data
Solar Cell Type	Monocrystalline (7.2 x 3.6 in)
Number of Cells	52 (4 x 13)
Dimensions	1,262 x 764 x 30mm / 49.7 x 30.1 x 1.2 in
Weight	10.6kg / 23.4 lbs
Front Glass	Tempered Glass 0.13 in / 3.2mm
Frame	Anodized Aluminium Alloy
Connectors	Solar Connectors
Fire Performance	Type 1
Thermal Characteristics
Operating Temperature Range	-40°C to 85°C / -40°F to 185°F
Nominal Operating Cell Temperature (NOCT)	45 ± 2°C
Temperature Coefficient of Pmax	-0.32% / °C
Temperature Coefficient of Voc	-0.26% / °C
Temperature Coefficient of Isc	0.046% / °C
Solar Connectors
Rated Current	22A
Maximum Voltage	1,000V DC
Maximum AWG Size Range	10 AWG
Temperature Range	-40°C to 90°C / -40°F to 194°F
IP Rating	IP67
Junction Box
IP Rating	IP65
Diode Type	15SQ045
Number of Diodes	2
Output Cables	14 AWG, 700mm / 27.6 in
Certifications
CE, EN IEC61730, EN IEC61215, ISO 9001	Yes
