Renogy 175W 12V Flexible Monocrystalline Solar Panel

Name: Renogy 175W 12V Flexible Monocrystalline Solar Panel
Brand: Renogy
SKU: RNG-175DB-H-G2-US
Price: 162.34 USD
Availability: InStock

Brand Renogy In Stock

$162.34 In Stock

No sales tax collected at checkout where applicable.

Quantity

5% off Save an extra 5% today! Copy this code and apply it at checkout when eligible. Code: GET5

Estimated delivery Calculating current delivery window…

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

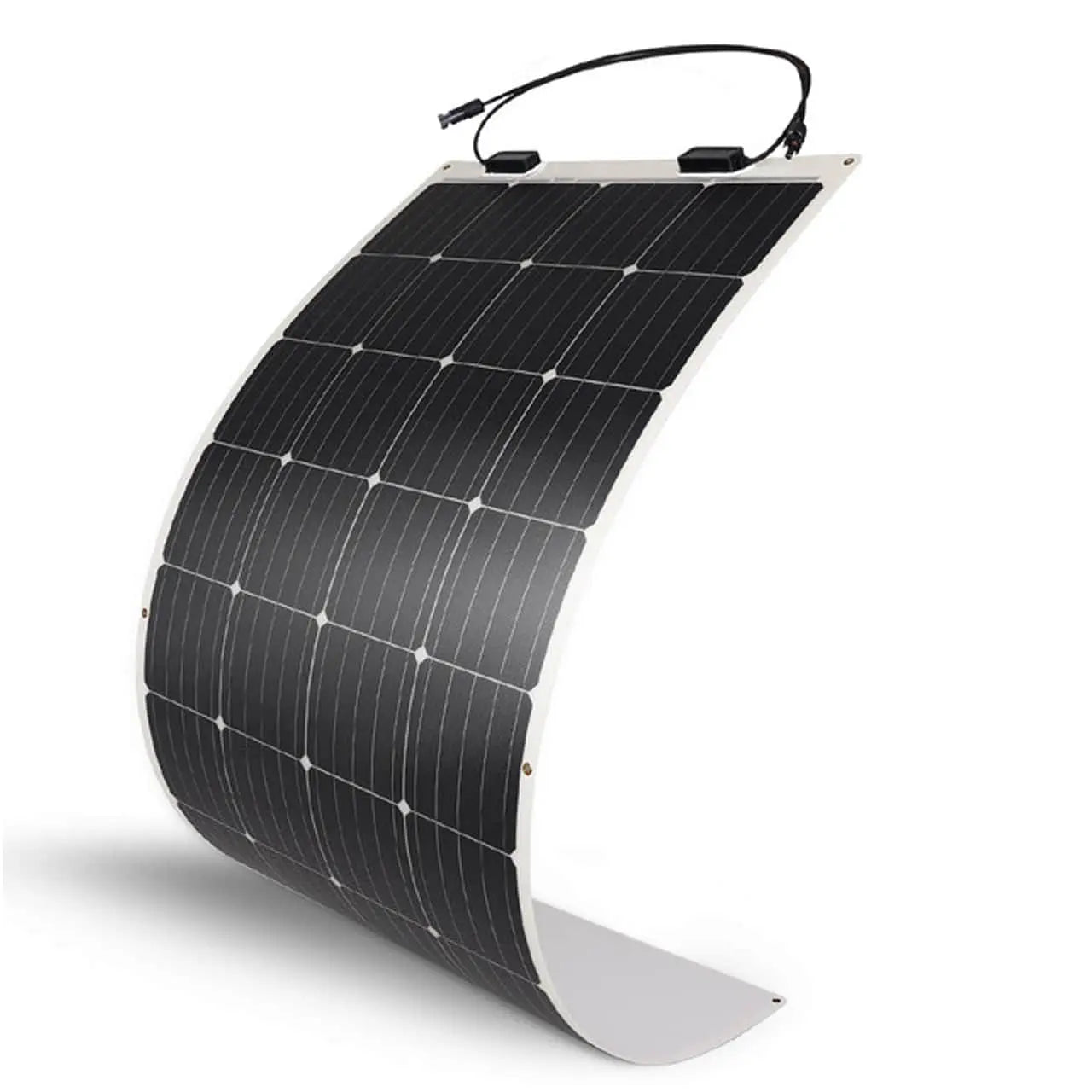

Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 175W Flexible Solar Panel is your perfect solution for a power-independent journey! IP68 junction box and IP67 solar connector, excellent weatherproof performance, perfect for marine and outdoor use. At a weight of 6.2 lbs, this flexible solar panel weighs 70% less than its rigid counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, campers, boats, and many others. If you want to keep the speed of your vehicles and enjoy off-grid power freedom, this is your best solution. Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.

Package Includes

1x Renogy 175W 12V Flexible Monocrystalline Solar Panel

Includes the selected item based on the current package option.

Renogy 175W 12V Flexible Monocrystalline Solar Panel
Model SKU	RNG-175DB-H-G2-US
MODEL
Product Type	Solar Panel
ELECTRICAL
Maximum Power at STC	175 W
Optimum Operating Voltage (Vmp)	19.5 V
Optimum Operating Current (Imp)	8.89 A
Open-Circuit Voltage (Voc)	23.9 V
Short-Circuit Current (Isc)	9.50 A
Maximum System Voltage	600 V DC
Maximum Series Fuse Rating	15 A
Cell Type	Monocrystalline, 36 cells (4 × 9)
Module Efficiency	17.3%
Output Cable	12 AWG, 2.30 ft
Listed System Voltage	12V
Listed Solar Power	175W
Cell Technology	Monocrystalline
CONNECTIONS
Solar Connectors	IP67
PHYSICAL
Dimensions	59.2 × 26.5 × 0.08 in (1,504 × 673 × 2 mm)
Weight	6.2 lb (2.8 kg)
Material and Workmanship Warranty	5 years
OPERATING LIMITS
Operating Temperature Range	-40°F to 185°F (-40°C to 85°C)
Certifications	CE and ISO
Performance Warranty	95% output at 5 years, 90% at 10 years, and 80% at 25 years
