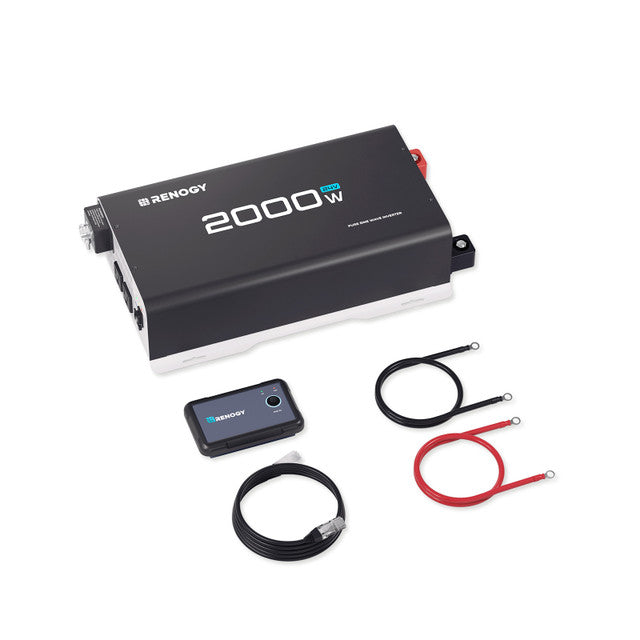

Renogy 2000W 24V Pure Sine Wave Inverter
24V Pure Sine Wave Power
2000W 24V Pure Sine Wave Inverter
Convert compatible 24V battery storage into clean AC power with a compact inverter design built for mobile and off-grid appliance use.
Efficient 24V System Integration and Battery Conservation
A 24V inverter layout supports efficient wiring and compact installation planning for compatible power systems.
Compact 24V Systems for Space-Saving Efficiency
The source Description highlights space-conscious power-system integration.
4000W Peak Boost for Inductive Loads
Startup surge support helps run eligible inductive appliances in compatible systems.
Fans for Semi-Truck Backseats and Enclosed Spaces
Cooling design supports dependable operation in suitable enclosed travel installations.
Safeguard Your Boat Trips with GFCI
GFCI protection helps support safer operation for compatible marine appliances.
Surpassing Inverters in Excellence
The source Description provides a final performance-focused product comparison.
| Renogy 2000W 24V Pure Sine Wave Inverter | |
| Model SKU | RIV2420P2-12S-G1-US |
|---|---|
| General Data | |
| Model | RIV2420P2-12S |
| Output Waveform | Pure Sine Wave |
| AC Terminals | 2x AC Socket & Terminal Block |
| DC Terminals | M8 x 25mm |
| Operating Temperature | -4°F to 131°F / -20°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | Max 95%, Non-Condensing |
| Cooling | Thermally Controlled Fans |
| Dimensions (L x W x H) | 16.93 x 8.99 x 3.75 in / 430.3 x 228.4 x 95.3mm |
| Weight | 10.14 lbs / 4.6kg |
| Electrical Data | |
| Continuous Output Power | 2,000W |
| Continuous Output Current | 16.7A AC |
| Total Harmonic Distortion (THD) | <3% |
| Power Factor | 1 |
| Surge Rating | 4,000W @ 2s |
| Output Voltage | 120V AC |
| Output Frequency | 50Hz / 60Hz |
| Rated Battery Input Voltage | 24V DC |
| Battery Input Voltage Range | 23V to 30.7V DC |
| Maximum Continuous Battery Output Current | 106A |
| Inverter Efficiency | Max. 92% |
| Full Load Efficiency | 89% |
| Power Consumption | <19.2W |
| Battery Overvoltage Shutdown | 33.3V ± 0.5V DC |
| Battery Low Voltage Alarm | 22.4V ± 0.5V DC |
| Battery Low Voltage Shutdown | 21.8V ± 0.5V DC |
| Wired Remote Data | |
| Front Plate Dimensions | 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8mm |
| Wired Length | 16.4ft / 5m |
