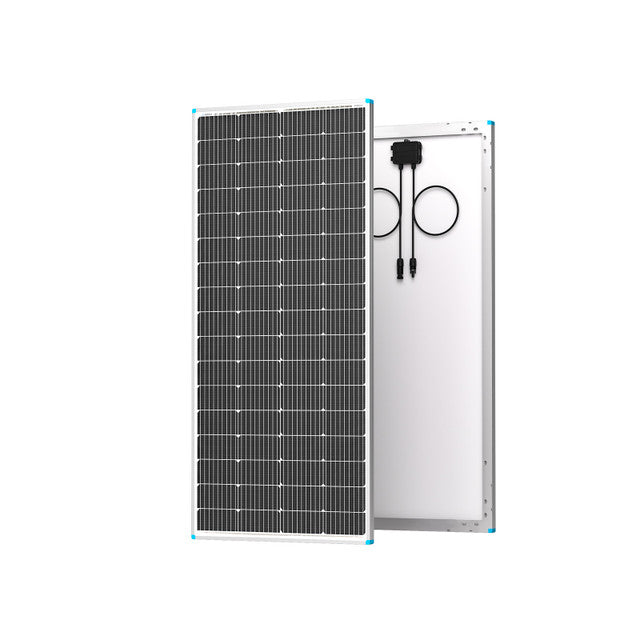

Renogy 200W 12V Monocrystalline Solar Panel

Name: Renogy 200W 12V Monocrystalline Solar Panel
Brand: Renogy
SKU: RSP200D-G3-US
Price: 169.99 USD
Availability: InStock

Brand Renogy In Stock

$169.99 In Stock

No sales tax collected at checkout where applicable.

Estimated delivery Calculating current delivery window…

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.

Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.

Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

Package Includes

1x Renogy 200W 12V Monocrystalline Solar Panel

Includes the selected item based on the current package option.

Specifications
Model SKU	RSP200D-G3-US
Electrical Parameters
Max Power at STC	200W
Open Circuit Voltage	23V
Short Circuit Current	11.05A
Optimum Operating Voltage	19.2V
Optimum Operating Current	10.42A
Maximum System Voltage	600 VDC UL
Maximum Series Fuse Rating	20A
Module Efficiency	19.2%
Environmental Data
Operating Temperature	-40°F~194°F / -40℃~90℃
Junction Box	IP65
Mechanical Specifications
Output Cable	13 AWG, 2.6 ft Long
Dimensions	58.7 x 27.5 x 1.38 in / 1491 x 699 x 35 mm
Weight	26.46 lb / 12kg
Solar Cells	68 Cells, (2+2) x 17
Connectors	Solar Connectors
Cell Dimension	158.75 x 158.75 mm / 6.25 x 6.25 in x 40 Cells
Warranty
Material and Workmanship Warranty	10-Year Workmanship Warranty
Performance Warranty	Over 80% Output at 25 Years
