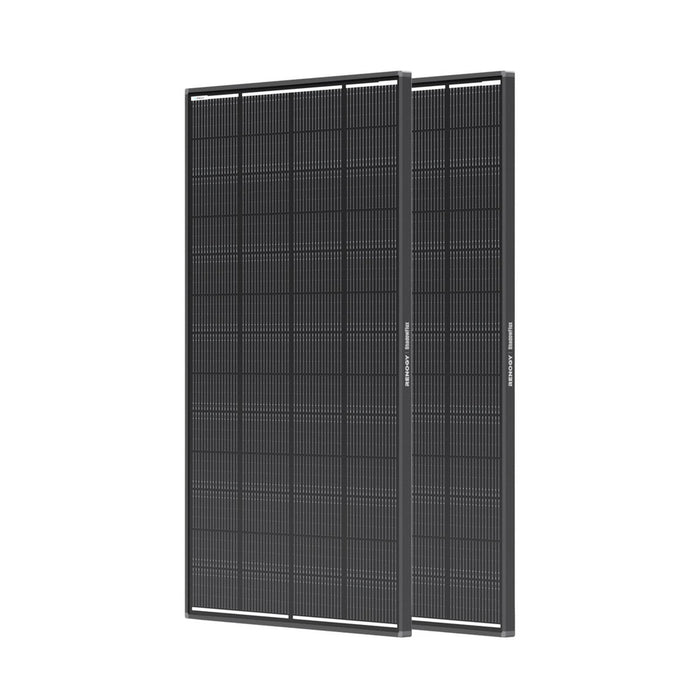

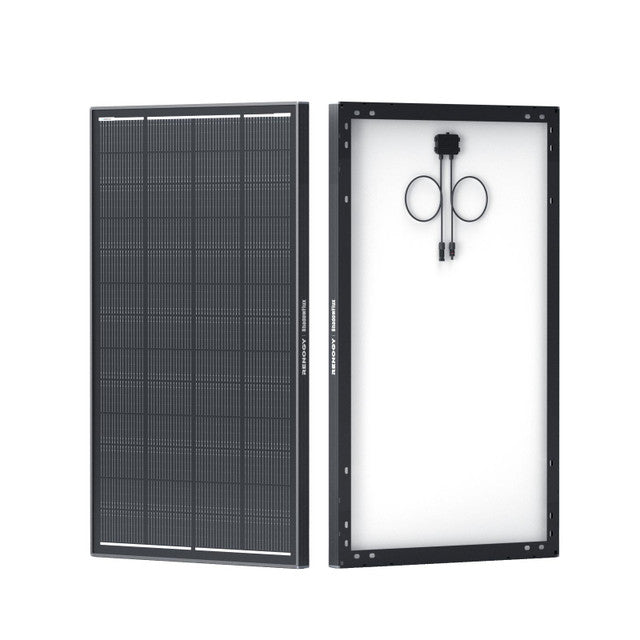

Renogy 200W 12V ShadowFlux Anti-Shading N-Type Solar Panel - 1 Panel
ShadowFlux™ Anti-Shading N-Type Solar
Renogy ShadowFlux™ 200W Anti-Shading N-Type Solar Panel
The Renogy 200W 12V ShadowFlux Anti-Shading N-Type Solar Panel is a rigid solar panel for RV, mobile, and off-grid applications. It delivers up to 200W at standard test conditions, with a 36.5V open-circuit voltage, 31.3V optimum operating voltage, and 20.7% module efficiency.
Solar That Powers Through Partial Shade
ShadowFlux is designed to help maintain solar production during partial-shade conditions. In the supplied product illustration, the panel is shown producing 85% output under a 10% building-shadow condition; this is an illustrated result rather than a universal output guarantee. The media also identifies 28 bypass diodes as part of the panel configuration.
Solar Shade, Solved Now
The source Description compares ShadowFlux™ performance with conventional panel behaviour across three common partial-shading situations.
SmartTech for Steadier Solar Output
ShadowFlux™ technology is designed to help the panel continue producing useful solar output during partial shading, reducing the effect of shaded areas on overall generation.
Power Longer, Save More
Renogy presents ShadowFlux™ as maintaining up to 85% output under the illustrated shading condition, supporting higher energy harvest over time.
Long-Term Value Estimate
Renogy’s source calculation estimates up to 6,500 kWh in additional lifetime production, valued at approximately $1,500, based on a 200W panel scenario.
Designed for Longer Service Life
Renogy states an expected five-year lifespan advantage in its illustrated comparison, with actual lifespan dependent on use conditions.
Next-Generation N-Type Cell Performance
The N-Type cell design uses an N-type silicon wafer, Tunnel SiOx, and N+ poly-Si construction. The supplied product media also identifies 16 busbars and describes N-Type cells as having higher efficiency than P-Type cells. The verified module efficiency for this panel is 20.7%; that module figure should not be confused with the separate 25% cell-efficiency claim shown in the product media.
Charge Faster with High Efficiency
High-efficiency N-Type cells help produce greater usable energy from available sunlight, supporting faster charging within a compatible solar power system.
Tight Space, Big Power
The compact 200W panel format helps make better use of limited installation space for compatible vehicle-mounted and off-grid solar layouts.
Tested Tough for Outdoor Experience
Built for outdoor solar installations, this rigid panel has an IP67 waterproof rating and an operating-temperature range of -40°F to 185°F (-40°C to 85°C). Its listed dimensions are 49.69 × 30.08 × 1.18 inches, and its listed weight is 23.83 lb, helping buyers check fit and handling requirements before installation.
Genuine Praise from Real Users
The live Description includes customer-use imagery and experiences highlighting portable, mobile and off-grid solar applications.
| Panel Type | Rigid |
|---|---|
| Max Power at STC | 200W |
| Open Circuit Voltage | 36.5V |
| Short Circuit Current | 6.86A |
| Optimum Operating Voltage | 31.3V |
| Optimum Operating Current | 6.38A |
| Maximum System Voltage | 1000VDC |
| Maximum Series Fuse Rating | 15A |
| Module Efficiency | 20.7% |
| Operating Temperature | -40°F~185°F / -40℃~85℃ |
| Dimensions | 49.69*30.08*1.18inch |
| Weight | 10.81kg/23.83lb |
| Material and Workmanship Warranty | 5 Years |
| Performance Warranty | 25 Years 80% Output Warranty |
| Module Efficiency | 20.7% |
| Model SKU | RSP200DC-ASR-G1-US |
