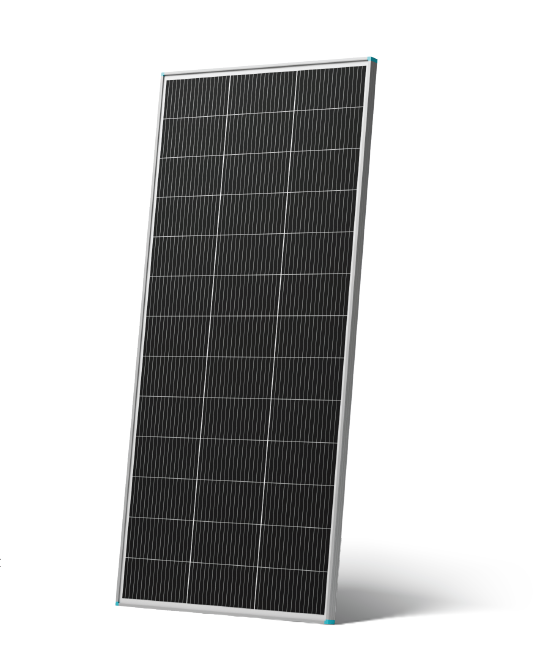

Renogy 200W Slim N-Type Solar Panel
$197.64
Out of Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
Renogy 200W Slim N-Type Solar Panel features a narrow, elongated form factor designed for vehicle rooftops with limited width.
A revised cell layout delivers the same 200W class performance in a longer, slimmer footprint than a standard 200W panel, making placement and system planning easier on space-constrained roofs.
Package Includes
1x Renogy 200W Slim N-Type Solar Panel
Includes the selected item based on the current package option.
| Renogy 200W Slim Mono N-Type Solar Panel | |
| Model SKU | RSP200DC-SS39-G1-US |
|---|---|
| Electrical Data | |
| Model | RSP200DC-SS39 |
| Maximum Power at STC | 200W |
| Optimum Operating Voltage (Vmp) | 23.27V |
| Optimum Operating Current (Imp) | 8.59A |
| Open-Circuit Voltage (Voc) | 27.05V |
| Short-Circuit Current (Isc) | 9.19A |
| Module Efficiency | 20.9% |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 20A |
| Mechanical Data | |
| Solar Cell Type | Mono N-Type |
| Number of Cells | 39 (13 x 3) |
| Dimensions | 56.18 x 26.38 x 1.18 in / 1,427 x 670 x 30mm |
| Weight | 22.49 lbs / 10.2kg |
| Front Film | Tempered Glass 0.13 in / 3.2mm |
| Connectors | Solar Connectors |
| Frame | Anodized Aluminum Alloy |
| Fire Performance | Type I |
| Thermal Characteristics | |
| Operating Temperature Range | -40°F to 185°F / -40°C to 85°C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
| Temperature Coefficient of Pmax | -0.32% / °C |
| Temperature Coefficient of Voc | -0.26% / °C |
| Temperature Coefficient of Isc | 0.046% / °C |
| MC4 Connectors | |
| Maximum Voltage | 1,000VDC |
| Rated Current | 22A |
| Temperature Range | -40°F to 194°F / -40°C to 90°C |
| IP Rating | IP67 |
| Junction | |
| IP Rating | IP65 |
| Output Cables | 14 AWG, 31.5 in / 800mm |
| Certifications | |
| CE | Yes |
| Warranty | |
| Power Output Warranty | 25 Year |
| Material and Workmanship Warranty | 10 Year |
