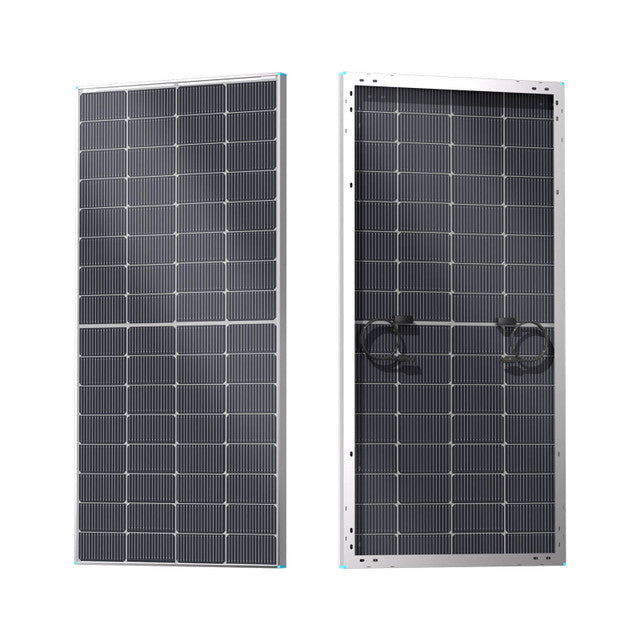

Renogy 250W N-Type Bifacial Solar Panel
250W N-Type Bifacial Solar Panel
Build a dependable solar setup with a 250W bifacial panel designed around advanced N-Type cell technology, rear-side energy capture and durable construction for compatible RV and off-grid installations.
Superior Efficiency and Reliability with N-Type Solar Technology
Renogy N-Type solar panels are designed to outperform traditional P-Type PERC panels with higher cell efficiency, longer service potential and consistent energy production in demanding outdoor conditions.
Increased Output and Bifacial Advantage
The N-Type bifacial design delivers 10% higher bifaciality and up to 20W additional output compared with conventional PERC panels, helping capture more usable solar energy.
Engineered for Premium Quality
Low-iron tempered glass, POE film, N-Type solar cells, a transparent backsheet and a robust aluminum frame work together to support durable long-term solar performance.
Optimized for Hot Climates
Featuring a temperature coefficient of -0.29% per °C, Renogy N-Type panels are designed to maintain stronger energy generation in high-temperature conditions compared with PERC panels.
Advanced 16-Busbar Technology
Equipped with 16-busbar cell technology, this panel is designed to enhance energy conversion efficiency while helping reduce the risk of microcracks over time.
Reinforced Frame for Greater Durability
An aluminum-alloy frame measuring more than 1.1 mm thick provides structural support for compatible installations exposed to travel vibration and challenging outdoor conditions.
Bifacial Power Boost
With an 80% bifaciality factor, the panel is designed to capture additional energy from reflected and diffuse sunlight on its rear side for improved overall solar production.
Broad Charge Controller Compatibility
Pair the solar panel with an appropriately rated compatible MPPT or PWM charge controller selected for the voltage and current requirements of your solar system.
Why Choose Renogy
Renogy combines advanced solar technology, durable construction and off-grid system expertise to support reliable renewable-energy setups for travel and independent living.
```
| Renogy Window Seal Kit for Portable AC | |
| Model SKU | RSP250DCT-G1-US |
|---|---|
| Module Performance | |
| Max Power at STC | 250W |
| Module Efficiency | 21.2% |
| Open Circuit Voltage | 22.35V |
| Short Circuit Current | 13.49A |
| Optimum Operating Voltage | 19.52V |
| Optimum Operating Current | 12.81A |
| Maximum System Voltage | 1000VDC |
| Maximum Series Fuse Rating | 30A |
| Environmental Data | |
| Operating Temperature | -40°F~194°F / -40℃~90℃ |
| Mechanical Specifications | |
| Dimensions | 1547 x 763 x 30 mm / 60.9 x 30.0 x 1.2 in |
| Weight | 12.4kg / 27.3 lbs |
| Warranty | |
| Material and Workmanship Warranty | 10 Years |
