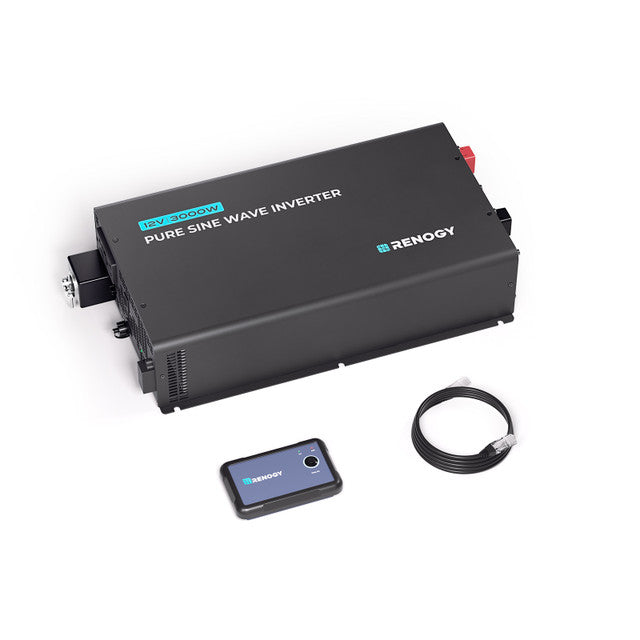

Renogy 3000W 12V Pro Pure Sine Wave Inverter w/ EcoSleep Mode
Pro Series Pure Sine Wave
3000W 12V Pro Pure Sine Wave Inverter with EcoSleep Mode
Bring high-output AC power to compatible off-grid systems with Pro Series inverter protection, surge capability, EcoSleep energy savings and remote monitoring support.
Transforming Power with Safety and Adaptability
Designed for compatible off-grid systems requiring dependable AC conversion and safety-focused operation.
6000W Peak Boost for Inductive Loads
Support compatible high-starting-current appliances with peak surge output capability.
Fans for Semi-Truck Backseats and Enclosed Spaces
Cooling design supports stable inverter operation in suitable enclosed mobile installations.
Safeguard Your Boat Trips with GFCI
GFCI protection supports safer compatible marine and mobile appliance use.
Inverter Pre-Charging
Pre-charging design helps reduce sudden startup electrical stress in an eligible power system.
Dual-Polarity Reverse Protection
Reverse-polarity protection helps protect the inverter during compatible system wiring.
EcoSleep Mode for Energy Savings
EcoSleep operation is designed to reduce energy use when AC demand is low.
Real-Time Monitoring and Remote Control
Monitor supported inverter activity and manage operation with compatible remote-control tools.
Surpassing Inverters in Excellence
The source Description provides a final performance comparison illustration for this inverter design.
| Renogy 3000W 12V Pro Pure Sine Wave Inverter | |
| Model SKU | RIV1230P2-126-G1-US |
|---|---|
| Inverter Specifications | |
| Rated Output Power | 3,000W |
| Surge Power (100ms) | 6,000W |
| Nominal Output Voltage RMS | 120VAC ± 3% |
| Output Frequency | 60Hz ± 0.3Hz |
| Output Waveform | Pure Sine Wave |
| AC Output Sockets | 2 x AC Sockets + 1 DIY AC Terminal |
| Nominal Input Voltage | 12VDC |
| Input Voltage Range | 11 to 15.5VDC |
| Peak Efficiency | ≥90% |
| Full-Load Efficiency | ≥87% |
| Short Circuit Protection | Software Protection |
| THD | <3% (Resistance Load) |
| No Load Power Consumption (Sleep) | Normal: <10W |
| Overload Capacity | ≥1 min @ 120%; ≥5s @ 150%; ≥100ms @ 200% |
| General Specifications | |
| Communication | RS485 / RV-C |
| Mobile App | Yes |
| Display Control Panel | Renogy ONE Core |
| Battery Types | GEL, AGM, SLA, FLD, LI |
| Operating Temperature Range | Full Load: -20°C to 40°C; Down Load: 40°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 0% to 95% |
| Noise | <55dB |
| Dimensions | 20.82 x 10.35 x 4.12 in |
| Weight | 13.228 lbs / 6kg |
| Wired Remote Control | |
| Dimensions | 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8mm |
| Wire Length | Approx. 16.4ft |
| Certifications | |
| EMC | FCC Part 15 Class B |
| Safety | UL458 (Including Marine Supplement) / CSA-C22.2 No. 107.1 |
| Warranty | |
| Material and Workmanship Warranty | 3 Year |
