Renogy 400W 12V Monocrystalline Solar RV Kit w/ 30A PWM Charge Controller

Name: Renogy 400W 12V Monocrystalline Solar RV Kit w/ 30A PWM Charge Controller
Brand: Renogy
SKU: RNG-KIT-RV400D-ADV30-G3-US
Price: 399.99 USD
Availability: OutOfStock

Brand Renogy Out of Stock

$399.99 Out of Stock

No sales tax collected at checkout where applicable.

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

400W 12V Starter Solar Panel Kit

Start an off-grid RV solar setup with a practical, cost-conscious 400W kit built for straightforward installation and mobile energy collection.

Renogy 400W off-grid solar starter kit for van and RV use

Solar Panel Configuration Shown in Source

2 × 200W4 × 100W

200W N-Type Solar Panel Option

Compact 200W N-Type panels provide up to 25% cell efficiency and durable output for Class B van roof layouts.

Renogy 200W N-Type panel feature overview

Designed for Class B Van Roof Space

The 200W option is shown creating a close roof fit with efficient use of mounting space.

Renogy 200W panels fitting Class B van roofs

100W N-Type Solar Panel Option

Efficient, durable 100W N-Type panels suit compact vans while offering flexible placement across smaller roof areas.

Renogy 100W N-Type panel feature overview

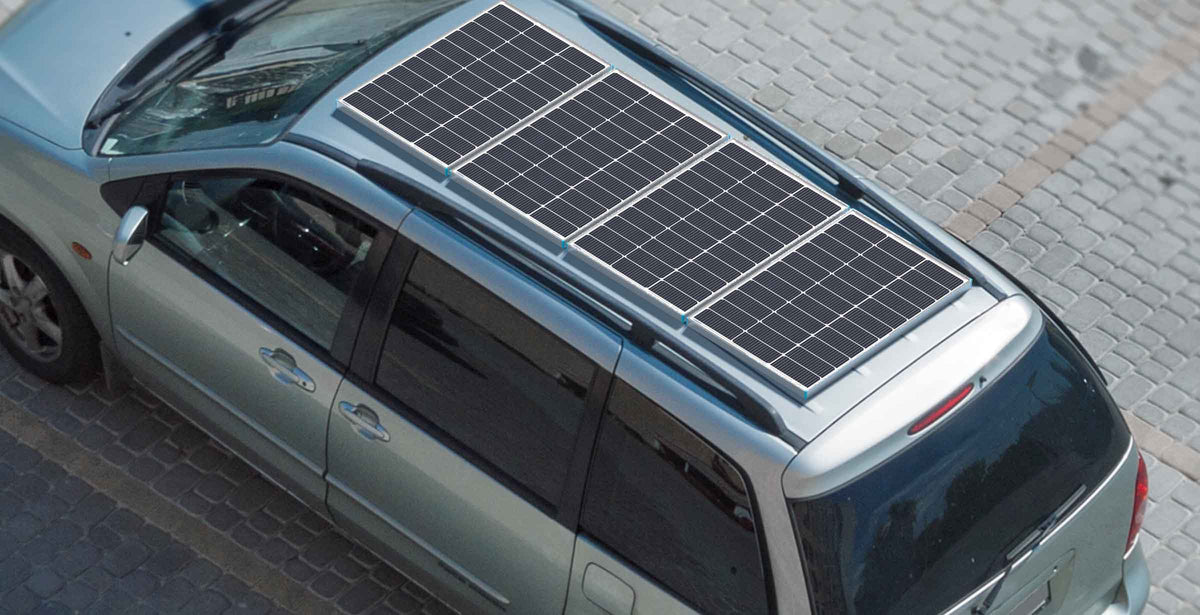

Designed for Mini Van Roof Space

The 100W option is shown supporting edge-to-edge placement for compact mobile installations.

Renogy 100W panels positioned on a minivan roof

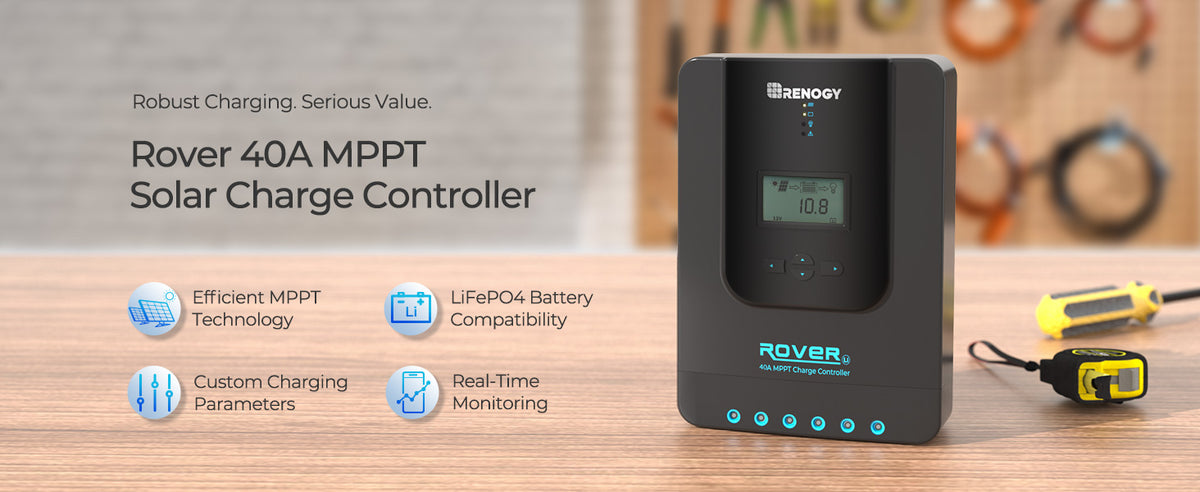

Rover Li 40A MPPT Charge Controller

Manage solar charging with MPPT efficiency, configurable parameters and monitoring support for compatible off-grid setups.

Renogy Rover Li 40A MPPT solar charge controller

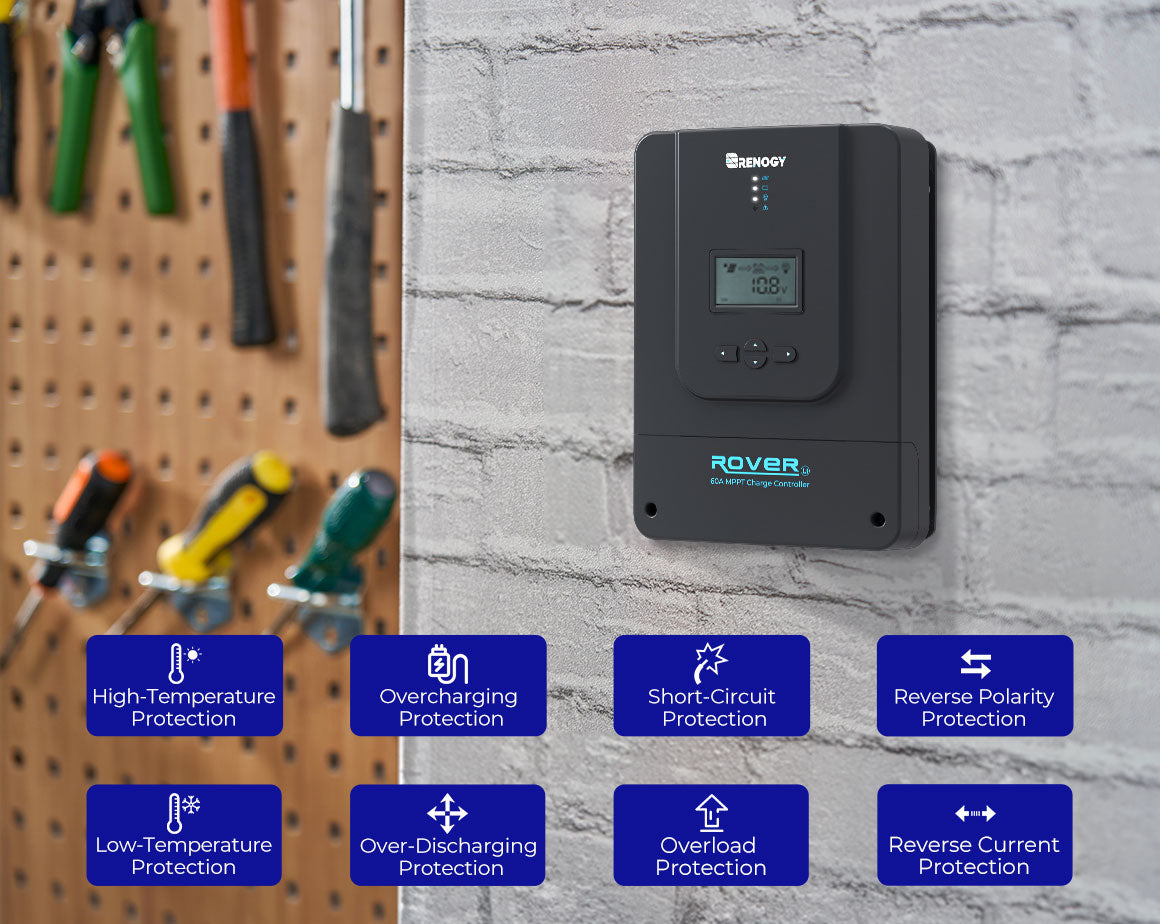

Comprehensive Protection for Reliable Charging

A sealed casing and built-in safety design support reliable controller operation through outdoor travel conditions.

Renogy Rover controller protective design

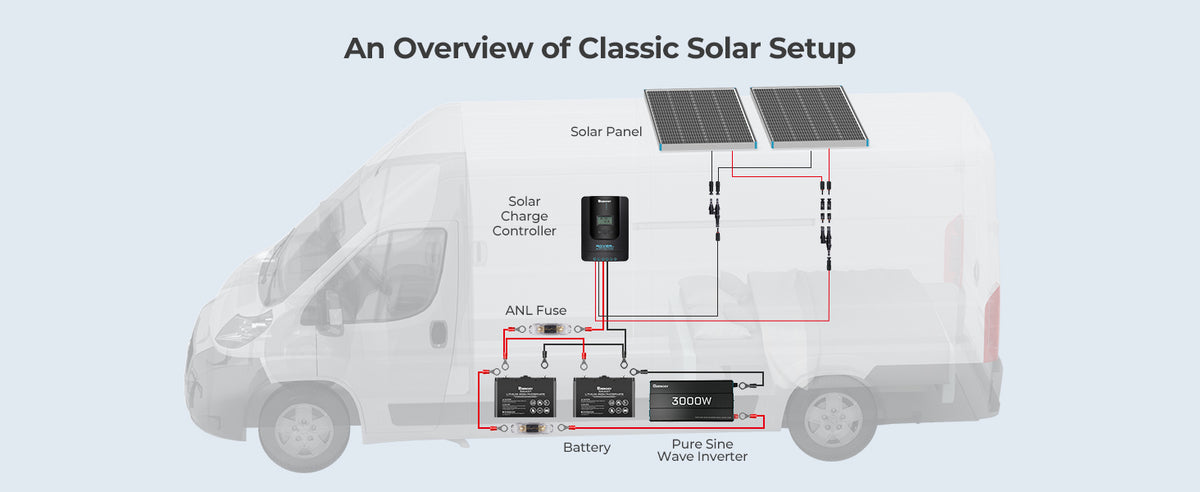

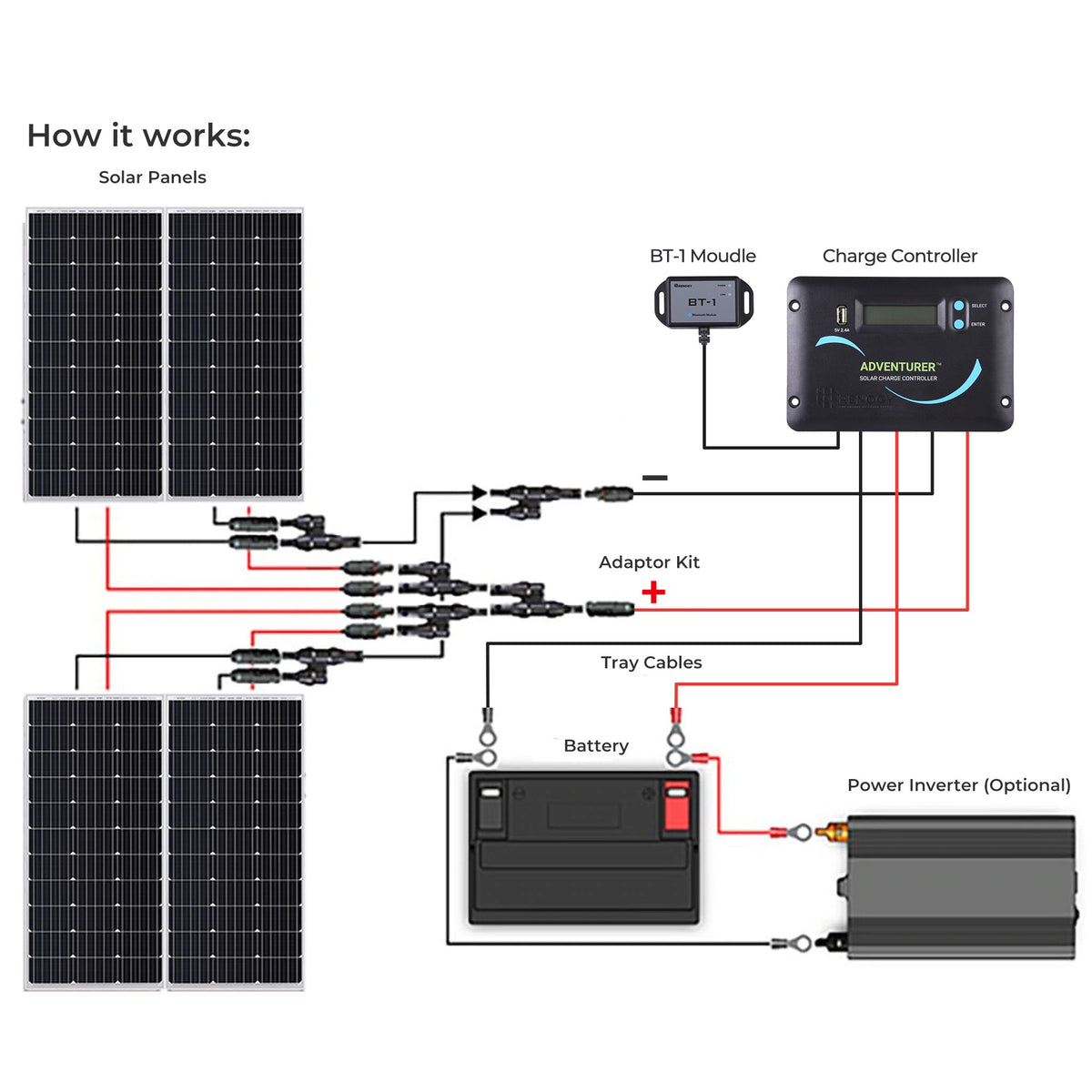

How the Solar Kit Works

The in-description diagrams illustrate the 2 × 200W and 4 × 100W system arrangements for the supported solar kit configurations.

Renogy 2 by 200W solar kit connection diagram

Renogy 4 by 100W solar kit connection diagram

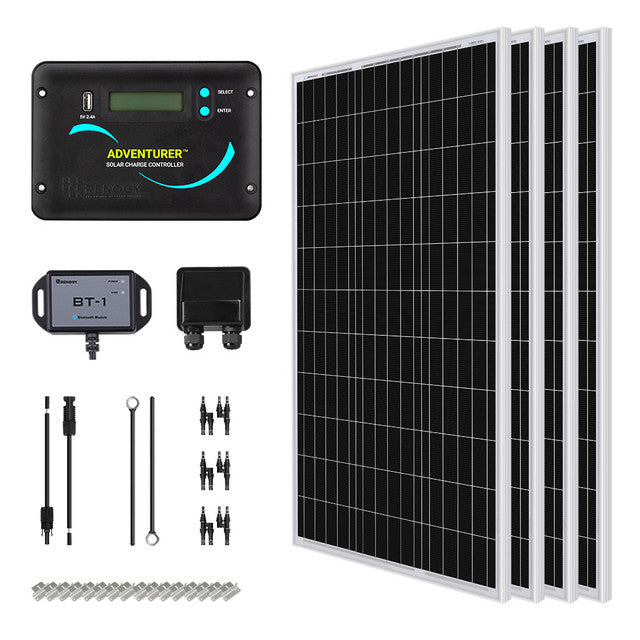

Package Includes

1x Renogy 400W 12V Monocrystalline Solar RV Kit w/ 30A PWM Charge Controller

Includes the selected item based on the current package option.

Renogy 16BB N-Type 100 Watt Solar Panel
Model SKU	RNG-KIT-RV400D-ADV30-G3-US
Specifications
Max Power at STC	100W
Open-Circuit Voltage (Voc)	22.79V
Short-Circuit Current (Isc)	5.31A
Optimum Operating Voltage (Vmp)	19.97V
Optimum Operating Current (Imp)	5.01A
Operating Temperature	-40°F to 185°F / -40°C to 85°C
Dimensions	34.1 x 22.8 x 1.2 in / 865 x 578 x 30mm
Weight	13.0 lbs / 5.9kg

ROVER LI 40A MPPT Charge Controller
Specifications
Nominal System Voltage	12V / 24V Auto Recognition
Max. PV Input Voltage	100VDC
Max Battery Voltage	32V
Rated Charge Current	40A
Max. PV Input Power	12V: 520W; 24V: 1,040W
30A Adventurer Li PWM Charge Controller w/ LCD Display
Specifications
Nominal Voltage	12VDC / 24VDC
Rated Charge Current	30A
Max. PV Input Voltage	50VDC
Max. PV Input Power	12V: 400W; 24V: 800W
Equalization Voltage	Sealed: 14.6V; Gel: None; Flooded: 14.8V
Boost Voltage	Sealed: 14.4V; Gel: 14.2V; Flooded: 14.6V; Lithium: 14.2V
Float Voltage	13.8V
USB Output	5V, 2.4A Max
Dimensions	6.56 x 4.50 x 1.90 in
Weight	0.6 lbs
