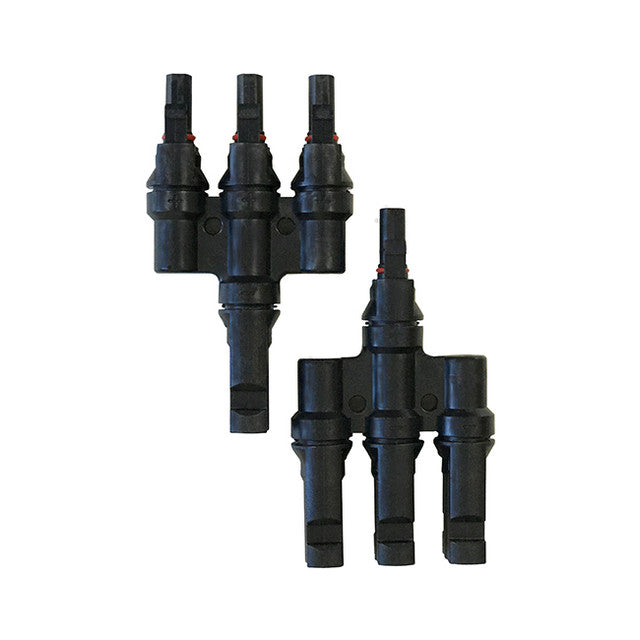

Renogy MC4 Solar Branch Connectors 3 to 1

Brand Renogy In Stock
$14.99 In Stock
No sales tax collected at checkout where applicable.
Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

3 to 1 Solar Branch Connectors MMMF+FFFM Pair

Connect three compatible solar panels in parallel with this 3-to-1 solar branch connector pair. Designed for outdoor solar applications, the connectors are built for aging resistance and UV endurance to withstand harsh weather conditions. The rivet-and-lock connection design allows plug assembly and disassembly without additional tools.

Renogy MC4 Solar Branch Connectors 3 to 1
Package Includes
1x Renogy MC4 Solar Branch Connectors 3 to 1
Includes the selected item based on the current package option.
Renogy 3 to 1 Solar Branch Connectors (Pair)
Model SKU RNG-CNCT-MC4Y-M-G1-US
Maximum Working Voltage DC 1000V
Rated Current 50A
Flame Class UL94-V0
Pollution Degree 2
Contact Resistance ≤5mΩ
Shell Protection Degree IP67
Ambient Temperature Range -40°C to 85°C
Safety Level Class II
Insertion Force ≤50N
Withdrawal Force ≥50N
Warranty
Material and Workmanship Warranty 1 Year
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
