Renogy

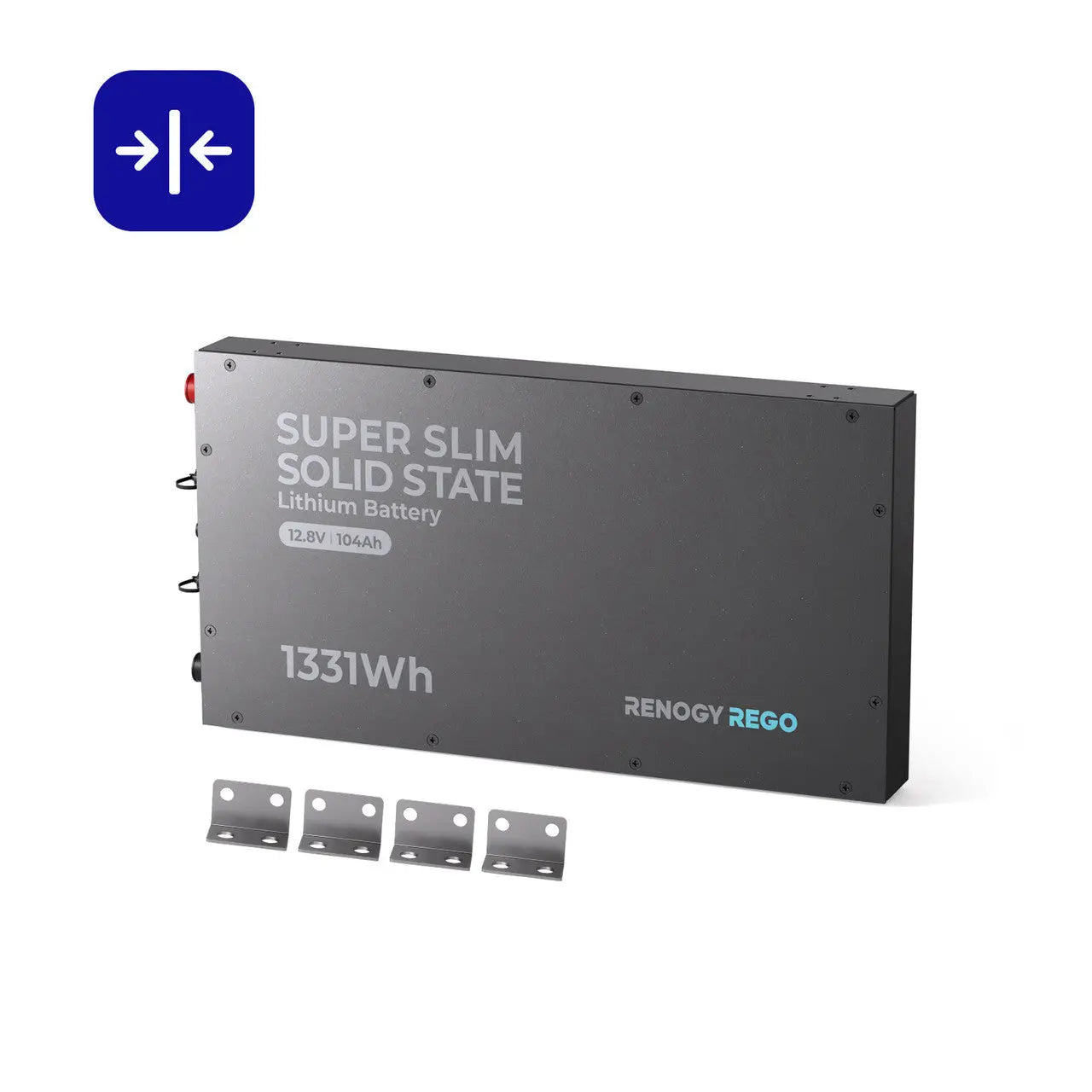

Renogy REGO 12V 104Ah Super Slim Lithium Iron Phosphate Battery
$824.99
Out of Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
Ultra-thin (2.4 in) for canopies, behind seats and more tight spaces
9x slower temperature rise enhances safety & reduces thermal runaway
Versatile mounting with vibration-resistant bracket kits
10A reliable charging in freezing conditions down to 14°F/-10°C
Powering a 2000W inverter with a single battery at 200A high output
Package Includes
1x Renogy REGO 12V 104Ah Super Slim Lithium Iron Phosphate Battery
Includes the selected item based on the current package option.
| REGO - 12.8V 104Ah Super Slim Lithium Iron Phosphate Battery | |
| Model SKU | RBT12104LFP-SSL-BT-G2-US |
|---|---|
| Specifications | |
| Battery Type | Lithium Iron Phosphate |
| Voltage | 12V |
| Rated Capacity | 104Ah (0.5C, 25℃) |
| Voltage Range | 10V to 14.8V |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 200A |
| Peak Discharge Current | 290A @ 30s |
| Cycle Life (0.5C, 25℃) | 6,000 Cycles (80% DOD, 80% EOL) |
| Charge Temperature Range | 14°F to 131°F / -10°C to 55°C (14°F to 32°F / -10°C to 0°C, 0.1C) |
| Discharge Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Operation Relative Humidity | 5% to 95% |
| Connection Method | Series & Parallel (max. 4P4S), Parallel (max. 16P), Series (max. 4S) |
| Terminal Bolt Size | Terminal Bolt: M8 x 1.25 x 12mm; Long Terminal Bolt: M8 x 1.25 x 16mm |
| Recommended Terminal Torque | 70.8 in-lb / 8 N·m |
| Protection Rating | IP67 |
| Dimensions | 22.8 x 11.4 x 2.4 in / 579 x 290 x 61mm |
| Weight | 28.22 lbs / 12.8kg |
| Accessories | |
| Terminal Bolts (2) | 2 x M8 x 1.25 x 12mm |
| Long Terminal Bolts (2) | 2 x M8 x 1.25 x 16mm |
| Certifications | |
| MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA | Yes |
| Warranty | |
| Material and Workmanship Warranty | 8-Year Prorated |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
