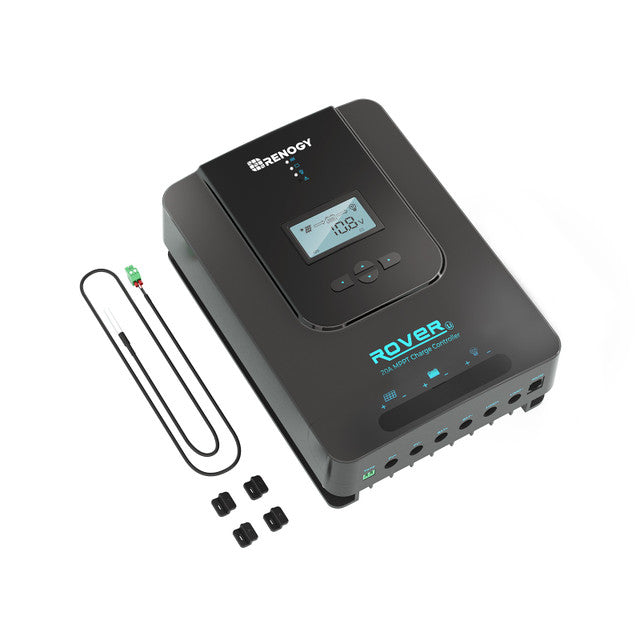

Rover Li 20 Amp MPPT Solar Charge Controller
The Rover Li 20A MPPT Charge Controller is designed to maximize available solar charging performance with up to 99% tracking efficiency, helping deliver more usable energy to a compatible battery bank. It automatically detects compatible 12V and 24V lead-acid battery systems and supports Gel, Flooded and Sealed batteries, while compatible 24V lithium battery systems require manual configuration.
```
Package Includes
1x Renogy Rover Li 20 Amp MPPT Solar Charge Controller
Includes the selected item based on the current package option.
| RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER | |
| Model SKU | RNG-CTRL-RVR20-G3-US |
|---|---|
| Electrical Parameters | |
| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium Batteries) |
| Rated Charge Current | 20A |
| Max. PV Input Voltage | 95 VDC |
| Max. PV Input Power | 12V / 260W, 24V / 520W |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |
| Max Battery Voltage | 32V |
| Ground Type | Negative |
| Electrical Protection | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. |
| Environmental Data | |
| Protection Level | IP32 |
| Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Temperature Compensation | -3mV/°C/2V |
| Mechanical Specifications | |
| Dimensions | 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in |
| Weight | 3.1 lbs / 1.4 kg |
| Max. Terminals Size | 8 AWG 10mm2 |
| Certifications | |
| CE | YES |
| FCC Class B Part 15 Compliant | YES |
| Warranty | |
| Material and workmanship warranty | 2 Year |
