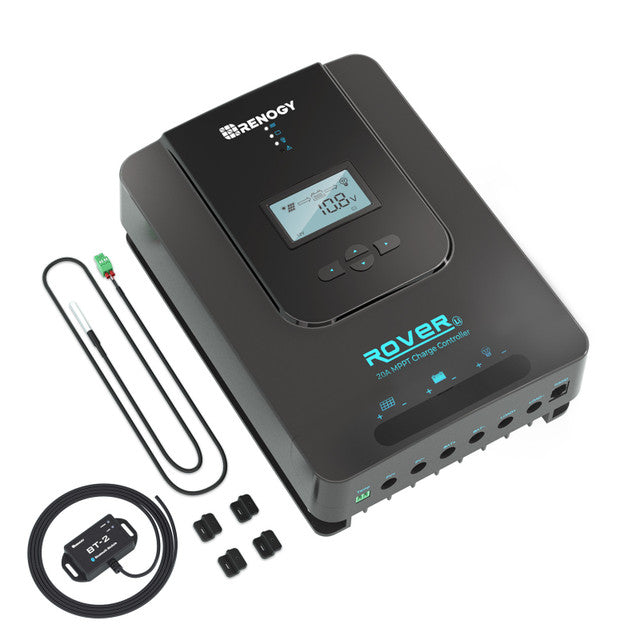

Renogy Rover Li 20 Amp MPPT Solar Charge Controller w/ Bluetooth
Maximize Your System Efficiency
Designed for compatible 12V and 24V battery systems, this Rover 20A MPPT controller helps capture available solar output and direct efficient charging power to your battery bank.
Prioritize Safety with Battery Voltage Setting
Set the supported battery voltage before connecting the charge controller to help establish a correctly configured compatible solar charging system.
Simple and Intuitive Programming
Adjust supported charging settings and monitor operating information directly from the controller interface for easier system management.
Multiple Protections for Various Battery Types
Integrated safety functions help protect compatible battery systems from common charging and electrical conditions while supporting dependable off-grid operation.
Bluetooth Connectivity for Smarter Monitoring
Bluetooth support provides compatible mobile access to system monitoring and controller management, helping you keep track of your solar charging setup more conveniently.
Powerful Heat Dissipation
A heat-dissipation focused design helps support stable controller operation during demanding solar charging conditions.
Exceptional Resilience and Long-Lasting Performance
Durable, corrosion-resistant construction supports reliable use in compatible RV, cabin, marine and off-grid solar installations.
ROVER Bluetooth Module Guide
Use the controller interface illustrated in the live product description to identify the compatible Bluetooth module connection for your supported monitoring setup.

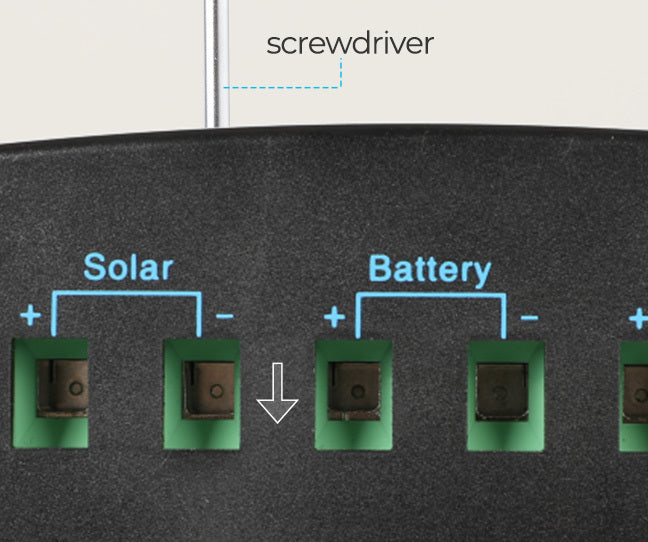

Step 1
Loosen the terminal screws before inserting compatible wiring, following the illustrated connection guidance for your installation.

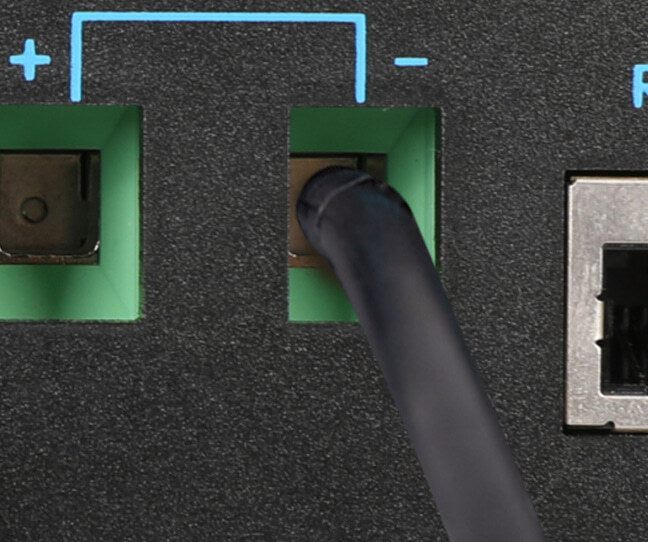

Step 2
Insert compatible wires into the terminal openings as illustrated, selecting wire sizing suited to the requirements of your system.

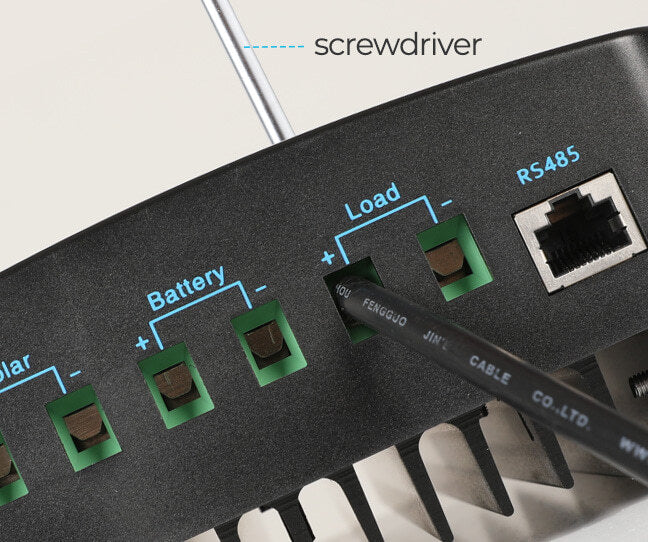

Step 3
Tighten the terminal screws securely to complete the compatible wiring connection.
```
| RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER | |
| Model SKU | RNG-CTRL-RVR20-BT-G3-US |
|---|---|
| Electrical Parameters | |
| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium Batteries) |
| Rated Charge Current | 20A |
| Max. PV Input Voltage | 95 VDC |
| Max. PV Input Power | 12V / 260W, 24V / 520W |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |
| Max Battery Voltage | 32V |
| Ground Type | Negative |
| Electrical Protection | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. |
| Environmental Data | |
| Protection Level | IP32 |
| Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Temperature Compensation | -3mV/°C/2V |
| Mechanical Specifications | |
| Dimensions | 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in |
| Weight | 3.1 lbs / 1.4 kg |
| Max. Terminals Size | 8 AWG 10mm2 |
| Certifications | |
| CE | YES |
| FCC Class B Part 15 Compliant | YES |
| Warranty | |
| Material and workmanship warranty | 2 Year |
| Renogy BT-2 Bluetooth Module (RCM-BT2) | |
| Compatibility | |
| Compatible Charge Controllers | RCC60RVRE, RNG-CTRL-RVR20, RNG-CTRL-RVR30, RNG-CTRL-RVR40, RNG-CTRL-RVR60, RNG-CTRL-RVR100 |
|---|---|
| Compatible Inverters | R-INVT-PGH1-10111S, RIV4835CSH1S |
| Compatible Lithium Batteries | Not Supported |
| Compatible Battery Chargers | RBC30D1S, RBC50D1S, RBC20D1U, RBC40D1U |
| Compatible App | Renogy DC Home App (iOS & Android) |
| Communication Specifications | |
| Communication Protocol | RS485 |
| Port Type | RJ45 |
| Communication Range | Up to 82 ft (25 m) |
| Serial Baud Rate | Fixed 9600bps |
| Electrical Specifications | |
| Input Voltage | 5V or 12V |
| Standby Power Consumption | 0.04W |
| Operating Power Consumption | 0.05W |
| Mechanical Specifications | |
| Cable Length | 16.4 ft (5.0 m) |
| Dimensions | 2.65 × 1.38 × 0.55 in (67.3 × 35 × 14 mm) |
| Weight | 4.58 oz (130 g) |
| Operating Temperature | -4°F to 185°F (-20°C to 85°C) |
| Protection Rating | IP54 |
| Certifications | |
| FCC Class B Part 15 Compliant | Yes |
| Warranty | |
| Warranty | 1-Year Material and Workmanship Warranty |
