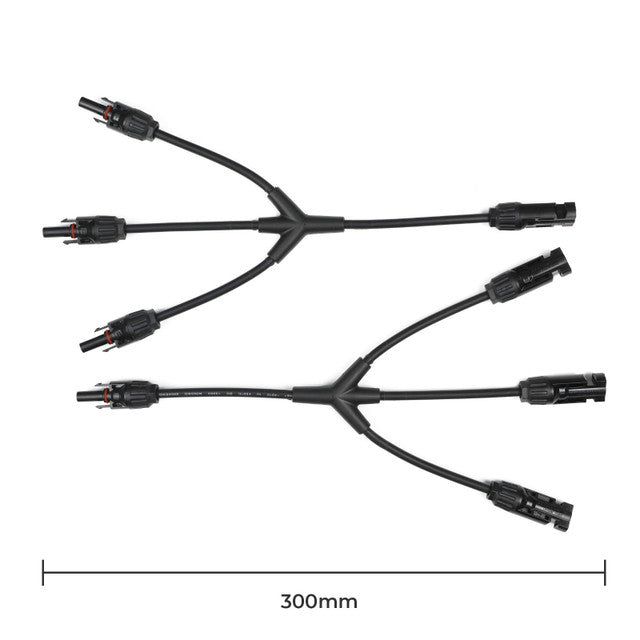

Renogy Y Branch Parallel Adapters 3 to 1

Brand Renogy In Stock
$15.87 In Stock
No sales tax collected at checkout where applicable.
Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair

Connect compatible solar panels in parallel with a CE-certified M-branch adapter cable pair rated at 30A and 1500V DC. Built for outdoor solar connections, the connectors are described by Renogy as resistant to oxidation, UV exposure and high temperatures, with IP67 protection.

Renogy Y Branch Parallel Adapters 3 to 1
Package Includes
1x Renogy Y Branch Parallel Adapters 3 to 1
Includes the selected item based on the current package option.
Solar Connectors M Branch
Model SKU RPC0110EC-M-G1-US
Rated Voltage 1500V DC (IEC)
Rated Current 30A
Contact Resistance 0.5mΩ
Insulation Material PC
Contact Material Copper, tin plated
Temperature -40℃ - 90℃ / -40°F - 194°F
Protection Degree IP67 mated / IP2X unmated
Safety Degree Ⅱ
Flame Class UL94-HB / UL94-V0
Suitable Single Core Cable Section 2.5mm², 4mm², 6mm²
🛡️
