RUiXU RX-LFP48100-H Self-Heating 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery
$1,099.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRUiXU Battery warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner

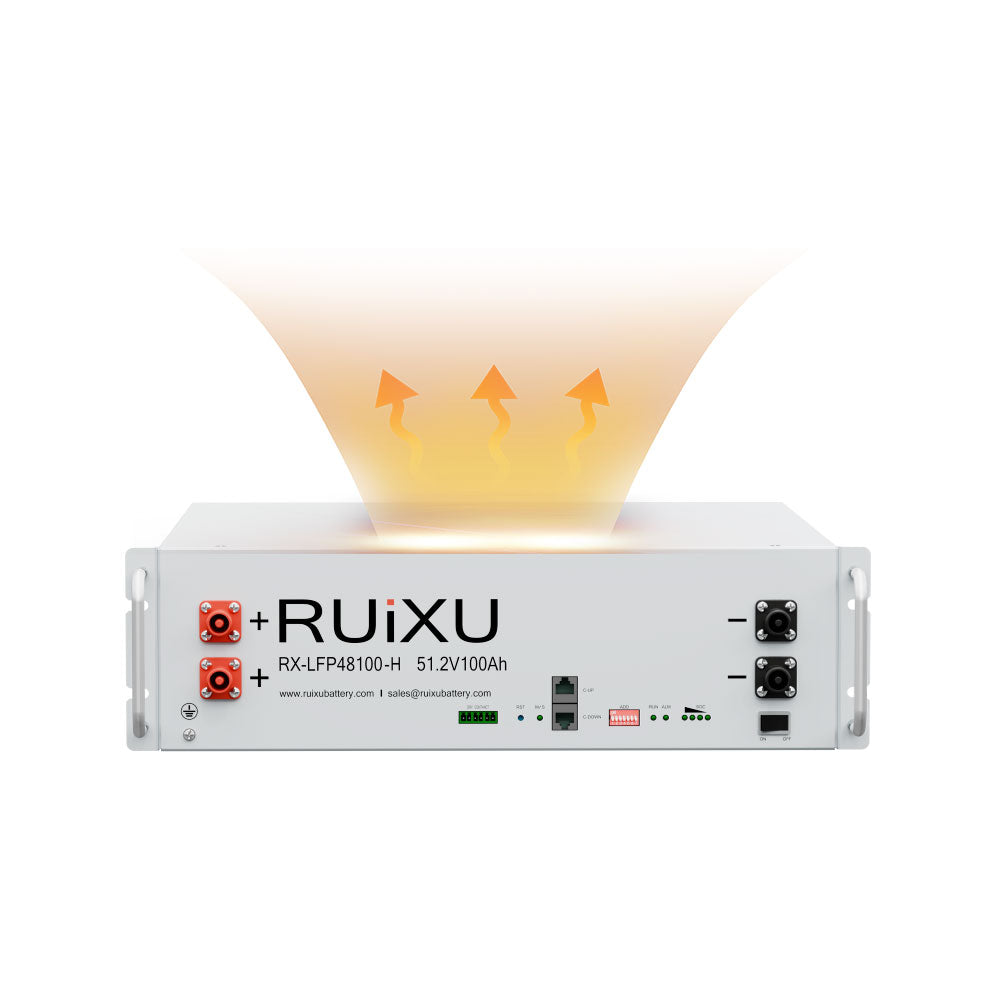

RUiXU RX-LFP48100-H Self-Heating 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery
The RUiXU RX-LFP48100-H adds self-heating capability to the 5.12kWh server rack battery platform for cold-weather 48V energy storage systems.
Key Features
- Self-heating design for cold-weather charging support
- 5.12kWh capacity in a compact 3U rack battery format
- Scalable 48V storage with up to 32 batteries in parallel
- Designed for CAN/RS485 communication with compatible inverters
- UL1973 and UL9540A certified
Specifications
| Brand | RUiXU |
| Model | RX-LFP48100-H |
| Product Type | Self-Heating Server Rack LiFePO4 Battery |
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5.12kWh / 5120Wh |
| Dimensions | 19 x 18.1 x 5.23 in |
| Weight | 103.6 lb |
| Parallel Support | Up to 32 units |
| Warranty | 10 years |
| Certifications | UL1973, UL9540A, CEC, SGIP |
| Self-Heating | Yes |
Package Includes
1 RX-LFP48100-H Self-Heating 51.2V 100Ah Server Rack Battery
Package Includes
1 RJ45/CAT5e Patch Cable
Package Includes
1 Ground Cable
Package Includes
1 Parallel 4AWG Battery Cable Set
| RUiXU RX-LFP48100-H Self-Heating 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery | |
| Model SKU | RX-LFP48100-H |
|---|---|
| MODEL | |
| Product Type | Battery |
| ELECTRICAL | |
| Nominal Voltage | 51.2 V |
| Nominal Energy | 5.12 kWh |
| Battery Chemistry | Lithium iron phosphate (LiFePO4) |
| Nominal Capacity | 100 Ah |
| Usable Energy | 4.92 kWh under the manufacturer data-sheet test basis |
| Operating Voltage Range | 44.8-56.0 V |
| Charge Voltage | 56.0 V |
| Float Voltage | 54.6 V |
| Recommended Charge Current | 50 A |
| Maximum Charge Current | 70 A |
| Recommended Discharge Current | 50 A |
| Maximum Discharge Current | 100 A |
| Peak Discharge Current | 101-119 A for 5 minutes; 120-149 A for 15 seconds |
| Design Life | 15 years |
| Parallel Expansion | Up to 32 matched units, scaling from 5 kWh to 160 kWh without an external controller |
| Cell Chemistry | LiFePO₄ |
| Maximum Parallel Units | 32 |
| Battery Features | Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Communications | RS485 and CAN with DIP-switch inverter protocol selection |
| PHYSICAL | |
| Dimensions | 18.9 × 5.2 × 18.1 in (482 × 133.5 × 460 mm), 3U |
| Weight | Approximately 47 kg (103.6 lb) |
| OPERATING LIMITS | |
| Certifications | UL 9540A, CE, IEC 62619, UL 1973, and UN 38.3 |
| Cycle Life | At least 6,000 cycles at 90% depth of discharge |
| BMS Protections | Over-discharge, over-charge, over-current, and cell-balancing protection |
| Ingress Protection | IP20 |
| Operating Temperature Range | 14°F to 122°F (-10°C to 50°C), with derating near the limits |
| Storage Temperature Range | 14°F to 113°F (-10°C to 45°C) |
| Warranty | 10 years |
| PACKAGE | |
| Included Components | 1 × RX-LFP48100-H Self-Heating 51.2V 100Ah Server Rack Battery, 1 × RJ45/CAT5e Patch Cable, 1 × Ground Cable, 1 × Parallel 4AWG Battery Cable Set |
