RUiXU Battery

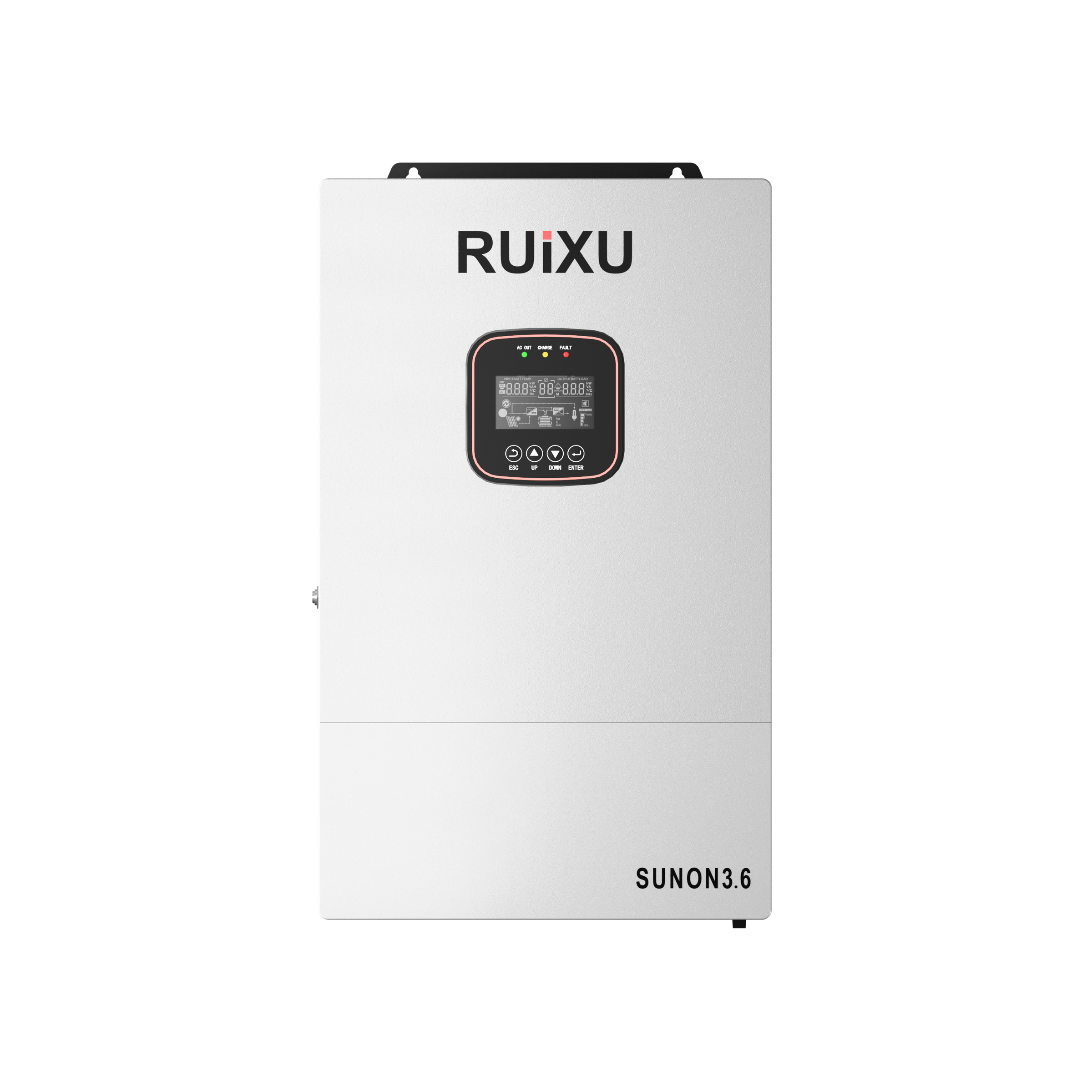

RUiXU SUNON3.6 Single-Phase Off-Grid Inverter - 3.6kW
$519.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRUiXU Battery warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
RUiXU SUNON3.6 Single-Phase Off-Grid Inverter - 3.6kW
The RUiXU SUNON3.6 is a compact off-grid inverter for 48V battery systems, solar charging, and residential or small backup applications.
Key Features
- 3.6kW single-phase off-grid inverter
- Supports solar and grid charging modes
- WiFi and app monitoring support
- Parallel-capable inverter design
Specifications
| Brand | RUiXU |
| Model | SUNON3.6 |
| Product Type | Single-Phase Off-Grid Inverter |
| Output | 3.6kW |
| Battery Compatibility | 48V battery systems |
| Certification | UL1741 |
| Charging Current | Up to 80A |
| Parallel Support | Up to 6 units / 21.6kW total |
Package Includes
1 SUNON3.6 3.6kW Inverter
Package Includes
1 CAT6 Battery Communication Cable (200cm)
Package Includes
1 Operation Manual
Package Includes
1 Wi-Fi Dongle
| RUiXU SUNON3.6 Single-Phase Off-Grid Inverter - 3.6kW | |
| Model SKU | SUNON3.6 |
|---|---|
| MODEL | |
| Model | SUNON3.6 |
| Product Type | Single-phase off-grid inverter |
| ELECTRICAL | |
| Rated Output Power | 3,600 W |
| Rated Output Voltage | 120 V AC |
| Motor Load Capacity | 2 hp |
| Rated Frequency | 50/60 Hz |
| Output Waveform | Pure sine wave |
| Transfer Time | 10 ms typical |
| Battery Types | Lithium-ion, lead-acid, or user-defined |
| Rated Battery Voltage | 48 V |
| Battery Voltage Range | 40-60 V DC |
| Maximum Solar Charging Current | 80 A |
| Maximum Grid / Generator Charging Current | 40 A |
| Maximum Mixed Charging Current | 80 A |
| Number of MPPTs | 1 |
| Maximum PV Input Power | 4,500 W |
| Maximum PV Input Current | 27 A |
| Maximum PV Open-Circuit Voltage | 300 V DC |
| PV MPPT Voltage Range | 90-260 V DC |
| Grid / Generator Input Voltage Range | 90-140 V AC |
| Grid / Generator Input Frequency | 50/60 Hz |
| Bypass Overload Current | 40 A |
| MPPT Tracking Efficiency | 99% |
| Maximum Efficiency | 91% |
| Parallel Capacity | 1-6 units; more than two can form split-phase output and more than three can form three-phase output |
| Battery Compatibility | 48V battery systems |
| PV / MPPT | Solar and grid charging support |
| Charging Current | Up to 80A |
| System Application | Off-grid power |
| CONNECTIONS | |
| Communication | RS485, CAN, USB, and dry contact |
| Parallel Support | Up to 6 units / 21.6kW total |
| PHYSICAL | |
| Dimensions | 16.85 × 12.99 × 4.33 in (428 × 330 × 110 mm) |
| Weight | 17.86 lb (8.1 kg) |
| OPERATING LIMITS | |
| Certification | FCC Part 15 Class B and UL 1741 |
| Protection Rating | IP20; indoor use only |
| Operating Temperature | -10°C to 55°C; derates above 45°C |
| Warranty | 3 years |
| PACKAGE | |
| Included Components | 1 × SUNON3.6 3.6kW Inverter, 1 × CAT6 Battery Communication Cable (200cm), 1 × Operation Manual, 1 × Wi-Fi Dongle |
