Rich Solar Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 30A, 40A, 60A, 80A, 100A, 120A, 150A, 200A, 250A - 30A

Brand RICH SOLAR Out of Stock

$27.99 Out of Stock

No sales tax collected at checkout where applicable.

Bundle Option Choose your bundle

Quantity

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRICH SOLAR warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

Rich Solar • Solar Electrical Protection

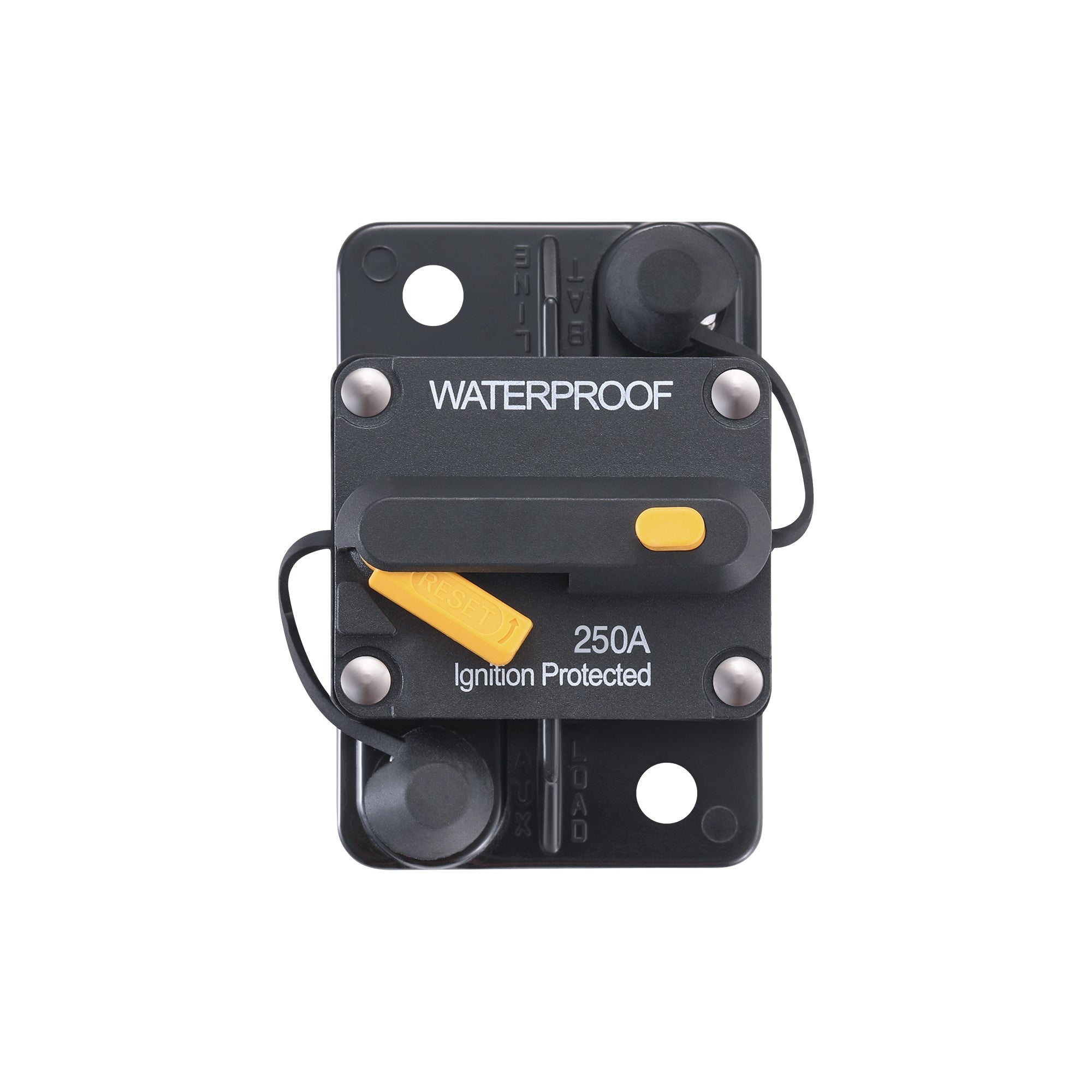

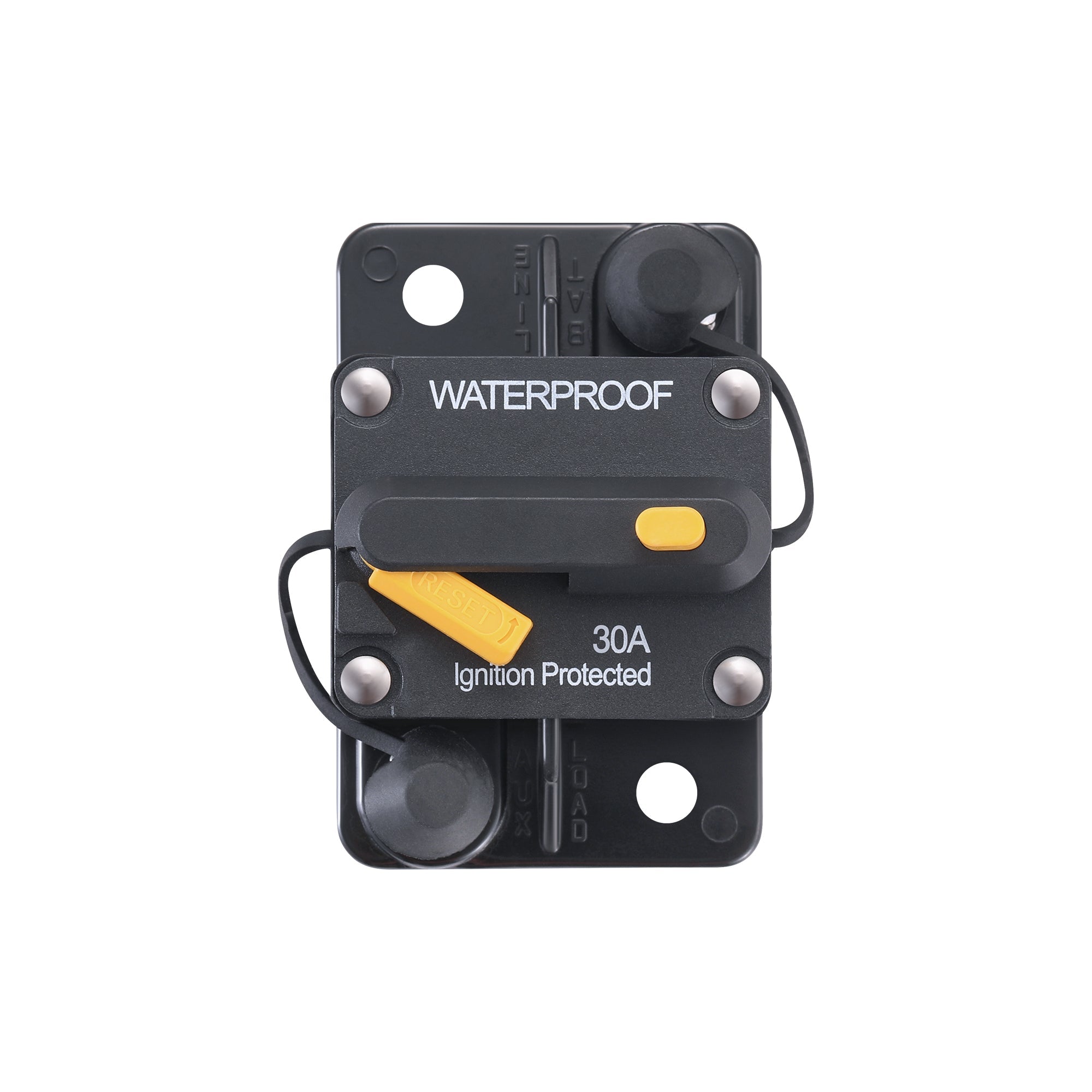

Single Pole Waterproof Circuit Breaker

The Single Pole Waterproof Circuit Breaker is a supporting component for cleaner solar, battery, and inverter installations. It helps customers complete the details that make a system easier to install, service, expand, and use reliably.

Safer electrical layout

Supports cleaner disconnect, fuse, breaker, or outlet planning in DC and solar systems.

Serviceability

Makes maintenance and troubleshooting easier when installed as part of a planned system.

System-ready fit

Made for practical solar, battery, and off-grid power builds where compatibility and clean installation matter.

Product Details

Single Pole Waterproof Circuit Breaker is listed by Grid Getaway for customers comparing solar panels, LiFePO4 batteries, inverters, charge controllers, wiring, mounting hardware, and complete off-grid power components in one place.

Current rating: 250A

Rich Solar SKU: RS-CB250

Best Uses

solar array protection
battery and inverter wiring safety
serviceable DC electrical layouts

Buying note: Before ordering, confirm amperage, voltage rating, wire gauge, terminal/lug size, enclosure location, and applicable electrical code requirements.

Why Buy From Grid Getaway?

Grid Getaway helps customers compare Rich Solar products alongside compatible solar, backup power, and energy storage equipment. The goal is to make the full system easier to understand, easier to size, and easier to upgrade over time.

Package Includes

1x Rich Solar Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 30A, 40A, 60A, 80A, 100A, 120A, 150A, 200A, 250A - 30A

Includes the selected item based on the current package option.

Rating	25-250A, 30VDC; 48VDC
Interrupt Rating	3000A @30VDC
Operating Temperature Rating	-25°F (-32°C) to 180°F (82°C)
Storage Temperature Rating	-30°F (-34°C) to 300°F (149°C)
Materials	Black UL-rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases.
Marking	Standard marking includes amp ratings and part numbers. Custom markings are also available
Termination	1/4-28 or 3/8-16 threaded studs
Torque Rating	S 50 in-lbs (5.6N·m) max
Mounting Torque Rating	Panel or surface-mount options; 50 in-lbs (5.6N·m) max. The threaded insert option has a max torque of 25 in-lbs (2.8N·m)
Ingress Protection Rating	IP67
Compliance	SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
Model SKU	RS-CB30
