SOK

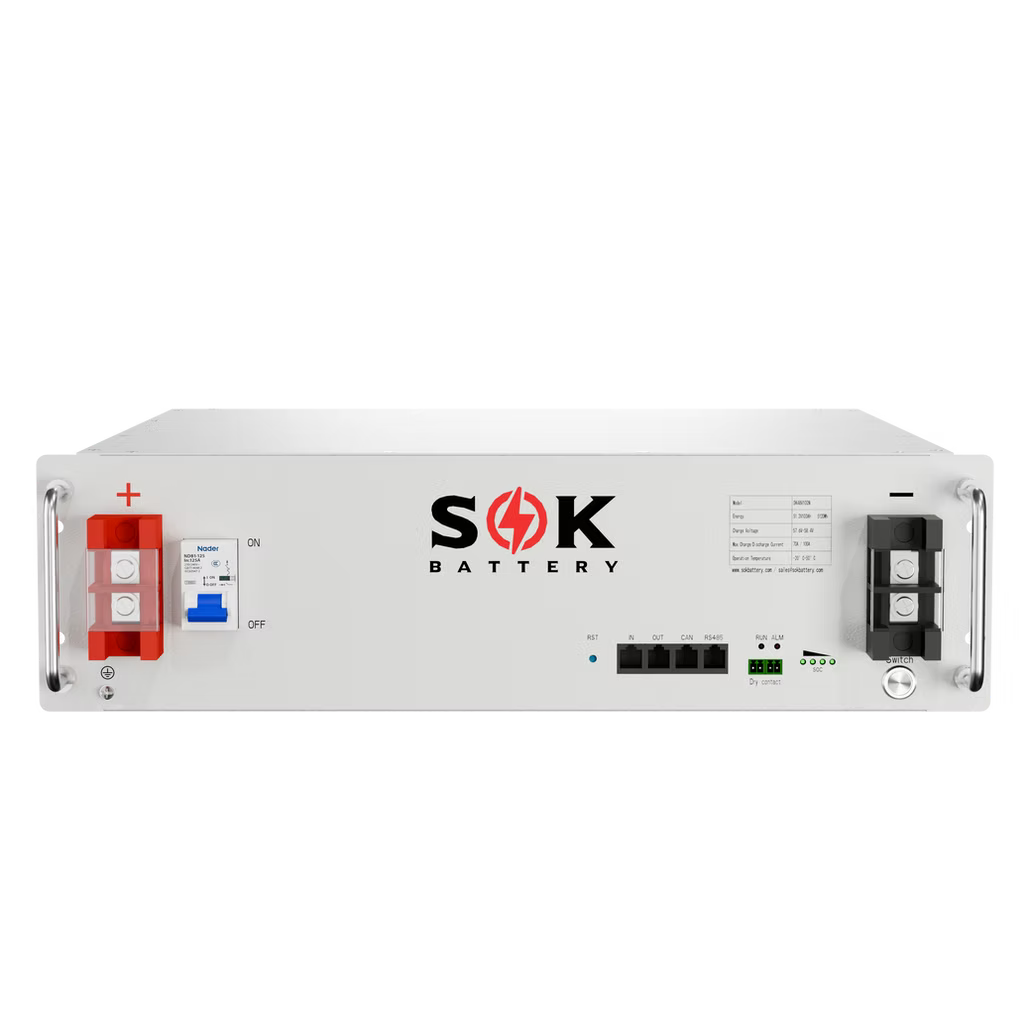

SK48V100N | 48V100Ah Server Rack LiFePO4 Battery
$1,199.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSOK warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
48 Volt (51.2 Nominal) 100Ah, 5.12 kWh
20 Year Typical Lifespan & 10 Year Warranty.
Typical capacity at 80% DOD @0.5C Rate is over 6000 Cycles
Maintenance Free
Built-In Smart BMS：multi-protection
Built-in Heater：100w
Pre-Charge Circuit to Prevent BMS Damage:100000µF
RS485 & CANBus communication, works with many inverters
Rack Mountable for quick and easy installation
Package Includes
1 SOK SK48V100N 51.2V 100Ah Server Rack Battery
Package Includes
1 Battery Parallel Communication Cable
Package Includes
1 Grounding Cable
Package Includes
1 Warranty Card
Package Includes
1 Specification Sheet
Package Includes
1 Factory Quality-Assurance Test Report
| SK48V100N / 48V100Ah Server Rack LiFePO4 Battery | |
| Model SKU | SK48V100N |
|---|---|
| MODEL | |
| Product Type | Battery |
| ELECTRICAL | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Self-Discharge | <3% per month |
| Cell Configuration | 16 × 3.2V 100Ah LiFePO4 cells |
| Recommended Charge Current | 50A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | ≤58.4V |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 120A for 1 minute |
| Recommended Low-Voltage Disconnect | 44.8V |
| Maximum Parallel Batteries | 48 |
| Discharge Current | 100A |
| Battery Features | LiFePO4 chemistry |
| CONNECTIONS | |
| Communication | CAN and RS485 |
| Terminal Type | M8 |
| Terminal Torque | 80-100 in-lbs |
| PHYSICAL | |
| Dimensions (L × W × H) | 19.14 × 16.95 × 5.22 in |
| Approximate Weight | 100 lbs |
| Case Material | SPCC + SGCC steel |
| Enclosure Rating | IP20 |
| Dimension (L x W x H) | 19.14*16.95*5.22inch |
| OPERATING LIMITS | |
| Warranty | 7-year limited manufacturer warranty |
| Discharge Temperature | -4°F to 140°F |
| Charge Temperature | -4°F to 122°F with self-heating |
| Storage Temperature | 23°F to 95°F |
| PACKAGE | |
| Included Components | 1 × SOK SK48V100N 51.2V 100Ah Server Rack Battery, 1 × Battery Parallel Communication Cable, 1 × Grounding Cable, 1 × Warranty Card, 1 × Specification Sheet, 1 × Factory Quality-Assurance Test Report |
