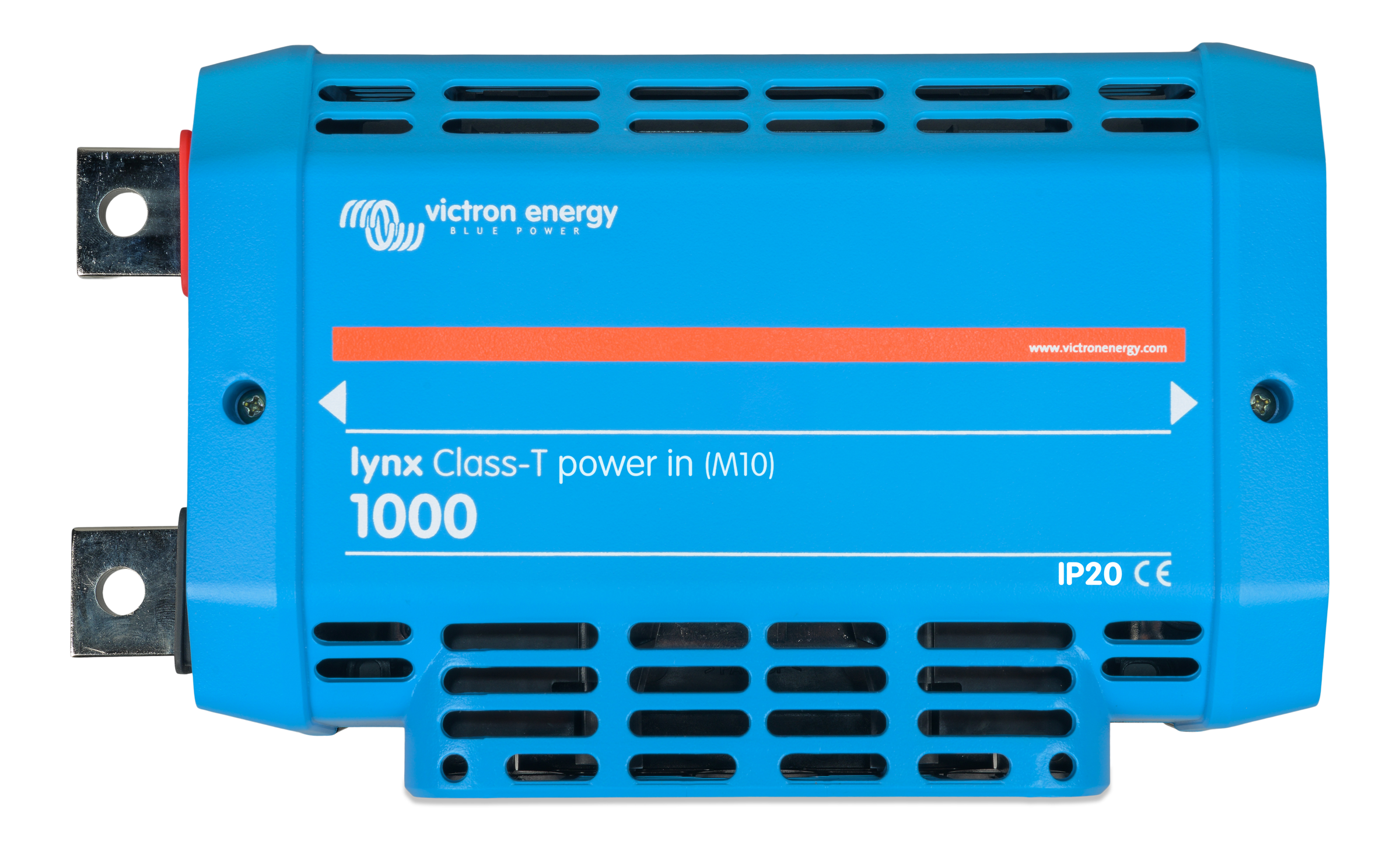

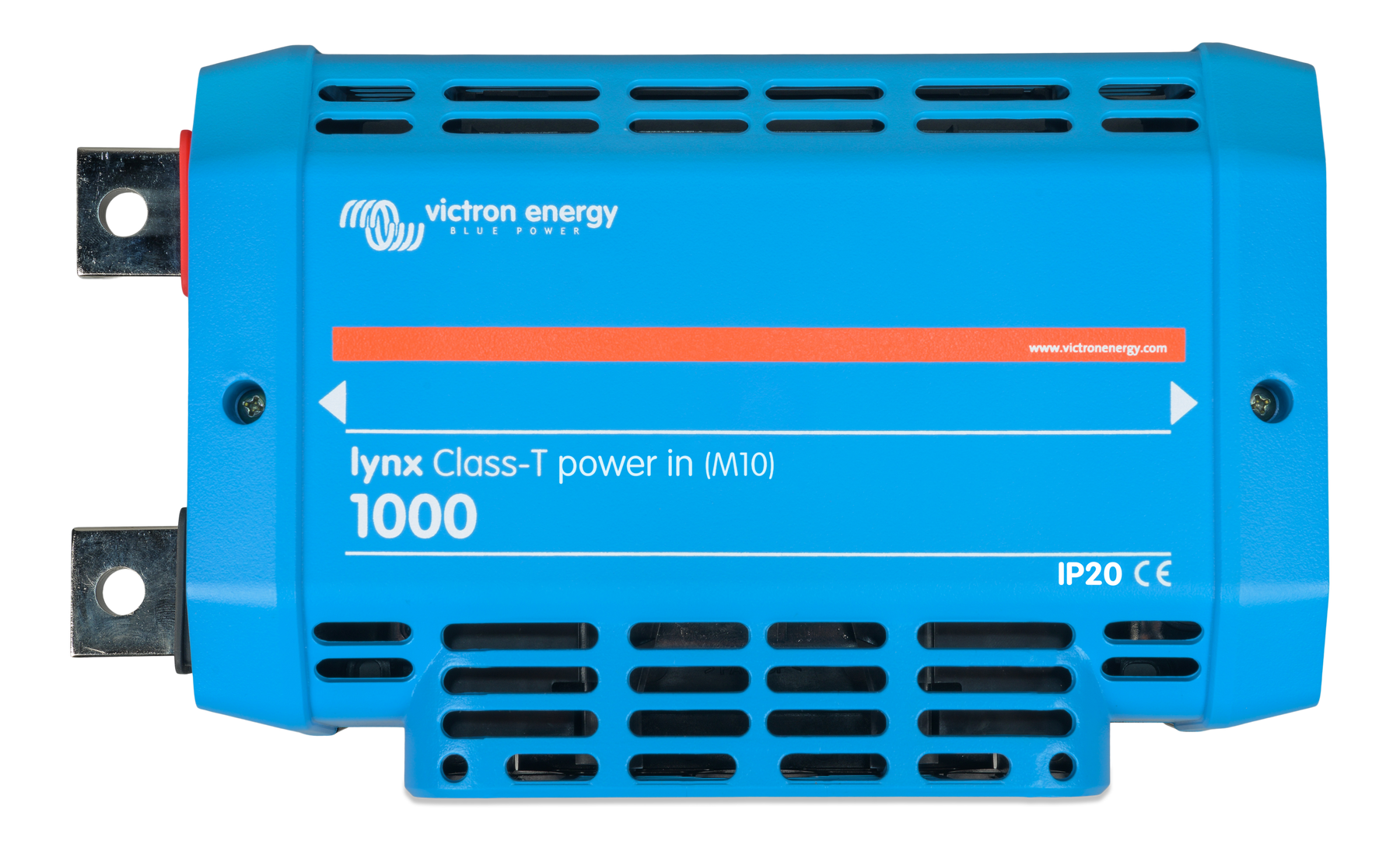

Victron Lynx Class-T Power In (M10) – DC Busbar Module with Class-T Fuse Holder for Battery Systems | RV Marine & Solar

Brand Victron In Stock
$187.00 In Stock
No sales tax collected at checkout where applicable.
5% off Save an extra 5% today! Copy this code and apply it at checkout when eligible. Code: GET5
Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerVictron warranty
Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

The Victron Lynx Class-T Power In (M10) – DC Busbar Module with Class-T Fuse Holder for Battery Systems | RV Marine & Solar helps complete a more capable marine power systems, RV power systems, solar and off-grid power, and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.

Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.

  • Product role: Dc Distribution Component
  • Best-use applications: marine power systems, RV power systems, solar and off-grid power, and backup energy storage
  • Notable features: Victron-compatible system communication, marine electrical system applications, RV and mobile power applications, and solar and off-grid system integration
  • SKU: LYN060404010

For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.

Victron Lynx Class-T Power In (M10) – DC Busbar Module with Class-T Fuse Holder for Battery Systems | RV Marine & Solar
Package Includes
1x Victron Lynx Class-T Power In (M10) – DC Busbar Module with Class-T Fuse Holder for Battery Systems | RV Marine & Solar
Includes the selected item based on the current package option.
Victron Lynx Class-T Power In (M10) – DC Busbar Module with Class-T Fuse Holder for Battery Systems / RV Marine & Solar
Model SKU LYN060404010
MODEL
Product Type Power-System Accessory
ELECTRICAL
Voltage Range 9–60V DC
Continuous Current Rating 1,000A DC
Battery String Connections Up to 2
Fuse Type Class-T, 3/8-inch studs
Compatibility Battery Systems
PHYSICAL
Supported Fuse Sizes 225A, 250A, 350A, or 400A; sold separately
Enclosure Material ABS
Busbar Material Tinned copper
Busbar Dimensions 8 × 30 mm
Dimensions (H × W × D) 279 × 169 × 97 mm
Weight 2.1 kg
OPERATING LIMITS
Operating Temperature -40°C to +60°C
Storage Temperature -40°C to +60°C
Protection Rating IP20
No documentation files have been added for this product yet.
