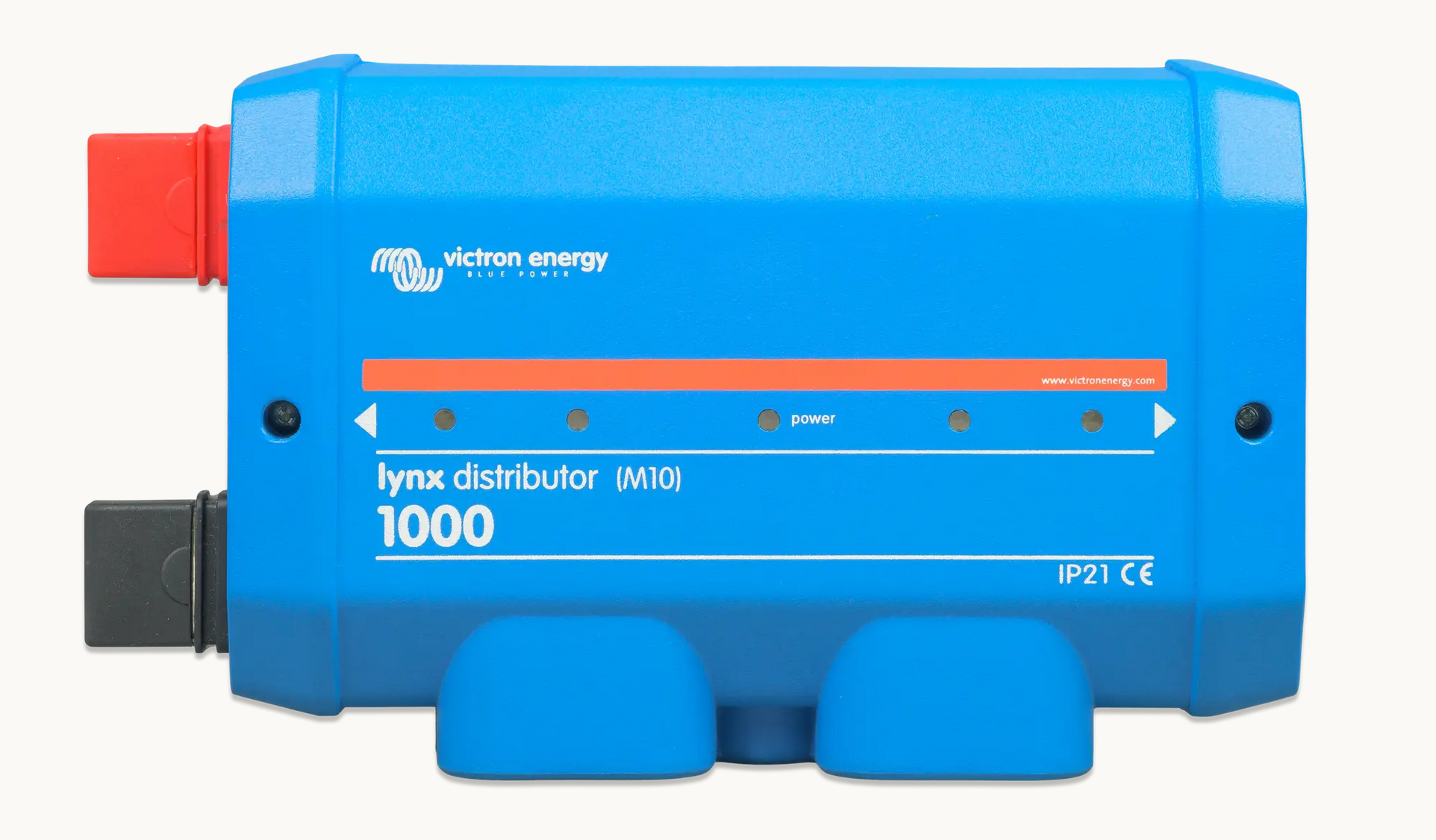

Victron Lynx Distributor (M10) – DC Power Distribution Busbar with Fuse Monitoring | RV Marine & Solar Systems
The Victron Lynx Distributor (M10) – DC Power Distribution Busbar with Fuse Monitoring | RV Marine & Solar Systems helps complete a more capable marine power systems, RV power systems, solar and off-grid power, and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Dc Distribution Component
- Best-use applications: marine power systems, RV power systems, solar and off-grid power, and backup energy storage
- Notable features: Victron-compatible system communication, marine electrical system applications, RV and mobile power applications, and solar and off-grid system integration
- SKU: LYN060102010
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| Victron Lynx Distributor (M10) – DC Power Distribution Busbar with Fuse Monitoring / RV Marine & Solar Systems | |
| Model SKU | LYN060102010 |
|---|---|
| MODEL | |
| Product Type | Power-System Accessory |
| ELECTRICAL | |
| Voltage Range | 9–60V DC |
| Continuous Current Rating | 1,000A DC |
| Fuse Type | MEGA; sold separately |
| Fuse Monitoring | Supported with compatible Lynx Smart BMS/GX configuration |
| CONNECTIONS | |
| Supported Nominal Systems | 12V, 24V, or 48V |
| PHYSICAL | |
| Enclosure Material | ABS |
| Busbar Material | Tinned copper |
| Dimensions (H × D × W) | 290 × 170 × 80 mm |
| Weight | 2.2 kg |
| OPERATING LIMITS | |
| Reverse-Polarity Protection | Yes, excluding the RJ10 connection |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +60°C |
| Protection Rating | IP22 |
| PACKAGE | |
| Included Components | 1 × Victron Lynx Distributor M10, 1 × 40 cm RJ10 Cable |
