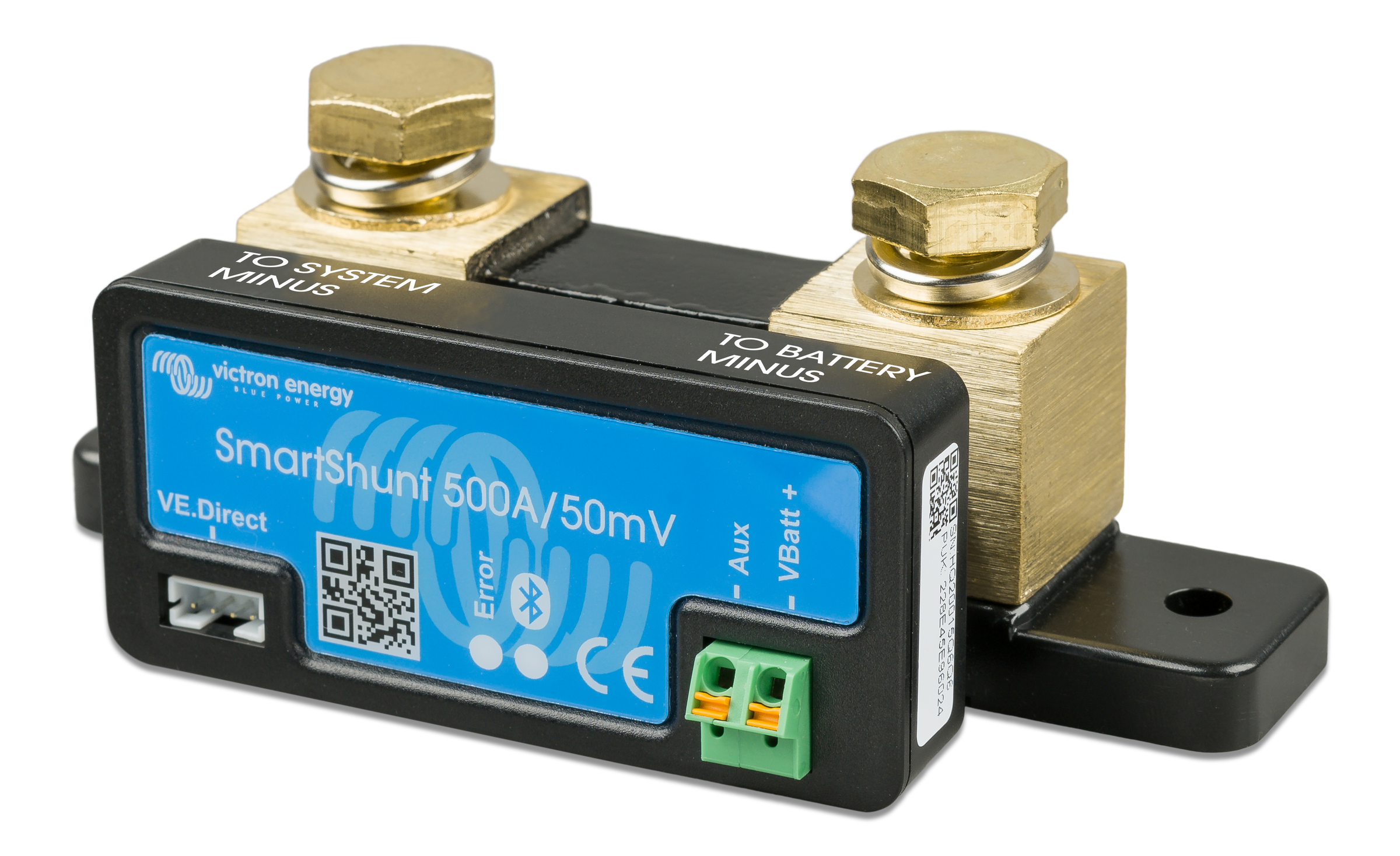

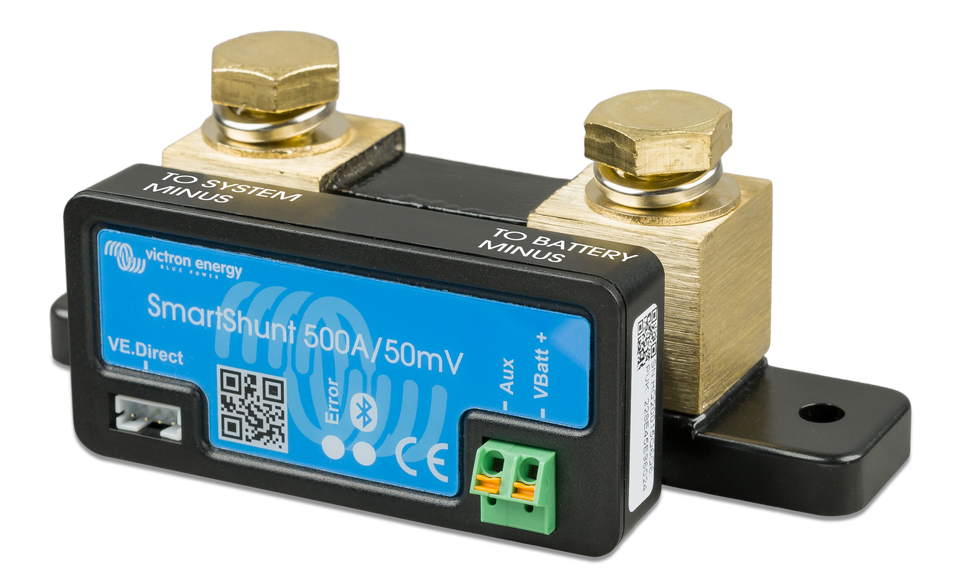

Victron SmartShunt 500A/50mV Bluetooth Battery Monitor – Smart Battery Shunt for RV Solar Marine & Off-Grid Systems
The Victron SmartShunt 500A/50mV Bluetooth Battery Monitor – Smart Battery Shunt for RV Solar Marine & Off-Grid Systems helps complete a more capable marine power systems, RV power systems, and solar and off-grid power setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Battery Monitor
- Best-use applications: marine power systems, RV power systems, and solar and off-grid power
- Notable features: Bluetooth monitoring support, Victron-compatible system communication, marine electrical system applications, RV and mobile power applications, and solar and off-grid system integration
- SKU: SHU050150050
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| Victron SmartShunt 500A/50mV Bluetooth Battery Monitor – Smart Battery Shunt for RV Solar Marine & Off-Grid Systems | |
| Model SKU | SHU050150050 |
|---|---|
| MODEL | |
| Product Type | Power-System Accessory |
| ELECTRICAL | |
| Shunt Rating | 500A / 50mV |
| Supply Voltage Range | 6.5–70V DC |
| Current Consumption | Less than 1mA |
| Configurable Battery Capacity | 1–9,999Ah |
| Auxiliary Input Range | 6.5–70V DC |
| Current Resolution | ±0.01A |
| Voltage Resolution | ±0.01V |
| Amp-Hour Resolution | ±0.1Ah |
| State-of-Charge Resolution | ±0.1% |
| Compatibility | RV Solar Marine & Off-Grid Systems |
| CONNECTIONS | |
| Bluetooth and VictronConnect | Yes |
| VE.Direct Port | Yes |
| PHYSICAL | |
| Dimensions (H × W × D) | 46 × 120 × 54 mm |
| OPERATING LIMITS | |
| Operating Temperature | -40°C to +50°C |
| Protection Rating | IP21 |
| PACKAGE | |
| Included Components | 1 × Victron SmartShunt 500A/50mV, 2 × 1.5 m Red Power Cable with Fuse |
