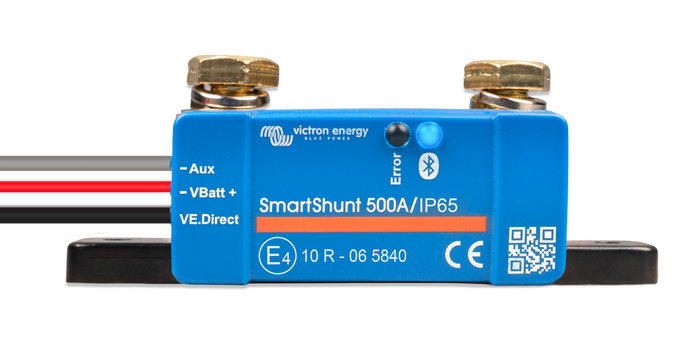

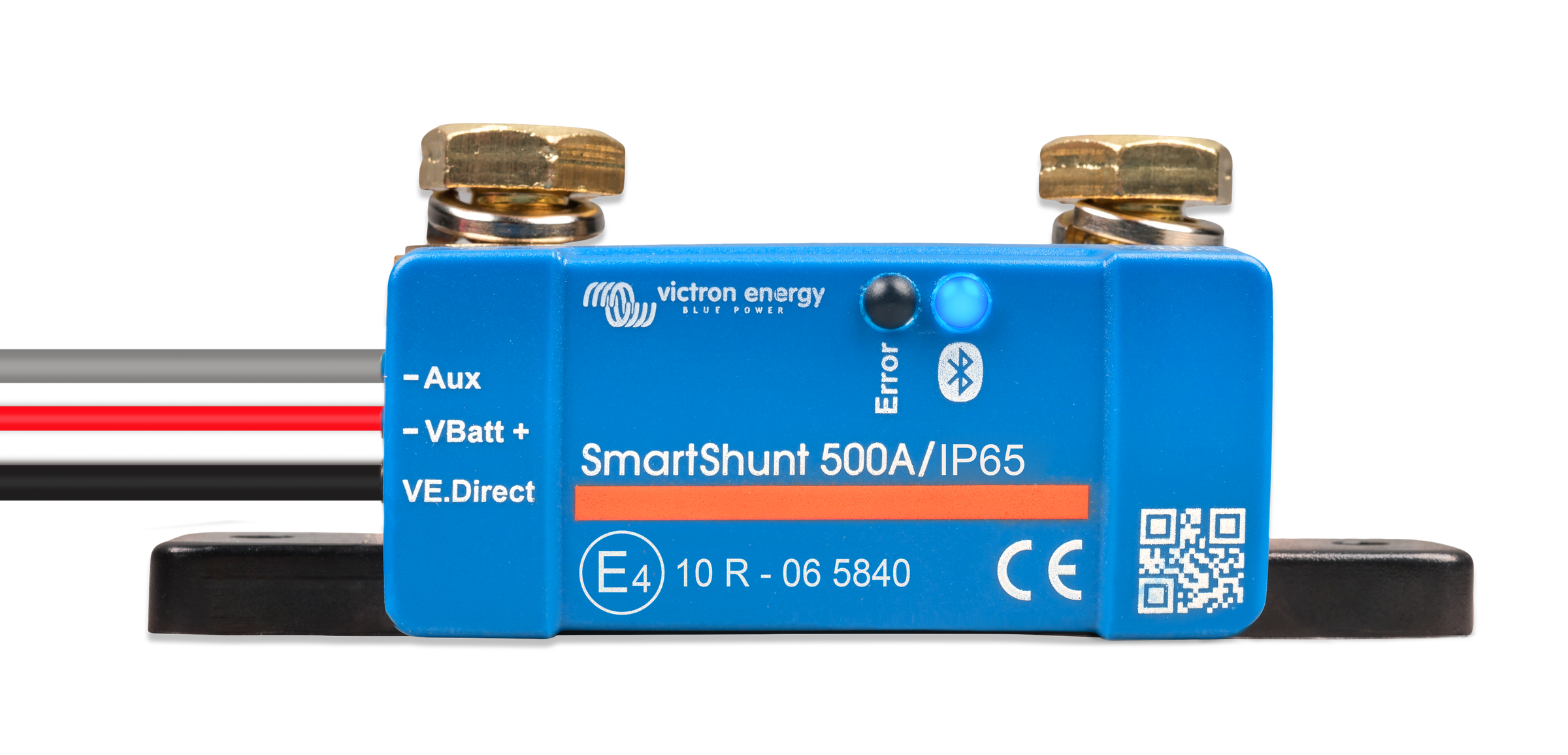

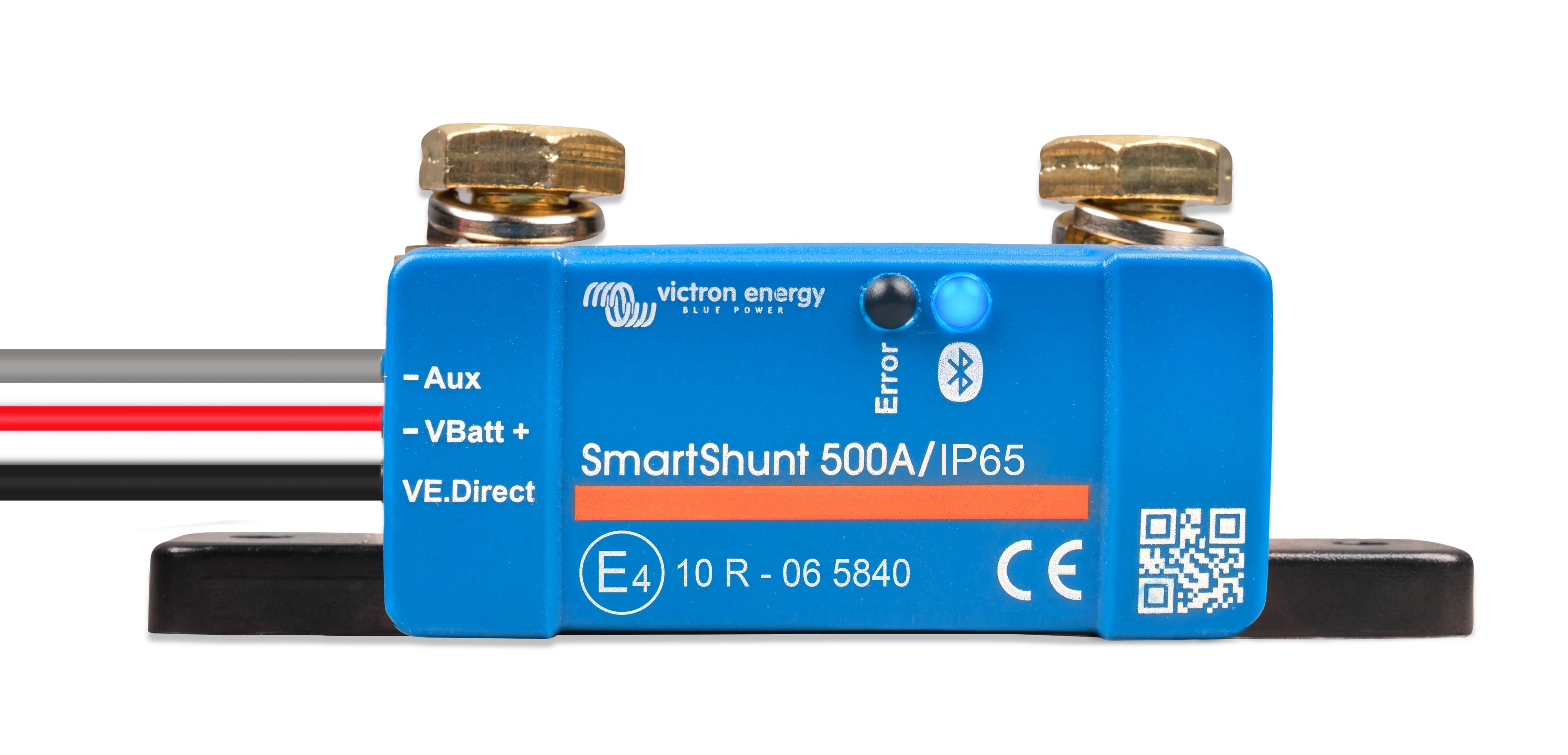

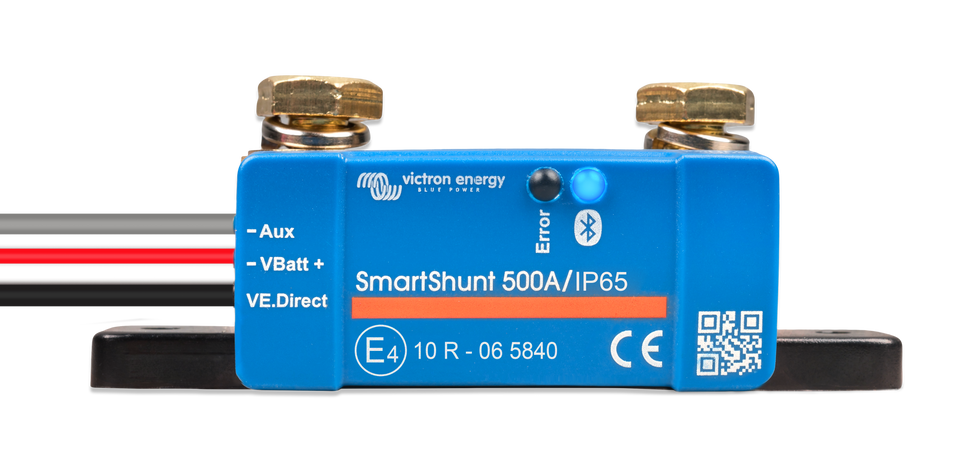

Victron SmartShunt 500A/50mV IP65 Bluetooth Battery Monitor – Waterproof Smart Battery Shunt for RV Marine & Solar Systems

Name: Victron SmartShunt 500A/50mV IP65 Bluetooth Battery Monitor – Waterproof Smart Battery Shunt for RV Marine & Solar Systems
Brand: Victron
SKU: SHU065150050
Price: 110.50 USD
Availability: InStock

Brand Victron In Stock

$110.50 In Stock

No sales tax collected at checkout where applicable.

Quantity

5% off Save an extra 5% today! Copy this code and apply it at checkout when eligible. Code: GET5

Estimated delivery Calculating current delivery window…

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerVictron warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

The Victron SmartShunt 500A/50mV IP65 Bluetooth Battery Monitor – Waterproof Smart Battery Shunt for RV Marine & Solar Systems helps complete a more capable marine power systems, RV power systems, and solar and off-grid power setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.

Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.

Product role: Battery Monitor
Best-use applications: marine power systems, RV power systems, and solar and off-grid power
Notable features: Bluetooth monitoring support, weather-resistant construction for mobile and marine setups, Victron-compatible system communication, marine electrical system applications, and RV and mobile power applications
SKU: SHU065150050

For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.

Package Includes

1x Victron SmartShunt 500A/50mV IP65 Bluetooth Battery Monitor – Waterproof Smart Battery Shunt for RV Marine & Solar Systems

Includes the selected item based on the current package option.

Victron SmartShunt 500A/50mV IP65 Bluetooth Battery Monitor – Waterproof Smart Battery Shunt for RV Marine & Solar Systems
Model SKU	SHU065150050
MODEL
Product Type	Power-System Accessory
ELECTRICAL
Shunt Rating	500A / 50mV
Supply Voltage Range	6.5–70V DC
Current Consumption	Less than 1mA
Configurable Battery Capacity	1–9,999Ah
Auxiliary Input Range	6.5–70V DC
Current Resolution	±0.01A
Voltage Resolution	±0.01V
Amp-Hour Resolution	±0.1Ah
State-of-Charge Resolution	±0.1%
Compatibility	RV Marine & Solar Systems
CONNECTIONS
Bluetooth and VictronConnect	Yes
VE.Direct Port	Yes
PHYSICAL
Dimensions (H × W × D)	46 × 120 × 54 mm
OPERATING LIMITS
Operating Temperature	-40°C to +50°C
Protection Rating	IP65
