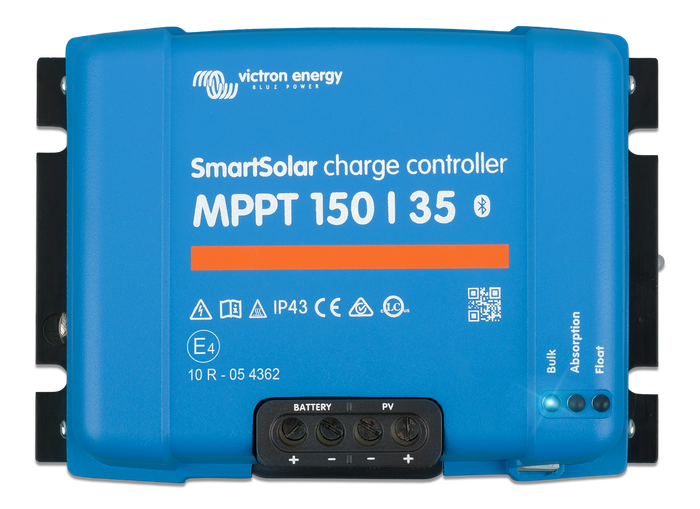

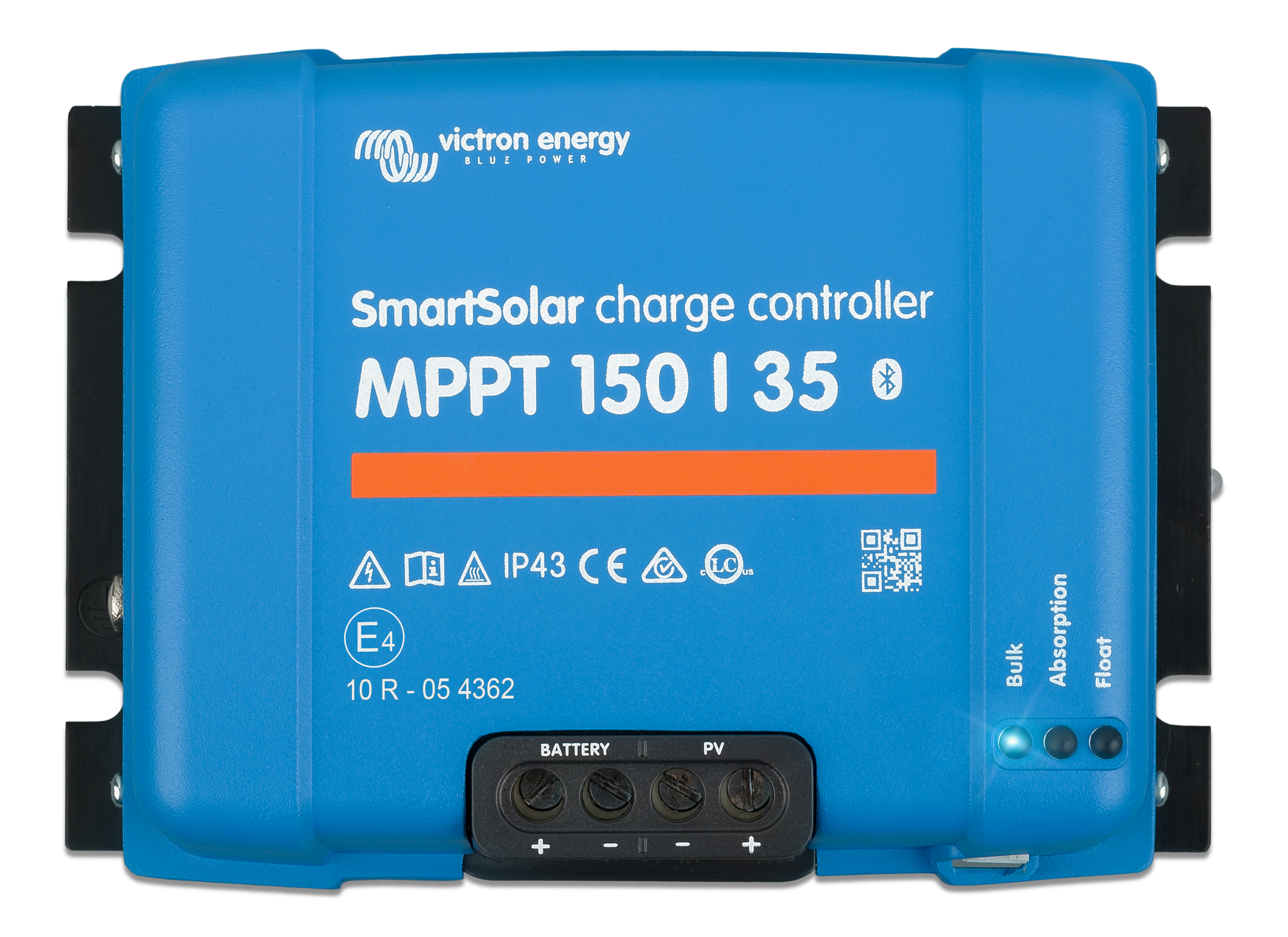

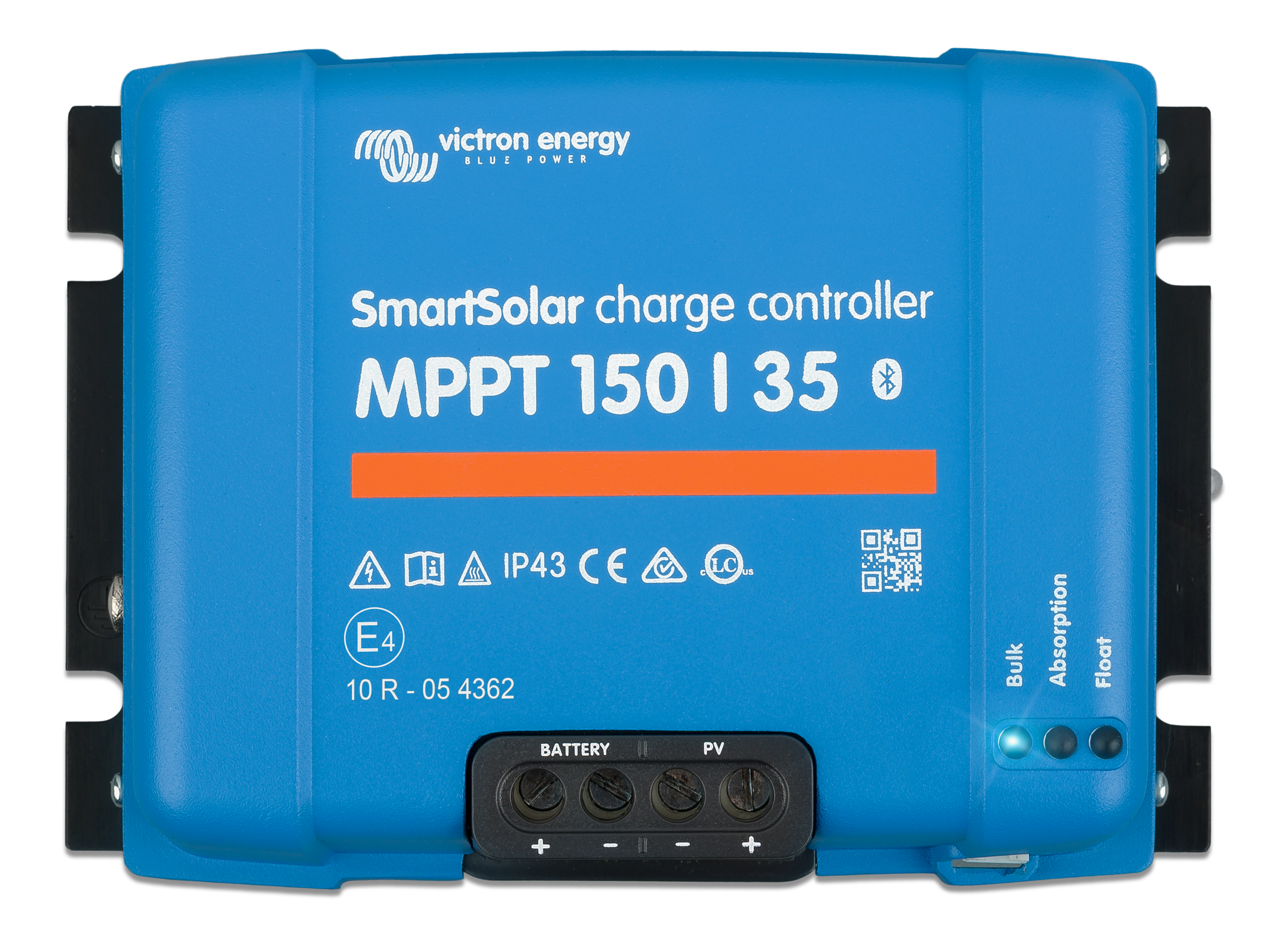

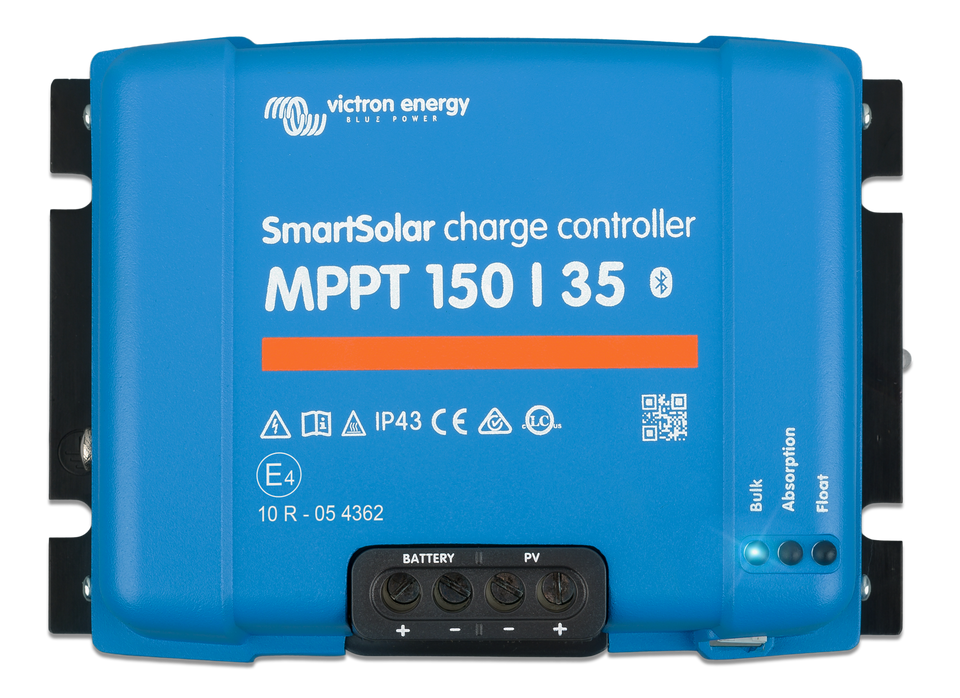

Victron SmartSolar MPPT 150/35 Solar Charge Controller – 35A Bluetooth MPPT Controller for RV Marine & Off-Grid Solar
The Victron SmartSolar MPPT 150/35 Solar Charge Controller – 35A Bluetooth MPPT Controller for RV Marine & Off-Grid Solar helps complete a more capable marine power systems, RV power systems, and solar and off-grid power setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Mppt Solar Charge Controller
- Best-use applications: marine power systems, RV power systems, and solar and off-grid power
- Notable features: Bluetooth monitoring support, Victron-compatible system communication, marine electrical system applications, RV and mobile power applications, and solar and off-grid system integration
- SKU: SCC115035210
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| Victron SmartSolar MPPT 150/35 Solar Charge Controller – 35A Bluetooth MPPT Controller for RV Marine & Off-Grid Solar | |
| Model SKU | SCC115035210 |
|---|---|
| MODEL | |
| Product Type | Solar Charge Controller |
| ELECTRICAL | |
| Maximum Battery Charge Current | 35A |
| Nominal PV Power | 500W at 12V, 1,000W at 24V, 1,500W at 36V, or 2,000W at 48V |
| Maximum PV Open-Circuit Voltage | 150V |
| Maximum PV Short-Circuit Current | 35A |
| Peak Efficiency | 98% |
| Charge Algorithm | Adaptive multi-stage presets or user-defined |
| Listed Current | 35A |
| Compatibility | RV Marine & Off-Grid Solar |
| CONNECTIONS | |
| Supported Battery Voltages | 12V, 24V, or 48V auto-select; 36V manual select |
| Bluetooth and VictronConnect | Yes |
| VE.Direct Port | Yes |
| PHYSICAL | |
| Dimensions (H × W × D) | 130 × 186 × 70 mm |
| Weight | 1.25 kg |
| OPERATING LIMITS | |
| Operating Temperature | -30°C to +60°C; full rated output to 40°C |
| Protection Rating | IP43 electronics / IP22 connection area |
