Rich Solar 100 Watt Solar Kit
Frequently Bought Together
Rich Solar RS-K1002 100 Watt Solar Kit with 20A MPPT Controller
The Rich Solar RS-K1002 100 Watt Solar Kit is a compact 12V solar charging package for RVs, boats, trailers, battery boxes, sheds, small cabins, and starter off-grid systems. It pairs one 100W monocrystalline solar panel with a 20A MPPT charge controller, solar cables, battery cables, mounting brackets, and inline fuse protection so customers can build the solar charging side of a small battery setup without sourcing every piece separately.
Product Overview
The RS-K1002 is designed for customers who want a practical first solar kit with a standard 100W panel and MPPT charge controller. It is a strong fit for maintaining or charging a small 12V battery setup in an RV, trailer, boat, shed, cabin, or compact off-grid project.
This is a solar charging kit, not a complete power system. It does not include a battery or inverter. It gives customers the solar panel, controller, wiring, mounting brackets, and fuse holder needed to build the charging side of the system.

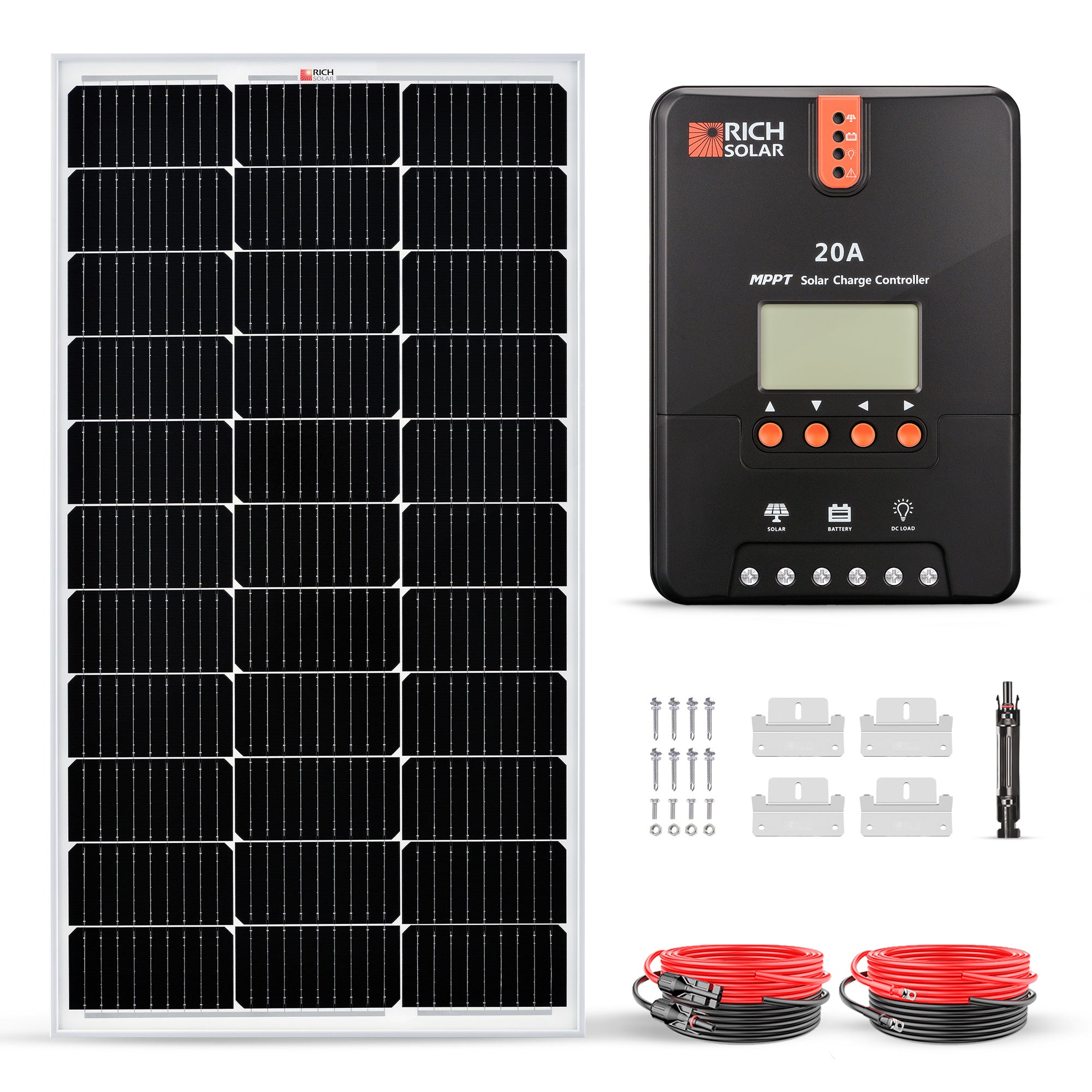

What Comes in the Kit
The RS-K1002 includes the core solar charging parts customers need for a clean starter setup.
- 1 x 100 Watt Monocrystalline Solar Panel
- 1 x 20A MPPT Solar Charge Controller
- 1 x 10A Inline Fuse Holder with Fuse
- 1 x 20 ft #10 Gauge Solar Cable, Red
- 1 x 20 ft #10 Gauge Solar Cable, Black
- 1 x 10 ft #10 Gauge Battery Cable, Red
- 1 x 10 ft #10 Gauge Battery Cable, Black
- 1 x Mounting Z Bracket Set
How This Solar Kit Works
The solar panel collects sunlight, the inline fuse holder supports the panel-side connection, the MPPT controller regulates charging, and the customer’s battery stores the energy for later use. When paired with an inverter, that stored battery power can be converted into AC power for compatible loads.
The wiring diagram shows how the panel, inline fuse holder, MPPT controller, battery, and optional inverter fit together in a small 12V solar setup.
The kit gives customers a straightforward solar-to-controller-to-battery charging path, making it easier to understand how the solar side of the system supports stored battery power.
Where This Kit Fits
The 100 Watt Solar Kit is best for smaller solar charging projects where the customer wants a standard panel, a real charge controller, and the basic wiring hardware in one package.
Why Customers Choose the 100W Solar Kit
This kit is made for customers who want a simple, reliable solar charging package without stepping into a larger multi-panel system. It is more complete than buying only a panel because the controller, wiring, brackets, and fuse holder are already included.
Best Uses
- Small RV solar charging setups
- Travel trailer and camper battery charging
- Boat and compatible marine charging systems
- Battery boxes and compact 12V systems
- Sheds, small cabins, and remote buildings
- Starter solar projects
- Customers who want a standard 100W panel kit instead of a slim-panel kit
Key Benefits
- Compact 100W 12V solar charging kit
- Includes one 100 Watt monocrystalline solar panel
- Includes 20A MPPT solar charge controller
- Includes red and black 20 ft #10 solar cables
- Includes red and black 10 ft #10 battery cables
- Includes one set of mounting Z brackets
- Includes 10A inline fuse holder with fuse
- Clean starter option for RVs, trailers, boats, battery boxes, sheds, and small off-grid systems
| Rich Solar 100 Watt Solar Kit | |
| Model SKU | RS-K1002 |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Maximum Series Fuse Rating | 15A |
| Nominal System Voltage | 12V/24V Auto Recognition |
| Rated Battery Current | 20A |
| Rated Load Current | 20A |
| Listed Solar Power | 100W |
| 100 Watt Monocrystalline Solar Panel — Maximum Power (Pmax) | 100W |
| 100 Watt Monocrystalline Solar Panel — Open Circuit Voltage (Voc) | 22.8V |
| 100 Watt Monocrystalline Solar Panel — Short Circuit Current (Isc) | 5.78A |
| 100 Watt Monocrystalline Solar Panel — Maximum System Voltage (Vmax) | 1000VDC |
| 20A MPPT Solar Charge Controller — Nominal System Voltage | 12V/24V Auto Recognition |
| 20A MPPT Solar Charge Controller — Rated Battery Current | 20A |
| 20A MPPT Solar Charge Controller — Rated Load Current | 20A |
| 20A MPPT Solar Charge Controller — Max. PV Input Short Current | 25A |
| 20A MPPT Solar Charge Controller — Max. Battery Voltage | 32V |
| 20A MPPT Solar Charge Controller — Max Solar Input Voltage | 100 VDC |
| 20A MPPT Solar Charge Controller — Discharge Circuit Voltage Drop | ≤0.15 V |
| 10A Inline Fuse Holder with Fuse — Rated Current | 10A/15A/20A/30A |
| 10A Inline Fuse Holder with Fuse — Rated Voltage | 1000 V DC |
| 10A Inline Fuse Holder with Fuse — Test Voltage | 6000V (50Hz, 1 min) |
| 10A Inline Fuse Holder with Fuse — Overvoltage Category | CATIII |
| PHYSICAL | |
| Weight | 13.2 lb |
| Dimensions | 39.0 x 21.3 x 1.2 in |
| Net Weight | 3.08 lb |
| Overall Dimensions | 8.27 x 5.94 x 2.34 in |
| 100 Watt Monocrystalline Solar Panel — Weight | 13.2 lb |
| PACKAGE | |
| Included Components | 1 × 100 Watt Monocrystalline Solar Panel, 1 × 20A MPPT Solar Charge Controller, 1 × 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller, 1 × 10' #10 Gauge Battery Cable (Red), connects controller to battery, 1 × Mounting Z Brackets (one set), 1 × 10A Inline Fuse Holder with Fuse |
