Rich Solar 1250W 48VDC-120VAC Solar Kit Rich Solar 1250W 48VDC-120VAC Solar Kit
SKU: RS-CBK1250
- Minimum Capacity 99.5Ah
- Charging Voltage 56V
- Discharging Cutoff Voltage 44.8V
Add what you need.
Start with your product. Choose the extras that suit your setup.
Rich Solar RS-CBK1250 1250W 48VDC-120VAC Solar Kit
The Rich Solar RS-CBK1250 is a complete 48V solar power package built for cabins, sheds, tiny homes, remote buildings, workshops, essential-load backup projects, and off-grid systems that need solar input, lithium battery storage, and 120VAC inverter output in one matched kit. With five MEGA 250W solar panels, one ALPHA 5 PRO 5.12kWh battery, and one NOVA 6500S 48V hybrid inverter, this system gives customers a serious step up from basic panel-and-controller kits.
Product Overview
The RS-CBK1250 is the entry point into Rich Solar’s 48V complete solar kit lineup. It is smaller than the larger 2500W and 4000W systems, but it still includes the big pieces customers actually care about: solar panels, lithium storage, inverter power, solar wiring accessories, mounting brackets, and a PV DC quick disconnect.
This is not just a solar charging kit. It includes the battery and inverter hardware needed to collect solar energy, store it in a 48V LiFePO4 battery, and convert that stored power into usable 120VAC output for compatible loads.
Explore the Main System Components
This kit is built around three major pieces: the solar array, the lithium battery, and the hybrid inverter. Use the tabs below to show customers what each part does in the system.
Solar Array
The five-panel solar array gives this kit enough panel capacity to support a real 48V battery-based power system. It is a strong fit for customers who want more than a small RV-style kit but do not need to jump into the larger multi-battery packages right away.
Battery Storage
The ALPHA 5 PRO gives the system a clean server-rack style lithium storage foundation. It is built for customers who want a more serious battery platform than portable units or small 12V batteries, with room to expand later if their power needs grow.
Hybrid Inverter
The NOVA 6500S is the heart of the system, converting stored 48V battery power into 120VAC output for compatible appliances, tools, electronics, and essential loads. It also gives the kit a more capable foundation than smaller standalone inverter setups.
What Comes in the Kit

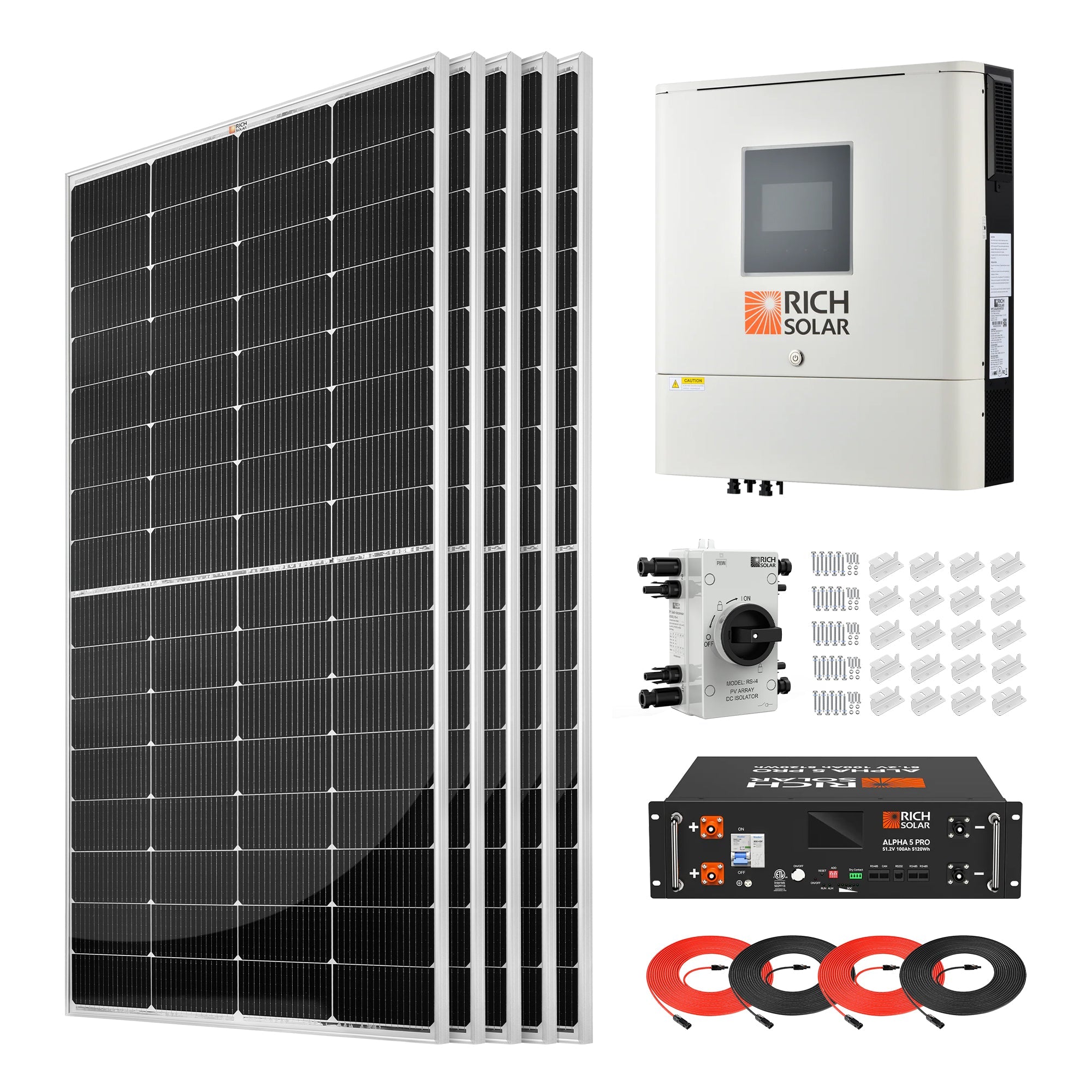

The RS-CBK1250 bundles the core hardware needed for a 48V / 120VAC solar power system, including panels, battery, inverter, solar extension cables, mounting brackets, and a PV DC quick disconnect.
The solar array collects energy for the 48V battery system.
Server-rack style lithium storage for the complete kit.
Hybrid inverter for converting stored battery energy into 120VAC power.
Solar-side accessories help support the installation plan.
How This System Works
The solar panels collect power, the ALPHA 5 PRO battery stores it, and the NOVA 6500S inverter converts the stored 48V DC energy into 120VAC power for compatible loads. The result is a compact complete kit for customers who want a real 48V solar system without jumping straight into a larger 2500W or 4000W package.
This kit gives customers the core pieces of a 48V system in one package: solar production, lithium storage, inverter output, and the supporting solar-side hardware.
The included inverter gives the system a serious output foundation, making it suitable for customers who need more capability than a small inverter or portable power station setup.
The included ALPHA 5 PRO battery gives the system a clean lithium storage starting point with room to expand later as power needs grow.
The five included panels create a strong solar charging foundation for cabins, sheds, workshops, tiny homes, remote buildings, and selected backup power projects.
Best Fit for Smaller 48V Solar Builds
This kit makes the most sense when the customer wants a complete 48V system, but does not need the larger solar array or extra batteries included in bigger packages. It is a cleaner option for smaller off-grid properties and essential-load projects that still need serious inverter capability.
Best Uses
- Small off-grid cabin power systems
- Tiny home and remote building solar setups
- Workshop, shed, barn, and outbuilding power
- Essential-load backup power projects
- 48V solar energy storage systems
- Customers upgrading beyond portable power stations
- Properties that need solar production plus lithium battery storage
- Single-inverter 120VAC off-grid system designs
- Projects that need a complete kit without stepping into a larger 2500W system
Key Benefits
- Complete 1250W 48VDC-120VAC solar kit
- Includes solar panels, battery, inverter, cables, brackets, and PV disconnect
- Built around Rich Solar’s ALPHA 5 PRO lithium battery platform
- Includes NOVA 6500S hybrid inverter power
- Strong option for cabins, sheds, workshops, tiny homes, and remote buildings
- Cleaner complete-kit option than piecing together the main system components separately
- Expandable foundation for customers who may add more battery capacity later
- Ideal for customers who want a real 48V solar system without starting with a larger package
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
| Rich Solar 1250W 48VDC-120VAC Solar Kit | |
| Selected variant SKU | RS-CBK1250 |
|---|---|
| MODEL | |
| Model / SKU | RS-CBK1250 |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Efficiency | (Line Mode) >95% ( Rated R load, battery full charged ) |
| Transfer Time | 10ms typical (UPS); |
| Waveform | No Load Power Consumption |
| Rated Output Power | 6500W |
| Output Frequency | 60Hz or 50Hz |
| Rated Power | 8000W |
| Max. Input Current | 18A x 2 |
| Maximum System Voltage | (Vmax): 1500VDC |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Maximum Charging Current | 100A |
| Continuous Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Maximum Charge Voltage | (CC/CV): 57.6V |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Battery System Voltage | 48VDC |
| Listed Solar Power | 1250W |
| 6500W 48V Off-grid Solar Inverter — Rated Inverter Power | 6500VA/6500W |
| 6500W 48V Off-grid Solar Inverter — Voltage | 120 VAC |
| 6500W 48V Off-grid Solar Inverter — Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| 6500W 48V Off-grid Solar Inverter — AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| 6500W 48V Off-grid Solar Inverter — No Load Power Consumption | <75W |
| 6500W 48V Off-grid Solar Inverter — DC Voltage | 12 VDC ± 5%, 100W |
| MEGA 250W Monocrystalline Panel — Maximum Power (Pmax) | 250W |
| MEGA 250W Monocrystalline Panel — Open Circuit Voltage (Voc) | 22.8V |
| MEGA 250W Monocrystalline Panel — Short Circuit Current (Isc) | 13.7A |
| MEGA 250W Monocrystalline Panel — Maximum System Voltage (Vmax) | 1500VDC |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Voltage | 51.2V |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Capacity | 100Ah |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Energy | 5120Wh |
| PV DC Quick Disconnect — Max. Rated Current | 55A |
| PV DC Quick Disconnect — Max. Rated Voltage | 1500VDC |
| CONNECTIONS | |
| Connectors | are not connected to the cable, and user can wired according to the actual application |
| Ports | RS485/RS232/CAN |
| Communication | Ports: RS485/RS232/CAN |
| PHYSICAL | |
| Dimension | (D*W*H), mm 158.4x 503.6 x 530.8 |
| Weight | 26.9 lb |
| Dimensions | 60.6 x 29.9 x 1.2 in |
| Net Weight | 44 lb |
| MEGA 250W Monocrystalline Panel — Weight | 26.9 lb |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Weight | 100.9 lb |
| PV DC Quick Disconnect — Dimensions (HxWxD) | 7.1x6.8x4.3 in (179.5x173.9x110 mm) |
| PV DC Quick Disconnect — Net Weight | 1.6lb (0.73kg) |
| OPERATING LIMITS | |
| Operating Temperature | Range -10°C to 40°C |
| Storage temperature | -15°C~ 60°C |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 Years Manufacturer Defect |
| PACKAGE | |
| Included Components | 1 × 6500W 48V Off-grid Solar Inverter, 5 × MEGA 250W Monocrystalline Panel, 1 × ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter, 1 × 10AWG 30FT Extension Cable, 1 × 10AWG 10FT Extension Cable, 8 × Z-Brackets, 1 × PV DC Quick Disconnect |
| 1250W Solar Array | Includes five 250W monocrystalline solar panels, producing approximately 4.5kWh of energy per day under 4 peak sun hours. |
| 5.12kWh LiFePO₄ Battery | Provides 51.2V 100Ah (5120Wh) of reliable energy storage for day and night use. |
| 6500W Hybrid Inverter | Delivers 6,500W continuous (13,000W surge) pure sine wave power with a built-in 120A MPPT charge controller, supporting solar, battery, utility, and generator inputs. |
| No. of Panels | 5 x MEGA 250Watt Solar Panels |
| Wattage Per Panel | 250W |
| Total Wattage of Panels | 1250W |
| Maximum Power (Pmax) | 250W |
| Maximum Power Voltage (Vmp) | 18.9V |
| Maximum Power Current (Imp) | 13.2A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40 ~ +185℉ |
| Charging Voltage | 56V |
| Discharging Cutoff Voltage | 44.8V |
| Battery Dimensions | 17.7"L x 17.8"W x 5.2"H |
| Battery Weight | 99.2 lb |
| Server Rack Dimensions | 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels) |
| Server Rack Weight | 196.2 lb |
| Operation Voltage | 43.2~58.4V |
| Maximum Discharging Current | 100A |
| Maximum Charge Voltage (CC/CV) | 57.6V |
| Overcharge Protection Voltage (Battery) | 58.4V |
| Overcharge Protection Release Voltage (Battery) | 54V |
| Over Discharge Protection Voltage (Battery) | 43.2V |
| Over Discharge Protection Release Voltage (Battery) | 47.2V |
| Over Discharge Primary Charge Overcurrent Protection Value | 110A |
| First Stage Charge Over Current Delay | 1s |
| Primary Discharge Overcurrent Protection Value | 110A |
| Primary Discharge Overcurrent Protection Delay | 1s |
| Secondary Discharge Overcurrent Protection Value | 150A |
| Secondary Discharge Overcurrent Protection Delay | 500ms |
| Charge Temperature | 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉); |
| Discharge Temperature | -4℉~149℉ (The surface temperature of the cell should not exceed 149℉) |
| Recommended Storage Temperature | 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature) |
| Max. Expansion | 15 pcs in parallel |
| Communication Ports | RS485/RS232/CAN |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Efficiency (Peak) | 91% |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Maximum PV Array Power | 8000W (4000W x 2) |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Compliance Safety | UL |
