Rich Solar 12V(14.4V) 10A | 100-240VAC | 12V LiFePO4 Battery Charger
Frequently Bought Together
Rich Solar RS-BC12V10 12V 10A LiFePO4 Battery Charger
The Rich Solar RS-BC12V10 12V 10A LiFePO4 Battery Charger is built for charging compatible 12V lithium iron phosphate batteries from standard AC power. With 100–240V AC input, 14.4V DC output, 10A charging current, 3-stage charging, M8 terminals, a 30A Anderson connector, LED status indicators, an aluminum housing, fan cooling, IP65 protection class, and built-in electrical protections, this charger gives customers a compact way to recharge 12V LiFePO4 batteries used in RVs, vans, boats, trailers, cabins, solar systems, and backup power setups.
Product Overview
The RS-BC12V10 is designed for customers who need a dedicated AC charger for compatible 12V LiFePO4 batteries. It plugs into 100–240V AC power and outputs 14.4V DC at 10A, making it useful for battery maintenance, storage charging, shop charging, backup battery recovery, and topping off lithium battery banks when solar input is not available.
This is not a solar charge controller. It is an AC-to-DC lithium battery charger made for 12V LiFePO4 batteries. Customers using solar panels will still need the correct solar charge controller for solar charging.
Built for 12V Lithium Battery Charging
This charger is a practical add-on for customers who use 12V LiFePO4 batteries in mobile, off-grid, solar, marine, and backup power systems. It is especially helpful when batteries need to be charged from AC power indoors, in a garage, at a shop, at a campsite with shore power, or before a trip.
Key Features That Matter
This description keeps the focus on the real buying decision: output voltage, charging current, AC input range, lithium-specific charging behavior, battery recovery support, connector style, LED indicators, cooling, protection class, and built-in safety features.

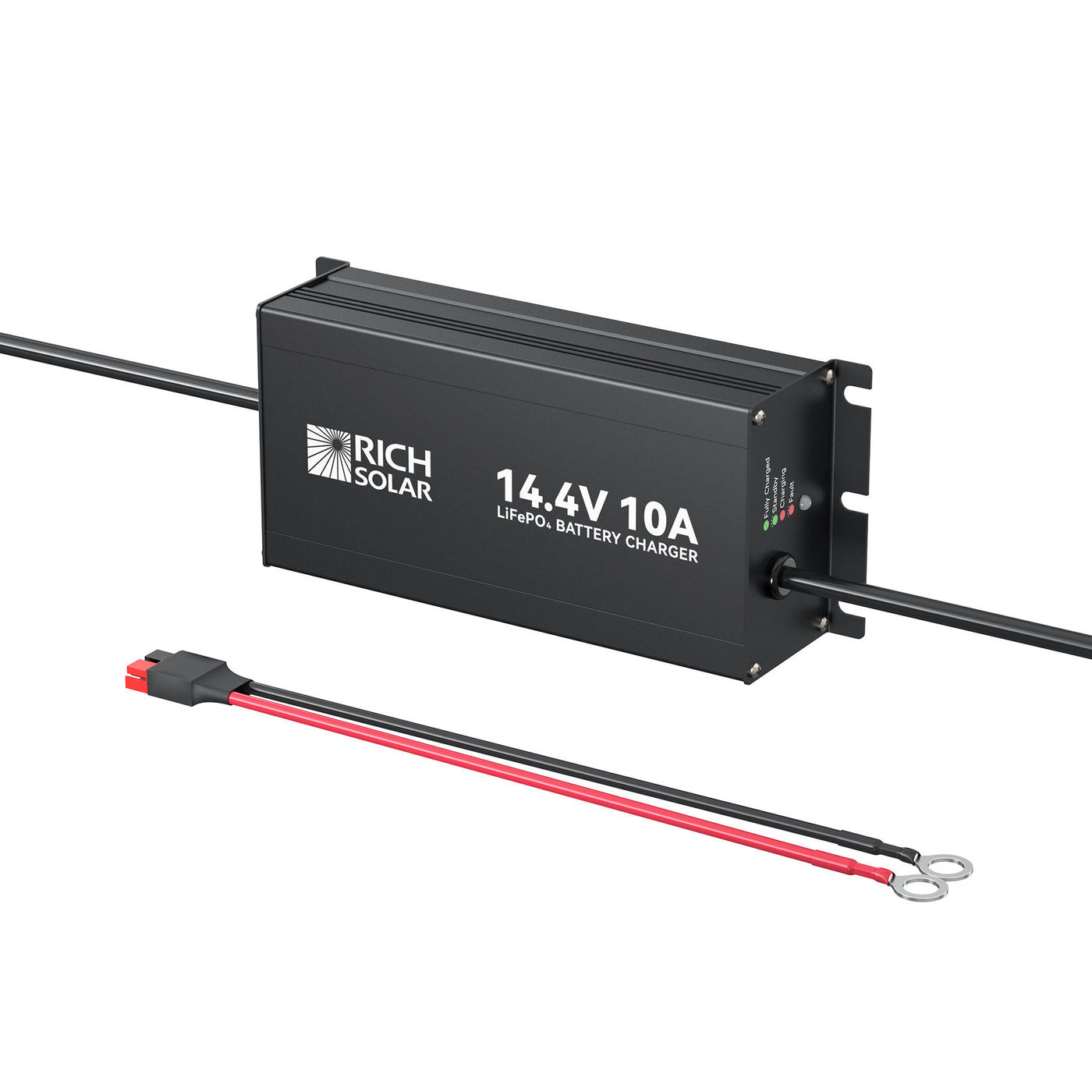

The charger includes easy M8 terminal connections and a 30A Anderson connector setup, making it practical for compatible battery systems that are already built around quick-disconnect or ring-terminal charging access.
The charger uses a 3-stage charging process: pre-charge, constant current, and constant voltage. This helps manage charging behavior more intelligently than a basic unmanaged power supply.

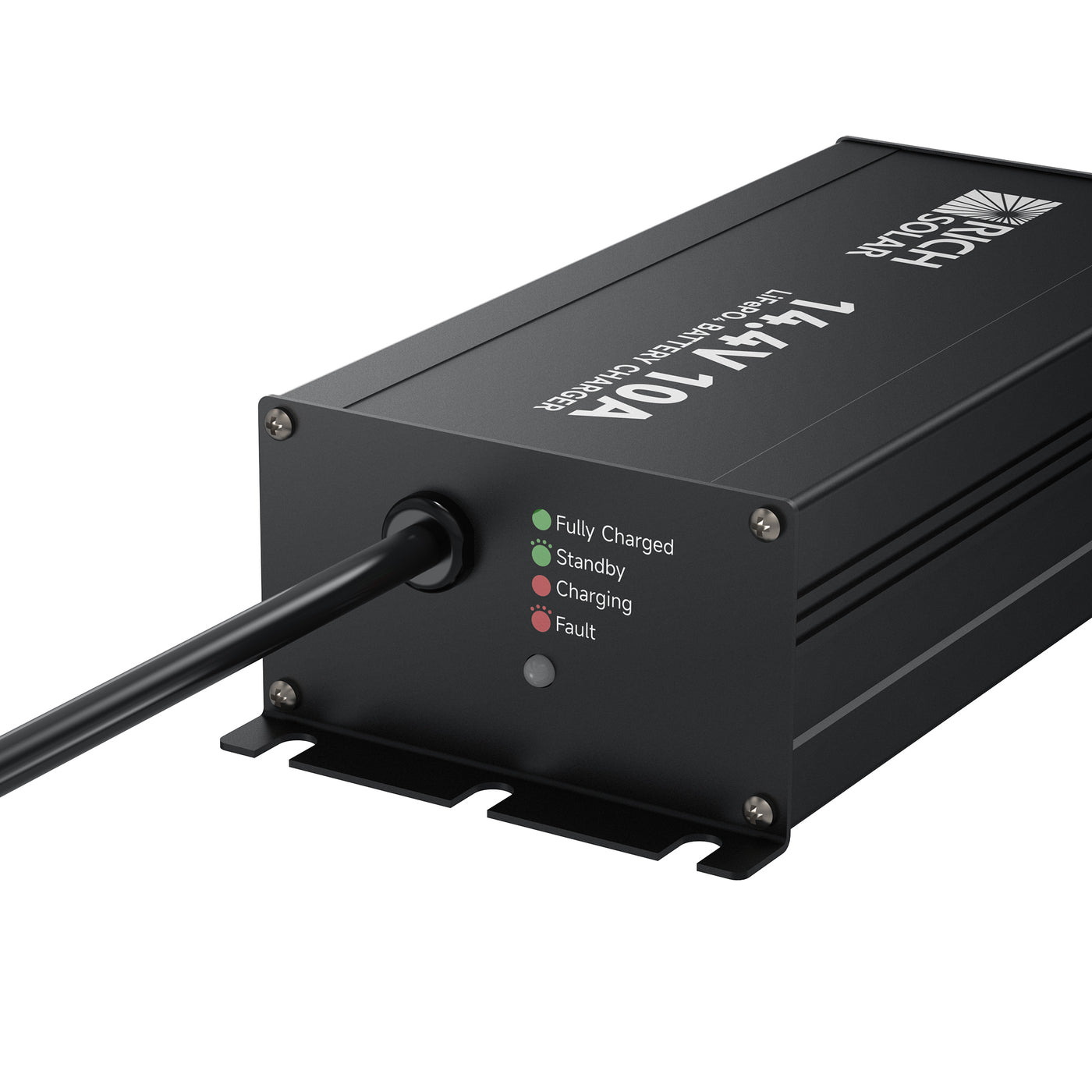

LED lights help show charger status, including standby, charging, full, and fault conditions. That makes it easier to understand what the charger is doing without guessing.

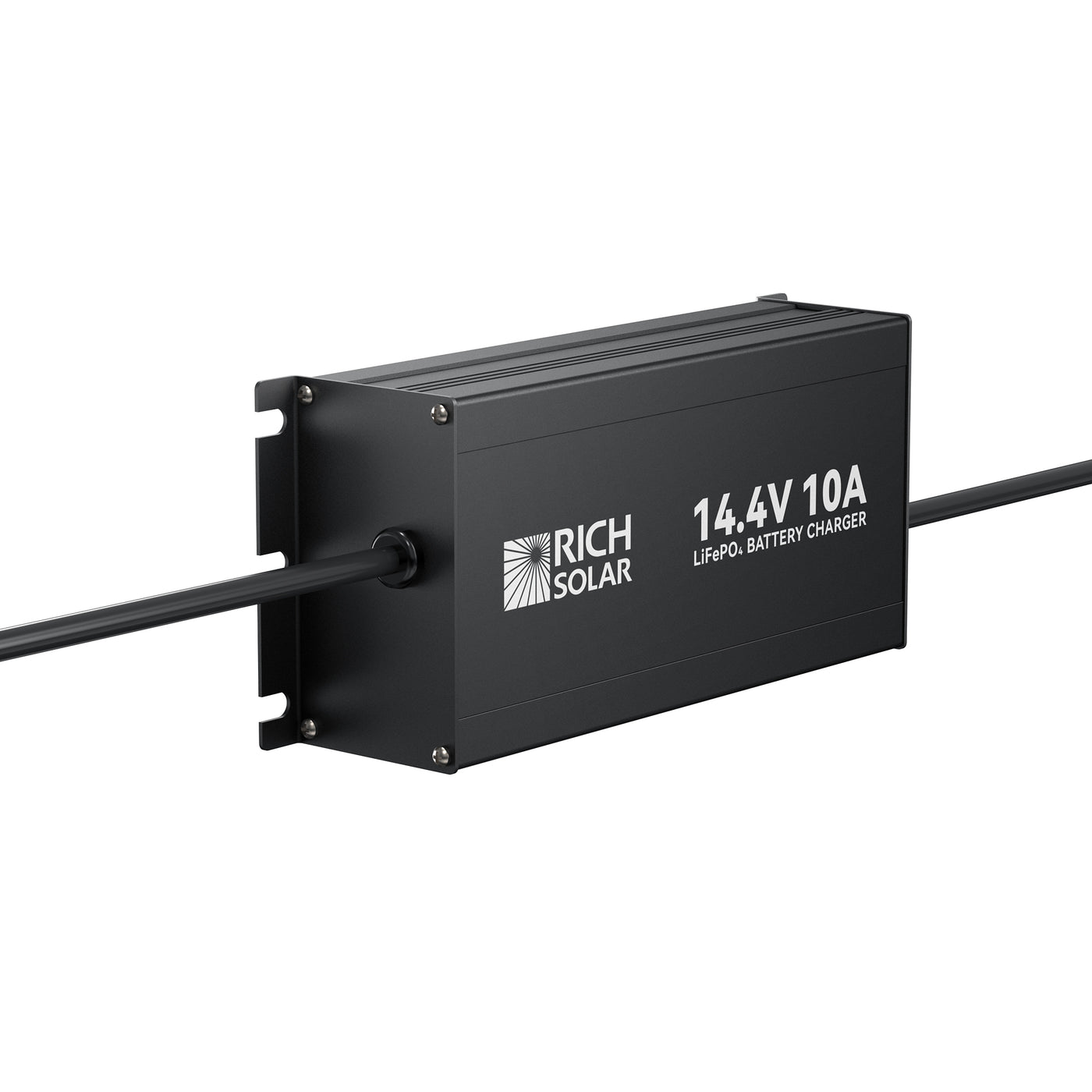

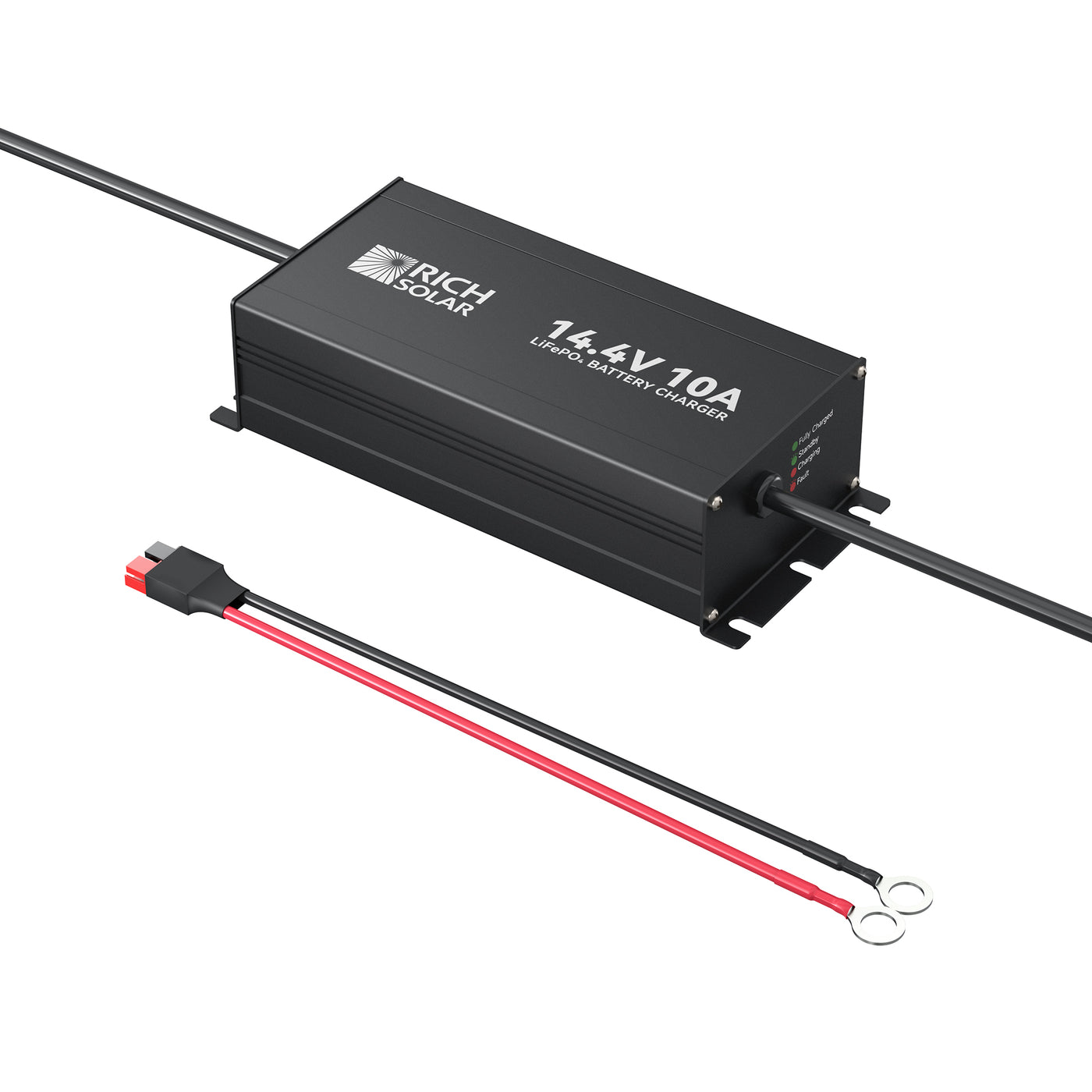

The tough aluminum shell and quiet fan help manage heat during charging. That is important for a lithium charger that may be used in garages, RV compartments, workshops, cabins, and storage areas.
Battery Recovery Support
The product page notes that the charger can safely jump-start BMS-protected lithium batteries. For customers using LiFePO4 batteries with a built-in battery management system, this can help recover a compatible battery that has shut down under BMS protection.
This does not mean the charger should be treated like an automotive jump starter. It is a lithium battery charger designed to bring compatible 12V LiFePO4 batteries back into a chargeable state when used correctly.
LED Charging States
The LED indicators help customers quickly understand charger behavior and battery status during use. This is especially helpful when charging a battery away from the main solar system or inside a storage compartment.
Important Charger Specs
- SKU: RS-BC12V10
- Battery type: compatible 12V LiFePO4 batteries
- Input voltage: 100V to 240V AC
- Input frequency: 47Hz to 63Hz
- Max input current: 2A
- Output voltage: 14.4V ±0.2V DC
- Output current: 10A
- Charging process: pre-charge, constant current, constant voltage
- Protection class: IP65
Size, Weight & Temperature
- Operating temperature: -20°C to 40°C / -4°F to 104°F
- Storage temperature: -40°C to 70°C / -40°F to 158°F

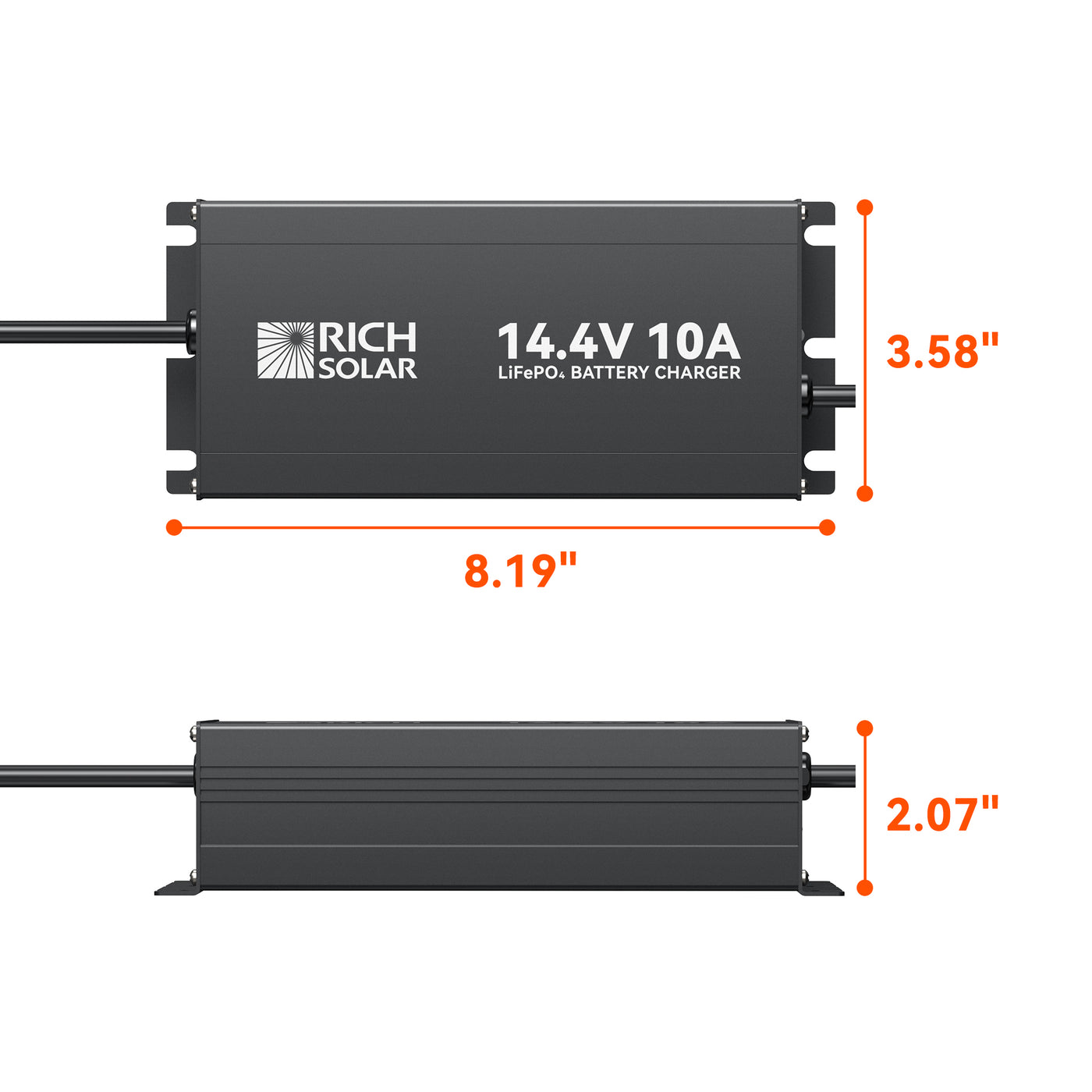

- Dimensions: 8.19 x 3.58 x 2.07 in
- Dimensions: 208 x 91 x 52.5 mm
- Net weight: 3.86 lb / 1.75 kg
- Housing: aluminum shell
- Cooling: built-in fan
- Connector: 30A Anderson connector with M8 terminal leads
Built-In Protection Features
The RS-BC12V10 includes multiple protection features to help safeguard the charger and compatible battery system during proper use.
Best Uses
- Charging compatible 12V LiFePO4 batteries from AC power
- RV and camper lithium battery maintenance
- Van conversion battery charging
- Travel trailer and boat battery charging
- Cabin, shed, and small off-grid battery systems
- Solar battery systems when AC charging is needed
- Pre-trip battery top-offs
- Off-season battery maintenance
- Backup power batteries that need controlled AC charging
- Compatible BMS-protected battery recovery situations
Key Benefits
- Dedicated 12V LiFePO4 battery charger
- Outputs 14.4V DC at 10A
- Plugs into 100–240V AC power
- 47Hz to 63Hz input frequency range
- 2A max input current
- 3-stage charging: pre-charge, constant current, constant voltage
- Safely jump-starts compatible BMS-protected lithium batteries
- Easy M8 terminals
- 30A Anderson connector
- LED indicators for standby, charging, full, and error/fault conditions
- Tough aluminum shell
- Quiet cooling fan
- Protection class listed as IP65
- Over-temperature protection
- Reverse polarity protection
- Short-circuit protection
- Over-voltage protection
- Compact 8.19 x 3.58 x 2.07 in size
- 3.86 lb / 1.75 kg net weight
| Specifications | |
| Model SKU | RS-BC12V10 |
|---|---|
| Input Voltage | 100V to 240V AC; 47Hz to 63Hz |
| Max Input Current | 2A |
| Output Voltage | 14.4V±0.2VDC |
| Output Current | 10A |
| Protection Class | IP65 |
| Temperature Range | -40°C to 70°C / -40°F to 158°F |
| Dimensions | 8.19x3.58x2.07in / 208x91x52.5mm |
| Net Weight | 3.86lb / 1.75kg |
