Rich Solar 1600 Watt Solar Kit 1 / 6
RICH SOLAR

Rich Solar 1600 Watt Solar Kit - Standard Kit Rich Solar 1600 Watt Solar Kit

SKU: RS-K1660

Brand RICH SOLAR In Stock
$2,399.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRICH SOLAR warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · RICH SOLAR warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner
Build your setup

Add what you need.

Start with your product. Choose the extras that suit your setup.

3 optional add-ons
Your product
Rich Solar 1600 Watt Solar Kit
Standard Kit
$2,399.99Quantity 1
Optional extras
RICH SOLAR

Rich Solar ALPHA 4

24V 100Ah LiFePO4 Battery

$999.99
RICH SOLAR

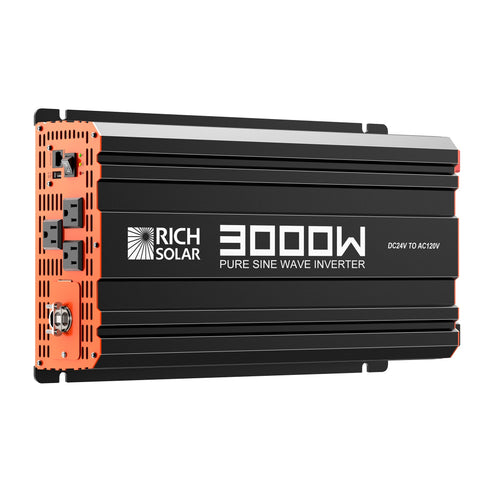

Rich Solar NOVA PURE MAX 3K

3000 Watt (3kW) 24 Volt Industrial Pure Sine Wave Inverter

$399.99
RICH SOLAR

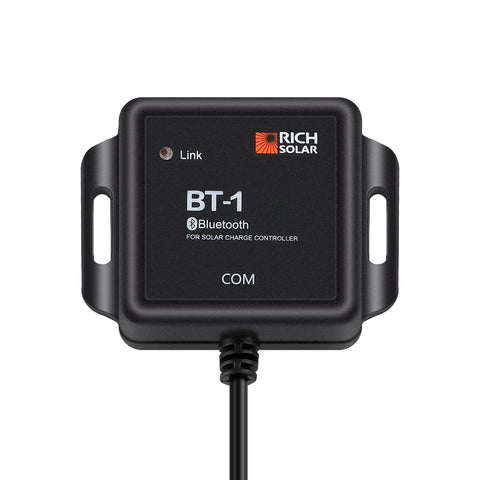

Rich Solar BT-1 Module

Bluetooth Module for Solar Charge Controllers

$35.99
Not sure what your setup needs? We can help you choose the right components.
Ask our team

Quantity

Your selection

Rich Solar 1600 Watt Solar Kit

In Stock
Quantity$2,399.99 each
1
Rich Solar • Large 24V Solar Charging Kit

Rich Solar RS-K1660 1600 Watt Solar Kit with 60A MPPT Controller

The Rich Solar RS-K1660 1600 Watt Solar Kit is a large solar charging package built for RVs, boats, trailers, cabins, sheds, remote buildings, and off-grid battery systems that need serious panel output. With eight MEGA 200W monocrystalline solar panels, a 60A MPPT solar charge controller, solar cables, battery cables, mounting brackets, Y branch parallel adapters, and a 30A inline fuse holder, this kit gives customers a strong 24V solar charging foundation for larger battery-based power systems.

RS-K1660 kit 1600W solar array 8 x 200W panels 60A MPPT controller 24V battery system focus RV, cabin & off-grid ready
Rich Solar RS-K1660 1600 Watt Solar Kit with eight 200W solar panels, 60A MPPT controller, cables, brackets, fuse holder, and adapters
1600W Total solar panel capacity from eight included MEGA 200W monocrystalline panels.
8 Panels Large solar array package for RV, cabin, boat, trailer, and off-grid battery charging systems.
60A MPPT Included controller supports efficient solar charging for larger battery-based systems.
24V Focus Designed as Rich Solar’s largest 24V kit and can be paired with a 400Ah 24V battery bank.

Product Overview

The RS-K1660 is built for customers who need more solar input than a smaller RV or cabin kit can provide. With 1600W of panel capacity and a 60A MPPT controller, it is a strong fit for larger off-grid solar charging systems, extended boondocking setups, remote property power, workshop battery banks, and cabin energy systems.

This is a solar charging kit, not a full power system. It includes the solar panels, charge controller, wiring, mounting brackets, Y branch adapters, and fuse holder needed to build the solar charging side of the system. Customers still need a compatible battery bank, inverter, breakers, disconnects, proper wire sizing, and a safe system design for their specific loads.

Rich Solar 1600 Watt Solar Kit how it works diagram with solar panels, charge controller, battery, inverter, and connected loads
Solar charging kit note: This kit does not include a battery or inverter. It is designed to charge a compatible battery bank through the included 60A MPPT controller. Confirm battery voltage, solar wiring plan, controller limits, inverter needs, and protection equipment before installation.

What Comes in the Kit

The RS-K1660 bundles the major solar charging components needed for a larger 24V battery-based system. It includes eight solar panels, the 60A MPPT controller, solar cables, battery cables, mounting brackets, fuse protection, and Y branch adapters.

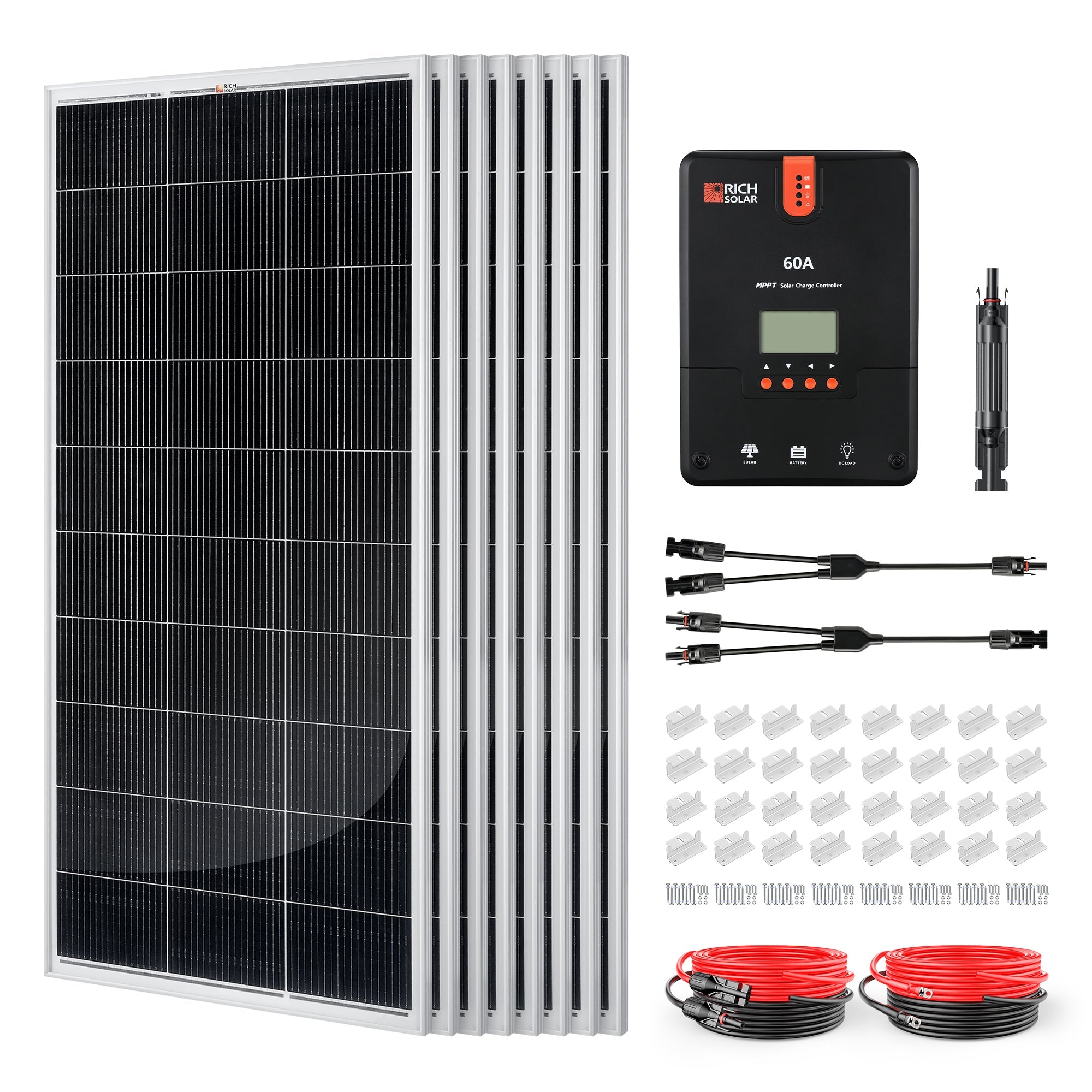

Eight Rich Solar MEGA 200W monocrystalline solar panels included in the RS-K1660 1600 Watt Solar Kit
8 x MEGA 200W Solar Panels

Eight 200W monocrystalline solar panels create a 1600W solar array for larger RV, boat, trailer, cabin, and off-grid charging systems. Each panel is rated at 200W and can work in series or parallel designs when the system is planned correctly.

Rich Solar 60A MPPT solar charge controller included in the RS-K1660 1600 Watt Solar Kit
1 x 60A MPPT Solar Charge Controller

The included 60A MPPT controller supports automatic 12V, 24V, 36V, and 48V DC system voltage detection, deep-cycle battery compatibility, high MPPT tracking efficiency, LCD and LED monitoring, load control, and electronic protection features.

Rich Solar 1600 Watt Solar Kit components with panels, controller, cables, brackets, fuse holder, and Y branch adapters
Cables, Brackets, Fuse & Adapters

The kit includes red and black 20 ft #10 solar cables, red and black 10 ft #8 battery cables, eight sets of mounting Z brackets, one 30A inline fuse holder with fuse, and one set of Y branch parallel adapters.

Designed Around a Larger 24V Battery Bank

Rich Solar positions this as its largest 24V kit and notes that it can be paired with a 400Ah 24V battery bank. That makes it a strong option for customers who need meaningful daily solar harvest instead of a small maintenance or weekend-only solar setup.

Large RV & Trailer Solar A strong charging package for larger RVs, travel trailers, toy haulers, and extended camping setups.
Cabin & Remote Building Power Useful for off-grid cabins, sheds, workshops, barns, and remote buildings with compatible battery storage.
Boat & Marine Battery Charging A larger solar input option for compatible marine battery systems where space and mounting plan allow.
Off-Grid Energy Systems A practical solar foundation for customers building a larger battery-based off-grid system with their own inverter.

Key Features That Matter

This description keeps the focus on the buying decision: solar production, MPPT controller capability, 24V battery bank potential, included wiring and mounting components, system expandability, and whether this kit fits the customer’s real daily energy use.

Rich Solar eight MEGA 200W monocrystalline solar panels for 1600W solar charging system
Eight MEGA 200W Solar Panels

The included MEGA 200 panels generate 10.9 amps each and are built with anti-reflective coated tempered glass, anodized aluminum frames, quick-connect cables, and pre-drilled holes for easier mounting across RV, cabin, boat, and off-grid applications.

Rich Solar 60 Amp MPPT charge controller with LCD display and LED indicators
60A MPPT Charging Performance

The 60A controller uses MPPT technology with tracking efficiency up to 99% and peak conversion efficiency of 98%. It helps manage solar charging more efficiently than basic PWM-style control when installed with a compatible solar array and battery bank.

Rich Solar 1600W solar kit system diagram with solar panels, controller, battery, inverter, and loads
Battery Charging System Foundation

The kit is designed to charge a compatible battery bank through the included MPPT controller. When paired with the correct battery, inverter, disconnects, breakers, and wiring, it can become part of a larger RV, cabin, boat, or off-grid power system.

Rich Solar RS-K1660 24V 1600W Solar Kit included panels, cables, brackets, fuse holder, and Y branch adapters
Includes Core Install Components

The included solar cables, battery cables, mounting brackets, Y branch adapters, and inline fuse holder help reduce the number of separate parts customers need to source before planning the installation.

MEGA 200 Panel Highlights

  • 8 x MEGA 200 Watt solar panels
  • 200W wattage per panel
  • 1600W total panel capacity
  • 10.9A maximum power current per panel
  • 18.4V maximum power voltage per panel
  • 21.8V open circuit voltage per panel
  • Excellent low-light performance
  • Anti-reflective coated tempered glass
  • Anodized aluminum frame
  • Pre-drilled mounting holes
  • Works in series or parallel when properly designed

60A MPPT Controller Highlights

  • Automatically detects 12V, 24V, 36V, and 48V DC system voltages
  • Compatible with Sealed, Gel, Flooded, and Lithium deep-cycle batteries
  • MPPT tracking efficiency up to 99%
  • Peak conversion efficiency of 98%
  • Rated battery current: 60A
  • Rated load current: 20A
  • Max solar input voltage: 150V at 77°F
  • Max solar input power: 1600W at 24V
  • LCD screen and LED indicators
  • RS232 port for BT-1 Bluetooth module communication

Best Uses

  • Larger RV solar charging systems
  • Travel trailers, toy haulers, and camper power systems
  • Boat and compatible marine solar charging setups
  • Off-grid cabins and remote buildings
  • Workshops, sheds, barns, and remote property systems
  • 24V battery bank solar charging
  • Customers planning around a 400Ah 24V battery bank
  • DIY off-grid systems that need 1600W of solar input
  • Systems where a smaller 400W, 800W, or 1200W kit is not enough

Key Benefits

  • 1600 Watt solar charging kit
  • 8 x 200W monocrystalline MEGA solar panels
  • 1 x 60A MPPT solar charge controller
  • 1 x 20 ft #10 red solar cable for panel-to-controller connection
  • 1 x 20 ft #10 black solar cable for panel-to-controller connection
  • 1 x 10 ft #8 red battery cable for controller-to-battery connection
  • 1 x 10 ft #8 black battery cable for controller-to-battery connection
  • 8 x mounting Z bracket sets
  • 1 x 30A inline fuse holder with fuse
  • 1 x Y branch parallel adapter set
  • 60A MPPT controller supports 12V / 24V / 36V / 48V system detection
  • MPPT tracking efficiency up to 99%
  • Peak conversion efficiency of 98%
  • Built for larger 24V battery-based solar charging systems
  • Useful for RVs, boats, trailers, cabins, and off-grid solar power systems
Compatibility note: This 1600W kit is a solar charging kit and does not include a battery or inverter. Before ordering, confirm your battery voltage, battery chemistry, total battery capacity, solar array wiring plan, controller input limits, panel series/parallel configuration, fuse and breaker requirements, wire sizing, cable routing, mounting layout, inverter requirements, and whether 1600W of solar input matches your daily energy usage.

Plan the solar array

Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.

Rich Solar 1600 Watt Solar Kit - Standard Kit
Package Includes
1x Rich Solar 1600 Watt Solar Kit - Standard Kit
Includes the selected item based on the current package option.
Rich Solar 1600 Watt Solar Kit
Selected variant SKU RS-K1660
MODEL
Model / SKU RS-K1660, RS-K1660X
Product Type Solar Power Kit
Available Variants Standard Kit; Standard kit without controller & fuse
ELECTRICAL
Package Configuration Eight MEGA 200 (RS-M200) solar panels, one 60 A MPPT controller (RS-MPPT60), red and black 20 ft 10 AWG solar cables, red and black 10 ft 8 AWG battery cables, eight Z-bracket sets, one 30 A inline fuse, and one Y-branch parallel adapter
Solar Array 1,600 W total; eight 200 W monocrystalline panels
Recommended System Voltage 24 V
Recommended Battery Bank 400 Ah at 24 V
Panel Open-Circuit Voltage (Voc) 21.8 V
Panel Short-Circuit Current (Isc) 11.6 A
Panel Maximum Series Fuse 15 A
Controller Rated Battery Current 60 A
Controller Rated Load Current 20 A
Controller Maximum Solar Input Voltage 150 V at 77°F; 145 V at -13°F
Controller Maximum Solar Input Power 800 W at 12 V, 1,600 W at 24 V, 2,400 W at 36 V, or 3,200 W at 48 V
Controller Efficiency Up to 99% MPPT tracking and 98% peak conversion
Controller Battery Compatibility Sealed, gel, flooded lead-acid, and lithium batteries
Maximum Series Fuse Rating 15A
Rated Battery Current 60A
Rated Load Current 20A
Listed Solar Power 1600W
PHYSICAL
Panel Dimensions 58.7 × 26.8 × 1.2 in each
Panel Weight 24 lb each
Controller Dimensions 11.2 × 8.1 × 3.7 in
Controller Weight 7.94 lb
Weight 24.0 lb
Dimensions 58.7 x 26.8 x 1.2 in
Net Weight 7.94 lb
OPERATING LIMITS
Panel Temperature Range -40°F to 185°F
Controller Operating Temperature -31°F to 113°F
Panel Warranty 25-year limited power-output warranty and 10-year workmanship warranty
Controller Warranty 2 years
Operating Temperature -31°F to 113°F
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Which major components and installation parts come with the 1600 Watt Solar Kit? The official package list specifies: 8 x 200 Watt Monocrystalline Solar Panel; 1 x 60A MPPT Solar Charge Controller; 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller; 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller; 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery; 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery; 8 x Mounting Z Brackets (one set of 4); 1 x 30A Inline Fuse Holder with Fuse; 1 x Y Branch Parallel Adapters. Equipment shown elsewhere in photos should not be treated as included unless it appears in that manufacturer list. What panel count and module model are included with the 1600 Watt Solar Kit? The array hardware is listed as 8 x 200 Watt Monocrystalline Solar Panel(RS-M200). Use those exact module electrical ratings when planning strings, controller inputs, mounting area, roof or ground loading, and future expansion. The advertised kit wattage does not replace a series-parallel voltage and current check. What battery equipment is physically included with the 1600 Watt Solar Kit? No battery appears in the official kit-contents list. A compatible bank must be selected separately for the system voltage and must support the controller or inverter's charging current, continuous load, startup surge, BMS requirements, cabling, fuse, and disconnect design. Which listed inverter sets the AC-output capability of the 1600 Watt Solar Kit? No inverter appears in the official package list, so this kit does not create household AC power by itself. Add an inverter whose battery voltage, continuous output, startup surge, waveform, cabling, fuse, and disconnect requirements match the planned battery bank and loads. Is a solar charge controller already part of the 1600 Watt Solar Kit bill of materials? The charge-control equipment is listed as 1 x 60A MPPT Solar Charge Controller(RS-MPPT60). Before changing the supplied panel layout or expanding later, verify the controller's maximum PV open-circuit voltage, tracking range, input current, charge-current limit, supported battery voltage, and battery profiles. Which installation decisions remain after the 60A MPPT controller and 1600W array hardware arrive? The remaining listed balance-of-system items are 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101); 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101); 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810); plus additional listed wiring or hardware. The site can still require structure-specific mounting, conduit or cable protection, grounding and bonding, code-required disconnects and overcurrent protection, distribution equipment, permits, inspection, and labor. Confirm the final one-line design rather than assuming the word "complete" covers every site condition.
