Epoch Batteries

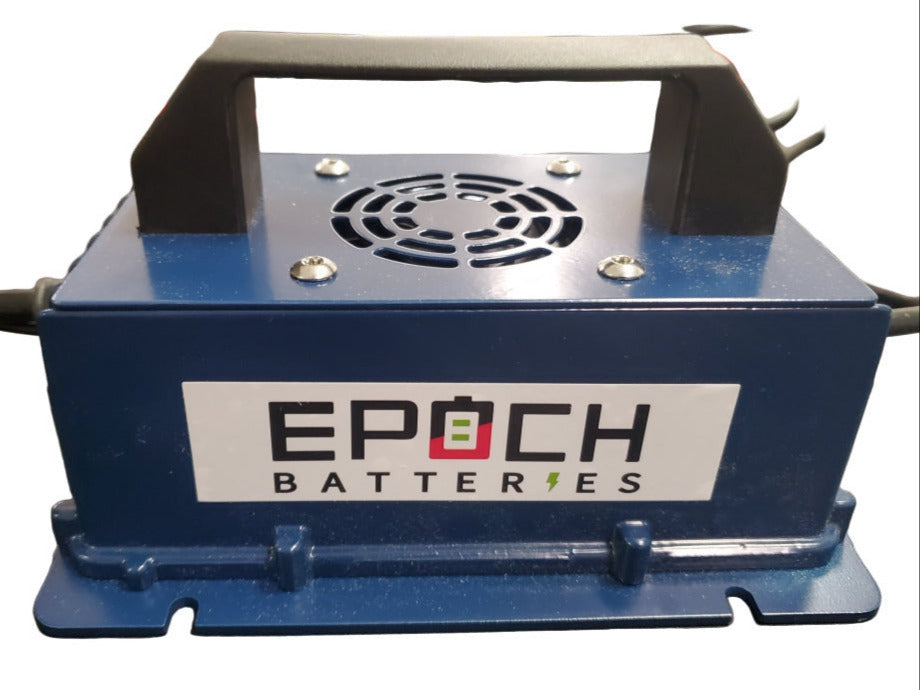

24V 15A Battery Charger - Epoch Batteries 24V 15A Battery Charger - Epoch Batteries
SKU: CHG-24V15A
$169.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerEpoch Batteries warranty
Key features
- Battery compatibility 24V LiFePO4 / LFP lithium battery systems
- Charge profile Dedicated LiFePO4 charging behavior using fast bulk charging and controlled voltage top-off
- Efficiency Up to 95% charging efficiency
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
The 24V 15A Battery Charger is a matched charging option for lithium battery systems that need a straightforward way to recharge at the correct system voltage. It is useful for customers replacing an older charger, finishing a new battery install, or keeping an auxiliary battery bank ready for regular use.
Choose the charger voltage and amperage that match your Epoch battery bank and installation plan. For best results, confirm battery chemistry, voltage, charge current limits, connector type, and installation environment before use.
- System voltage: 24V
- Best-use applications: mobile and backup power systems
- Notable features: matched charging for lithium battery banks
- SKU: CHG-24V15A
Compare another Epoch option
Compare 36V 15A Battery Charger - Epoch Batteries. Check system voltage, dimensions, what is included and charging limits for your setup.
Package Includes
1x 24V 15A Battery Charger - Epoch Batteries
Includes the selected item based on the current package option.
| 24V 15A Battery Charger - Epoch Batteries | |
| Selected variant SKU | CHG-24V15A |
|---|---|
| MODEL | |
| SKU | CHG-24V15A |
| Product Type | Battery Charger |
| ELECTRICAL | |
| Battery compatibility | 24V LiFePO4 / LFP lithium battery systems |
| Typical applications | 24V trolling motor batteries, marine batteries, RV batteries, off-grid lithium batteries, and compatible Epoch 24V LiFePO4 packs |
| Output voltage | 29.2VDC max output voltage |
| Output current | 15A / 15ADC max output current |
| Charge profile | Dedicated LiFePO4 charging behavior using fast bulk charging and controlled voltage top-off |
| Efficiency | Up to 95% charging efficiency |
| Full-charge indicator | Red flash = charging; green on = full charge |
| Input voltage | Product label lists 100–240VAC; product page notes standard 120V AC outlet use |
| IP rating | IP67 dustproof and waterproof |
| Listed System Voltage | 24V |
| Listed Current | 15A |
| CONNECTIONS | |
| Output connector | Ring terminals |
| PHYSICAL | |
| Case material | Lightweight aluminum alloy body |
| OPERATING LIMITS | |
| Overtemperature protection | Yes; working temperature listed as -40°C to 60°C |
| Reverse polarity protection | Yes |
| Overcharge protection | Yes |
| Output overvoltage protection | Yes |
| Output overcurrent protection | Yes |
| Output short-circuit protection | Yes |
| Product encoding | HXL2415PMS, shown on product label |
| Warranty | Charger warranty term was not published on the current product page; confirm current charger warranty terms with Epoch |
| 24V 15A LiFePO4 Smart Charger | Purpose-built for 24V lithium deep-cycle battery banks, delivering an ultra-efficient (up to 95%) 15-amp charge rate to safely and rapidly replenish your system. |
| Plug-and-Play Setup | Ready to use right out of the box. Plugs directly into any standard 120V A/C wall outlet and features heavy-duty ring terminals for a secure, reliable output connection directly to your battery. |
| Extreme Weather Ready | Engineered to operate flawlessly in a massive temperature range, providing reliable charging in extreme environments anywhere from -40°C to 60°C (-40°F to 140°F). |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Which batteries can use the Epoch CHG-24V15A charger?
It is listed as a 24V, 15A Epoch battery charger. Use it only with batteries whose chemistry, nominal voltage, BMS limits, and approved charge current match the charger's output profile.
How fast will it charge a battery?
Approximate ideal charging time is battery amp-hours divided by charge amps, then increased for charging losses and the slower final stage. Temperature, BMS limits, connected loads, and state of charge change the real result.
Can I use this charger with a lead-acid or different-voltage battery?
Do not assume compatibility. A charger must use the correct voltage and charge algorithm for the exact battery chemistry and model.
Can the charger remain connected permanently?
Only use continuous connection if the current Epoch instructions explicitly permit it for the battery and installation. Maintain ventilation, dry conditions, sound connectors, and safe cable routing.
What should I check before plugging it in?
Confirm battery polarity, connector type, battery voltage, available AC supply, cable condition, charging-temperature range, and that the battery BMS is not reporting a fault.
Which equipment is verified to work with the Epoch Batteries CHG-24V15A?
The manufacturer explicitly lists 24V LiFePO4 / LFP lithium battery systems. Other models are not established as compatible by this evidence.
What manufacturer warranty should I consider when buying the Epoch Batteries CHG-24V15A?
The listed manufacturer warranty is Charger warranty term was not published on the current product page; confirm current charger warranty terms with Epoch. The manufacturer's warranty terms determine eligibility and coverage.
