Rich Solar 2500W 48VDC-120VAC Solar Kit Rich Solar 2500W 48VDC-120VAC Solar Kit
SKU: RS-CBK2500
- Minimum Capacity 99.5Ah
- Charging Voltage 56V
- Discharging Cutoff Voltage 44.8V
Add what you need.
Start with your product. Choose the extras that suit your setup.
Rich Solar RS-CBK2500 2500W 48VDC-120VAC Solar Kit
The Rich Solar RS-CBK2500 2500W 48VDC-120VAC Solar Kit is a complete 48V solar power package built for cabins, tiny homes, remote buildings, workshops, off-grid properties, and backup power systems that need solar input, lithium battery storage, and 120VAC inverter output in one matched package. With 2500W of solar panels, two ALPHA 5 PRO 5.12kWh lithium batteries, and one NOVA 6500S 48V hybrid inverter, this kit gives customers a strong foundation for a serious single-inverter battery-based power system.
Product Overview
The RS-CBK2500 is designed for customers who need more than a basic solar charging kit, but do not need the dual-inverter 240VAC version. It combines solar generation, lithium battery storage, and a 120VAC hybrid inverter into one coordinated 48V system package.
This kit is a strong fit for off-grid cabins, tiny homes, workshops, remote buildings, and backup power projects where 120VAC output is the right fit for the intended loads. It provides the major system components needed for solar collection, battery storage, and inverter output, while still requiring proper system design, installation, protection equipment, permitting, and code-compliant electrical work.
What Comes in the Kit

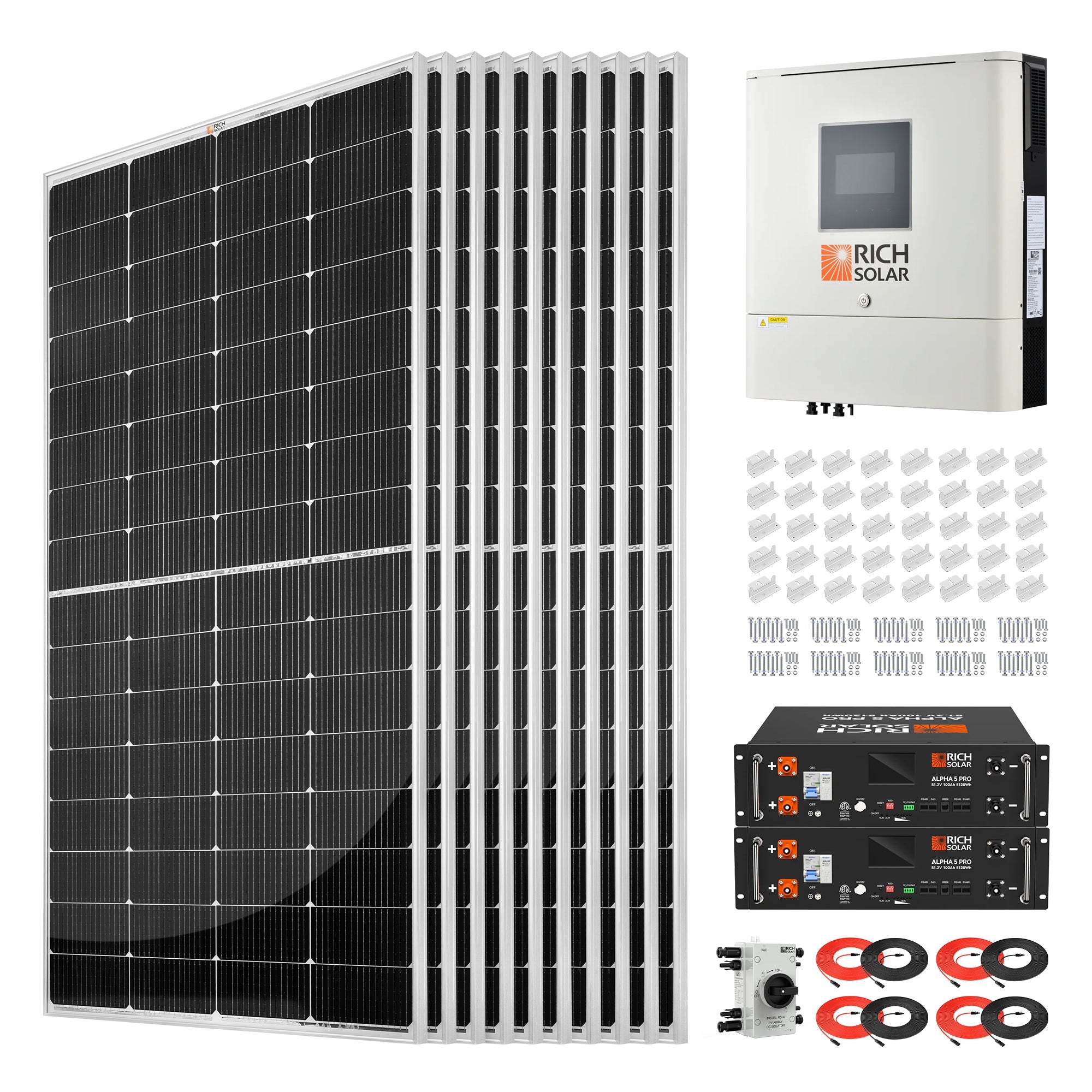

The RS-CBK2500 includes the major components needed for a 48V 120VAC solar power system: solar panels, lithium batteries, one hybrid inverter, solar extension cables, mounting brackets, and a PV DC quick disconnect.
Ten MEGA 250W monocrystalline panels create a 2500W solar array. These panels feature a 16-busbar cell configuration, anodized aluminum frame, AR-coated tempered glass, plug-and-play junction box, and quick-connect cables that can work in series or parallel designs.
Two ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries provide approximately 10.24kWh of storage. Each battery is rated at 5120Wh and features a built-in BMS, 7,000-cycle life, UL1973 / UL9540A / FCC certification, and 100A continuous charge and discharge capability.
One 6500W 48V off-grid hybrid inverter creates the 120VAC inverter foundation for the system. The NOVA 6500S platform includes pure sine wave output, UL certification, built-in Wi-Fi, BMS communication support, generator or utility input compatibility, and parallel operation capability for properly planned expansions.
Additional Included System Components
In addition to the panels, batteries, and inverter, the kit includes core solar-side hardware to help support installation planning and panel wiring.
Built for Cabins, Backup Power, and 120VAC Off-Grid Loads
This kit is built for customers who need real solar production and lithium battery storage, but want a single 120VAC inverter setup instead of a larger split-phase configuration. It is especially useful for customers powering essential loads, cabin circuits, workshop equipment, remote structures, and backup systems where 120VAC output matches the project.
Key System Highlights
This description keeps the focus on the real buying decision: solar production, usable battery storage, 120VAC inverter capability, 48V architecture, system expandability, and practical use cases.
The ten included MEGA 250W panels provide a 2500W solar array for charging the 48V battery system. The panels are designed with quick-connect cables, AR-coated tempered glass, and strong low-light performance for real-world solar production.
Two ALPHA 5 PRO batteries give the system approximately 10.24kWh of lithium storage. The LiFePO4 chemistry, BMS protection, long cycle life, and parallel expansion capability make the battery side a serious upgrade from small portable power solutions.
The included NOVA 6500S inverter supports a 48V system configuration with 120VAC pure sine wave output, built-in Wi-Fi monitoring, generator or utility input compatibility, and BMS communication support through RS485, CAN-BUS, or RS232.
Instead of piecing together unrelated components, this kit gives customers a matched set of Rich Solar panels, ALPHA 5 PRO batteries, NOVA hybrid inverter hardware, solar cables, brackets, and a PV disconnect for a cleaner system starting point.
Best Uses
- Off-grid cabin power systems
- Tiny home and small home solar builds using 120VAC loads
- Remote buildings, workshops, barns, and sheds
- Battery-backed essential-load backup projects
- 48V solar energy storage systems
- Customers upgrading beyond portable power stations
- Properties that need solar production plus lithium battery storage
- Single-inverter 120VAC off-grid system designs
- DIY off-grid systems installed with qualified electrical support
Key Benefits
- Complete 2500W 48VDC-120VAC solar kit
- 10 x MEGA 250W monocrystalline solar panels
- 2500W total solar panel capacity
- 2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries
- Approx. 10.24kWh total battery storage
- 7,000-cycle battery platform with built-in BMS protection
- 1 x NOVA 6500S 48V off-grid hybrid solar inverter
- 6500W rated inverter power
- 120VAC pure sine wave inverter output
- Built-in inverter Wi-Fi for mobile monitoring
- BMS communication support through RS485, CAN-BUS, or RS232
- Utility mains or generator input compatible
- 2 x 10AWG 30ft extension cables
- 2 x 10AWG 10ft extension cables
- 15 x Z-brackets for solar panel mounting
- 1 x PV DC quick disconnect
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
| Rich Solar 2500W 48VDC-120VAC Solar Kit | |
| Selected variant SKU | RS-CBK2500 |
|---|---|
| MODEL | |
| Model / SKU | RS-CBK2500 |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Efficiency | (Line Mode) >95% ( Rated R load, battery full charged ) |
| Transfer Time | 10ms typical (UPS); |
| Waveform | No Load Power Consumption |
| Rated Output Power | 6500W |
| Output Frequency | 60Hz or 50Hz |
| Rated Power | 8000W |
| Max. Input Current | 18A x 2 |
| Maximum System Voltage | (Vmax): 1500VDC |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Maximum Charging Current | 100A |
| Continuous Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Maximum Charge Voltage | (CC/CV): 57.6V |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Battery System Voltage | 48VDC |
| Listed Solar Power | 2500W |
| 6500W 48V Off-grid Solar Inverter — Rated Inverter Power | 6500VA/6500W |
| 6500W 48V Off-grid Solar Inverter — Voltage | 120 VAC |
| 6500W 48V Off-grid Solar Inverter — Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| 6500W 48V Off-grid Solar Inverter — AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| 6500W 48V Off-grid Solar Inverter — No Load Power Consumption | <75W |
| 6500W 48V Off-grid Solar Inverter — DC Voltage | 12 VDC ± 5%, 100W |
| MEGA 250W Monocrystalline Panel — Maximum Power (Pmax) | 250W |
| MEGA 250W Monocrystalline Panel — Open Circuit Voltage (Voc) | 22.8V |
| MEGA 250W Monocrystalline Panel — Short Circuit Current (Isc) | 13.7A |
| MEGA 250W Monocrystalline Panel — Maximum System Voltage (Vmax) | 1500VDC |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Voltage | 51.2V |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Capacity | 100Ah |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Energy | 5120Wh |
| PV DC Quick Disconnect — Max. Rated Current | 55A |
| PV DC Quick Disconnect — Max. Rated Voltage | 1500VDC |
| CONNECTIONS | |
| Connectors | are not connected to the cable, and user can wired according to the actual application |
| Ports | RS485/RS232/CAN |
| Communication | Ports: RS485/RS232/CAN |
| PHYSICAL | |
| Dimension | (D*W*H), mm 158.4x 503.6 x 530.8 |
| Weight | 26.9 lb |
| Dimensions | 60.6 x 29.9 x 1.2 in |
| Net Weight | 44 lb |
| MEGA 250W Monocrystalline Panel — Weight | 26.9 lb |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Weight | 100.9 lb |
| PV DC Quick Disconnect — Dimensions (HxWxD) | 7.1x6.8x4.3 in (179.5x173.9x110 mm) |
| PV DC Quick Disconnect — Net Weight | 1.6lb (0.73kg) |
| OPERATING LIMITS | |
| Operating Temperature | Range -10°C to 40°C |
| Storage temperature | -15°C~ 60°C |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 Years Manufacturer Defect |
| PACKAGE | |
| Included Components | 1 × 6500W 48V Off-grid Solar Inverter, 10 × MEGA 250W Monocrystalline Panel, 2 × ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter, 2 × 10AWG 30FT Extension Cable, 2 × 10AWG 10FT Extension Cable, 15 × Z-Brackets, 1 × PV DC Quick Disconnect |
| 2500W Solar Array | Includes ten 250W monocrystalline solar panels, producing approximately 9.0kWh of energy per day under 4 peak sun hours. |
| 10.24kWh LiFePO₄ Battery Bank | Includes two 51.2V 100Ah (5120Wh) ALPHA 5 PRO batteries for dependable energy storage and backup power. |
| 6500W Hybrid Inverter | Delivers 6,500W continuous (13,000W surge) pure sine wave power with a built-in 120A MPPT charge controller, supporting solar, battery, utility, and generator inputs for flexible energy management. |
| No. of Panels | 10 x MEGA 250Watt Solar Panels |
| Wattage Per Panel | 250W |
| Total Wattage of Panels | 2500W |
| Maximum Power (Pmax) | 250W |
| Maximum Power Voltage (Vmp) | 18.9V |
| Maximum Power Current (Imp) | 13.2A |
| Open Circuit Voltage (Voc) | 22.8V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40 ~ +185℉ |
| No. of Batteries | 2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries |
| Charging Voltage | 56V |
| Discharging Cutoff Voltage | 44.8V |
| Battery Dimensions | 17.7"L x 17.8"W x 5.2"H |
| Battery Weight | 99.2 lb |
| Server Rack Dimensions | 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels) |
| Server Rack Weight | 196.2 lb |
| Operation Voltage | 43.2~58.4V |
| Maximum Discharging Current | 100A |
| Maximum Charge Voltage (CC/CV) | 57.6V |
| Overcharge Protection Voltage (Battery) | 58.4V |
| Overcharge Protection Release Voltage (Battery) | 54V |
| Over Discharge Protection Voltage (Battery) | 43.2V |
| Over Discharge Protection Release Voltage (Battery) | 47.2V |
| Over Discharge Primary Charge Overcurrent Protection Value | 110A |
| First Stage Charge Over Current Delay | 1s |
| Primary Discharge Overcurrent Protection Value | 110A |
| Primary Discharge Overcurrent Protection Delay | 1s |
| Secondary Discharge Overcurrent Protection Value | 150A |
| Secondary Discharge Overcurrent Protection Delay | 500ms |
| Charge Temperature | 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉); |
| Discharge Temperature | -4℉~149℉ (The surface temperature of the cell should not exceed 149℉) |
| Recommended Storage Temperature | 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature) |
| Max. Expansion | 15 pcs in parallel |
| Communication Ports | RS485/RS232/CAN |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Efficiency (Peak) | 91% |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Maximum PV Array Power | 8000W (4000W x 2) |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Compliance Safety | UL |
