Rich Solar 2500W 48VDC-240VAC Solar Kit
Frequently Bought Together
Rich Solar RS-CBK2500240 2500W 48VDC-240VAC Solar Kit
The Rich Solar RS-CBK2500240 2500W 48VDC-240VAC Solar Kit is a complete 48V solar power package built for cabins, tiny homes, off-grid properties, remote buildings, and backup power systems that need solar input, lithium battery storage, and hybrid inverter capability in one matched package. With 2500W of solar panels, two ALPHA 5 PRO 5.12kWh lithium batteries, and two NOVA 6500S 48V hybrid inverters, this kit gives customers a strong foundation for a serious battery-based power system.
Product Overview
The RS-CBK2500240 is designed for customers who want a stronger complete solar kit than a basic RV or cabin package, but do not need the larger 4000W or 8000W solar array packages. It combines solar generation, lithium battery storage, and hybrid inverter hardware into one coordinated 48V system package.
This kit is a strong fit for off-grid cabins, small homes, workshops, remote buildings, and backup power projects where the customer needs more than a panel-and-controller kit. It provides the major system components needed for solar collection, battery storage, and inverter output, while still requiring proper system design, installation, protection equipment, permitting, and code-compliant electrical work.
What Comes in the Kit

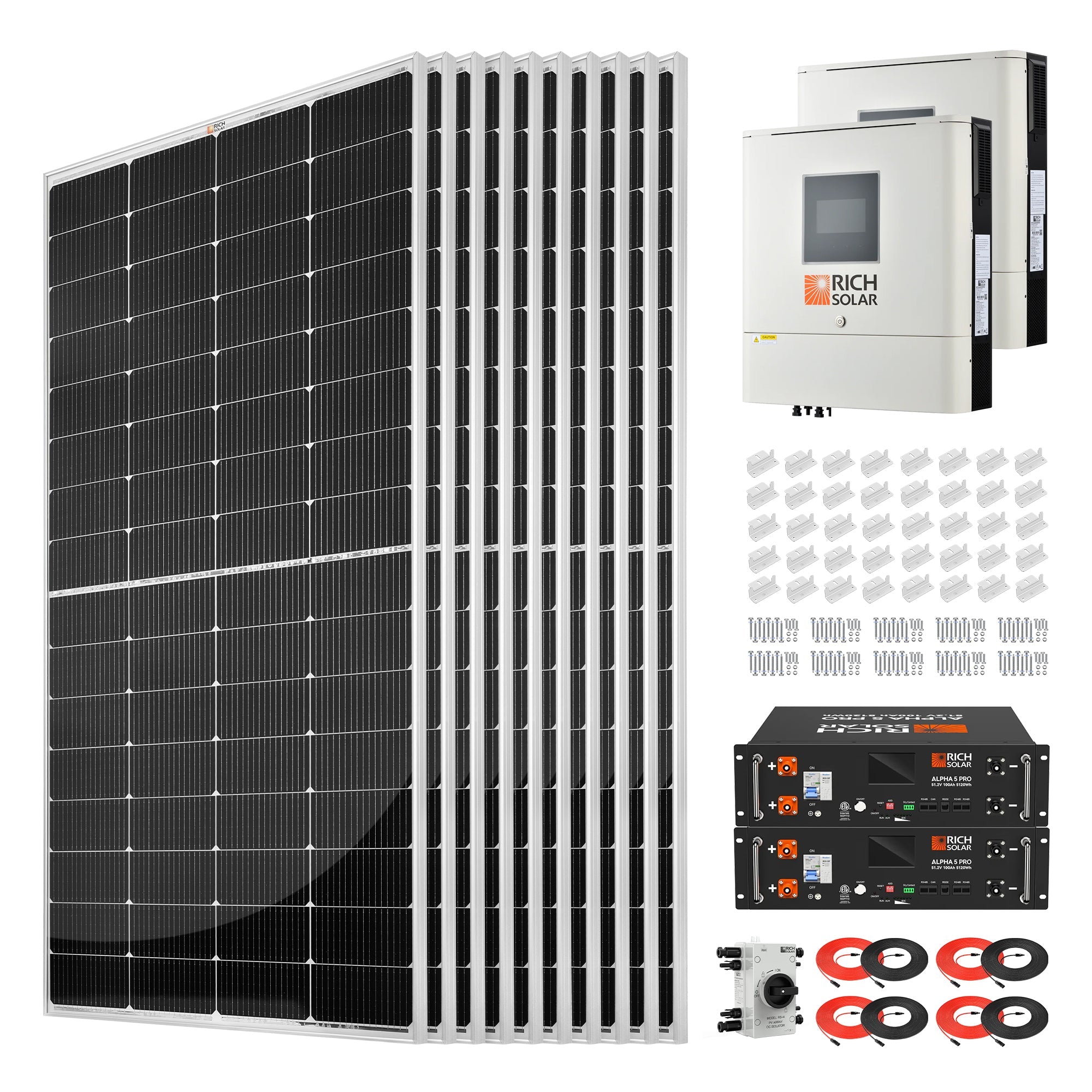

The RS-CBK2500240 includes the major components needed for a 48V solar power system: solar panels, lithium batteries, hybrid inverters, solar extension cables, mounting brackets, and a PV DC quick disconnect.
Ten MEGA 250W monocrystalline panels create a 2500W solar array. These panels feature a 16-busbar cell configuration, anodized aluminum frame, AR-coated tempered glass, plug-and-play junction box, and quick-connect cables that can work in series or parallel designs.
Two ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries provide approximately 10.24kWh of storage. Each battery is rated at 5120Wh and features a built-in BMS, 7,000-cycle life, UL1973 / UL9540A / FCC certification, and 100A continuous charge and discharge capability.
Two 6500W 48V off-grid hybrid inverters create the inverter foundation for the system. The NOVA 6500S platform includes pure sine wave output, UL certification, built-in Wi-Fi, BMS communication support, generator or utility input compatibility, and parallel operation capability.
Additional Included System Components
In addition to the panels, batteries, and inverters, the kit includes core solar-side hardware to help support installation planning and panel wiring.
Built for Cabins, Backup Power, and Off-Grid Energy Storage
This kit is built for customers who need real solar production and battery storage in a 48V platform. It is especially useful for customers powering essential loads, remote structures, small homes, cabins, workshops, and battery-backed systems where a simple solar generator or small RV kit will not be enough.
Key System Highlights
This description keeps the focus on the real buying decision: solar production, usable battery storage, inverter capability, 48V architecture, system expandability, and practical use cases.
The ten included MEGA 250W panels provide a 2500W solar array for charging the 48V battery system. The panels are designed with quick-connect cables, AR-coated tempered glass, and strong low-light performance for real-world solar production.
Two ALPHA 5 PRO batteries give the system approximately 10.24kWh of lithium storage. The LiFePO4 chemistry, BMS protection, long cycle life, and parallel expansion capability make the battery side a serious upgrade from small portable power solutions.
The two NOVA 6500S inverters support a larger 48V system configuration with pure sine wave output, built-in Wi-Fi monitoring, generator or utility input compatibility, and BMS communication support through RS485, CAN-BUS, or RS232.
Instead of piecing together unrelated components, this kit gives customers a matched set of Rich Solar panels, ALPHA 5 PRO batteries, NOVA hybrid inverters, solar cables, brackets, and a PV disconnect for a cleaner system starting point.
Best Uses
- Off-grid cabin power systems
- Tiny home and small home solar builds
- Remote buildings, workshops, barns, and sheds
- Battery-backed home backup projects
- 48V solar energy storage systems
- Essential-load backup planning
- Customers upgrading beyond portable power stations
- Properties that need solar production plus lithium battery storage
- DIY off-grid systems installed with qualified electrical support
Key Benefits
- Complete 2500W 48VDC-240VAC solar kit
- 10 x MEGA 250W monocrystalline solar panels
- 2500W total solar panel capacity
- 2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries
- Approx. 10.24kWh total battery storage
- 7,000-cycle battery platform with built-in BMS protection
- 2 x NOVA 6500S 48V off-grid hybrid solar inverters
- Pure sine wave inverter output
- Built-in inverter Wi-Fi for mobile monitoring
- BMS communication support through RS485, CAN-BUS, or RS232
- Utility mains or generator input compatible
- 2 x 10AWG 30ft extension cables
- 2 x 10AWG 10ft extension cables
- 15 x Z-brackets for solar panel mounting
- 1 x PV DC quick disconnect
| Rich Solar 2500W 48VDC-240VAC Solar Kit | |
| Model SKU | RS-CBK2500240 |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Package Configuration | Two NOVA 6500S inverters, ten MEGA 250 panels, two ALPHA 5 PRO batteries, two 30 ft and two 10 ft 10 AWG extension cables, fifteen Z-bracket sets, and one PV DC quick disconnect |
| Rated Inverter Output | 6,500 W per inverter; two inverters included |
| AC Output Voltage | 120 V AC ±5% per inverter in battery mode |
| Surge Output | 13,000 VA per inverter |
| AC Output Waveform | Pure sine wave |
| AC Output Frequency | 50/60 Hz automatic sensing |
| Parallel Capability | Up to six NOVA 6500S inverters |
| Maximum PV Array Power | 8,000 W per inverter (4,000 W × 2 MPPT inputs) |
| MPPT Operating Range | 90-230 V DC |
| Maximum PV Open-Circuit Voltage | 250 V DC |
| Maximum Solar Charge Current | 120 A |
| Maximum AC Charge Current | 120 A |
| System Battery Voltage | 48 V DC |
| System AC Output Voltage | 240 V AC split-phase configuration |
| Maximum System Voltage | (Vmax): 1500VDC |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Maximum Charging Current | 100A |
| Continuous Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Maximum Charge Voltage | (CC/CV): 57.6V |
| Efficiency | (Peak): 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Battery System Voltage | 48VDC |
| Listed Solar Power | 2500W |
| MEGA 250W Monocrystalline Panel — Maximum Power (Pmax) | 250W |
| MEGA 250W Monocrystalline Panel — Open Circuit Voltage (Voc) | 22.8V |
| MEGA 250W Monocrystalline Panel — Short Circuit Current (Isc) | 13.7A |
| MEGA 250W Monocrystalline Panel — Maximum System Voltage (Vmax) | 1500VDC |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Voltage | 51.2V |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Capacity | 100Ah |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Nominal Energy | 5120Wh |
| PV DC Quick Disconnect — Max. Rated Current | 55A |
| PV DC Quick Disconnect — Max. Rated Voltage | 1500VDC |
| CONNECTIONS | |
| Ports | RS485/RS232/CAN |
| Communication | Ports: RS485/RS232/CAN |
| PHYSICAL | |
| Inverter Dimensions | 6.2 × 19.8 × 20.9 in each |
| Inverter Weight | 44 lb each |
| Weight | 26.9 lb |
| Dimensions | 60.6 x 29.9 x 1.2 in |
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| MEGA 250W Monocrystalline Panel — Weight | 26.9 lb |
| ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter — Weight | 100.9 lb |
| PV DC Quick Disconnect — Dimensions (HxWxD) | 7.1x6.8x4.3 in (179.5x173.9x110 mm) |
| PV DC Quick Disconnect — Net Weight | 1.6lb (0.73kg) |
| OPERATING LIMITS | |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 Years Manufacturer Defect |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| PACKAGE | |
| Included Components | 2 × 6500W 48V Off-grid Solar Inverter (H6548S), 10 × MEGA 250W Monocrystalline Panel, 2 × ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter, 2 × 10AWG 30FT Extension Cable, 2 × 10AWG 10FT Extension Cable, 15 × Z-Brackets, 1 × PV DC Quick Disconnect |
