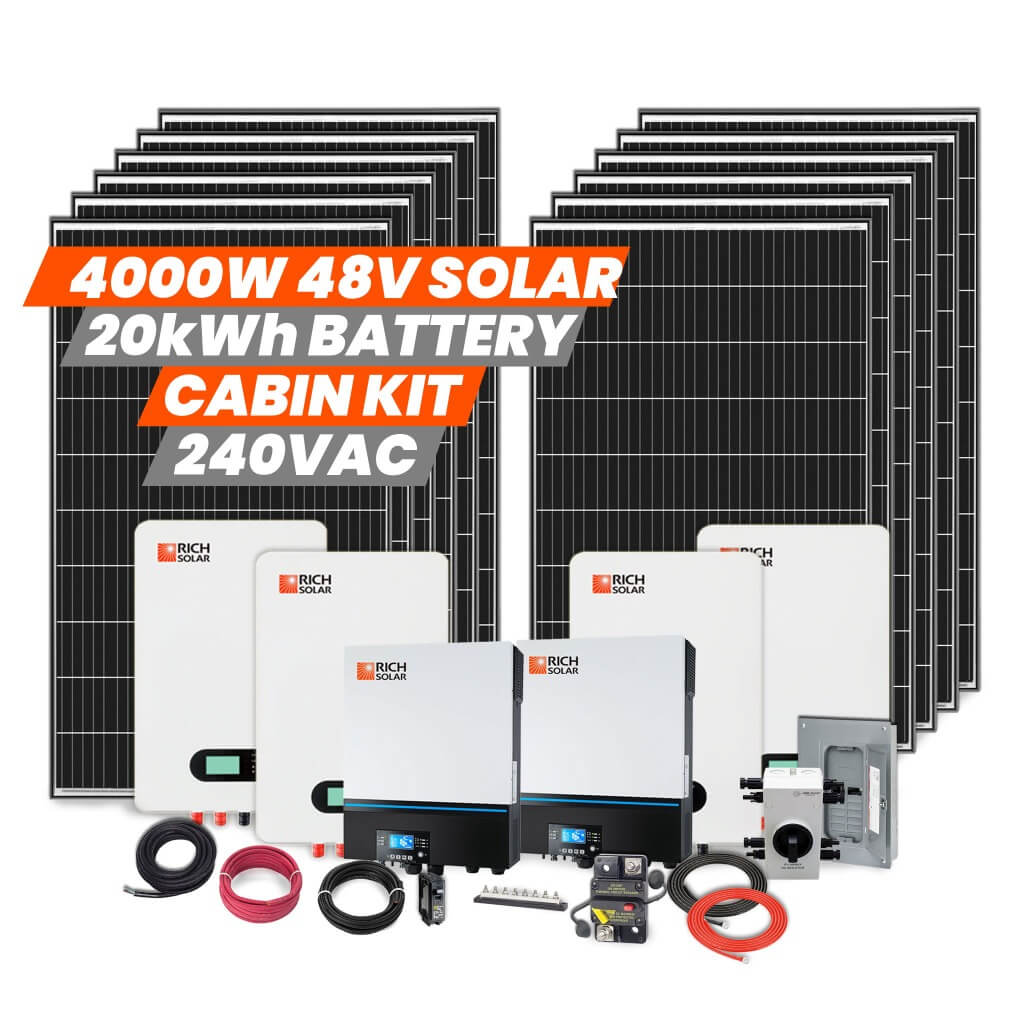

Rich Solar 4000W 48V 240VAC Cabin Kit Rich Solar 4000W 48V 240VAC Cabin Kit
SKU: RS-CBK402
$18,999.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRICH SOLAR warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
4000W 48V 240VAC Cabin Kit
The 4000W 48V 240VAC Cabin Kit is built for customers who want a more complete solar package instead of piecing together every component from scratch. It helps simplify system planning for off-grid, mobile, cabin, and backup power applications.
Bundle-first setup
Helps reduce guesswork by grouping key solar components into one system package.
Built for upgrades
A good starting point for customers who may later expand storage, inverter capacity, or panel wattage.
System-ready fit
Made for practical solar, battery, and off-grid power builds where compatibility and clean installation matter.
Product Details
4000W 48V 240VAC Cabin Kit is listed by Grid Getaway for customers comparing solar panels, LiFePO4 batteries, inverters, charge controllers, wiring, mounting hardware, and complete off-grid power components in one place.
Power rating: 4000W
System voltage: 48V, 240V
Rich Solar SKU: RS-CBK402
Best Uses
- cabins and tiny homes
- cabins, RVs, vans, and small off-grid systems
- battery charging and daily-use solar power
- DIY solar builds
Buying note: Before ordering, confirm the kit voltage, expected daily energy use, mounting location, battery compatibility, and inverter needs.
Why Buy From Grid Getaway?
Grid Getaway helps customers compare Rich Solar products alongside compatible solar, backup power, and energy storage equipment. The goal is to make the full system easier to understand, easier to size, and easier to upgrade over time.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
2 6500W 48V Hybrid Inverter (RS-H6548)
Package Includes
12 MEGA 335W Solar Panel
Package Includes
4 48V ALPHA 5 Lithium Battery
Package Includes
6 10AWG 25FT Extension Cable
Package Includes
24 Z-Bracket Set
Package Includes
2 Y-Branch Parallel Adapter
Package Includes
1 PV DC Quick Disconnect Switch
Package Includes
2 150A 48V Battery Breaker
Package Includes
2 8-Stud Bus Bar Set
Package Includes
2 2/0 Gauge 2FT Positive Battery Cable
Package Includes
2 2/0 Gauge 3FT Positive Battery Cable
Package Includes
2 2/0 Gauge 5FT Negative Battery Cable
Package Includes
4 2 Gauge 5FT Positive Battery Cable
Package Includes
4 2 Gauge 5FT Negative Battery Cable
Package Includes
1 125A 8-Space 16-Circuit Combiner Box
Package Includes
1 10-Terminal Ground Kit
Package Includes
4 20A Single-Pole Circuit Breaker
Package Includes
2 30A Double-Pole Circuit Breaker
Package Includes
1 6/3 SOOW Outdoor Cable
| Rich Solar 4000W 48V 240VAC Cabin Kit | |
| Selected variant SKU | RS-CBK402 |
|---|---|
| MODEL | |
| Model / SKU | RS-CBK402 |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| System Battery Voltage | 48 V DC |
| System AC Output Voltage | 240 V AC split-phase configuration |
| Listed System Voltage | 48V |
| Listed Solar Power | 4000W |
| 6500W 48V Hybrid Inverter (RS-H6548) — Rated Inverter Power | 6500VA/6500W |
| 6500W 48V Hybrid Inverter (RS-H6548) — Voltage | 120 VAC |
| 6500W 48V Hybrid Inverter (RS-H6548) — Selectable Voltage Range | 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances) |
| 6500W 48V Hybrid Inverter (RS-H6548) — AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| 6500W 48V Hybrid Inverter (RS-H6548) — Optional DC Voltage | 12 VDC ± 7%, 100W |
| 6500W 48V Hybrid Inverter (RS-H6548) — Battery Voltage | 48 VDC |
| 48V ALPHA 5 Lithium Battery — Nominal Voltage | 48V |
| 48V ALPHA 5 Lithium Battery — Nominal Capacity (at 0.5C, 77°F) | 100Ah |
| 48V ALPHA 5 Lithium Battery — Minimum Capacity (at 0.5C, 77°F) | 99.5Ah |
| 48V ALPHA 5 Lithium Battery — Operating Voltage | 48V |
| 48V ALPHA 5 Lithium Battery — Capacity | 100Ah |
| 48V ALPHA 5 Lithium Battery — Energy | 4800 Watt Hours |
| 48V ALPHA 5 Lithium Battery — Charge Voltage Range | 52.0 – 52.5V |
| Y-Branch Parallel Adapter — Rated Current | 20A |
| Y-Branch Parallel Adapter — Maximum Voltage | 1000VDC |
| PV DC Quick Disconnect Switch — Max. Rated Current | 55A |
| PV DC Quick Disconnect Switch — Max. Rated Voltage | 1500VDC |
| PHYSICAL | |
| PV DC Quick Disconnect Switch — Dimensions (HxWxD) | 7.1x6.8x4.3 in (179.5x173.9x110 mm) |
| PV DC Quick Disconnect Switch — Net Weight | 1.6lb (0.73kg) |
| OPERATING LIMITS | |
| PV DC Quick Disconnect Switch — Warranty | 3 years |
| PACKAGE | |
| Included Components | 2 × 6500W 48V Hybrid Inverter (RS-H6548), 12 × MEGA 335W Solar Panel, 4 × 48V ALPHA 5 Lithium Battery, 6 × 10AWG 25FT Extension Cable, 24 × Z-Bracket Set, 2 × Y-Branch Parallel Adapter, 1 × PV DC Quick Disconnect Switch, 2 × 150A 48V Battery Breaker, 2 × 8-Stud Bus Bar Set, 2 × 2/0 Gauge 2FT Positive Battery Cable, 2 × 2/0 Gauge 3FT Positive Battery Cable, 2 × 2/0 Gauge 5FT Negative Battery Cable, 4 × 2 Gauge 5FT Positive Battery Cable, 4 × 2 Gauge 5FT Negative Battery Cable, 1 × 125A 8-Space 16-Circuit Combiner Box, 1 × 10-Terminal Ground Kit, 4 × 20A Single-Pole Circuit Breaker, 2 × 30A Double-Pole Circuit Breaker, 1 × 6/3 SOOW Outdoor Cable |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
How is the RS-CBK402 configured differently from the 120VAC 4000W cabin kit?
The 240VAC package lists two RS-H6548 6500W 48V hybrid inverters and two 150A battery breakers. Its dual-inverter architecture must be installed and commissioned for the intended 240VAC output according to the exact manufacturer diagrams.
What panel and battery quantities are included in the RS-CBK402?
The live package metadata lists 12 MEGA 335W panels and four 48V ALPHA 5 lithium batteries. It also supplies six 25-foot 10AWG extension cables, two Y-branch adapters, and 24 Z-bracket sets for the array hardware.
Which high-current connection parts support the dual-inverter battery side?
The package includes two 8-stud bus-bar sets, two 150A 48V battery breakers, paired 2/0 inverter cables, and four positive plus four negative 2-gauge battery cables. Use matched lengths, correct torque, overcurrent protection, and the approved topology for balanced sharing.
What AC combiner and breaker assortment is bundled for the 240V RS-CBK402?
It lists a 125A 8-space 16-circuit combiner box, a 10-terminal ground kit, four 20A single-pole breakers, two 30A double-pole breakers, and 6/3 SOOW outdoor cable. Final circuit use, bonding, transfer, grounding, and conductor sizing require qualified design.
How should 120V and 240V cabin loads be evaluated before ordering the RS-CBK402?
List each branch's voltage, running watts, startup surge, duty cycle, and simultaneous operation. Then verify inverter leg balance, paired-inverter limits, battery current, solar recovery, combiner capacity, generator or utility input, and code requirements.
Is the 4000W 240VAC cabin kit a plug-and-play homeowner installation?
No. It is a high-energy 48V battery and 240VAC power system with multiple PV strings and inverters. String calculations, battery protection, grounding and bonding, transfer equipment, permits, conductor sizing, commissioning, and inspection should be handled by qualified professionals.
