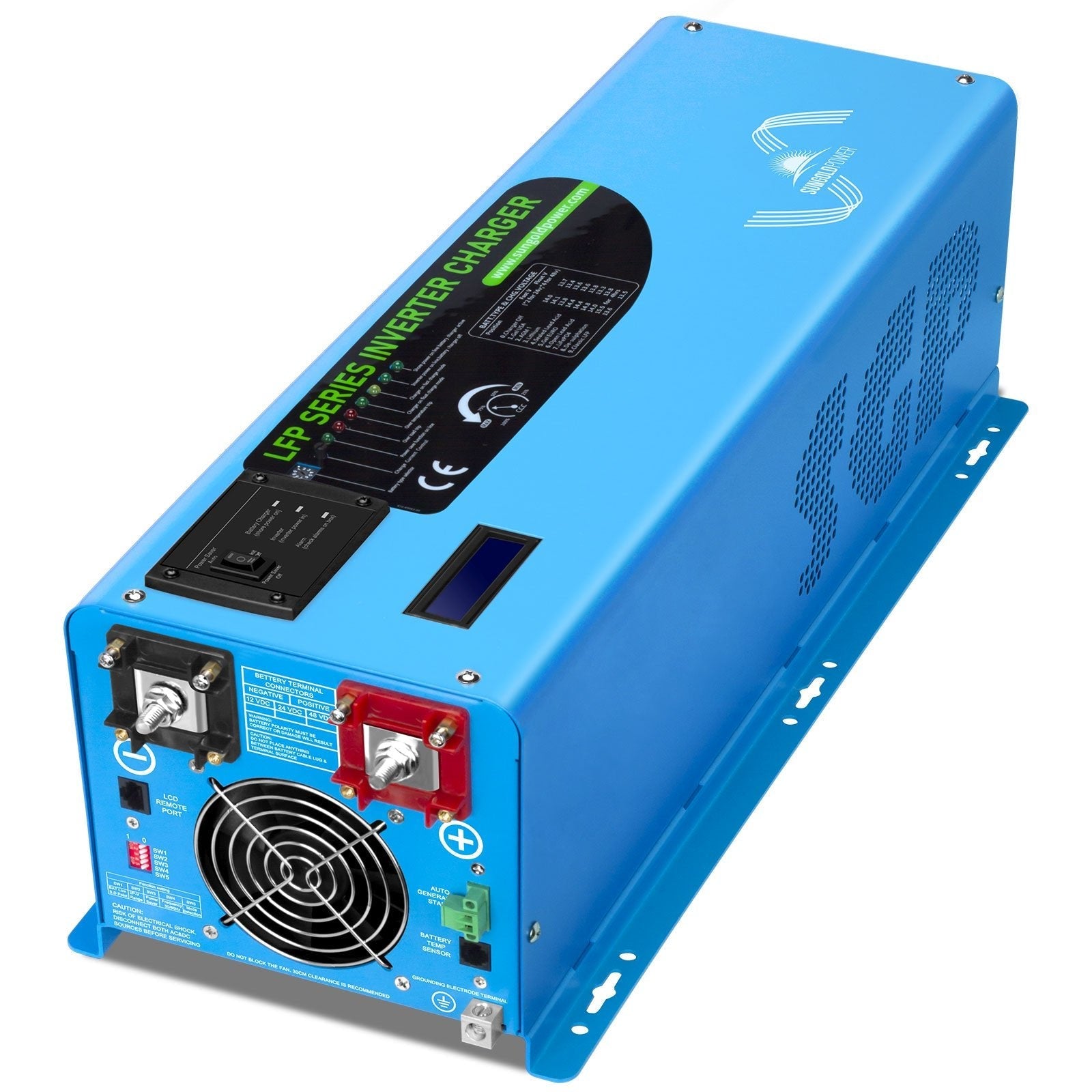

Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V 1 / 15
SunGoldPower

Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V

SKU: LFP4K24V240VSP

Brand SunGoldPower In Stock
$1,040.00 $1,300.00 Save $260.00 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerSunGoldPower warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · SunGoldPower warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V

In Stock
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Quantity$1,040.00 each
1
SunGoldPower Solar Inverter

Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V

The Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V is designed for split-phase backup and off-grid systems that need stable power conversion for larger loads. It helps turn stored battery energy into usable household power while keeping the system practical for residential and remote installations.

4000W240V120VSplit PhaseIn StockSKU LFP4K24V240VSP

Clean power conversion

Helps turn stored battery energy into usable AC power for everyday loads, backup circuits, and off-grid applications.

Built for battery systems

A practical match for solar storage builds where the inverter needs to work smoothly with a dedicated battery bank.

Split-phase capability

Supports larger home and system layouts that need 120V and 240V power from the same inverter platform.

Built to anchor your power system

Low-frequency inverter systems are often chosen when the load profile is heavier and surge demand matters. This model is positioned for practical energy systems where steady output, battery support, and real-world reliability are more important than a tiny lightweight footprint.

  • Use it as the core conversion point for a battery-backed power system.
  • Supports split-phase system layouts for larger 120V/240V loads.
  • A practical fit for backup power, off-grid power, workshops, mobile builds, and residential energy projects.
  • Helps keep system design cleaner when you need dependable AC output from stored energy.
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V

Compare before you choose

Compare continuous AC output, battery voltage, surge behavior and PV or charger functions for the intended installation.

See the Low Frequency Inverter 4000W-DC12V (single phase) AC input 120V AC output 120V for another SunGoldPower inverter option.

Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Package Includes
1x Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Includes the selected item based on the current package option.
Low Frequency Inverter 4000W-DC24V (split phase) AC input 240V AC output 120V and 240V
Selected variant SKU LFP4K24V240VSP
MODEL
Model / SKU LFP4K24V240VSP
Product Type Inverter
ELECTRICAL
Continuous AC Output 4,000 W
AC Input Voltage 240 V AC
Output Waveform Pure sine wave
Inverter Type Low-frequency inverter, battery charger, and automatic transfer switch
Output Frequency 50/60 Hz ±0.3 Hz
Peak Inverter Efficiency Greater than 88%
Line-Mode Efficiency Greater than 95%
Typical Transfer Time 10 ms maximum
Battery Charging Three-stage intelligent charger with 0%-100% adjustable current and 9 selectable battery settings
Input Priority AC priority by default; battery priority selectable with DIP switch SW5
Surge Output 12,000 W for 20 seconds
Selectable AC Output Voltages 120 V or 240 V AC split phase
Nominal DC Input Voltage 24.0 V DC
Minimum Start Voltage 20.0 V DC
Low-Battery Alarm 19.0-20.0 V DC
Low-Battery Trip 18.0-19.0 V DC, selectable with SW1
High-Voltage Alarm 32.0 V DC
Low-Battery Restart Voltage 26.0 V DC
Power-Saver Idle Consumption 19 W
Charger Rating 50 A ±5 A
Selectable AC Input Range 140-270 V AC or 184-253 V AC, selected with SW2
Overcharge Shutdown Voltage 31.4 V
Peak AC Output 12,000 W
Battery Voltage 24 VDC
AC Output Voltage 120/240 VAC split phase
Battery Charger 50 A
Transfer Switch 30 A
Input Frequency Range Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz
Output Configuration Split phase
Listed Output 4000W
PHYSICAL
Dimensions 22 × 9.1 × 7.5 in
Unit Weight 55 lb
Shipping Dimensions 26.8 × 13.4 × 13 in
Shipping Weight 64 lb
OPERATING LIMITS
Protections AC overvoltage, AC undervoltage, low-battery alarm, high-battery alarm, overtemperature, overload, short circuit, and backfeed protection
Maximum Operating Ambient Temperature 122°F (50°C)
Standard Warranty 1 year
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Is the LFP4K24V240VSP an inverter only or a combined power center? It converts a 24V battery system into the AC output stated on the listing. Treat charging, transfer, solar input, monitoring, and grid interaction as separate capabilities unless the exact model documentation explicitly includes them. Why can the LFP4K24V240VSP shut down under load even with charged batteries? The 24V bank must support the inverter's continuous DC demand, startup surge, and conversion loss without exceeding battery or BMS limits. Size parallel batteries, busbars, short copper conductors, lugs, disconnects, and fusing as one high-current circuit. Will every AC connection on the LFP4K24V240VSP carry its full advertised power? This listing is identified as split phase with 120V/240V output. Confirm the manual's leg, neutral, transfer, and imbalance limits before assigning branch circuits; total inverter power is not available independently on every leg. Can panel wattage alone prove solar compatibility with the LFP4K24V240VSP? Do not infer a solar input from the word inverter. Confirm the exact listing and manual for MPPT hardware; otherwise use a separate controller matched to the array and 24V battery bank. What transfer and grounding decisions remain for the LFP4K24V240VSP? No inverter should be assumed suitable for unrestricted grid export or direct panel connection. Confirm the LFP4K24V240VSP's listed operating modes, transfer rating, neutral-ground behavior, overcurrent protection, rapid-shutdown or disconnect requirements, permits, and utility rules with a qualified installer.
