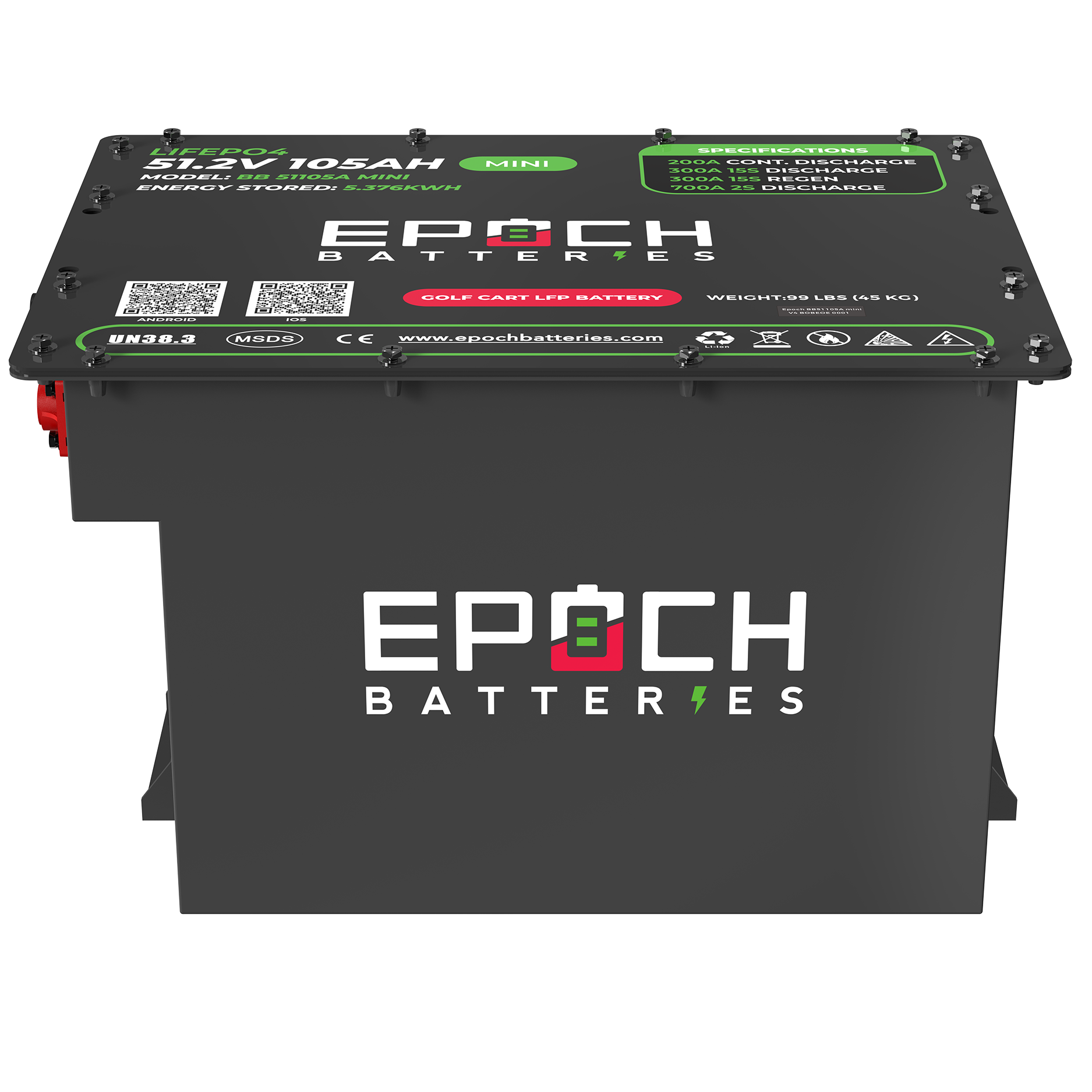

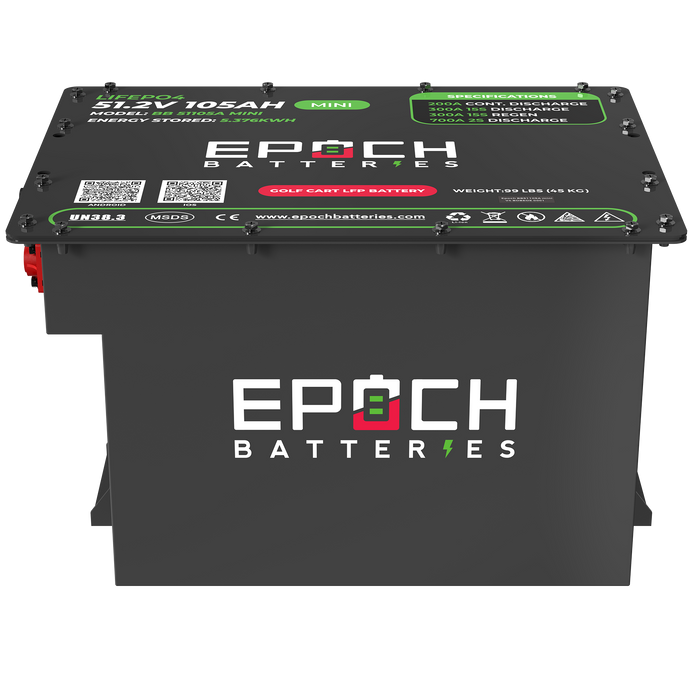

48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit 48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
SKU: BB51105A_MINI-kit-1
The Epoch 48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit gives customers a lithium iron phosphate power option for golf carts. It is a strong fit for shoppers comparing dependable LiFePO4 batteries for cleaner energy storage, lighter maintenance, and a more modern replacement path than traditional lead-acid battery setups.
Use this model when you need a 48v, 105ah, and limax series that can support mobile, marine, golf cart, backup, or off-grid electrical systems depending on the installation. The description is written for real-world buying decisions: voltage, capacity, fitment, monitoring features, and charging compatibility should all be checked against your existing equipment before purchase.
- Core configuration: 48V, 105Ah, and LiMax Series
- Best-use applications: golf carts
- Notable features: golf cart and low-speed vehicle applications
- SKU: BB51105A_MINI-kit-1
- Availability note: This item may be listed as pre-order or supplier-restock dependent. Confirm current availability before planning an install date.
For the best long-term setup, pair this battery with the correct charger, cable sizing, fusing, and voltage-compatible equipment. When comparing models, focus on usable capacity, system voltage, communication features, installation space, and how the battery will be charged day to day.
Compare another Epoch option
Compare 48V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit. Check system voltage, dimensions, what is included and charging limits for your setup.
| 48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit | |
| Selected variant SKU | BB51105A_MINI-kit-1 |
|---|---|
| MODEL | |
| Model / SKU | BB51105A_MINI-kit-1 |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 12V Voltage Converter — Output Voltage | 12 V DC |
| Battery type | 48V LiFePO4 lithium golf cart battery complete conversion kit |
| Chemistry | LiFePO4 / Lithium iron phosphate |
| Cell type | Prismatic LiFePO4 |
| Cell configuration | 1P16S |
| Nominal voltage | 51.2V |
| Nominal capacity | 105Ah |
| Energy stored | 5.376kWh |
| Operating voltage range | 40V – 58.4V |
| Maximum charge voltage | 58.4V |
| Max continuous discharge | 200A |
| Max continuous charge current | 100A |
| Peak charge / regen | 300A @ 15 seconds |
| Peak discharge | 300A @ 15 seconds; 700A @ 2 seconds |
| Series connections | Not recommended; 48V native battery system |
| Parallel connections | Max 2 batteries in parallel |
| Included charger | 48V 15A lithium charger included |
| Bulk / absorption voltage | 56.8V – 57.6V |
| Float voltage | Disabled preferred, or 53.3V – 54.4V |
| Re-bulk voltage | 52.8V |
| BMS high-voltage cutoff | 58.4V |
| SoC recalibration voltage | 58.4V |
| CONNECTIONS | |
| Bluetooth | Yes — iOS and Android app support |
| Terminal type | M8 female |
| PHYSICAL | |
| Length | 15.8 in |
| Weight | 99 lb |
| Case material | Steel |
| Enclosure protection | IP67 waterproof and dustproof |
| OPERATING LIMITS | |
| Cycle life | 3,500+ cycles |
| Charge temperature range | 0°C to 55°C / 32°F to 131°F |
| Discharge temperature range | -20°C to 60°C / -4°F to 140°F |
| Storage temperature | 0°C to 35°C / 32°F to 95°F, max 12 months |
| Temperature compensation | 0mV/°C / none |
| Battery charge temperature range | 0°C to 55°C / 32°F to 131°F |
| Certifications / compliance | UL 1642 cells, UL 9540A cells, IEC 62619:2022, CE, RoHS |
| PACKAGE | |
| Included Components | 1 × 48V 105Ah Mini LiFePO4 Golf Cart Battery, 1 × 48V 15A Waterproof Onboard Lithium Charger, 1 × 12V Voltage Converter, 1 × Dash-Mounted Battery Gauge with Wiring Harness, 1 × Cart-Specific Mounting Brackets |
