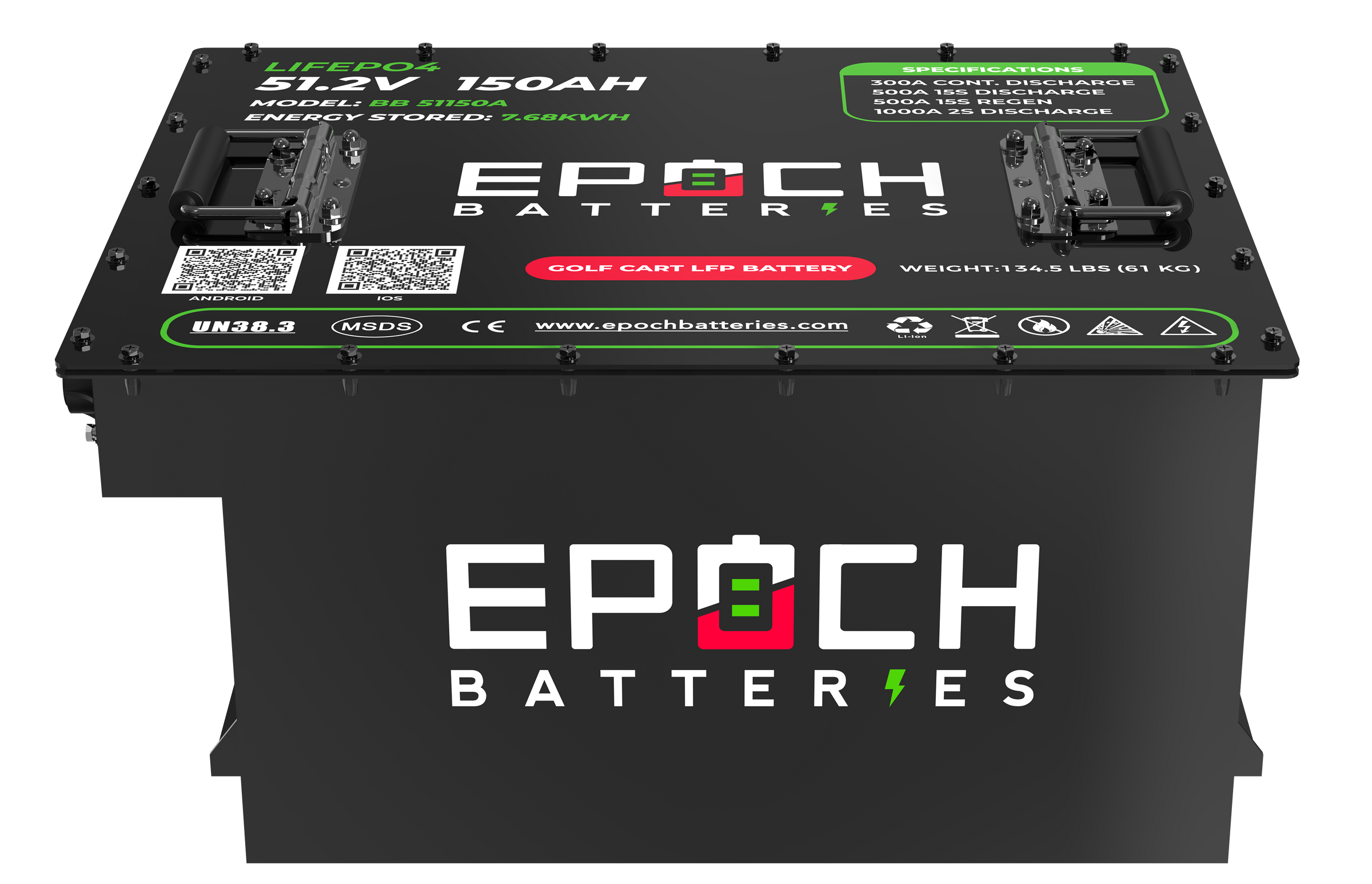

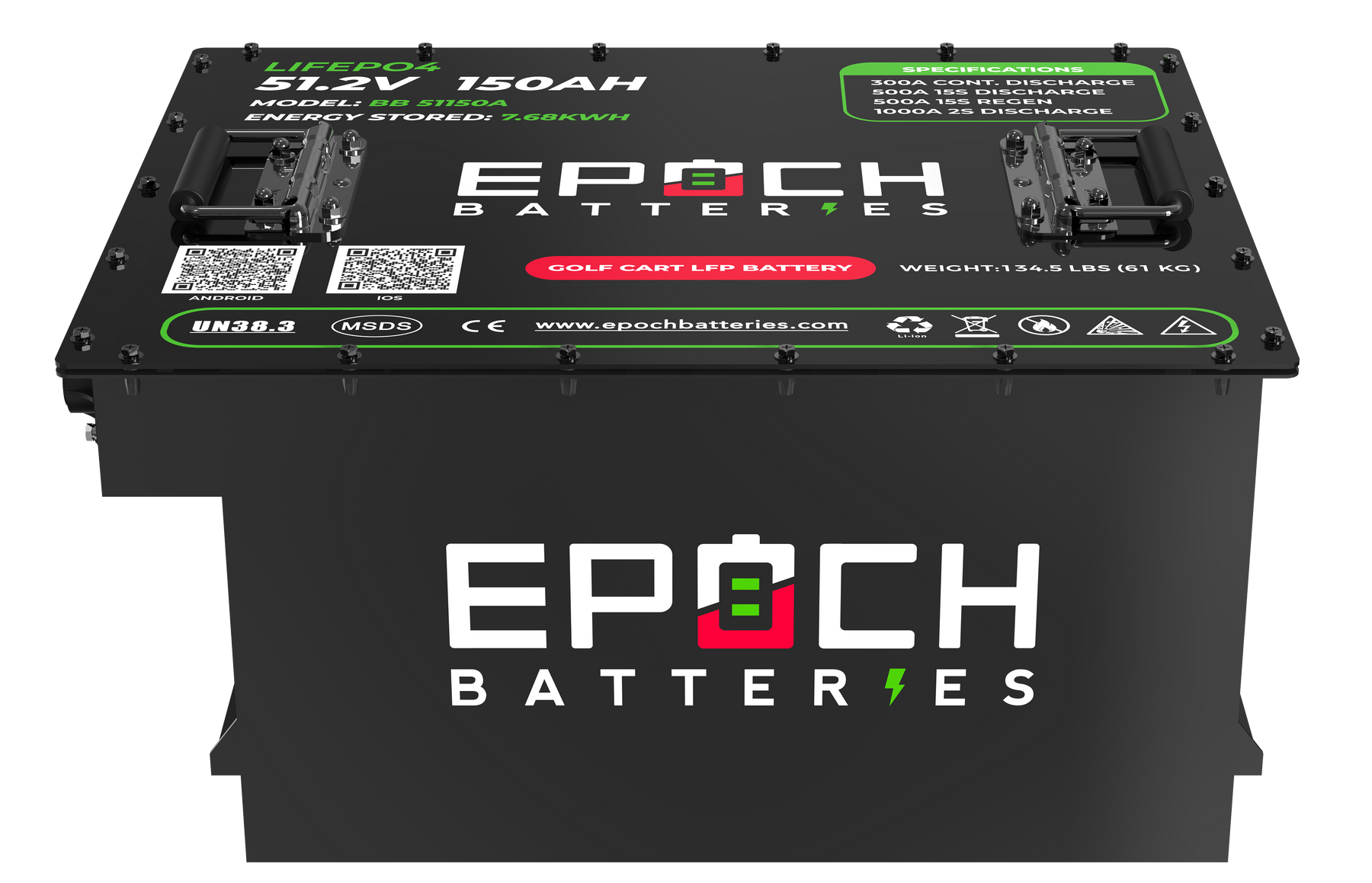

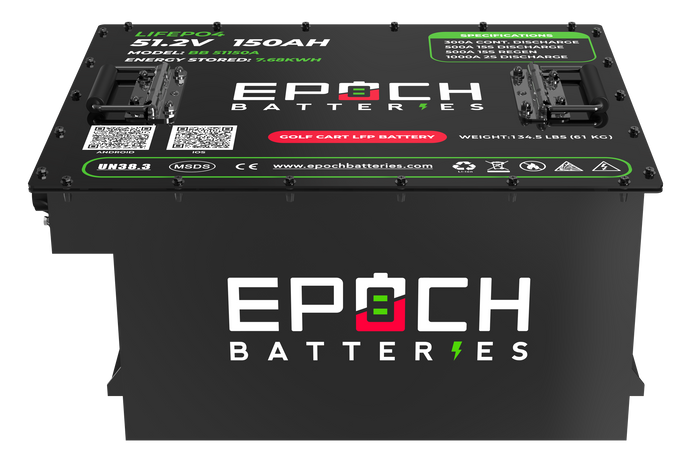

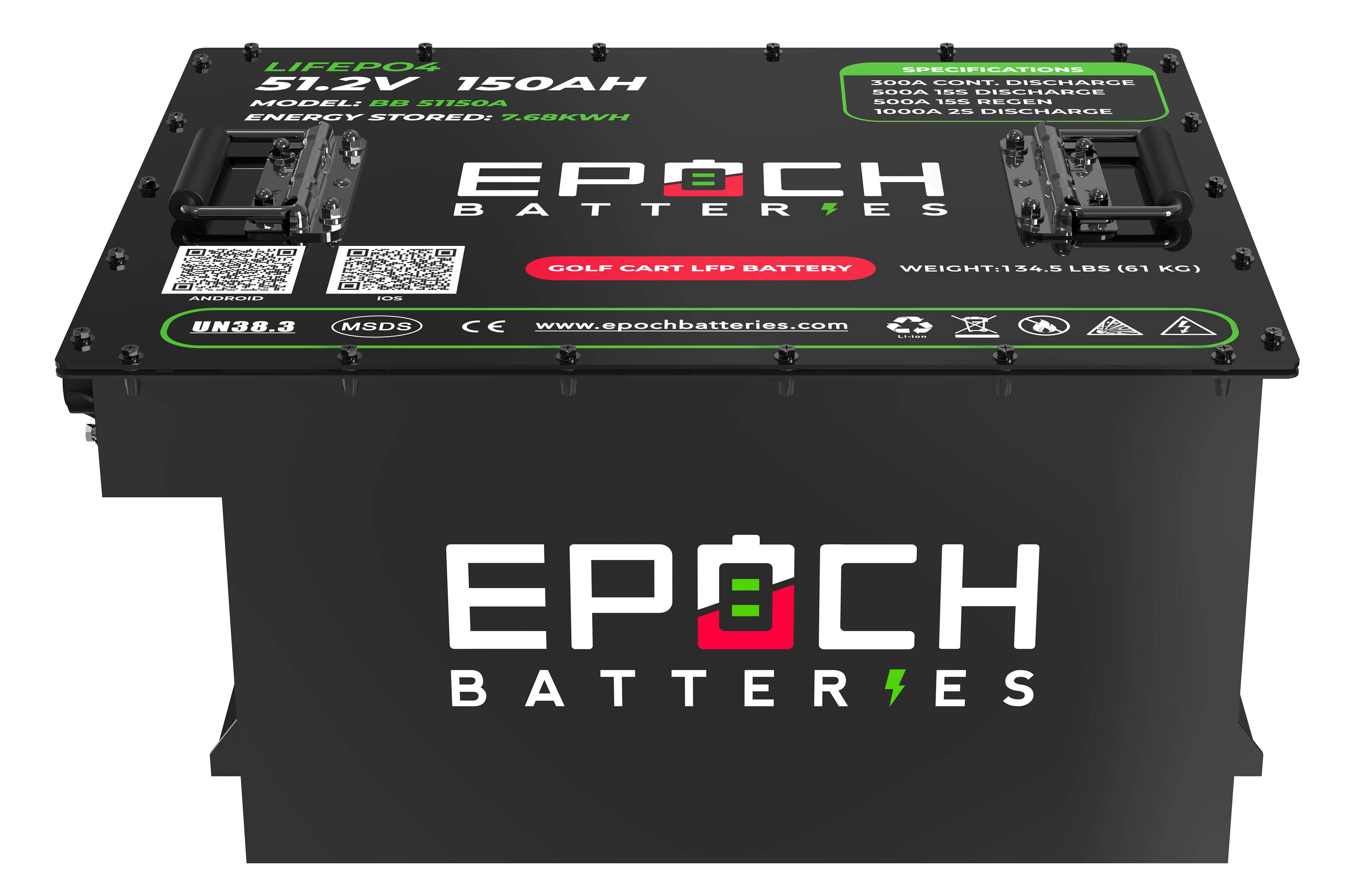

48V 150Ah (7.68kWh) - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit 48V 150Ah (7.68kWh) - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
SKU: BB51150A-Kit-1
- Weight 135 lbs
The Epoch 48V 150Ah (7.68kWh) - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit gives customers a lithium iron phosphate power option for golf carts. It is a strong fit for shoppers comparing dependable LiFePO4 batteries for cleaner energy storage, lighter maintenance, and a more modern replacement path than traditional lead-acid battery setups.
Use this model when you need a 48v, 150ah, 7.68kwh, and limax series that can support mobile, marine, golf cart, backup, or off-grid electrical systems depending on the installation. The description is written for real-world buying decisions: voltage, capacity, fitment, monitoring features, and charging compatibility should all be checked against your existing equipment before purchase.
- Core configuration: 48V, 150Ah, 7.68kWh, and LiMax Series
- Best-use applications: golf carts
- Notable features: golf cart and low-speed vehicle applications
- SKU: BB51150A-Kit-1
- Availability note: This item may be listed as pre-order or supplier-restock dependent. Confirm current availability before planning an install date.
For the best long-term setup, pair this battery with the correct charger, cable sizing, fusing, and voltage-compatible equipment. When comparing models, focus on usable capacity, system voltage, communication features, installation space, and how the battery will be charged day to day.
Compare another Epoch option
Compare 48V 230Ah (11.04kWh) - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit. Check system voltage, dimensions, what is included and charging limits for your setup.
Epoch manuals and technical documents
| 48V 150Ah (7.68kWh) - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit | |
| Selected variant SKU | BB51150A-Kit-1 |
|---|---|
| MODEL | |
| Model / SKU | BB51150A-Kit-1 |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Kit Type | Complete 48 V lithium golf-cart conversion kit |
| Included Components | 48 V 150 Ah LiFePO4 battery, 48 V 22 A lithium charger, battery gauge, 48 V-to-12 V converter, and cart-specific mounting brackets |
| Battery Chemistry | Lithium iron phosphate (LiFePO4) |
| Cell Configuration | 1P16S |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 150 Ah |
| Stored Energy | 7.68 kWh |
| Maximum Charge Voltage | 58.4 V |
| Operating Voltage Range | 40-58.4 V |
| Maximum Continuous Discharge Current | 300 A |
| Maximum Continuous Charge Current | 150 A |
| Peak Charge / Regeneration Current | 500 A for 15 seconds |
| Peak Discharge Current | 500 A for 15 seconds; 1,000 A for 2 seconds |
| Parallel Configuration | Maximum 2 batteries in parallel |
| 48V to 12V Converter — Output Voltage | 12 V DC |
| CONNECTIONS | |
| Bluetooth Monitoring | iOS and Android app support |
| PHYSICAL | |
| Battery Dimensions | 19.84 × 15.35 × 9.84 in |
| Battery Weight | 135 lb |
| OPERATING LIMITS | |
| Charge Temperature Range | 32°F to 131°F (0°C to 55°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | 32°F to 95°F (0°C to 35°C), maximum 12 months |
| Cycle Life | 4,000 cycles |
| Ingress Protection | IP67 |
| Warranty | 11 years |
| Length | 19.8 in |
| Width | 15.3 in |
| Height | 9.8 in |
| Weight | 135 lbs |
