Bulk array package
Built for projects that need a full solar panel set instead of one or two panels at a time.
1 / 6
SunGoldPower

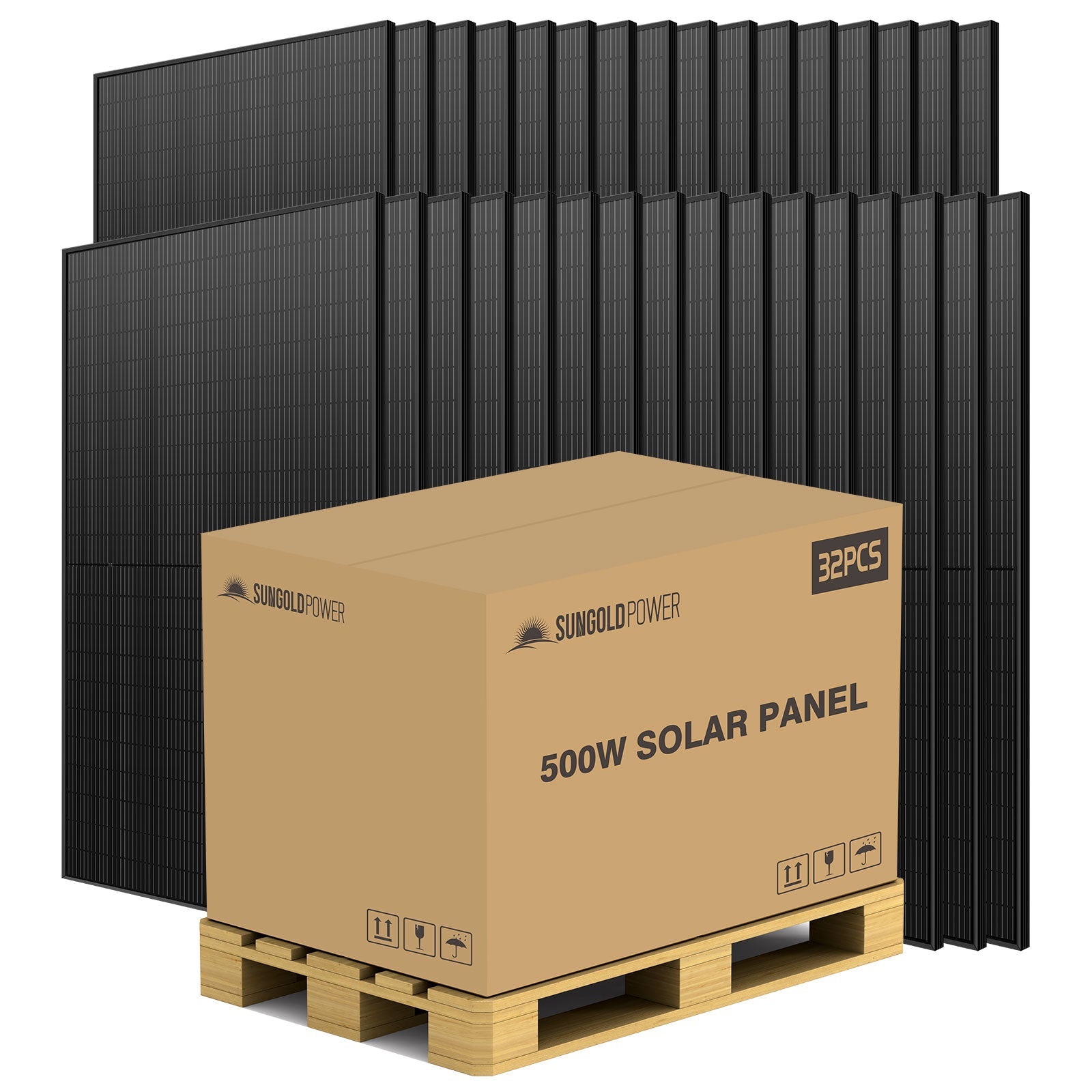

500W MONO BLACK PERC SOLAR PANEL FULL PALLET (32 PANELS) 500W MONO BLACK PERC SOLAR PANEL FULL PALLET (32 PANELS)
SKU: SG500WM
$6,690.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Key features
- Product Weight 56.2lbs
- Package Weight 2006.2lbs（32PCS）
- Material and workmanship warranty 12 years
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Solar Panel
500W MONO BLACK PERC SOLAR PANEL FULL PALLET (32 PANELS)
The 500W MONO BLACK PERC SOLAR PANEL FULL PALLET (32 PANELS) is a bulk solar panel option for larger residential, commercial, and off-grid installations. It is made for customers building full arrays who want consistent panel matching and stronger total charging capacity from one shipment.
500WMonocrystallinePERCIn StockFull PalletSKU SG500WM
Consistent project supply
Keeps large installs easier to plan with matching panels for a cleaner, more uniform array.
Built for energy projects
A strong fit for homes, cabins, workshops, mobile builds, farms, and commercial solar applications.
More solar input for stronger charging
Larger solar projects need consistent panel supply and enough total wattage to make the system worth building. This bulk panel option helps simplify array planning for installers and customers building bigger charging systems.
- Bulk panel format is best for larger project installs and full array builds.
- Adds solar input for battery banks, solar generators, hybrid inverters, and off-grid systems.
- Works well for expanding an existing array or planning a new solar charging setup.
- Built for customers who need dependable charging capacity for real energy storage needs.
Compare panel options
Our solar panel selection guide explains how to compare panel ratings and installation needs; check this product’s electrical ratings before pairing it with other equipment.
Compare before you choose
Compare wattage per panel, physical dimensions, Voc, current and connector type before planning an array.
See the 450W MONO PERC SOLAR PANEL FULL PALLET (32 PANELS) for another SunGoldPower solar panel option.
Package Includes
1x 500W MONO BLACK PERC SOLAR PANEL FULL PALLET (32 PANELS)
Includes the selected item based on the current package option.
| 500W MONO BLACK PERC SOLAR PANEL FULL PALLET (32 PANELS) | |
| Selected variant SKU | SG500WM |
|---|---|
| MODEL | |
| Model | No. SG500WM |
| Product Type | Solar Panel |
| ELECTRICAL | |
| Maximum System Voltage | 1500Vdc |
| Output Cables | 4mm2,Length:(+)300mm/(-)300mm |
| Cell Type | Mono182*91mm |
| Efficiency | reach to 21.05%. |
| Open-circuit Voltage (Voc) | 44.36V |
| Short-circuit Current (Isc) | 14.09A |
| Module Efficiency | 21.05% |
| Maximum Series Fuse Rating | 20A |
| Number of Cells | 132(6*22) |
| High Efficiency Module | This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 21.05%. SunGoldPower 500W panels provide more output per surface area than most traditional panels. |
| Listed Solar Power | 500W |
| Cell Technology | PERC Monocrystalline |
| Module Design | Black monofacial |
| Package Quantity | 32 panels |
| PHYSICAL | |
| Frame | Material Anodized aluminium alloy |
| Material and workmanship warranty | 12 years |
| OPERATING LIMITS | |
| Certifications | UL 61730 CE TUV |
| Model Type | SG500WM |
| Peak Power (Pmax) | 500W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.30A |
| Maximum Power Voltage (Vmp) | 37.60V |
| Wind Resistance | 2400Pa |
| Product Weight | 56.2lbs |
| Product Dimension | 82.44*44.65*1.38inch |
| Package Weight | 2006.2lbs（32PCS） |
| Package Dimension | 85.0*48.0*52.0inch（32PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| ★Widely Use | 500W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future. |
| ★Warranty | This PERC solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty，12- years Material and workmanship warranty.UL61730 ,CEC Listed. |
| STC test conditions | 1,000 W/m² irradiance, AM 1.5, 25°C cell temperature |
| Temperature (T28 max) | 185 °F (85℃) |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Is the SG500WM price for one 500W module or the full pallet shown?
This is the pallet configuration identified in the product title, not a single-module listing. Verify the exact panel count, freight access, unloading plan, inspection procedure, and storage space before ordering.
Which electrical values from the SG500WM label determine controller compatibility?
Use the exact module open-circuit voltage, operating voltage, short-circuit current, operating current, connector, polarity, and maximum series-fuse value. Apply cold-temperature voltage correction to series strings and add current correctly for parallel branches.
How should I evaluate the SG500WM's PERC cell design in real sunlight?
PERC cells can improve energy capture, but the nameplate remains a standard-test rating. Compare temperature coefficient, low-light behavior, degradation terms, shade layout, and installed cost rather than assuming full output all day.
What should be measured before mounting the SG500WM on an RV or roof rack?
Use the published module dimensions, weight, approved clamp zones, mounting-hole layout, load rating, and required airflow. Verify roof structure, wind and snow design, setbacks, grounding or bonding, cable support, drainage, and safe service access.
How badly can partial shade affect the SG500WM in a multi-panel string?
Output is not constant at the 500W nameplate level. Check shade across cell strings, irradiance, angle, module temperature, dirt, connector seating, polarity, cable voltage drop, tracker assignment, and whether the battery or inverter is curtailing production.
What manufacturer warranty should I consider when buying the SunGoldPower SG500WM?
The listed manufacturer warranty is This PERC solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty，12- years Material and workmanship warranty.UL61730 ,CEC Listed.. The manufacturer's warranty terms determine eligibility and coverage.
