Rich Solar 520W Slim Kit Rich Solar 520W Slim Kit
SKU: RS-K520SL
- 40A MPPT Charge Controller Maximizes solar harvest with up to 99.5% MPPT tracking efficiency and 98% peak conversion efficiency.
Add what you need.
Start with your product. Choose the extras that suit your setup.
Rich Solar RS-K520SL 520W Slim Solar Kit
The Rich Solar RS-K520SL 520W Slim Kit is a compact solar charging package built for RVs, camper vans, trailers, boats, cabins, sheds, and off-grid battery systems where roof space is limited. With four MEGA 130W Slim solar panels, a 40A MPPT charge controller, Y-branch parallel adapters, mounting brackets, fuse protection, and included solar and battery cables, this kit gives customers a narrow-panel solar setup designed for cleaner installs in tighter spaces.
Product Overview
The RS-K520SL is designed for customers who need solar charging capacity but do not have the roof layout for wider standard panels. The slim panel format makes this kit especially useful for camper vans, RV roof edges, trailer roofs, boats, narrow mounting zones, and other spaces where panel width is a challenge.

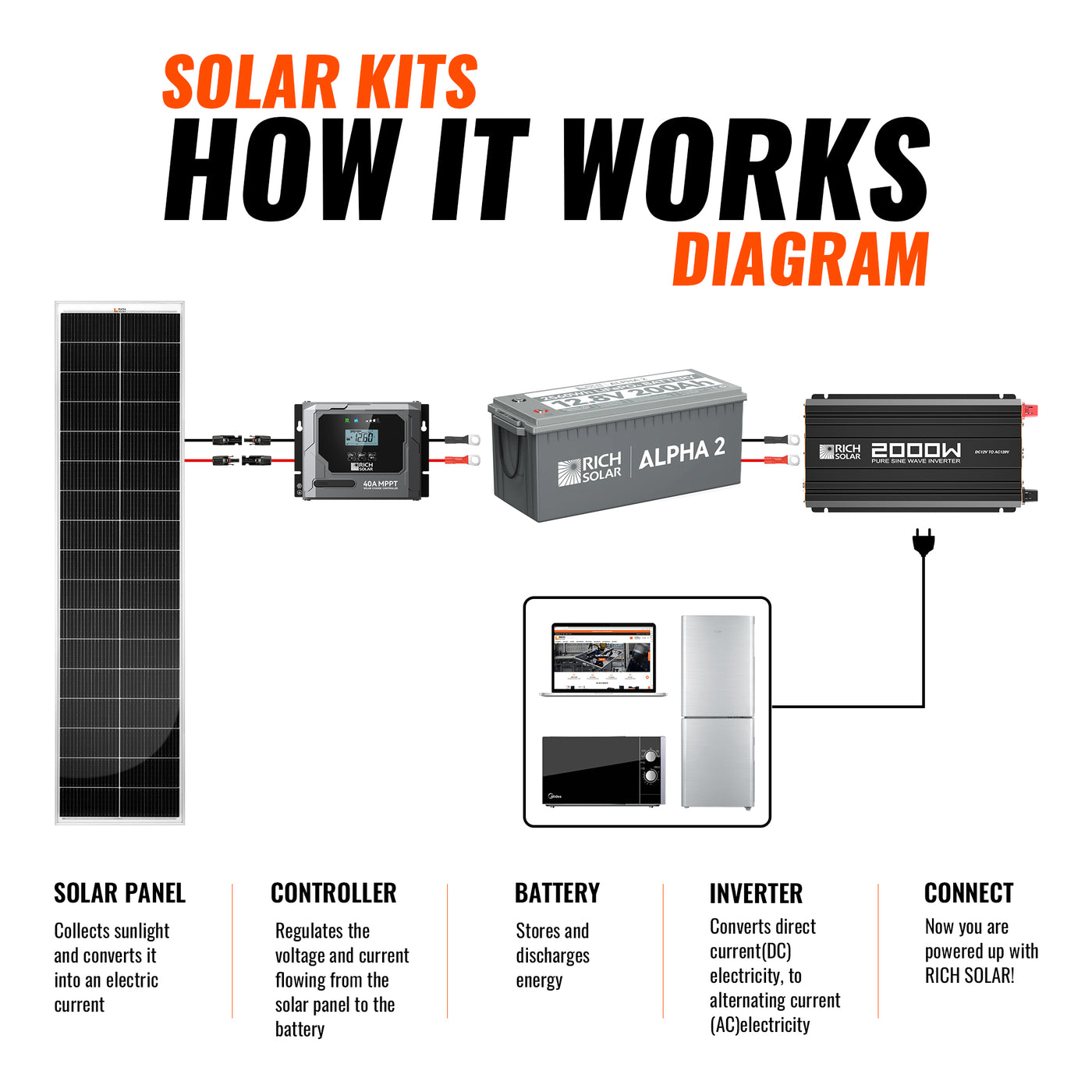

This is a solar charging kit, not a complete power system. It is made to collect solar energy and charge a compatible battery bank through the included MPPT controller. Customers will still need the right battery, inverter, breakers, and system design depending on what they want to power.
What Comes in the Kit

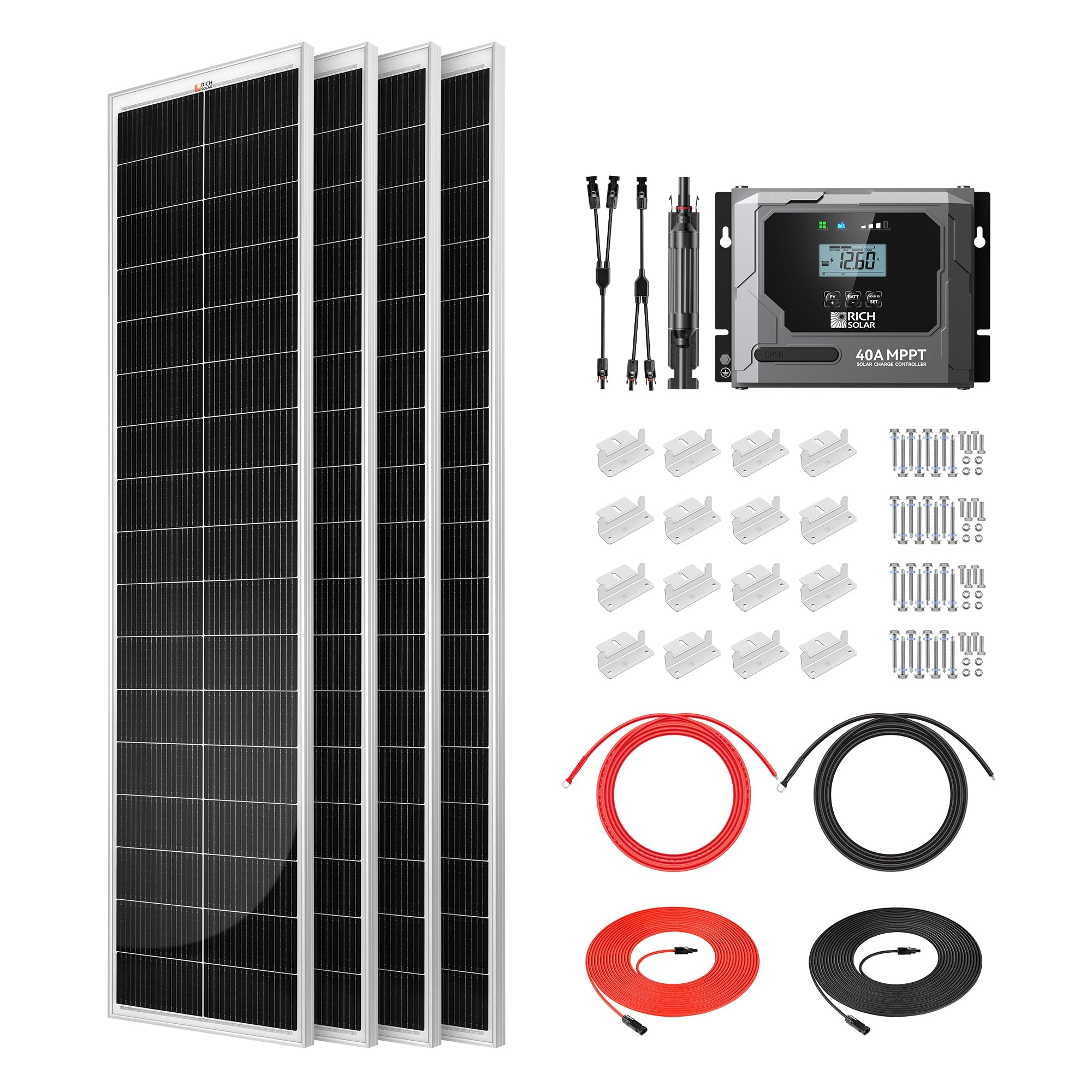

The RS-K520SL bundles the main solar charging components needed to connect slim solar panels to a compatible 12V battery setup. It includes panels, controller, wiring, adapters, brackets, and fuse protection so customers do not have to source every small part separately.

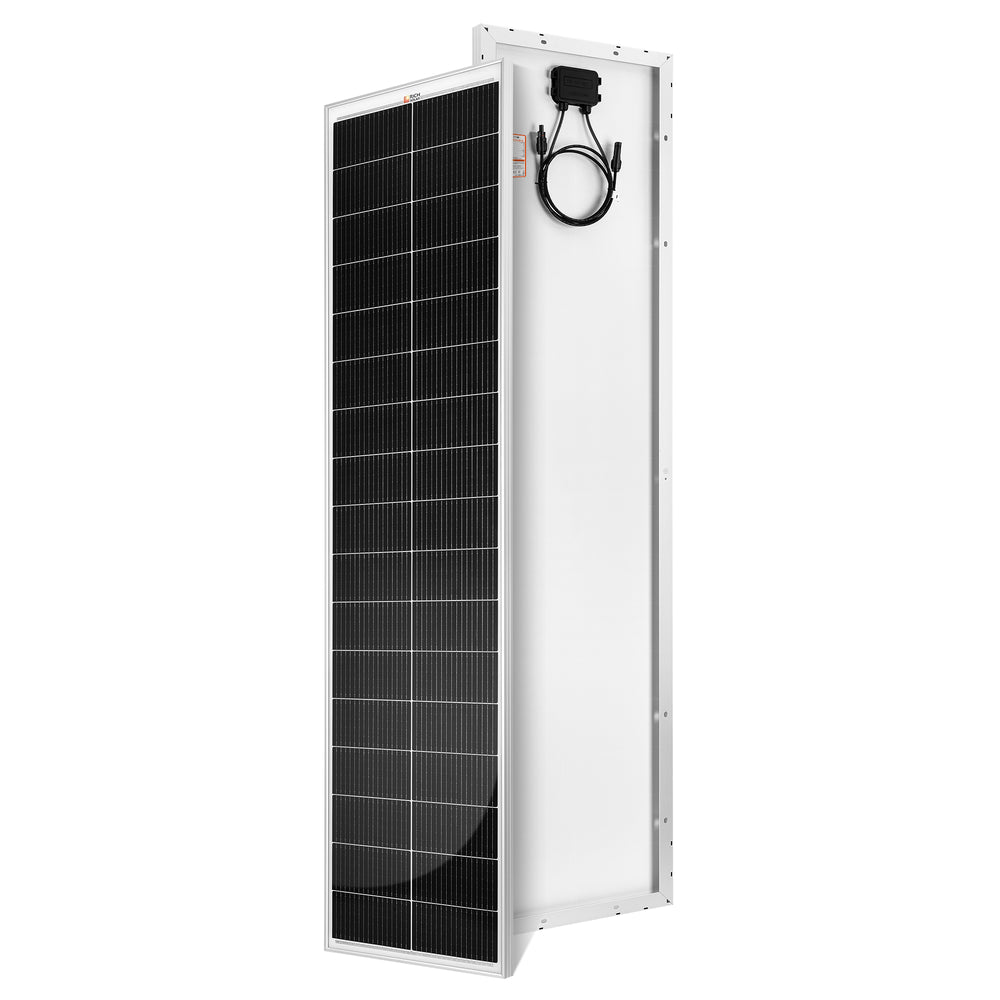

Four narrow-format 130W panels create a 520W solar array for space-conscious RV, van, marine, cabin, and off-grid charging setups. The slim shape helps fit roof edges, gaps, and layouts where wider panels may be difficult to install.

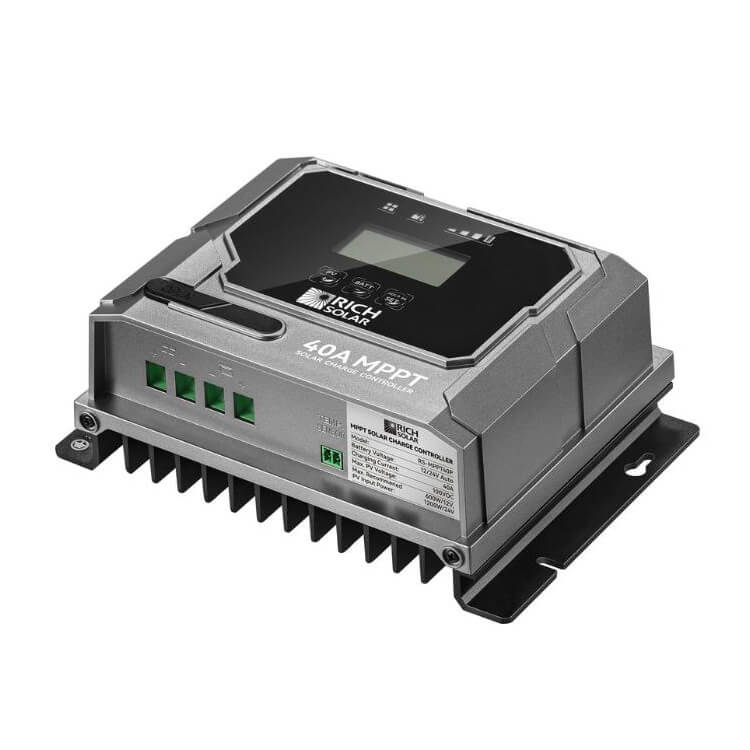

The included 40A MPPT controller regulates solar charging from the panel array to the battery bank. MPPT charging helps improve solar harvest compared with basic PWM-style charging when installed with a compatible system.

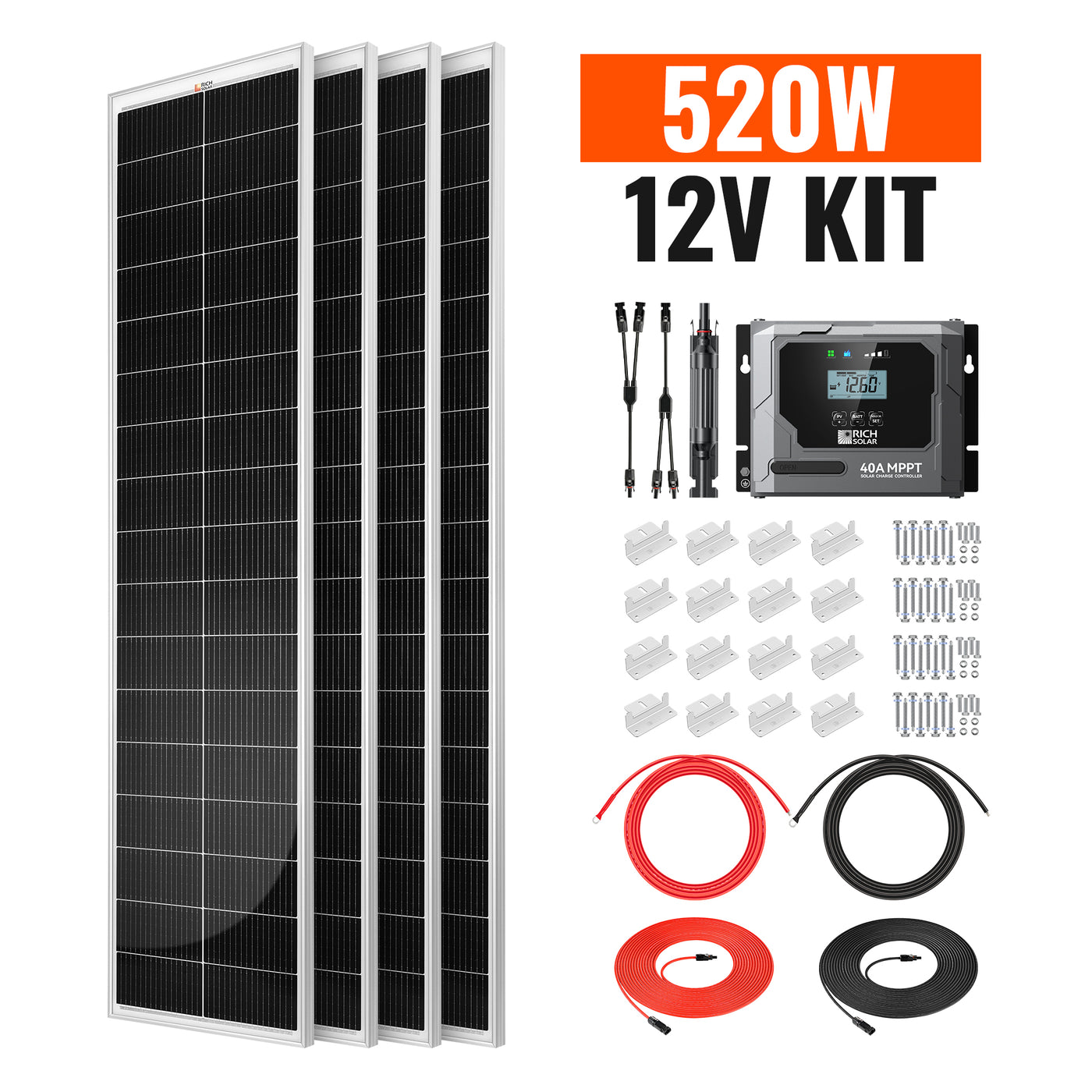

The kit includes a 30 ft 10AWG solar cable set, Y-branch parallel adapters, a 10 ft 8AWG battery cable, one set of mounting Z brackets, and a 20A inline solar panel fuse holder.
Built for Slim Roof Layouts and Space-Limited Installs
This kit is best for customers who want meaningful solar charging capacity but need panels that fit around vents, racks, roof curves, skylights, antennas, storage boxes, or narrow open areas. The long, narrow panel format makes the RS-K520SL a strong option for mobile and compact off-grid solar builds.
Key Features That Matter
This description keeps the focus on why customers choose a slim kit: panel fitment, clean installation, MPPT charging, included wiring parts, and better flexibility in real RV, van, boat, and off-grid layouts.
The MEGA 130W Slim panels are designed for long, narrow mounting areas where standard panels may not fit. This makes the kit especially useful for RVs, camper vans, trailers, boats, and compact off-grid installations.

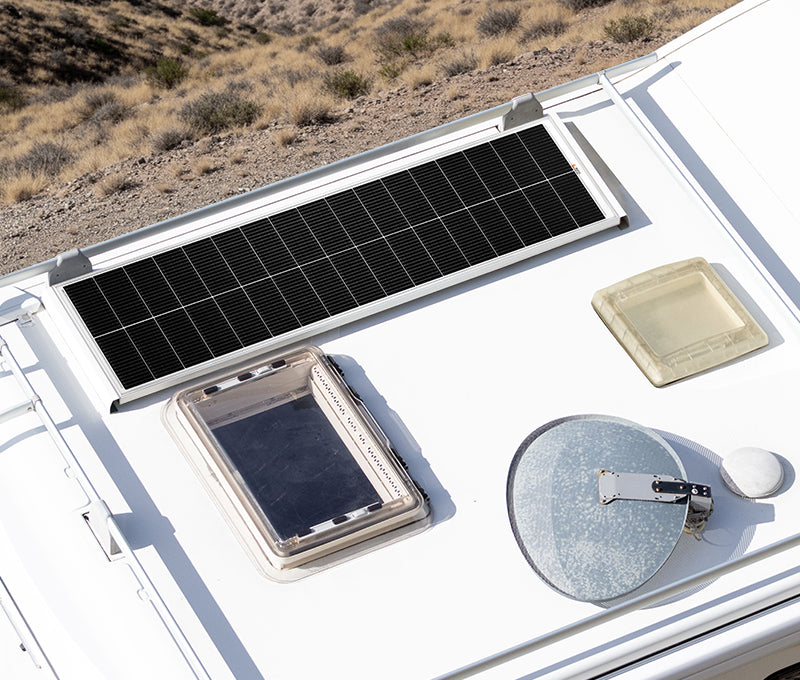

Slim panels make it easier to work around roof vents, skylights, racks, antennas, and other obstacles. That helps customers use available roof space more efficiently instead of leaving narrow gaps unused.
The kit is designed to charge a compatible battery bank through the included MPPT controller. When paired with the right battery and inverter, it can become part of a complete RV, van, marine, cabin, or off-grid power system.
The included solar cable, battery cable, Y-branch adapters, mounting brackets, charge controller, and fuse holder help reduce sourcing headaches and make the kit easier to plan around.
Best Uses
- Camper van solar charging systems
- RV and travel trailer roof-mounted solar
- Boondocking and camping battery charging
- Boats and compatible marine solar setups
- Cabins, sheds, and small off-grid buildings
- Solar charging where roof space is narrow or limited
- DIY 12V battery charging systems
- Customers who want slim panels instead of wider standard panels
Key Benefits
- 520W slim solar charging kit
- 4 x MEGA 130W Slim Solar Panels
- 1 x RS-MPPT40PB charge controller
- 1 x 30 ft 10AWG solar cable set
- 1 x Y-branch parallel adapter set
- 1 x 10 ft 8AWG battery cable for controller-to-12V battery connection
- 1 x mounting Z bracket set
- 1 x 20A solar panel inline fuse holder
- Slim panel format for RVs, vans, boats, cabins, and off-grid installs
- Built for battery-based solar charging systems
- Helpful for roof layouts with vents, racks, skylights, or narrow gaps
Plan the solar array

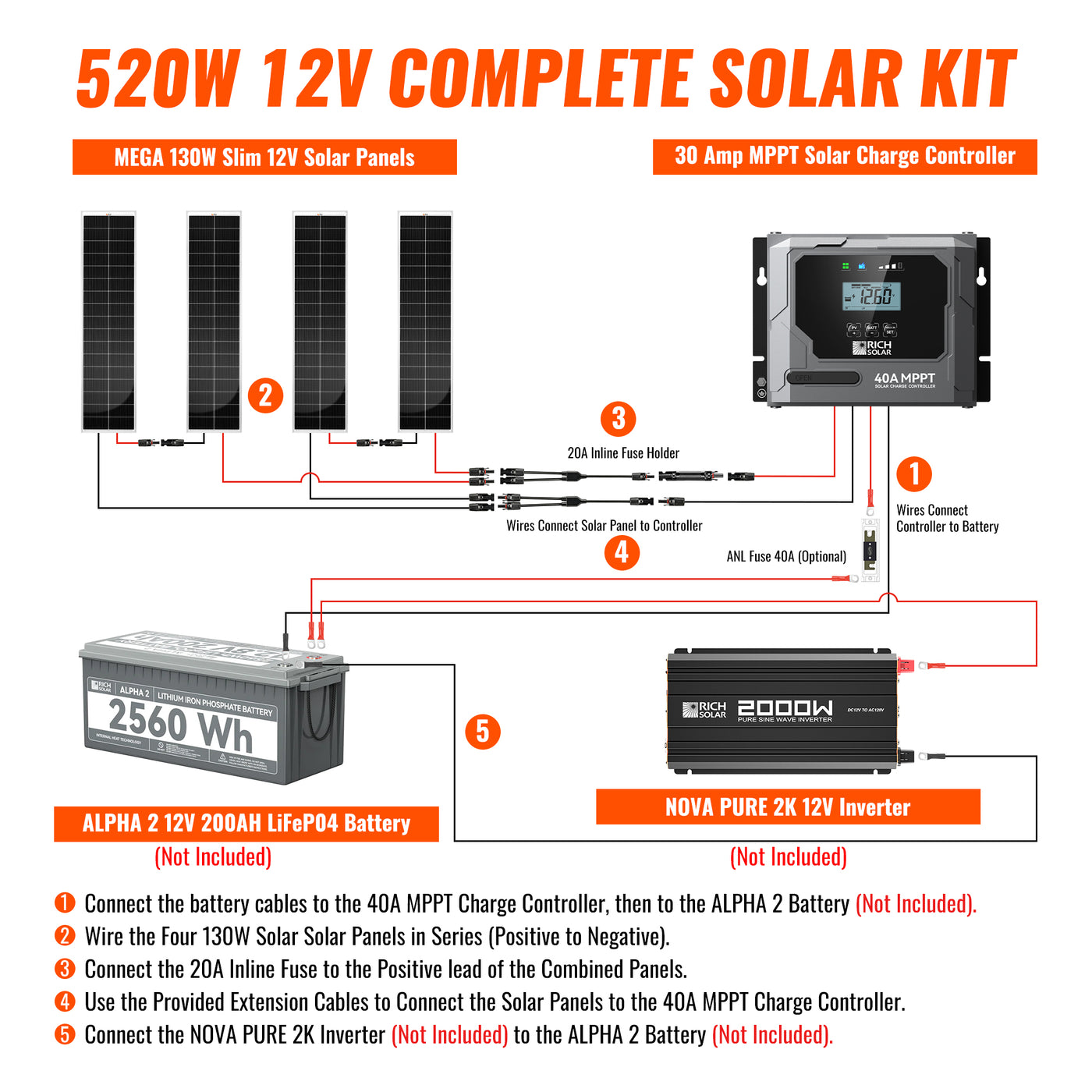

Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
| Specifications | |
| Selected variant SKU | RS-K520SL |
|---|---|
| Maximum Power (Pmax) | 130W |
| Maximum Power Voltage (Vmp) | 19.6V |
| Maximum Power Current (Imp) | 6.63A |
| Open Circuit Voltage (Voc) | 23.6V |
| Short Circuit Current (Isc) | 6.29A |
| Maximum System Voltage (Vmax) | 1000VDC |
| Temperature Range | -40°F~ +185°F |
| Weight | 13.9 lb |
| Dimensions | 65.0 × 15.8× 1.2 in |
| 520W Slim Solar Array | Includes four 130W slim monocrystalline solar panels, producing approximately 1.9kWh of energy per day under 4 peak sun hours. |
| 40A MPPT Charge Controller | Maximizes solar harvest with up to 99.5% MPPT tracking efficiency and 98% peak conversion efficiency. |
| Installation Accessories Included | Includes pre-assembled cables and connection accessories for quick installation. |
| Specifications | |
| System Nominal Voltage | 12/24V Auto |
|---|---|
| Max. PV Open Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max PV Charging Current | 40A |
| Max. Recommended PV Input Power | 600 Watt (12V) / 1200 Watt (24V) |
| Charge Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.17kg / 2.58lb |
| Dimensions (L*W*H) | 195*142*74 mm / 7.7*5.5*2.9 in |
