Rich Solar All-in-One Energy Storage System - All in One ESS

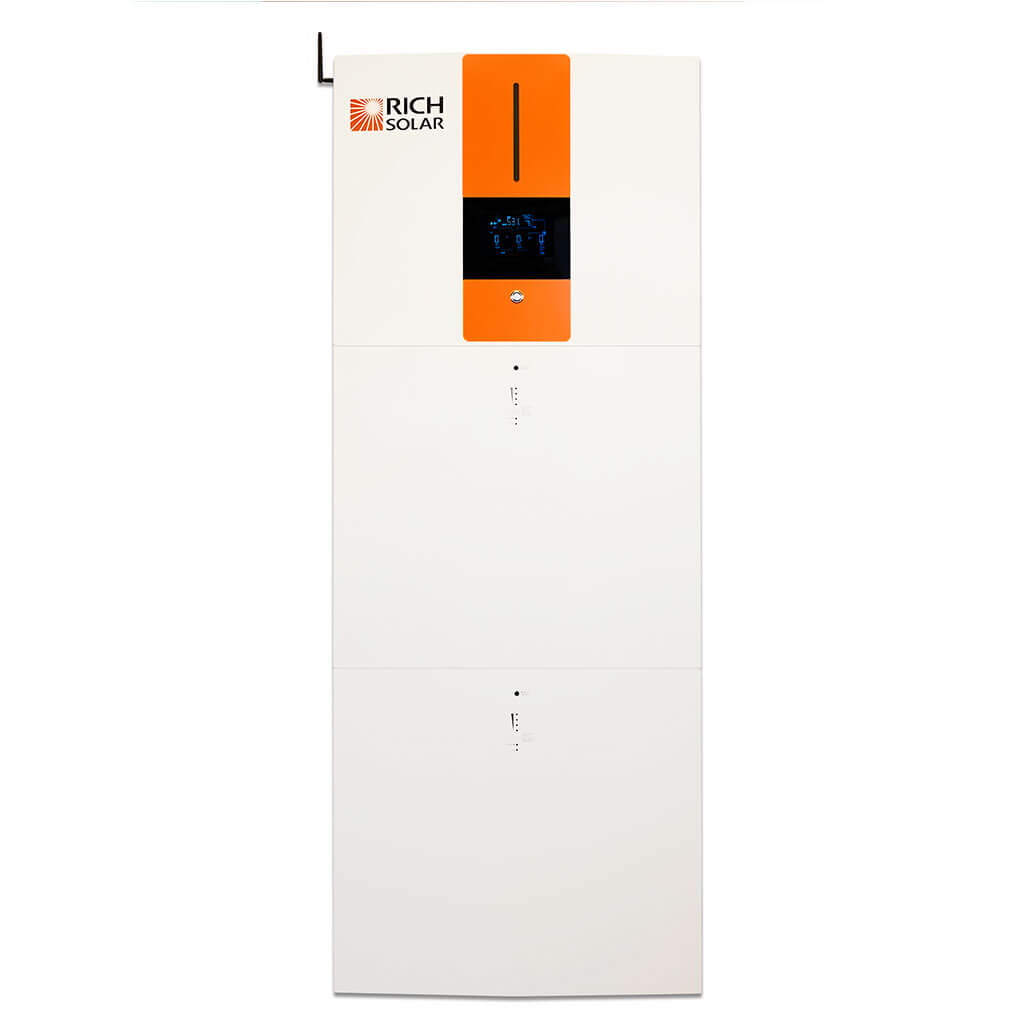

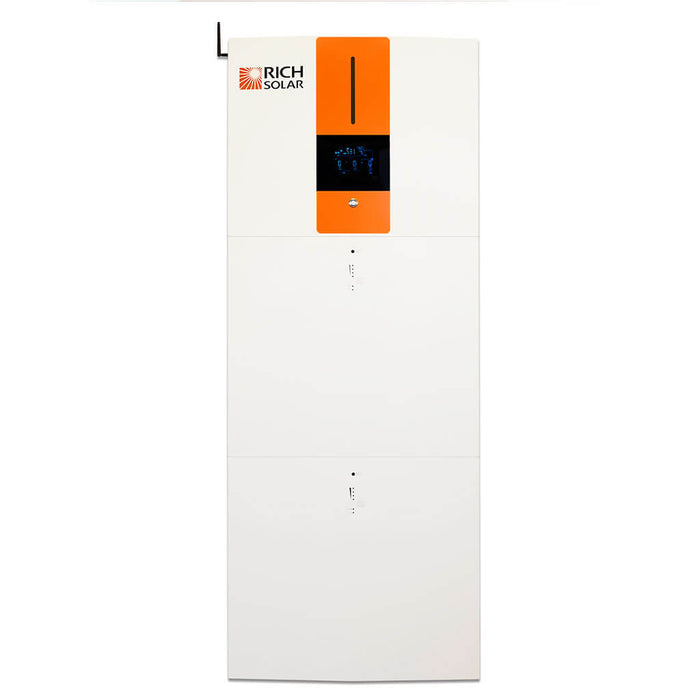

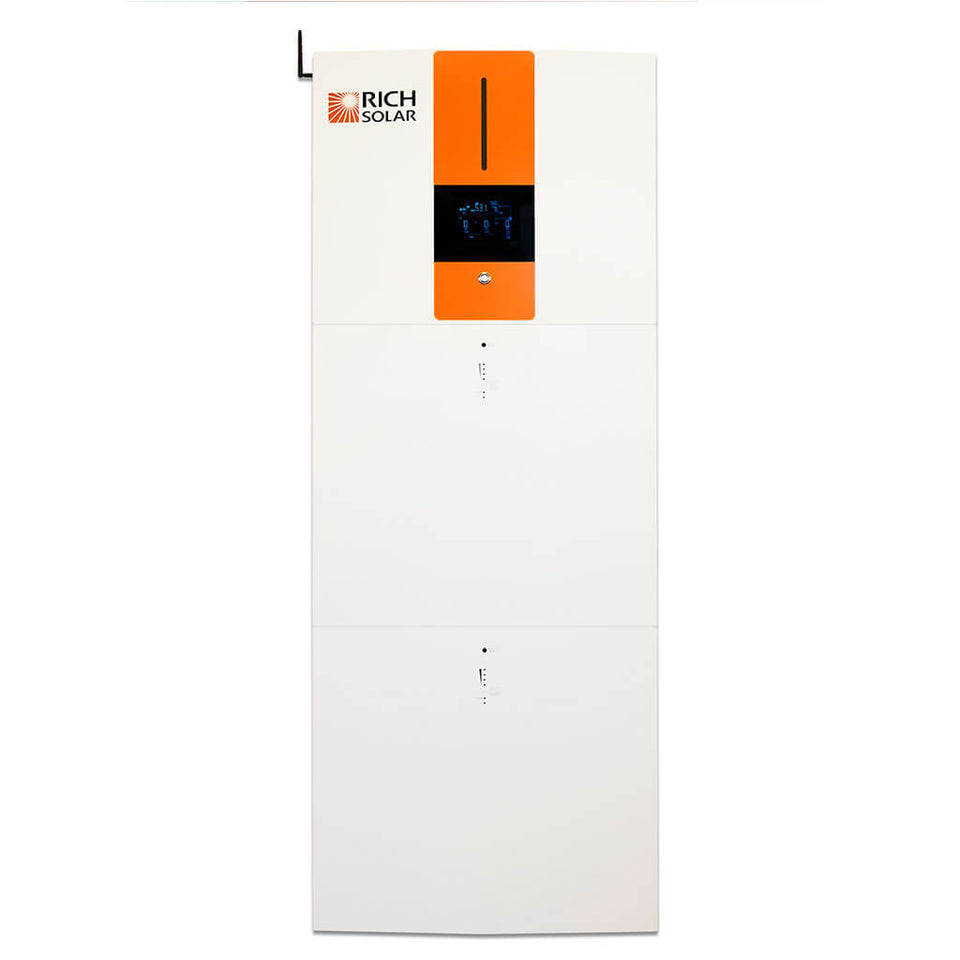

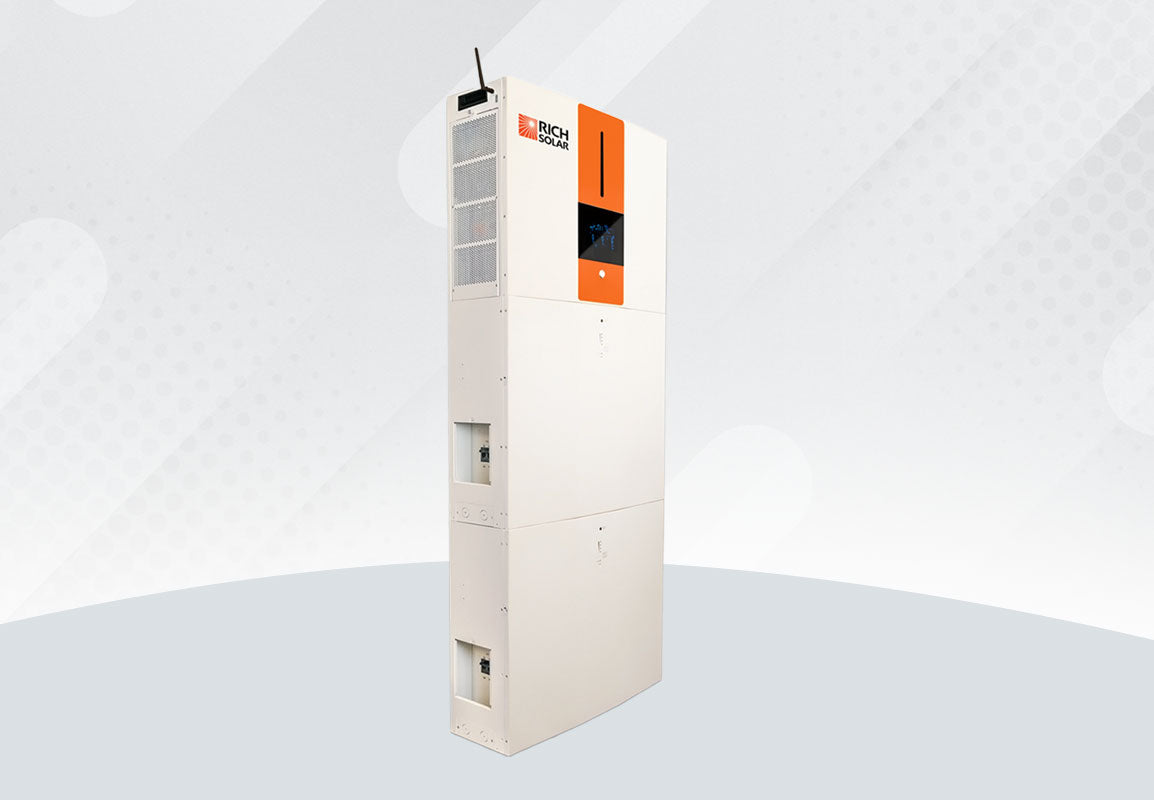

Rich Solar All-in-One Energy Storage System
The Rich Solar All-in-One Energy Storage System is a compact solar power solution that combines an inverter, charge controller, and 51.2V 100Ah lithium battery into one streamlined unit. Built for off-grid power, backup energy, cabins, tiny homes, workshops, and essential home loads, this system delivers 6500W rated output, up to 8000W of PV input, 5120Wh of battery storage, and smart app-based monitoring in a clean floor-standing design.
Product Overview
The RS-A10 All-in-One Energy Storage System is designed for customers who want a cleaner, simpler way to build a solar power system without piecing together a separate inverter, battery, and charge controller. It integrates the major system components into one sleek package, reducing wiring complexity and making the installation feel more organized.
With pure sine wave output, programmable supply priority, user-adjustable battery charging current, dual MPPT solar input, and app-based monitoring, this system is built for off-grid applications, backup power, and hybrid charging setups where solar, utility, generator, and battery power may all play a role.
One Integrated Solar Power Solution

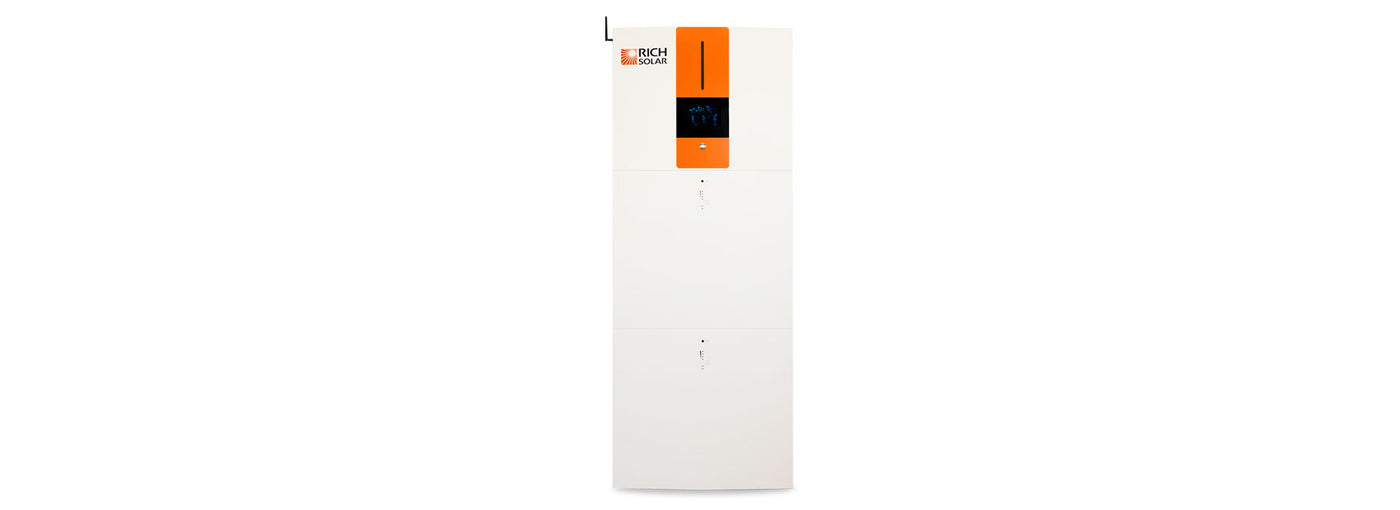

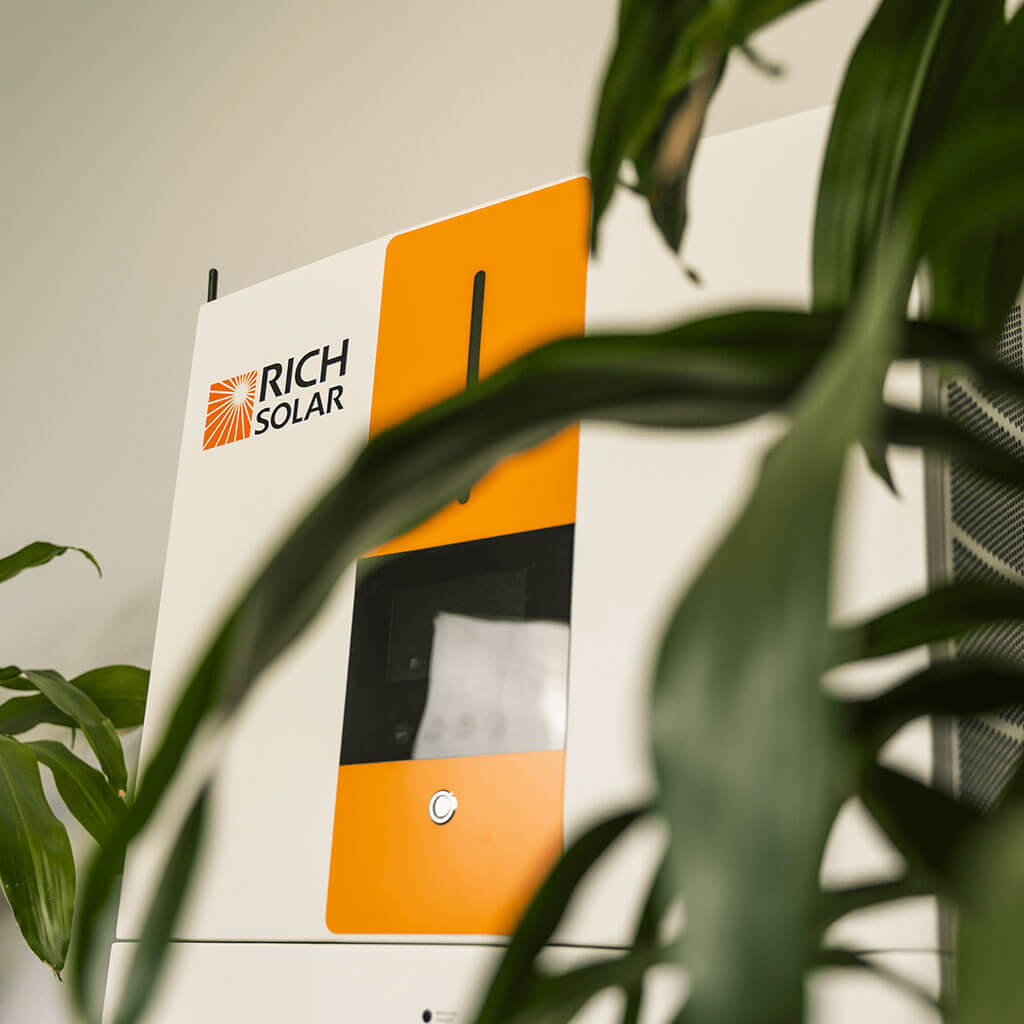

This system is built to simplify solar energy storage by combining the controller, inverter, and battery into one floor-standing unit. That makes it a strong option for customers who want a clean installation, fewer visible components, and a more straightforward path to powering essential loads.

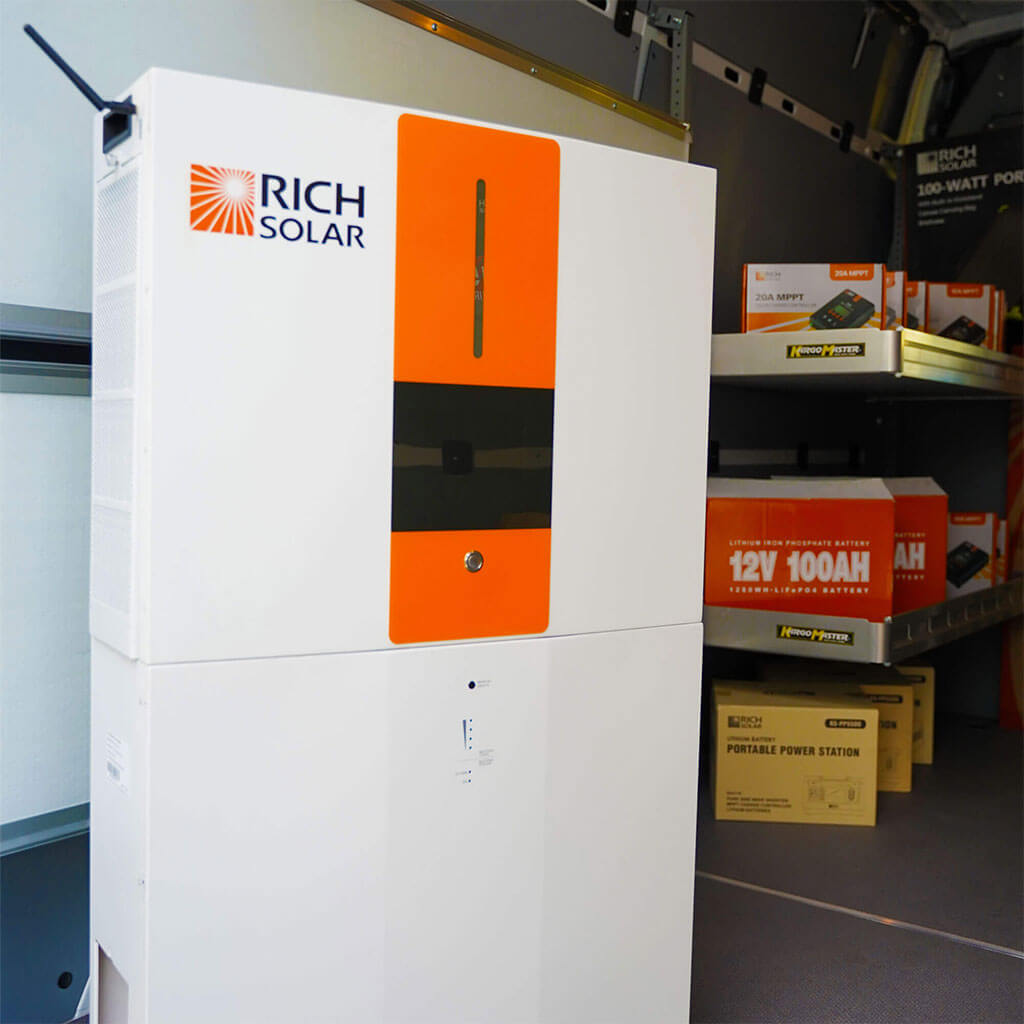

The integrated design helps reduce clutter compared with separate wall-mounted or rack-mounted components, making it useful for garages, utility rooms, cabins, workshops, and smaller energy storage spaces.

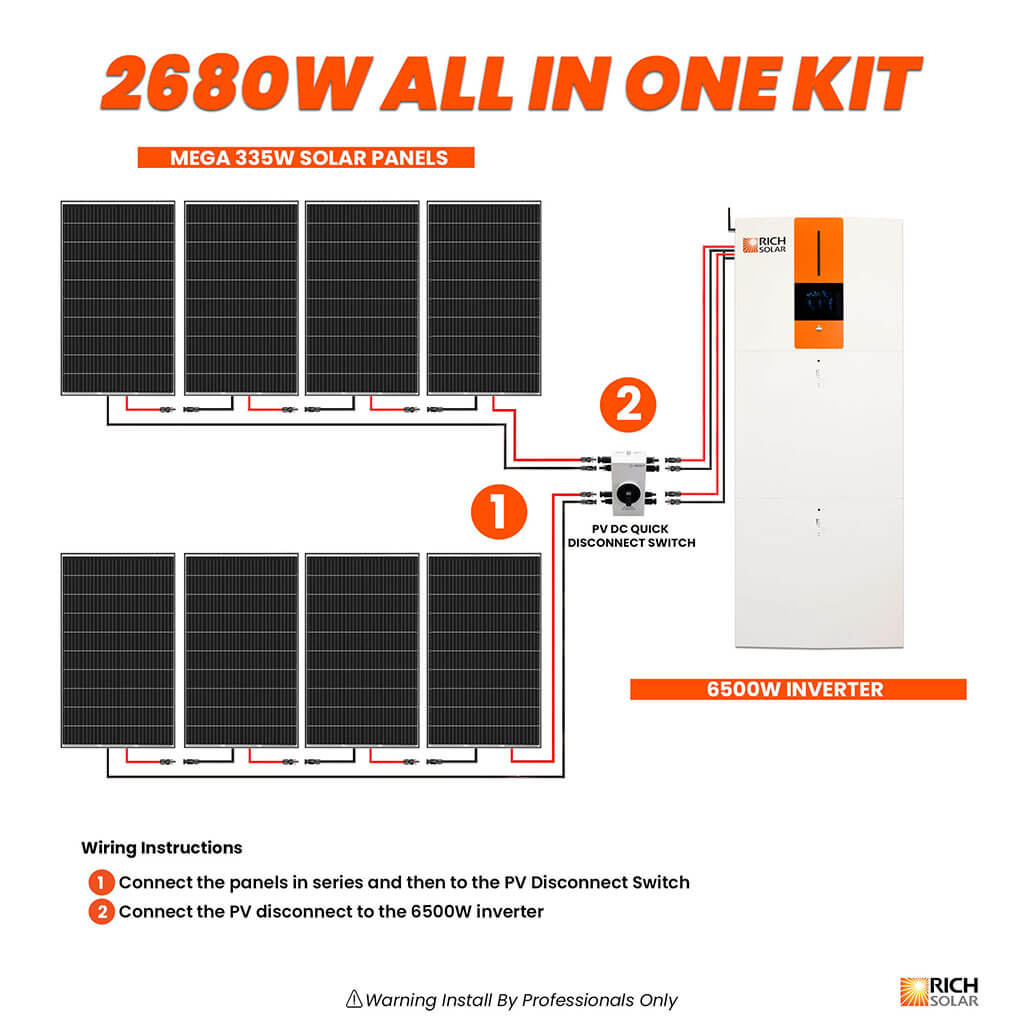

The system is designed to work with solar panels, utility input, battery storage, and 120V appliances, giving customers a flexible way to manage power for essential loads.

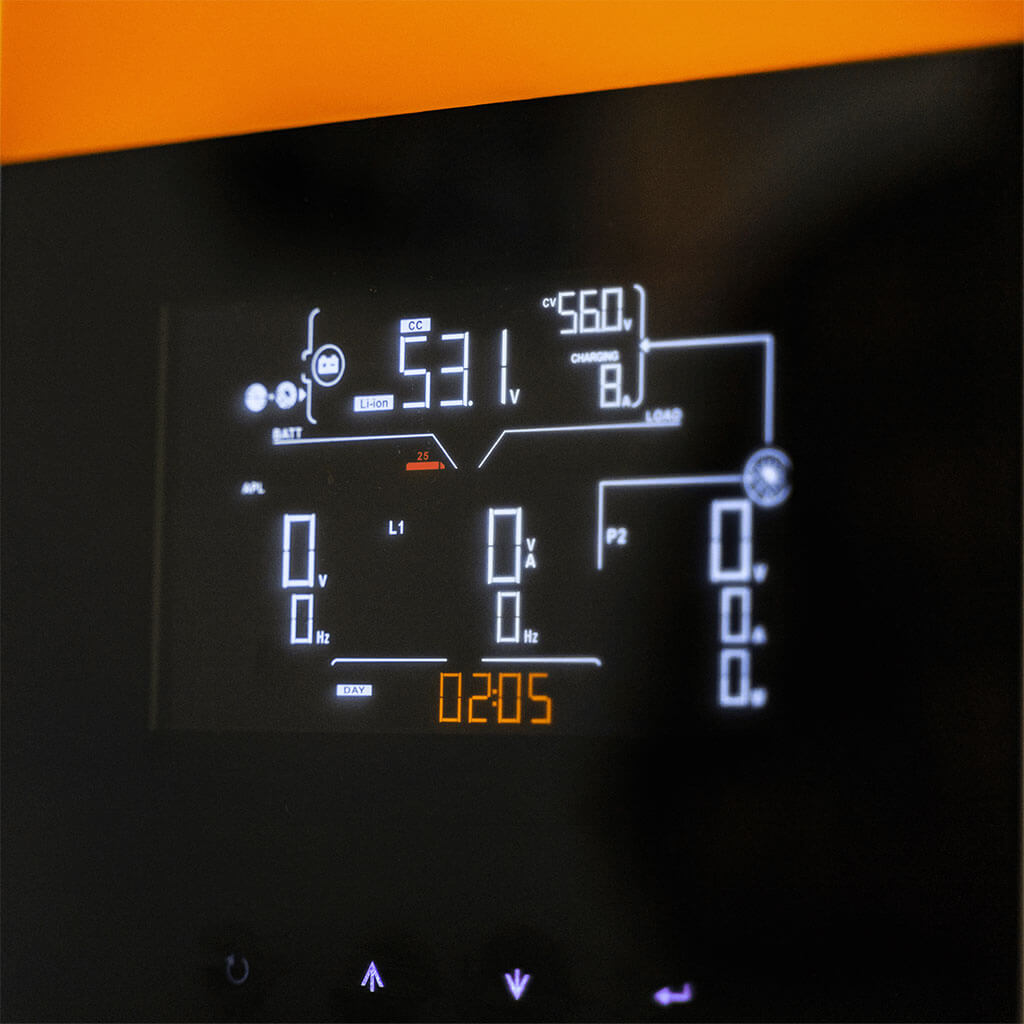

Built-in display information and app monitoring help users view system status, adjust parameters, and keep track of how the energy storage system is operating.
Built for Off-Grid, Backup, and Essential-Load Power
The All-in-One ESS is a strong fit for customers who want a single energy hub for solar charging, battery storage, AC output, and backup use. It is especially useful when a clean installation matters and the system needs to support appliances, electronics, tools, lighting, or critical household circuits.
Key Features That Matter
Instead of turning this into a full technical spec sheet, this section highlights the features customers are most likely to care about when choosing an all-in-one solar energy storage system.

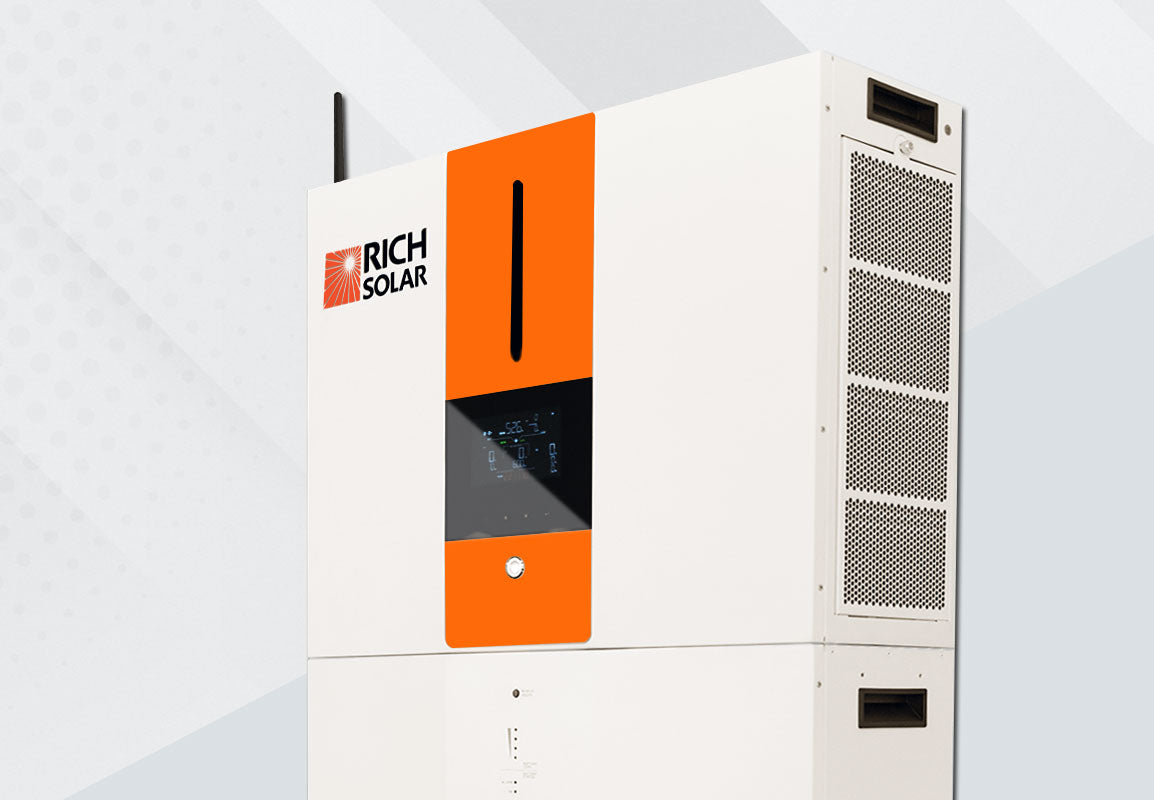

The system combines the inverter, charge controller, and battery into one sleek package, helping reduce the number of separate components needed for a functional energy storage setup.
Pure sine wave output helps support sensitive electronics and household-style loads, making the system more practical for cabins, backup applications, and off-grid power setups.
Built-in dual MPPT trackers and AC/solar charging up to 120A help manage solar input efficiently, making it easier to design a higher-output PV charging setup.
App monitoring for Android and iOS gives users real-time status display and parameter control. Programmable supply priority lets the system prioritize PV, battery, or grid input depending on the setup.
Best Uses
- Off-grid cabins and remote buildings
- Tiny homes and small residential backup systems
- Essential-load home backup power
- Garages, workshops, sheds, and utility rooms
- Solar energy storage with battery backup
- Generator-supported backup systems
- Hybrid solar, utility, and battery power setups
- Customers who want fewer separate system components
Key Benefits
- All-in-one inverter, charge controller, and battery design
- 6500W rated output power
- 8000W maximum PV input power
- 5120Wh integrated lithium battery storage
- 51.2V 100Ah battery capacity
- Pure sine wave output
- Built-in 2 MPPT trackers
- AC/solar charger up to 120A
- Programmable supply priority for PV, battery, or grid
- User-adjustable battery charging current
- Compatible with utility and generator input
- Monitoring app for real-time status and parameter control
- Scalable Li-Ion battery expansion support
| Specifications | |
| Model SKU | RS-A10 |
|---|---|
| Battery Info | |
| Model | RS-A10 |
| Maximum PV Input Power | 8000W |
| Rated Output Power | 6500W |
| Maximum Charging Power | 6500W |
| PV Input (DC) | |
| MPPT Range @ Operating Voltage | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 18A |
| AC Input | |
| Acceptable Input Voltage Range | Acceptable Input Voltage Range |
| 90–140 VAC (For Computers) | |
| 80–140 VAC (For Home Appliances) | |
| Maximum AC Input Current | 60A |
| Battery Mode Output | |
| Nominal Output Voltage | 120 VAC |
| Maximum Conversion Efficiency (DC/AC) | 93% |
| Battery | |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 120A |
| Dimension (D × W × H) | 8.4" × 24.4" × 19.7" |
| Net Weight | 99 lb |
| Capacity | 5120Wh |
| Nominal Voltage | 51.2VDC |
| Full Charge Voltage (FC) | 56V |
| Full Discharge Voltage (FD) | 42V |
| Typical Capacity | 100Ah |
| Max Continuous Discharging Current | 120A |
| Max Discharging Current | 192A at 1 min |
| Protection | BMS, Breaker |
| Float Charge Voltage | 52.5V |
| Charge Current | 20A (0.2C) |
| Maximum Charge Current | 50A (0.5C) |
| Standard Charge Method | 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C |
| Inner Resistance | ≤20mΩ |
| All In One System Physical | |
| System Dimension (D × W × H) | 19.7" × 26" × 49.2" |
| Net Weight | 287 lb |
| Standard | |
| Compliance Safety | IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B |
