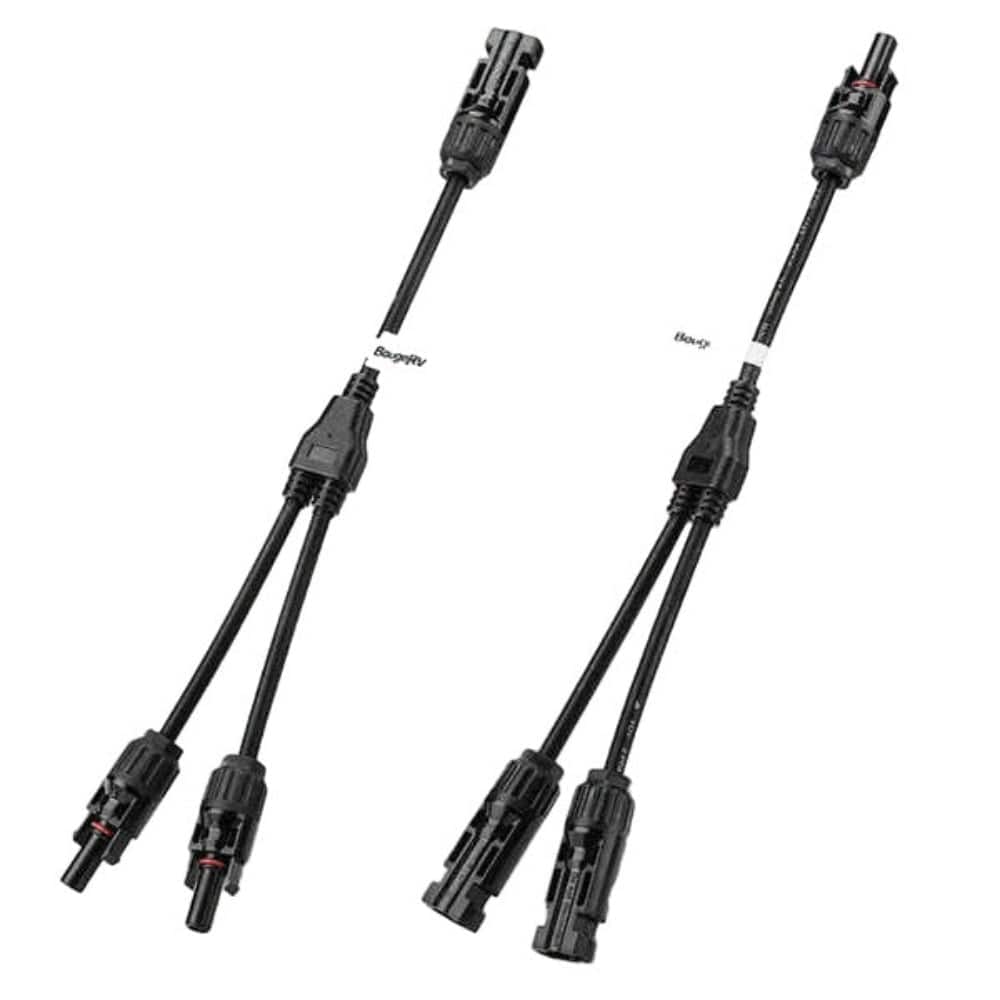

BougeRV Y-Branch Solar Connector Cable

The BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire is a solar wiring accessory for making Y-branch parallel connections. Use it when your system configuration calls for compatible solar connectors and parallel cable routing.

Check Your Solar Wiring Configuration

Before installation, confirm that the mating connectors, cable size, and system electrical requirements match this adapter’s intended use. The pictured rating is 20 A for 4 mm², so sizing should be checked against the rest of the solar wiring and connected equipment.

Verified Electrical and Material Ratings

The connector assembly is rated at DC 1000 V and 20 A for 4 mm². Its pictured construction uses PPO insulation, with contact resistance of ≤5 mΩ and insulation resistance above 500 MΩ.

Plan panel wiring

Our series versus parallel wiring guide explains how series and parallel connections affect the electrical limits of a solar array.

BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire
Package Includes
1x BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire
Includes the selected item based on the current package option.
Specifications
Selected variant SKU ISE002-B021
Insulation Material PPO
Rated Current 20 A for 4 mm² cable
Rated Voltage DC 1000 V
Contact Resistance ≤5 mΩ
Insulation Resistance >500 MΩ
Operating Temperature −40°C to +90°C
Degree of Protection IP67
Flame Class UL94-V0
Safety Degree II
Cable Dimensions 12.6 in overall; 5.9 in branch section; 6.7 in connector section
Compatible Cable Size 1.5–6 mm²; includes AWG14, AWG13, AWG12, AWG11, and AWG10
Connector Configuration Y branch connectors; MFF & FMM
Package Contents 1 pair of MFF and FMM connectors
Installation Plug and play; no special tool required
