Four-panel parallel connection

BougeRV 4-to-1 MC4 Solar Connector Pair

Combine four compatible solar-panel positive leads and four negative leads into one output pair for a cleaner parallel-wired array.

4 to 1Parallel branch layout
30ARated current
1000V DCRated voltage
IP67Connected protection

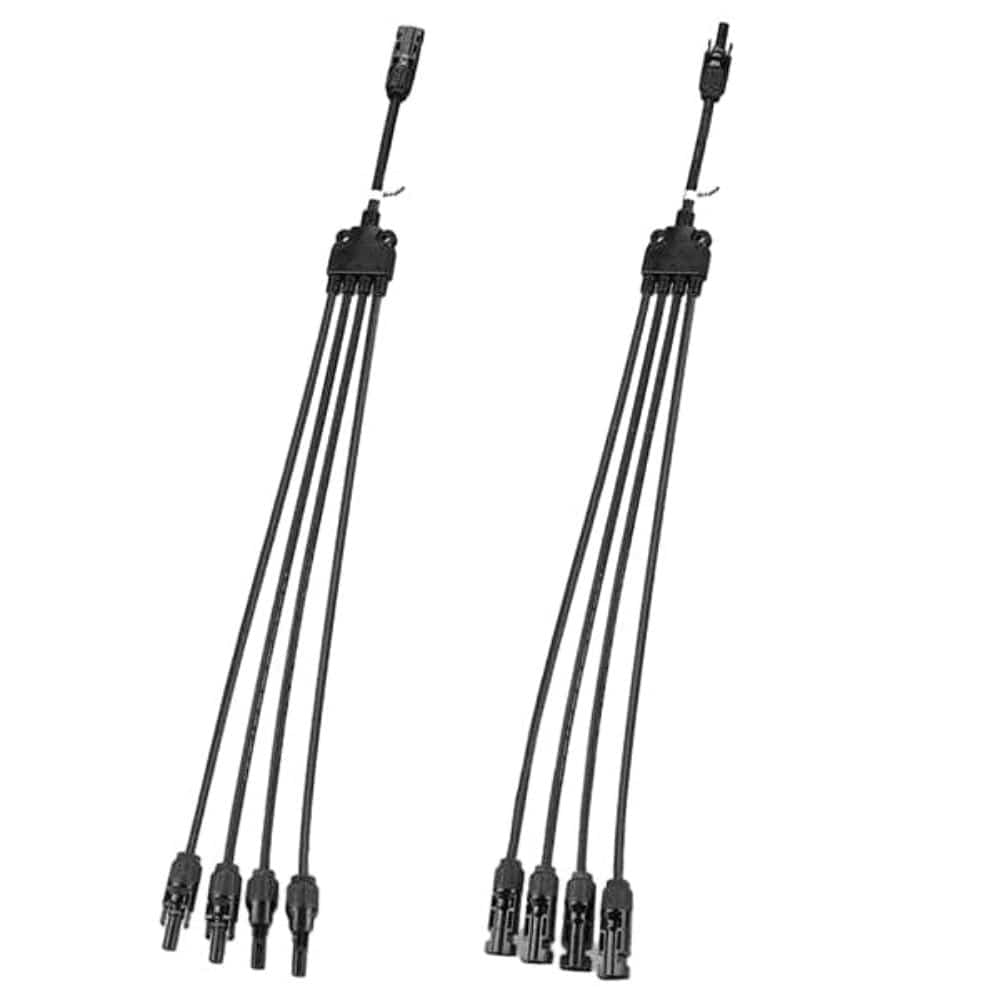

BougeRV ISE030 positive and negative 4-to-1 MC4 solar branch connectors
Simplified array wiring

Bring four compatible panel strings into one parallel output

The pair includes one male-to-four-female branch and one female-to-four-male branch. Together they consolidate both sides of four compatible solar-panel connections before the circuit continues toward properly rated downstream equipment.

Matched connector pairPositive and negative branch assemblies support a complete four-panel parallel layout.
10–14 AWG compatibilityDesigned for compatible solar cable from 1.5mm² through 6mm².
Built-in locking tabsSecure mating connections that can be released without a separate unlocking tool.
24.8-inch branchesExtended leads provide room to organize adjacent panel connections.

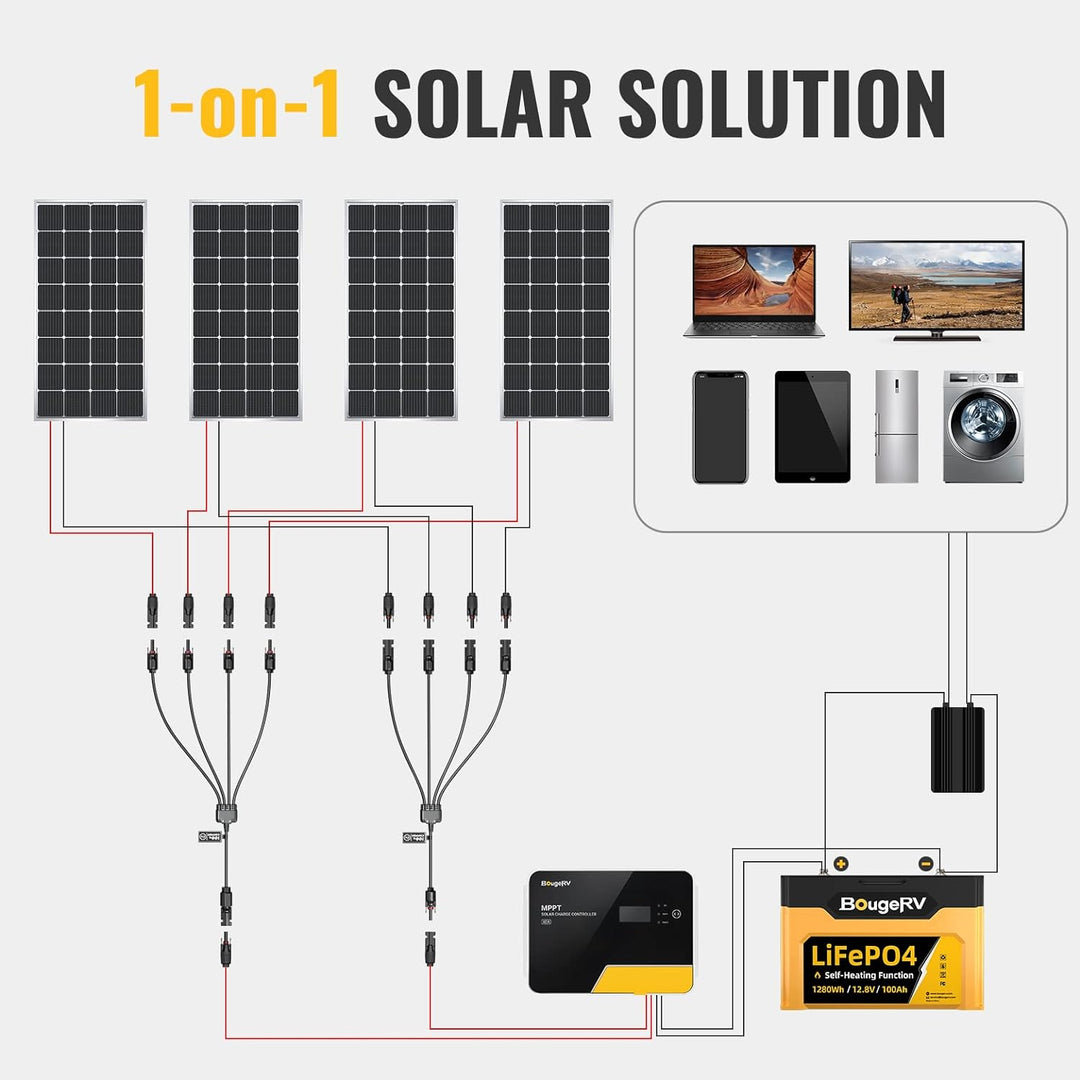

Diagram showing four solar panels connected in parallel with BougeRV 4-to-1 connectors

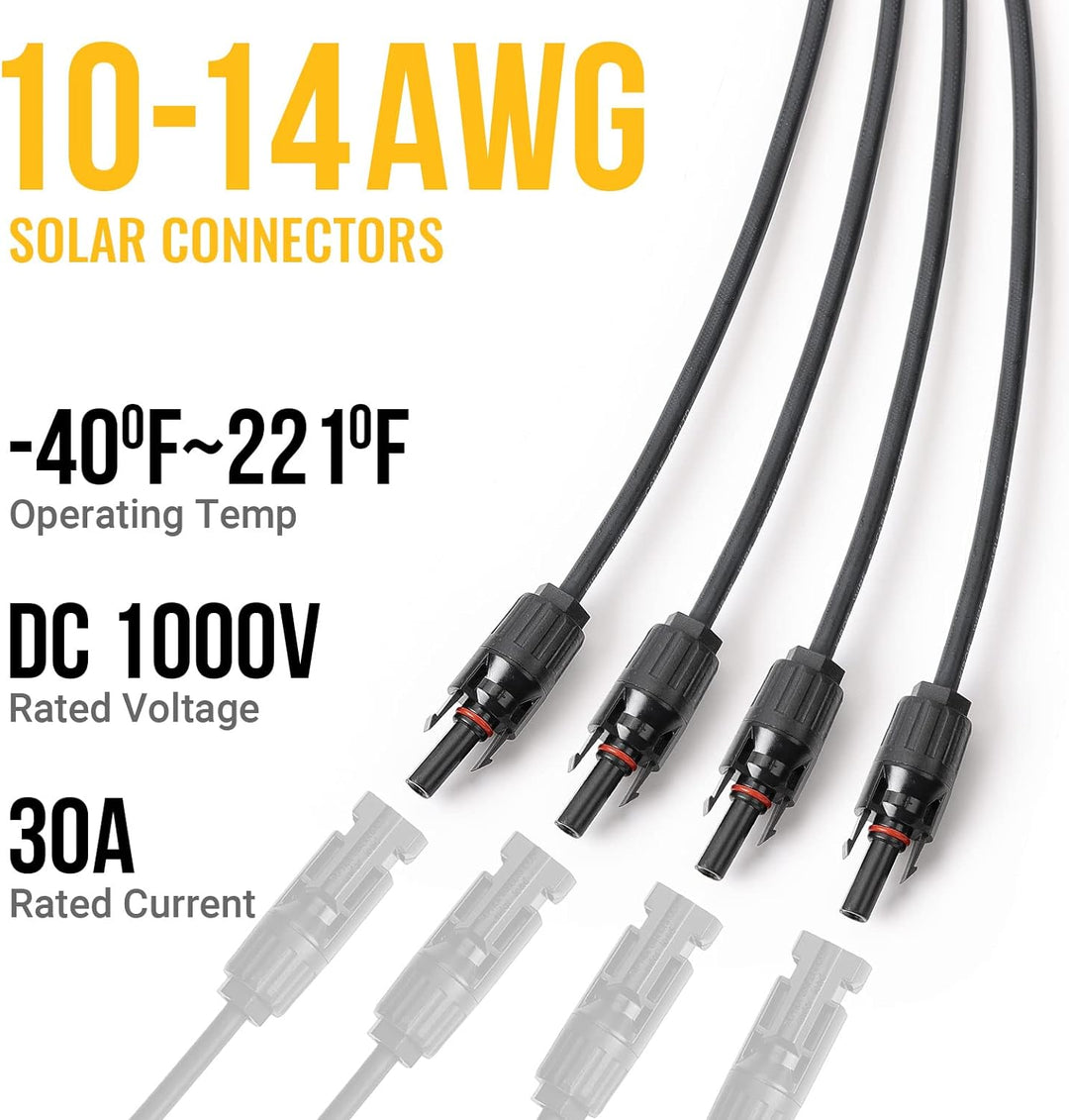

BougeRV 4-to-1 connector showing 30 amp, 1000 volt DC and 10 to 14 AWG ratings
Know the circuit limits

Rated for properly designed solar circuits up to 30A

Parallel wiring adds the current from each connected string while voltage remains approximately the same. The resulting maximum current must stay within the 30A connector rating and every other component in the circuit.

BougeRV lists a 1000V DC rating, contact resistance of 0.2mΩ or less and an operating range from -40°F to 221°F.

Confirm panel polarity, maximum short-circuit current, conductor ampacity, overcurrent protection and charge-controller input limits before connecting the array.
Outdoor-ready connection

IP67 sealing for installed solar environments

Sealing rings help keep dust and moisture out of properly mated connections. UV- and aging-resistant PPO and PVC materials are intended for long-term outdoor solar installations.

The connector housing carries a UL94-V0 flame classification and BougeRV lists CE and TÜV certification.

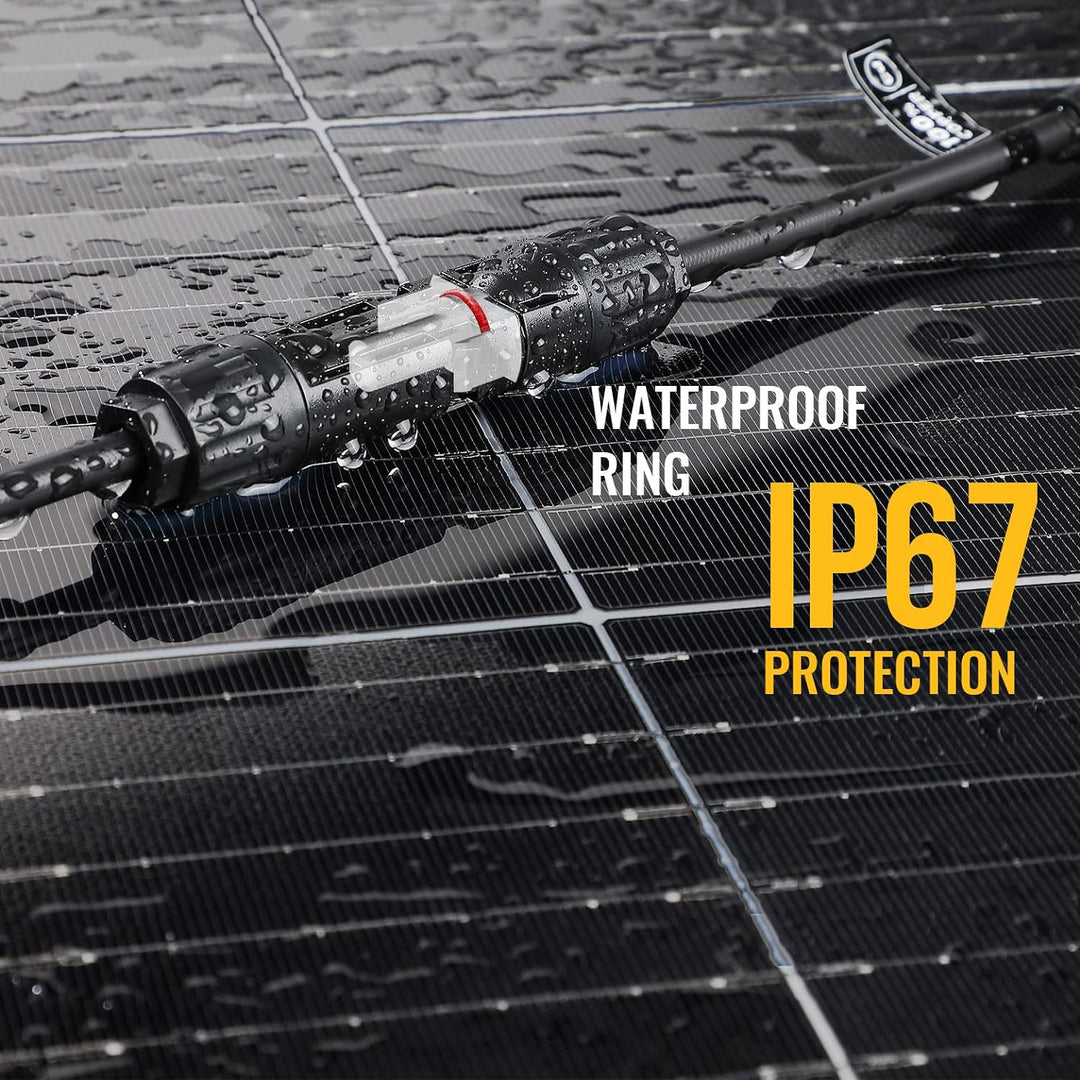

BougeRV solar connector waterproof sealing ring with IP67 protection
Plug-and-lock installation

Connect the array without building a custom combiner harness

Align each compatible connector, push until the built-in lock engages and route the branches without sharp bends or unsupported strain. The locking tabs can be pressed from both sides when the system is safely de-energized and disconnection is required.

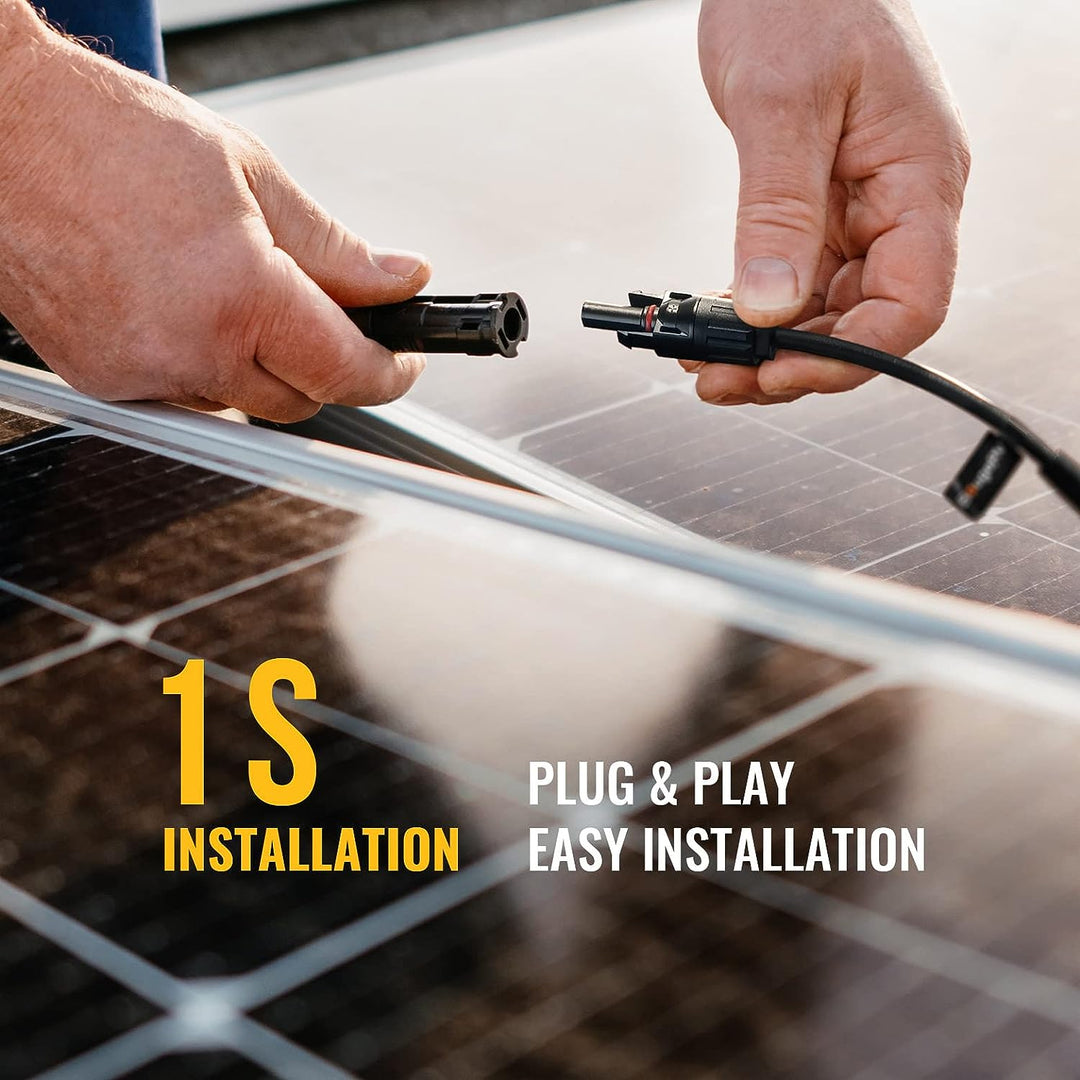

Hands connecting a BougeRV solar connector to a compatible panel lead

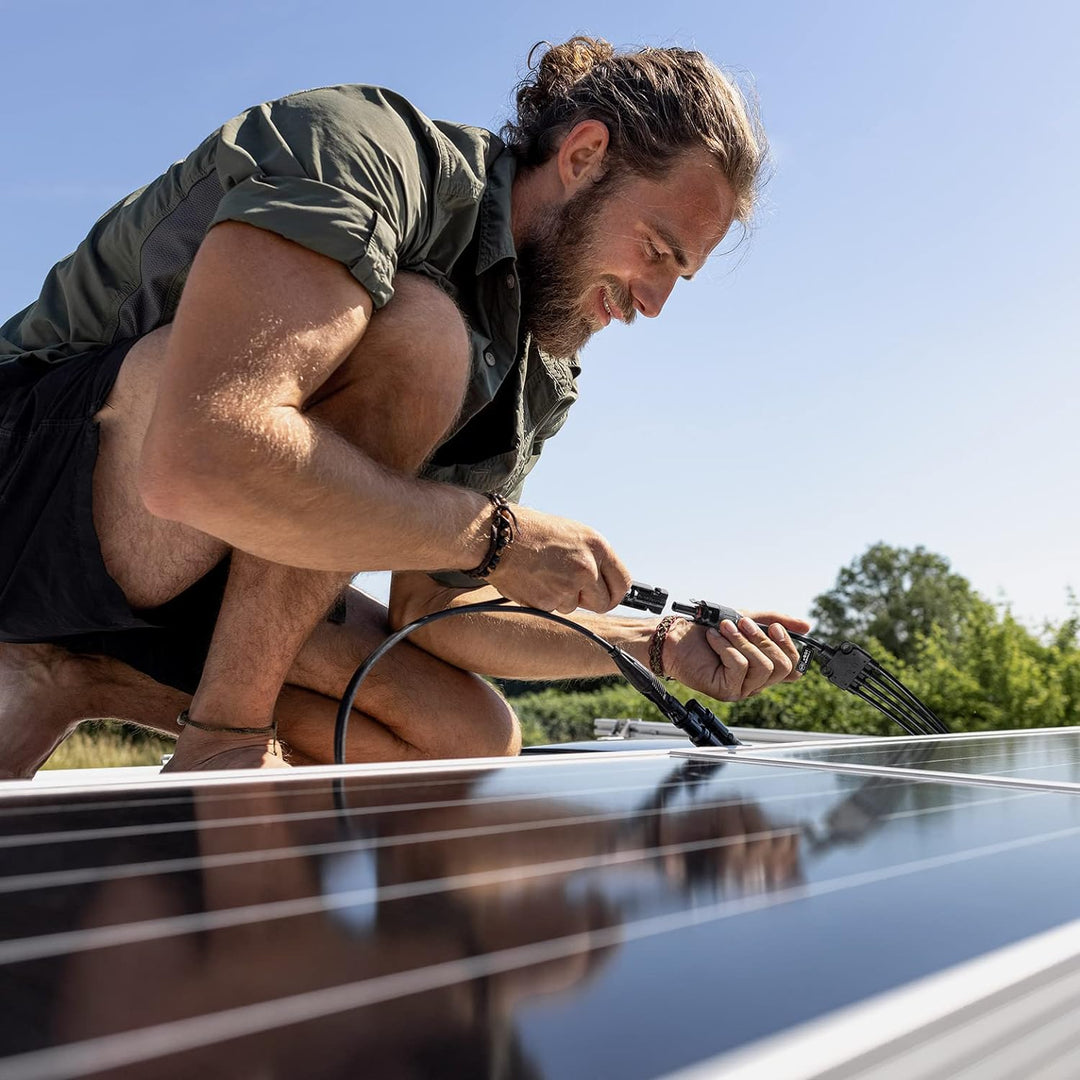

Installer connecting BougeRV 4-to-1 branch cables on a solar array
Never connect or disconnect PV connectors under load. Isolate the array and follow the equipment manufacturer's electrical-safety instructions before servicing.

A cleaner way to parallel four compatible solar panels

Use the BougeRV ISE030 when a four-panel array needs a paired positive and negative branch connection without a custom-built harness. Verify the completed array against every electrical rating before installation.

Plan panel wiring

Our series versus parallel wiring guide explains how series and parallel connections affect the electrical limits of a solar array.

BougeRV Y Branch Parallel Connectors Extra Long 4 to 1 Solar Cable
Package Includes
1x BougeRV Y Branch Parallel Connectors Extra Long 4 to 1 Solar Cable
Includes the selected item based on the current package option.
Specifications
Selected variant SKU ISE030
Configuration 4 to 1
Total Cable Length 630 mm / 24.8 inch
Compatible Wire Size 14-10 AWG
Rated Voltage 1000 VDC
Connector Types Male and female connectors
Operating Temperature -40°F to 221°F
Waterproof Rating IP67
Conductor Material Tinned copper
Insulation TPU first insulation; TPE second insulation
Weight 0.385 kg / 13.6 oz
Connecting System Crimping connection
Flame Class UL94-V0
