Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 5
SunGoldPower

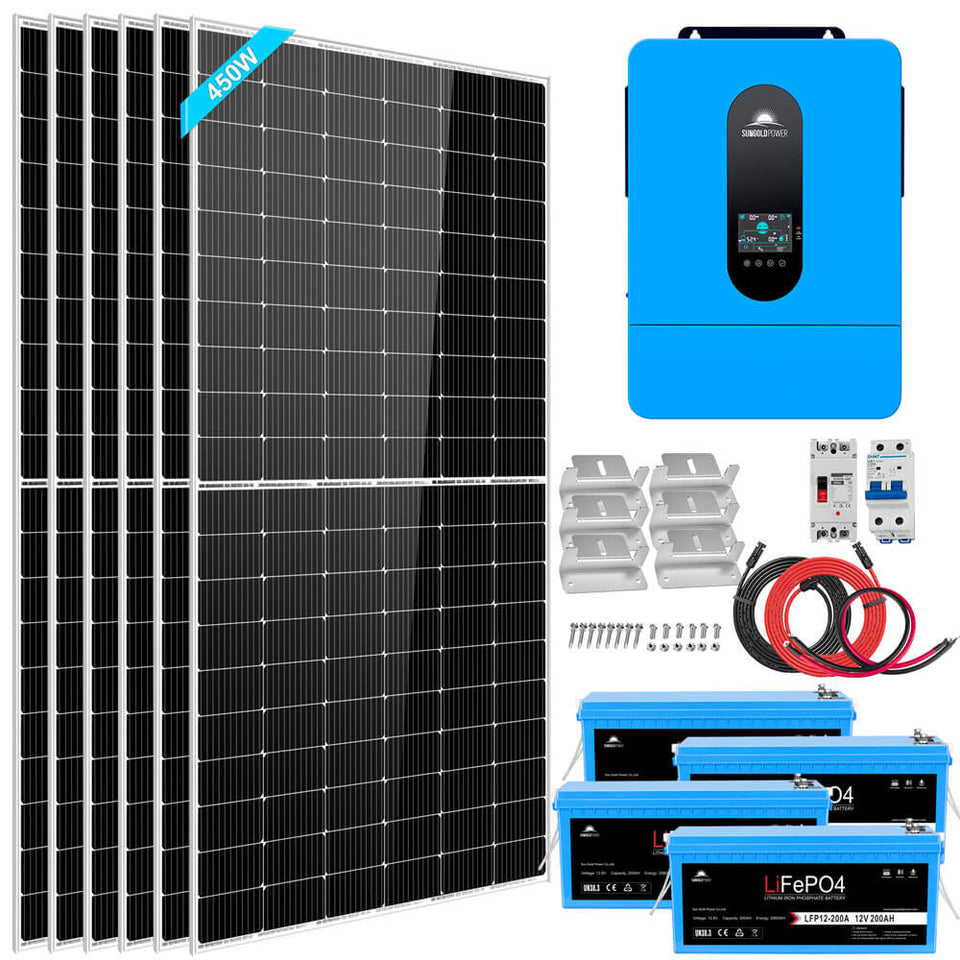

Complete off Grid Solar Kit 6500W 48V 120V/240V output 10.24KWH Lithium Battery 2700 Watt Solar Panel SGK-65PRO Complete off Grid Solar Kit 6500W 48V 120V/240V output 10.24KWH Lithium Battery 2700 Watt Solar Panel SGK-65PRO
SKU: SGK-65PRO
$5,377.00
$7,169.00
Save $1,792.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit
Complete off Grid Solar Kit 6500W 48V 120V/240V output 10.24KWH Lithium Battery 2700 Watt Solar Panel SGK-65PRO
The Complete off Grid Solar Kit 6500W 48V 120V/240V output 10.24KWH Lithium Battery 2700 Watt Solar Panel SGK-65PRO is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
10.24KWH6500W2700W48V120V240VOff-GridLiFePO4
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.

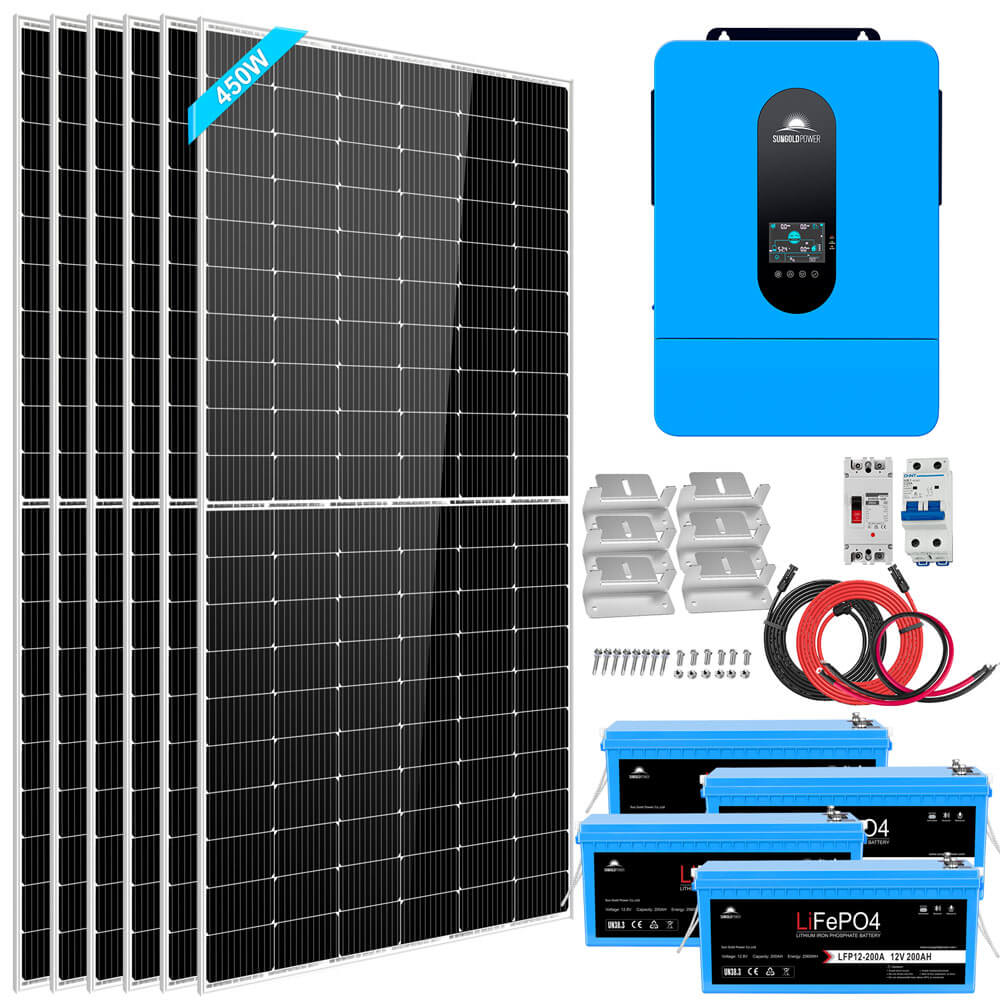

Package Includes
1 6500W 48V DC 120V/240V AC Output Inverter
Package Includes
6 450W Monocrystalline Solar Panels
Package Includes
4 200 Ah LiFePO4 Battery with Bluetooth
Package Includes
6 Sets of Mounting Z-Brackets
Package Includes
1 50 Feet, Solar Extension Cables-Inverter PV inputs
Package Includes
1 200A DC Breaker
Package Includes
1 25A PV Breaker
Package Includes
1 2/0 AWG Cable (Breaker to Inverter Connection)
| Complete off Grid Solar Kit 6500W 48V 120V/240V output 10.24KWH Lithium Battery 2700 Watt Solar Panel SGK-65PRO | |
| Selected variant SKU | SGK-65PRO |
|---|---|
| MODEL | |
| Model / SKU | SGK-65PRO |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 6500W 48V DC 120V/240V AC Output Inverter — Rated Output Power | 6,500 W |
| 6500W 48V DC 120V/240V AC Output Inverter — Battery Voltage | 48 V DC |
| 6500W 48V DC 120V/240V AC Output Inverter — AC Output Voltage | 120 V single phase or 120/240 V split phase |
| Charge | -4°F—113°F (-20℃—45℃) |
| Charge Voltage Setting Range | 48-58.4 V in 0.4 V steps |
| Rated frequency | 50/60 Hz |
| Output wave | Pure sine wave |
| Parallel number | 6 |
| Battery type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Voltage range | 40 Vdc−60 Vdc |
| Charge current | 80 A |
| Efficiency | 99.9% |
| Open-circuit Voltage (Voc) | 41.72V |
| Short-circuit Current (Isc) | 13.82A |
| Module Efficiency | 20.79% |
| Cell Type | Mono 182*91mm |
| Output Cables | 4mm2,Length:(+)300mm/(-)300mm |
| Maximum System Voltage | 1500Vdc |
| Maximum Series Fuse Rating | 20A |
| Listed Capacity | 10.24KWH |
| Listed System Voltage | 48V |
| Listed Solar Power | 6500W |
| CONNECTIONS | |
| Communications | RS485 for PC/remote monitoring and BMS communication |
| BMS Communication | CAN |
| Bluetooth | APP support both iOS and Android system. iOS users can download and install “SGP Battery” |
| PHYSICAL | |
| Weight | 42lbs(18.9 kg ) |
| Dimensions | 75.16*44.65*1.38 inch (1909*1134*35mm) |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Ambient temperature | -10°C−55°C (14°F−131°F), to ensure optimal operation |
| Protection level | IP20, for indoor use only |
| Certification | Safety IEC62109-1, IEC62109-2 |
| Operating temperature | Charge: -4°F—113°F (-20℃—45℃) |
| Storage temperature | 68°F~86°F (20℃~30℃ |
| Warranty | 25 year 80% output warranty. |
| PACKAGE | |
| Included Components | 1 × 6500W 48V DC 120V/240V AC Output Inverter, 6 × 450W Monocrystalline Solar Panels, 4 × 200 Ah LiFePO4 Battery with Bluetooth, 6 × Sets of Mounting Z-Brackets, 1 × 50 Feet, Solar Extension Cables-Inverter PV inputs, 1 × 200A DC Breaker, 1 × 25A PV Breaker, 1 × 2/0 AWG Cable (Breaker to Inverter Connection) |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What major equipment is included in the SGK-65PRO solar kit?
The exact package is defined by the selected variant and its Package Includes list, centered on 6500W, 10.24KWH of battery storage, and 2700. Verify quantities for batteries, panels, controllers, cables, breakers, brackets, and racks before checkout because similar SunGoldPower kits use different component counts.
Can the SGK-65PRO's 6500W inverter start every appliance below that wattage?
Do not size from nameplate watts alone. Add simultaneous continuous loads, then separately check startup demand and duration for compressors, pumps, motors, microwaves, and heating equipment against every inverter, leg, outlet, transfer, and battery-current limit.
How long can the SGK-65PRO's 10.24KWH battery supply my critical loads?
Build an hourly watt-hour load profile and compare it with usable battery energy after reserve, inverter loss, battery temperature, standby consumption, and aging. High-power appliances may fit the inverter yet consume the available 10.24KWH much faster than expected.
Is the SGK-65PRO's 2700 array enough to refill the batteries in one day?
Daily harvest depends on site-specific peak sun hours, season, tilt, shade, snow, module temperature, wiring, and conversion loss. The string design must also keep cold open-circuit voltage, operating current, and tracker allocation inside the exact controller or inverter limits.
Does the SGK-65PRO replace the transfer equipment for a 6500W backup system?
The title identifies a 120V/240V system, but an installer must still verify per-leg limits, load imbalance, neutral and ground treatment, transfer equipment, breakers, conductor sizes, and which circuits belong in the backed-up panel.
