Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 5
SunGoldPower
Complete off Grid Solar Kit 8000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel SGK-8MAX
$6,979.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit
Complete off Grid Solar Kit 8000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel SGK-8MAX
The Complete off Grid Solar Kit 8000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel SGK-8MAX is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
10.24KWH8000W5400W48V120V240VOff-GridLiFePO4
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.

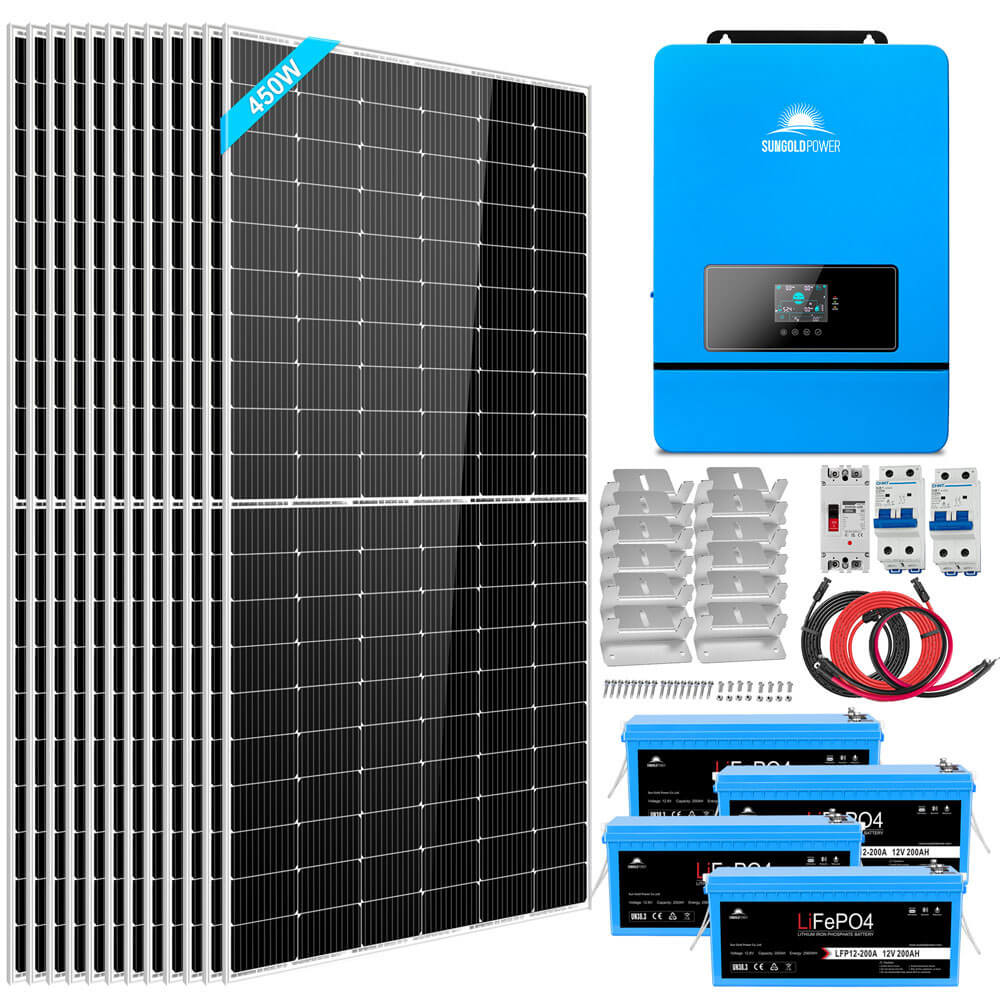

Package Includes
1 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
Package Includes
12 450 Watt Monocrystalline Solar Panels
Package Includes
4 200AH LiFePO4 Battery with Bluetooth
Package Includes
12 Sets of Mounting Z-Brackets
Package Includes
2 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
1 200A DC Breaker
Package Includes
2 25A PV Breakers
Package Includes
1 2/0 AWG Cable (Breaker to Inverter Connection)
| Complete off Grid Solar Kit 8000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel SGK-8MAX | |
| Model SKU | SGK-8MAX |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Rated Inverter Output | 8,000 W |
| Peak Inverter Output | 16,000 W |
| Battery Voltage | 48 V DC |
| AC Output Voltage | 120 V single phase or 120/240 V split phase |
| Maximum Combined Charging Current | 200 A |
| Solar Charge Controllers | Two integrated MPPT controllers |
| Maximum PV Open-Circuit Voltage | 500 V DC |
| Parallel Capability | Up to 6 units for as much as 48 kW; supports 120 V single phase, 120/240 V split phase, or 208 V three-phase configurations |
| Charge | -4°F—113°F (-20℃—45℃) |
| Charge Voltage Setting Range | 48-58.4 V in 0.4 V steps |
| Rated Output Power | 8,000 W |
| Rated Output Voltage | 120/240 VAC (single-phase/split-phase) |
| Rated Frequency | 50/60 Hz |
| Output Wave | Pure sine wave |
| Parallel Number | 6 |
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Rated Battery Voltage | 48 Vdc |
| Voltage Range | 40 Vdc−60 Vdc |
| Charge Current (Continuous / Maximum) | 100 A / 120 A |
| No. of MPPT Trackers | 2 |
| Max. Input Power | 11,000 W |
| Max. Input Current | 22/22 A |
| Input Voltage Range | 90 VAC−140 VAC |
| Input Frequency Range | 50/60 Hz |
| Bypass Overload Current | 63 A |
| MPPT Tracking Efficiency | 99.9% |
| Maximum Battery-Mode Efficiency | 92% |
| Efficiency | reach to 20.79%. |
| Open-circuit Voltage (Voc) | 41.72V |
| Short-circuit Current (Isc) | 13.82A |
| Module Efficiency | 20.79% |
| Cell Type | Mono 182*91mm |
| Output Cables | 4mm2,Length:(+)300mm/(-)300mm |
| Maximum System Voltage | 1500Vdc |
| Maximum Series Fuse Rating | 20A |
| Listed Capacity | 10.24KWH |
| Listed Solar Power | 8000W |
| CONNECTIONS | |
| Communications | CAN, USB, and RS485 battery communication; Wi-Fi mobile monitoring included |
| BMS Communication | CAN |
| Bluetooth | APP support both iOS and Android system. iOS users can download and install “SGP Battery” |
| PHYSICAL | |
| Dimension | 620 mm*445 mm*130 mm |
| Weight | 27 kg |
| Dimensions | 75.16*44.65*1.38 inch (1909*1134*35mm) |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Certification | UL 1741 certified by ETL for off-grid solar systems |
| Ambient temperature | -10°C−55°C (14°F−131°F), to ensure optimal operation |
| Protection level | IP20, for indoor use only |
| Operating temperature | Charge: -4°F—113°F (-20℃—45℃) |
| Storage temperature | 68°F~86°F (20℃~30℃ |
| Warranty | 25 year 80% output warranty. |
| PACKAGE | |
| Included Components | 1 × 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel, 12 × 450 Watt Monocrystalline Solar Panels, 4 × 200AH LiFePO4 Battery with Bluetooth, 12 × Sets of Mounting Z-Brackets, 2 × 50 Feet, Solar Extension Cables-Inverter PV input, 1 × 200A DC Breaker, 2 × 25A PV Breakers, 1 × 2/0 AWG Cable (Breaker to Inverter Connection) |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
