Long-life lithium storage
LiFePO4 chemistry is built for deeper cycling, steadier voltage, and a longer service life than traditional lead-acid options.
1 / 9
SunGoldPower

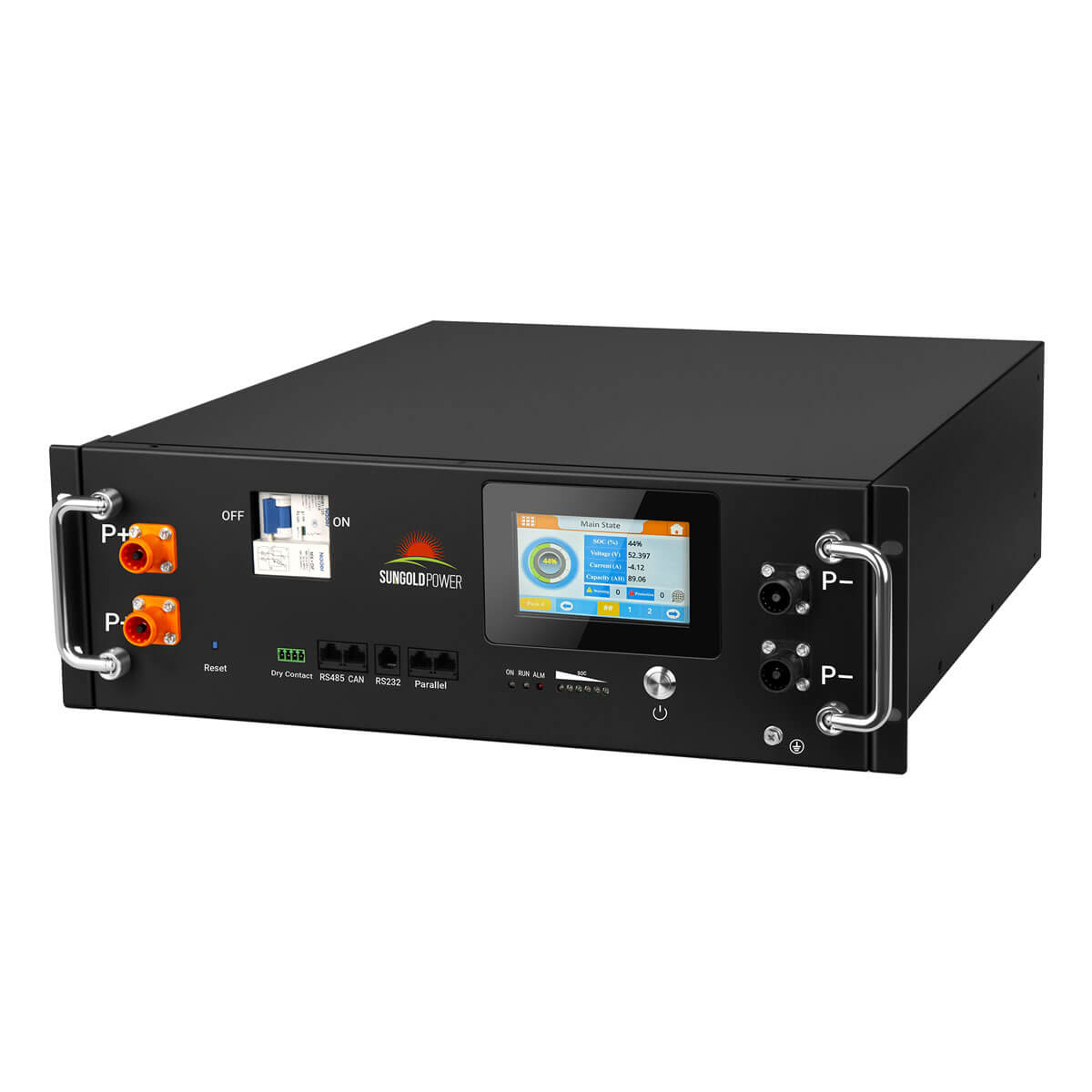

CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack
SKU: CoreX 5 Pro
$1,150.00
$1,438.00
Save $288.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Lithium Battery
CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack
The CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack is built for clean, expandable energy storage in solar, backup, and residential power systems. Its rack-style format makes it easier to scale capacity while keeping battery storage organized and serviceable.
48V100AHServer RackIn StockSKU CoreX 5 Pro
Solar-ready capacity
A strong choice for storing daytime solar production and using that power later when the system needs it most.
Clean rack layout
Designed for organized energy storage builds where multiple batteries may be installed together.
Reliable storage for serious energy use
Battery storage is the foundation of any serious backup or off-grid system. This model is built for customers who want usable capacity, cleaner storage, and a battery format that can support solar charging and daily energy demands.
- Stores solar or grid-charged energy for later use when your system needs it.
- Rack-friendly format keeps larger storage systems cleaner and easier to expand.
- A strong fit for backup power, off-grid systems, RVs, marine use, cabins, and energy storage projects.
- Designed to support deeper cycling and cleaner long-term performance than older battery chemistries.
Compare before choosing
Compare the SGH48100T Server Rack 48V 100AH Lithium Battery Self-Heating by model rating, dimensions and charging or connection limits. Use each product’s exact specifications for your system.
Package Includes
1x CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack
Includes the selected item based on the current package option.
| CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack | |
| Selected variant SKU | CoreX 5 Pro |
|---|---|
| MODEL | |
| Model / SKU | CoreX 5 Pro |
| Product Type | Expansion Battery |
| ELECTRICAL | |
| Battery Chemistry | LiFePO4 with EVE cells |
| Rated Energy | 5.12 kWh |
| Maximum Parallel Units | 15 |
| Configuration | 1P16S |
| Rated Capacity | 100 Ah |
| Rated Voltage | 51.2 V |
| Voltage Range | 43.2-56.8 V |
| Charging Current Limit | 20 A |
| Standard Charge / Discharge Current | 50 A |
| Maximum Charge Current | 95 A |
| Maximum Discharge Current | 100 A |
| Nominal Voltage | 48 V |
| Nominal Capacity | 100 Ah |
| CONNECTIONS | |
| Inverter Communications | CAN and RS485 |
| Communication | CAN and RS485 |
| PHYSICAL | |
| Dimensions | 22.08 × 17.64 × 5.91 in |
| Weight | 94.8 lb |
| OPERATING LIMITS | |
| Cycle Life | 5,000 cycles at 100% depth of discharge to 80% remaining capacity |
| Recommended Use Temperature | 50°F to 113°F (10°C to 45°C) |
| Charge Temperature Range | 39.2°F to 131°F (4°C to 55°C) |
| Discharge Temperature Range | -4°F to 131°F (-20°C to 55°C) |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temperature — Up to 1 Month | -4°F to 113°F (-20°C to 45°C) |
| Storage Temperature — Up to 1 Year | 32°F to 95°F (0°C to 35°C) |
| Ingress Protection | IP20 |
| Maximum Application Altitude | 9,842.5 ft (3,000 m) |
| BMS Protections | Multilayer protection with cell balancing |
| Warranty | 10 years |
| RS485 | RJ45 socket |
| RS232 | RJ11 socket |
| CAN, RS485 | RJ45 socket |
| The APP supports two control methods | Local Control and Remote Control. |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What installation is the CoreX 5 Pro's server-rack format intended for?
The server-rack format is intended for the mounting and service approach shown in the exact product documentation. Preserve required clearances, structural support, terminal protection, ventilation, environmental limits, and safe access for disconnecting the battery.
How should the CoreX 5 Pro communicate with a compatible inverter?
Use only the communication protocol, cable, pinout, and inverter profile documented for this exact battery. Matching voltage is not enough; an unsupported communications connection can leave the inverter using incorrect charge and discharge limits.
How should a larger bank based on the CoreX 5 Pro be balanced?
Use only connection arrangements explicitly approved for CoreX 5 Pro. Match model, capacity, age, firmware, and state of charge; then use balanced busbars or equal-length conductors, individual protection where required, and the documented communication topology.
Will one CoreX 5 Pro support a high-power inverter continuously?
Capacity describes stored energy, not maximum power. Compare the inverter's continuous and surge DC current with the battery BMS, terminal, cable, fuse, and parallel-bank limits; voltage sag, temperature, and state of charge can trigger protection earlier.
How should inverter-charger settings be commissioned for the CoreX 5 Pro?
Use the exact model's permitted charge voltage, current, temperature range, low-temperature behavior, and communication profile. Disable lead-acid features that the manual does not allow, coordinate every charging source, and never exceed the BMS or cell limits.
