Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 450 Watt Solar Panel SGH-11N2E

1 / 13

SunGoldPower

Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 450 Watt Solar Panel SGH-11N2E - SGH-11N2E

Brand SunGoldPower In Stock

$11,950.00 In Stock

No sales tax collected at checkout where applicable.

Bundle Option Choose your bundle

Quantity

Estimated delivery Calculating current delivery window…

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerSunGoldPower warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

SunGoldPower Hybrid Solar Kit

Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 450 Watt Solar Panel SGH-11N2E

The Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 450 Watt Solar Panel SGH-11N2E brings the major pieces of a hybrid solar and backup power system into one matched package. It is built for customers who want solar generation, lithium storage, and inverter power planned together instead of sourcing every component separately.

11.4KW20.48KWH450W48V16 X 450WSplit PhaseHybridLiFePO4

Matched power package

Combines major solar, storage, and inverter components so the system is easier to plan from the start.

Hybrid system flexibility

Supports solar charging, battery storage, and backup power planning for homes and energy storage projects.

Simpler project planning

Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.

A cleaner way to build a complete system

A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.

Built for customers planning a more complete solar and backup power system.
Designed around hybrid energy storage where solar, batteries, and grid/backup needs may work together.
Combines solar charging, lithium storage, and inverter output into one project-focused package.
A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
Helps reduce component-matching guesswork before installation.

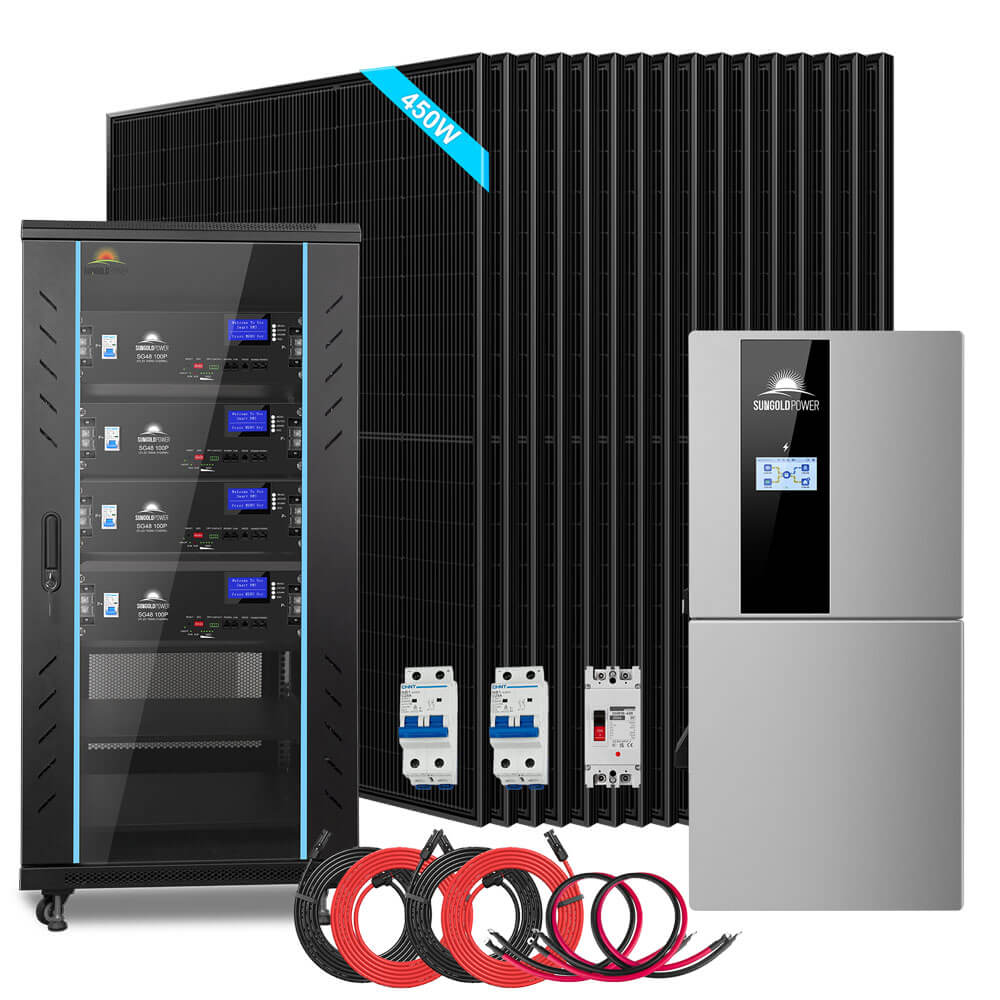

Package Includes

1 11.4KW 48V Split Phase Hybrid Solar Inverter

Package Includes

16 450W Bifacial N-Type Monocrystalline Solar Panels

Package Includes

4 100AH 51.2V LiFePO4 Battery

Package Includes

1 Enclosed Battery Cabinet for 4 X 100AH 51.2V LiFePO4 Batteries

Package Includes

2 50 Feet, Solar Extension Cables-Inverter PV input

Package Includes

2 2/0 AWG Cables (Breaker to Battery or Inverter Connection)

Package Includes

2 25A PV Breakers

Package Includes

1 200A DC Breaker

Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 450 Watt Solar Panel SGH-11N2E
Model SKU	SGH-11N2E
MODEL
Inverter Model	SGN-11K15PRO
Product Type	Solar Power Kit
Available Variants	SGH-11N2E; Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery Without Solar Panels SGH-11N2E-s (SGH-11N2E-s)
ELECTRICAL
CEC Efficiency	96.5%
Maximum PV Input Power	15,000 W
Maximum PV Voltage	600 V
PV Start-Up Voltage	90 V
MPPT Operating Voltage Range	70-540 V
Maximum Input Current per MPPT	30 A / 22 A / 22 A
Maximum Short-Circuit Current per MPPT	40 A / 30 A / 30 A
PV Strings per MPPT	2 / 2 / 2
Number of MPPTs	3
Battery Types	Lithium-ion or lead-acid
Nominal Battery Voltage	51.2 V
Battery Voltage Range	40-64 V
Maximum Battery Charge / Discharge Current	210 A / 210 A
Maximum Battery Charge / Discharge Power	10,000 W / 10,000 W
Nominal Grid AC Output Power	11,400 W
Maximum Grid AC Output Current	47.5 A
Maximum Grid Passthrough Current	200 A
Nominal Grid Voltage	120/240 V split phase or 120/208 V two-thirds phase
Nominal Grid Frequency	50/60 Hz
Grid Frequency Range	45-55 Hz / 55-65 Hz, adjustable
Nominal Load Output Power	11,400 W
Maximum Load AC Output Power	11,400 W at power factor 1
Nominal Load Output Current	47.5 A
Nominal Load Output Voltage	120/240 V split phase or 120/208 V two-thirds phase
Nominal Load Output Frequency	50/60 Hz
Transfer Time	10 ms typical
Surge Arresters	DC Type II and AC Type II
Integrated Battery Breaker	300 A
Integrated Load Breaker	2 × 200 A
11.4KW 48V Split Phase Hybrid Solar Inverter — Maximum PV Voltage	600 V
11.4KW 48V Split Phase Hybrid Solar Inverter — PV Start-Up Voltage	90 V
11.4KW 48V Split Phase Hybrid Solar Inverter — Nominal Battery Voltage	51.2 V
450W Bifacial N-Type Monocrystalline Solar Panels — Bifacial Short-Circuit Current	17.78 A
100AH 51.2V LiFePO4 Battery — Battery Chemistry	LiFePO4
100AH 51.2V LiFePO4 Battery — Nominal Voltage	51.2 V
100AH 51.2V LiFePO4 Battery — Nominal Capacity	100 Ah
100AH 51.2V LiFePO4 Battery — Nominal Energy	5.12 kWh
100AH 51.2V LiFePO4 Battery — BMS Current	100 A
Discharge current	> 1A
Charge current	> 1A
Standard charging current	(25℃):example:0.2C(20A)
Number of cells	96 cells
Module efficiency	ηm (%) 22.5
Solar Array Configuration	16 × 450W panels (7,200W rated total)
Listed Capacity	20.48KWH
Listed System Voltage	48V
Listed Solar Power	11.4KW
CONNECTIONS
Generator Port Capacity	Maximum 100 A / 24,000 W input or output
Communication	CAN for BMS, RS485 for meter, RS485 and CAN for parallel operation; optional Wi-Fi / LAN
PHYSICAL
Mounting	Wall bracket
Inverter Dimensions	17.6 × 35.5 × 10.6 in (448 × 901 × 270 mm)
Inverter Weight	103.6 lb (47 kg)
100AH 51.2V LiFePO4 Battery — Dimensions	19.3 × 18.9 × 5.5 in
100AH 51.2V LiFePO4 Battery — Weight	93 lb
Dimensions (WHD)	17.635.510.6 inch (448901270 mm)
Weight	47 Kg / 103.6 lb
Frame	Black anodized aluminum alloy
OPERATING LIMITS
Protection Category	Class I
Integrated Protections	DC switch, anti-islanding, AC overcurrent, DC/AC overvoltage, AC short circuit, PV reverse connection, insulation-resistance detection, leakage-current protection, AFCI, and RSD monitoring
Maximum Operating Altitude	2,000 m
Ingress Protection	NEMA 3R
Operating Temperature Range	-25°C to 60°C; derates above 45°C
Safety Certifications	UL 1741, CSA C22.2, and UL 1699B
EMC Certification	FCC Part 15 Class B
Grid Certifications	UL 1741SA, UL 1741SB, UL 1741 PCS CRD, IEEE 1547, HECO SRD 2.0, and CSIP
Warranty	5 years standard / 10 years where applicable
Certification	Safety UL 1741/CSA C22.2/UL 1699B
PACKAGE
Included Components	1 × 11.4KW 48V Split Phase Hybrid Solar Inverter, 16 × 450W Bifacial N-Type Monocrystalline Solar Panels, 4 × 100AH 51.2V LiFePO4 Battery, 1 × Enclosed Battery Cabinet for 4 X 100AH 51.2V LiFePO4 Batteries, 2 × 50 Feet, Solar Extension Cables-Inverter PV input, 2 × 2/0 AWG Cables (Breaker to Battery or Inverter Connection), 2 × 25A PV Breakers, 1 × 200A DC Breaker
